Description
Factory-direct SSAW pipe supply — every S355J2H SSAW spiral welded steel pipe ships with original mill test certificates and full SGS/BV inspection availability, eliminating middleman markups on large-diameter casing and piling orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355J2H SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Welded Steel Pipe |
| Steel Grade | Grade B, X42, X46, X52, X56, X60, X65, X70 (API 5L); S355J2H |
| Standard | API 5L |
| Section Shape | Round |
| Size Range | OD 406.4–1524 mm (16–60 in) |
| Length | 5.8–12 m |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Bare / Oiled / Black Painting / Epoxy Painting / 3LPE / FBE |
| Tolerance | ±5% / ±10% |
| Ends | Bevel end with iron protector |
| Application | Oil & gas transport, sewage transport, water well casing, piling, bridge piling, port construction, structural support, fluid transmission |
| Processing Service | Welding, Cutting, Bending |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & Civil Engineering | Bridge piling foundations, port quay wall structural supports, highway sound barrier post foundations |
| Oil & Gas | Onshore and offshore fluid transmission pipelines, gas gathering lines, crude oil trunk lines |
| Water & Utilities | Water well casing pipes, sewage outfall pipelines, municipal water intake structures |
| Marine & Coastal | Jetty piling, breakwater structural columns, dredging discharge pipelines |
What Negative Wall-Tolerance Oversights Cost on a Piling Project
A single percentage point of excess negative tolerance can turn an entire container of casing pipe into scrap at the site inspection stage.
I have watched foundation contractors receive large-diameter S355J2H SSAW spiral welded steel pipe with mill certificates that looked flawless on paper — only for third-party SGS re-inspection to reveal wall thickness deviations far beyond the permissible ±5% threshold. The pipes were rejected on the spot, the project stalled for weeks, and the buyer had to reorder at emergency freight rates. [NEED_CITE: SSAW pipe wall thickness tolerance requirements per API 5L] This is not a rare edge case. When procurement teams source spiral welded pipe from suppliers who cannot guarantee dimensional consistency or provide verifiable original mill test certificates, the hidden cost is never the pipe price — it is the delayed pile-driving schedule and the structural engineer’s rejection report.
Matching Large-Diameter Spiral Pipe to Piling and Casing Demands
Large-diameter SSAW pipe from OD 406.4 mm up to 1524 mm serves foundation applications where single-piece structural capacity matters more than wall thinness. The spiral submerged arc welding process produces a continuous helical weld seam that distributes stress evenly along the pipe body, making S355J2H SSAW spiral welded steel pipe suitable for bridge piling driven into dense soil strata and water well casing subjected to external hydrostatic pressure. Bevel ends with iron protectors allow direct on-site welding between joints, while coating options such as 3LPE and FBE address buried or submerged corrosion environments without adding separate field-applied wrapping steps.
Engineering Compliance and Certification Requirements
Foundation piling and casing pipe used in public infrastructure projects must comply with structural design codes that govern material traceability and mechanical property verification. [NEED_CITE: EN 10210 structural hollow section compliance for hot-finished steel] S355J2H, as a non-alloy structural steel grade with guaranteed impact toughness at sub-zero temperatures, meets the requirements of European and international piling specifications where low-temperature brittleness is a design concern. For projects in North America or the Middle East, API 5L grades from X42 through X70 provide equivalent or higher yield strength coverage for pressurized fluid transmission. Original mill test certificates documenting chemical composition and mechanical properties per heat number are essential for customs clearance in markets with strict import traceability rules — missing or incomplete certificates routinely cause port holds. [NEED_CITE: steel import documentation requirements for mill test certificates]
Steel Grade Selection and SSAW Process Fundamentals

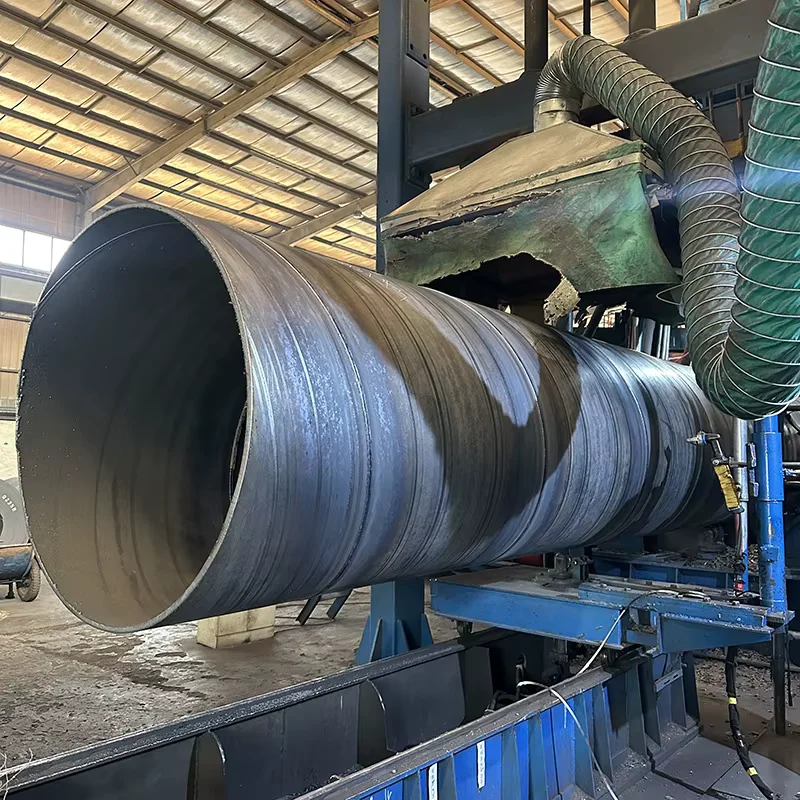

S355J2H belongs to the European non-alloy structural steel series, where the “J2” designation confirms Charpy impact testing at −20 °C and the “H” indicates suitability for hollow structural sections. This makes it a preferred grade for piling and casing applications in cold climates or submerged conditions where brittle fracture risk exists. API 5L grades such as X42, X52, and X65 follow a different naming convention based on minimum yield strength in ksi, commonly specified for oil and gas transmission pipelines. The SSAW manufacturing process forms pipe from hot-rolled steel coil through continuous spiral bending and submerged arc welding, allowing production of large diameters up to 1524 mm from relatively narrow strip widths — a cost advantage over JCOE-formed pipe at equivalent OD. The spiral weld geometry also provides inherent resistance to crack propagation along the seam direction. Surface treatment selection depends on the service environment: bare or oiled pipe suits temporary casing or indoor structural use, black bituminous painting addresses mild buried conditions, while 3LPE and FBE coatings provide long-term corrosion protection for offshore piling and buried pipelines.
Hidden Costs of Procuring Without Verified Certification
Purchasing large-diameter spiral welded pipe without confirmed original mill test certificates exposes buyers to material substitution risk, where the delivered steel grade does not match the ordered specification. The consequences extend well beyond the pipe cost: failed third-party inspection at the destination port triggers customs detention, structural engineers may reject the entire batch if impact test results are absent or inconsistent, and project timelines collapse while replacement material is sourced. [NEED_CITE: consequences of non-compliant steel material certification in construction projects] Negative tolerance abuse — where actual wall thickness falls systematically below the ordered specification — reduces load-bearing capacity and can void structural design calculations, creating liability exposure for the end user.
Why Global Buyers Source S355J2H SSAW Pipe Through Us

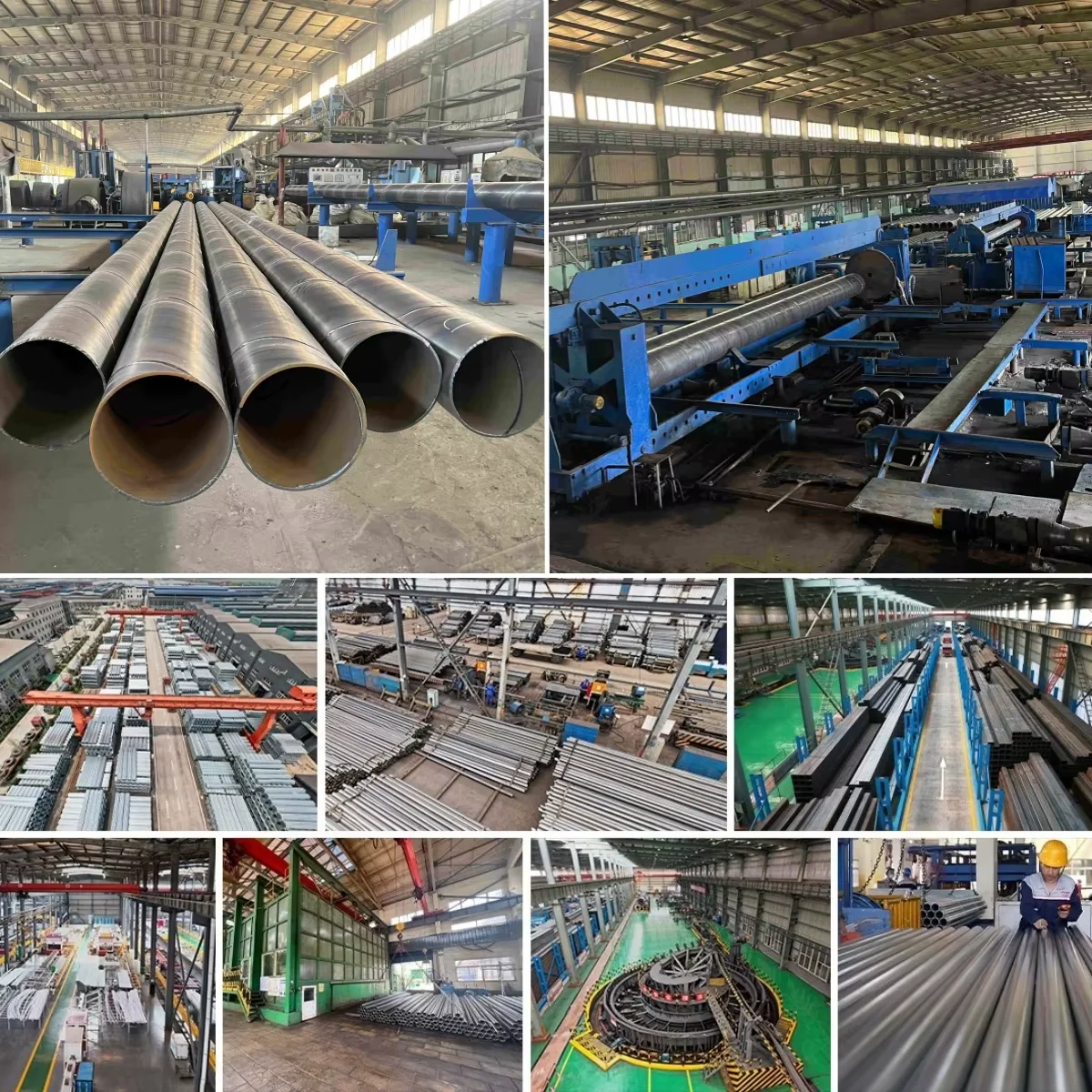

Our factory operates three dedicated SSAW production lines running simultaneously, delivering monthly capacity exceeding 20,000 tons of spiral welded pipe across all major diameter ranges. Every S355J2H SSAW spiral welded steel pipe we produce carries original mill test certificates issued from our in-house metallurgical laboratory, with chemical composition and mechanical test results traceable to individual heat numbers. Buyers requesting independent verification can arrange SGS or BV third-party inspection at our facility before shipment — we accommodate these inspections routinely and factor them into loading schedules. Our inventory covers standard specifications for immediate dispatch, while custom orders in non-standard OD, wall thickness, or length follow typical production lead times. Factory-direct pricing applies to all orders with no intermediary markup, and volume discount programs reward long-term procurement partnerships. Professional export documentation handling ensures that packing lists, bills of lading, certificates of origin, and mill certificates are prepared correctly for the destination market’s customs requirements.
Documentation & Compliance
- Mill test certificate documenting S355J2H chemical composition and mechanical properties per heat number, issued from our in-house laboratory
- CE certificate conforming to EN 10210 / EN 10219 for structural hollow sections, supporting European market customs clearance
- ISO 9001:2015 quality management system certificate covering the full SSAW production process
- SGS or BV third-party inspection report available on request, covering dimensional checks, weld seam integrity, and coating thickness verification
- Full material traceability linking each pipe to its heat number and production batch for project audit compliance
- Complete customs document package including packing list, bill of lading, and certificate of origin prepared for the destination market
Packaging, Loading & Delivery

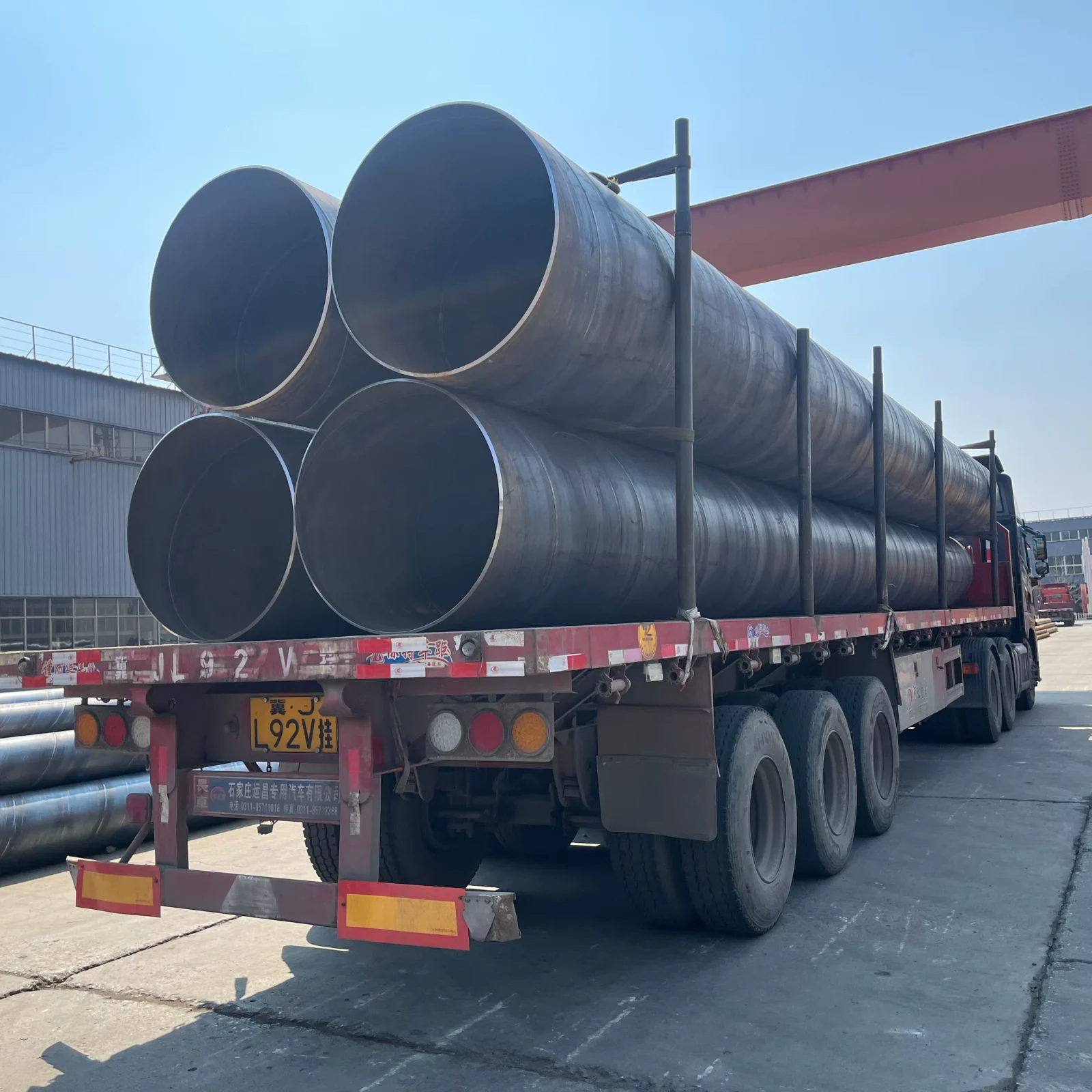

- S355J2H SSAW spiral welded steel pipe bundled with steel strips and edge protectors, sized for 5.8 m and 12 m standard lengths to maximize container utilization
- Bevel ends fitted with iron protectors to prevent damage during handling and ocean transit, preserving weld preparation geometry
- Surface-coated pipe (3LPE, FBE, or black painting) wrapped with protective film to prevent coating abrasion during loading and shipping
- Container loading plans optimized for large-diameter pipe nesting, reducing per-unit freight cost on 40ft open-top and flat-rack shipments

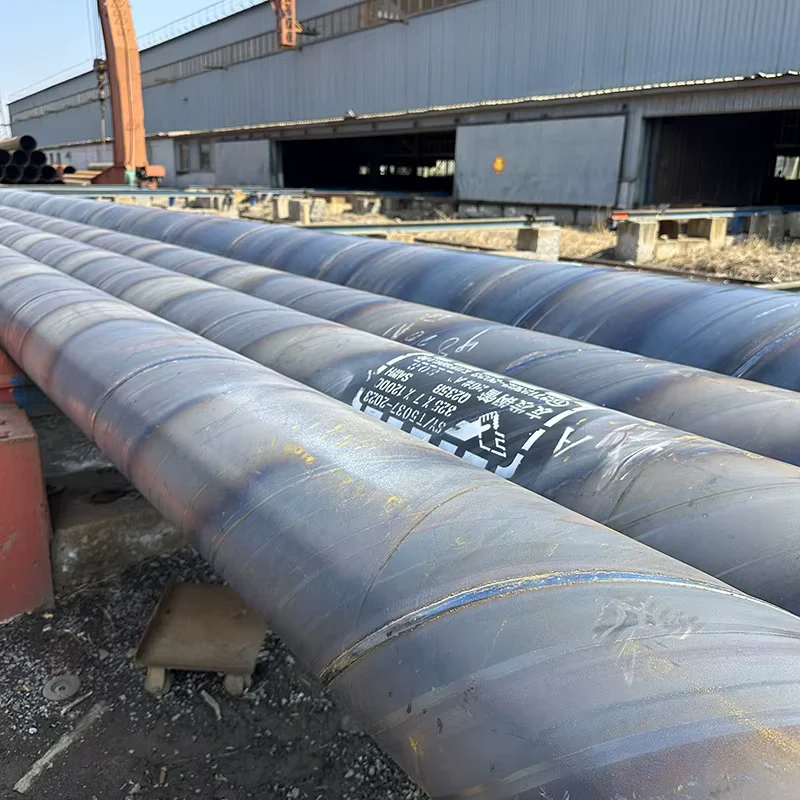

- Heat number and steel grade stenciled on each pipe end for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional coordination for port clearance and inland delivery
Start Your S355J2H SSAW Pipe Inquiry
Submit your required outer diameter, wall thickness, length, steel grade, and destination port to receive a competitive bulk quotation with volume pricing, delivery schedule, and sample mill test certificate documentation. Our team responds within hours with a complete offer covering factory-direct pricing, coating options, and third-party inspection arrangements.
Request Your S355J2H SSAW Spiral Welded Steel Pipe Quote
Send your specifications, quantity, and destination to receive bulk pricing and original mill test certificate samples.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxinjiyuan.com
Frequently Asked Questions
Q: What steel grades are available for SSAW spiral welded steel pipe?
A: We produce SSAW spiral welded steel pipe in API 5L grades including Grade B, X42, X46, X52, X56, X60, X65, and X70, as well as S355J2H for structural and low-temperature piling and casing applications.
Q: Can third-party inspection be arranged before shipment?
A: SGS and BV third-party inspections are available on request. We schedule these inspections during the production and loading process, covering dimensional verification, weld seam testing, coating thickness measurement, and mill test certificate cross-checking.
Q: What surface coating options are available for buried or offshore piling applications?
A: S355J2H SSAW spiral welded steel pipe can be supplied with bare, oiled, black bituminous painting, epoxy painting, 3LPE, or FBE surface treatment, selected based on the corrosion environment and design service life of the project.
Q: What is the diameter range for SSAW spiral welded pipe?
A: Our SSAW production lines cover outer diameters from 406.4 mm to 1524 mm (16 to 60 inches), with standard lengths of 5.8 m and 12 m. Custom lengths and non-standard wall thicknesses are available for project-specific orders.
Q: How are mill test certificates provided?
A: Every batch of S355J2H SSAW spiral welded steel pipe ships with original mill test certificates documenting chemical composition and mechanical properties, traceable to individual heat numbers. Certificates are included in the shipping document package.
