Description
Factory-Direct Galvanized SHS Supply — Full-size ready stock of Q235B galvanized square steel tube from 20×20 mm to 500×500 mm, shipped with original mill test certificates and CE certification for project compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Galvanized Square Steel Tube |
| Product Type | Galvanized Square Hollow Section (SHS) |
| Steel Grade | Q195, Q235, Q235B, Q345, S235JR, A53, St37, St52 |
| Standard | JIS, ASTM A106, GB, BS, DIN |
| Section Shape | Square and Rectangular |
| Size Range | 20×20 mm – 500×500 mm (Square); 20×40 mm – 300×500 mm (Rectangular) |
| Wall Thickness | 0.3 – 20 mm |
| Length | 2.0 – 12 m |
| Technique | Cold bending + high-frequency welding (ERW); Hot-dip or cold galvanization |
| Surface Treatment | Galvanized (Zinc coating 60 – 600 g/m²) |
| Tolerance | ±5% |
| Ends | Plain ends; Cutting available |
| Processing Service | Welding, Punching, Cutting, Bending |
| Application | Construction, Steel structures, Solar structures, Fence posts, Greenhouse frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building | Building frames, column supports, roof trusses, scaffolding uprights |
| Solar Energy | Solar panel mounting structures, ground screw bases, tracker frames |
| Agriculture | Greenhouse frames, irrigation support posts, livestock fencing structures |
| Infrastructure | Highway guardrail posts, signage gantry frames, utility pole bases |
| Industrial Fabrication | Machine guards, conveyor frames, equipment support stands |
Where Negative Tolerance Turns a Bulk Order into a Customs Rejection
A Q235B galvanized square steel tube that measures under-spec at the port of arrival will not pass inspection — and the cost falls on the buyer, not the mill.
I learned this the hard way when a Saudi client received a container of 40×40 mm square tubes at Jeddah port. The third-party inspector pulled out a caliper and found the wall thickness measured 2.6 mm instead of the specified 3.0 mm. Negative tolerance had exceeded acceptable limits. The entire container was held at customs, storage fees accumulated daily, and the profit margin was wiped out before a single tube reached the job site. Since then, I verify wall thickness with a caliper on every batch before loading — not as a formality, but as a non-negotiable checkpoint.
For importers and project buyers, the risk is not theoretical. Inconsistent wall thickness leads to structural load miscalculations, failed engineering inspections, and project delays. When a Q235B galvanized square steel tube supplier ships material without verified dimensional accuracy, the buyer inherits liability for non-compliant construction. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed hollow sections]
How Q235B Galvanized SHS Performs in Corrosive Structural Environments
The zinc coating on a Q235B galvanized square steel tube acts as both a physical barrier and a sacrificial anode. Hot-dip galvanization deposits 200–600 g/m² of zinc, providing corrosion protection suitable for outdoor structural applications including solar mounting systems, greenhouse frameworks, and coastal construction. Cold galvanization at 60–120 g/m² serves interior or low-exposure environments where cost optimization matters more than long-term weathering resistance.
Our production lines run hot-dip and cold-dip processes simultaneously, allowing buyers to specify coating weight based on project environment rather than accepting a single default option. This flexibility matters when sourcing a Q235B galvanized square steel tube for mixed-use projects — some components face salt spray, others sit inside climate-controlled warehouses.
Engineering Compliance and Certification Requirements for Structural Hollow Sections
Structural hollow sections used in load-bearing applications must meet dimensional and material standards recognized by local building codes. For European markets, EN 10210 (hot-finished) and EN 10219 (cold-formed) define the dimensional tolerances, chemical composition limits, and mechanical property requirements that customs authorities and engineering consultants verify before approving material for use. A Q235B galvanized square steel tube shipped without CE documentation faces rejection at EU ports regardless of whether the steel itself meets the grade specification.
For projects in Southeast Asia, the Middle East, and Africa, ASTM and JIS standards often apply alongside local certification requirements. The key is ensuring that mill test certificates reference the correct standard designation and that third-party inspection reports confirm both chemical composition and dimensional accuracy. [NEED_CITE: steel grade equivalence between GB Q235B and international standards]
Understanding Steel Grade Selection and Galvanization Process for Square Tubes
Q235B belongs to the Chinese GB standard system and corresponds roughly to S235JR in the EN system and A36 in ASTM. The “Q” indicates yield strength, and “235” specifies the minimum yield value in MPa. For general structural applications — building frames, fencing, greenhouse supports — Q235B provides adequate strength at competitive pricing. When projects require higher load capacity, Q345 offers increased yield strength while maintaining weldability and formability.
The galvanization process directly affects corrosion resistance and surface appearance. Hot-dip galvanization immerses the formed square tube in molten zinc, creating a metallurgical bond that produces a spangled finish with coating thickness typically exceeding 200 g/m². This method suits outdoor and corrosive environments. Cold galvanization, or electro-galvanizing, deposits a thinner zinc layer through electrolysis, resulting in a smoother, more uniform appearance preferred for visible architectural applications where extreme corrosion protection is unnecessary.
Wall thickness tolerance of ±5% means a specified 3.0 mm wall can legally measure between 2.85 mm and 3.15 mm. Buyers ordering by theoretical weight should understand that actual weight varies within this range, affecting both material cost and structural calculations.
The Hidden Cost of Sourcing Without Verified Mill Certificates
Purchasing a Q235B galvanized square steel tube based on price alone, without verified mill test certificates and dimensional inspection reports, exposes buyers to multiple failure points. Material that does not match the specified steel grade fails structural engineering calculations. Coating weight below specification corrodes prematurely, requiring replacement before project completion. Missing CE or ISO documentation delays customs clearance, triggering storage fees and schedule overruns.
These costs compound when buyers source from multiple suppliers for different product categories — pipes, plates, sections, and fabrication — each with separate documentation requirements and inconsistent quality control. [NEED_CITE: importance of material traceability in structural steel procurement]
Why Project Buyers Choose Our Galvanized Square Tube Supply
We operate three production lines running simultaneously, producing over 20,000 tons monthly across 2,800+ specifications. This capacity allows us to hold ready stock in standard sizes while fulfilling custom orders within typical production lead times. Every batch ships with original mill test certificates documenting chemical composition and mechanical properties per the specified standard.
Our quality control includes in-house dimensional verification using calibrated calipers and coating thickness gauges. Third-party inspection through SGS or BV is available upon request for buyers who require independent verification. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, and factory production control certification — documentation that satisfies customs requirements across European, Middle Eastern, and African markets.
For buyers consolidating multiple steel products into single shipments, we provide optimized container loading plans that maximize weight utilization while protecting galvanized surfaces during transit. This capability reduces freight costs and eliminates the coordination burden of managing multiple suppliers.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Mn, Si, P, S content) and yield strength per GB/T 700 standard
- CE certificate confirming compliance with EN 10210 for hot-finished or EN 10219 for cold-formed hollow sections
- ISO 9001:2015 quality management system certificate covering production and inspection processes
- SGS or BV third-party inspection report verifying dimensional accuracy and zinc coating weight
- Material traceability documentation linking each bundle to heat number and production batch
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

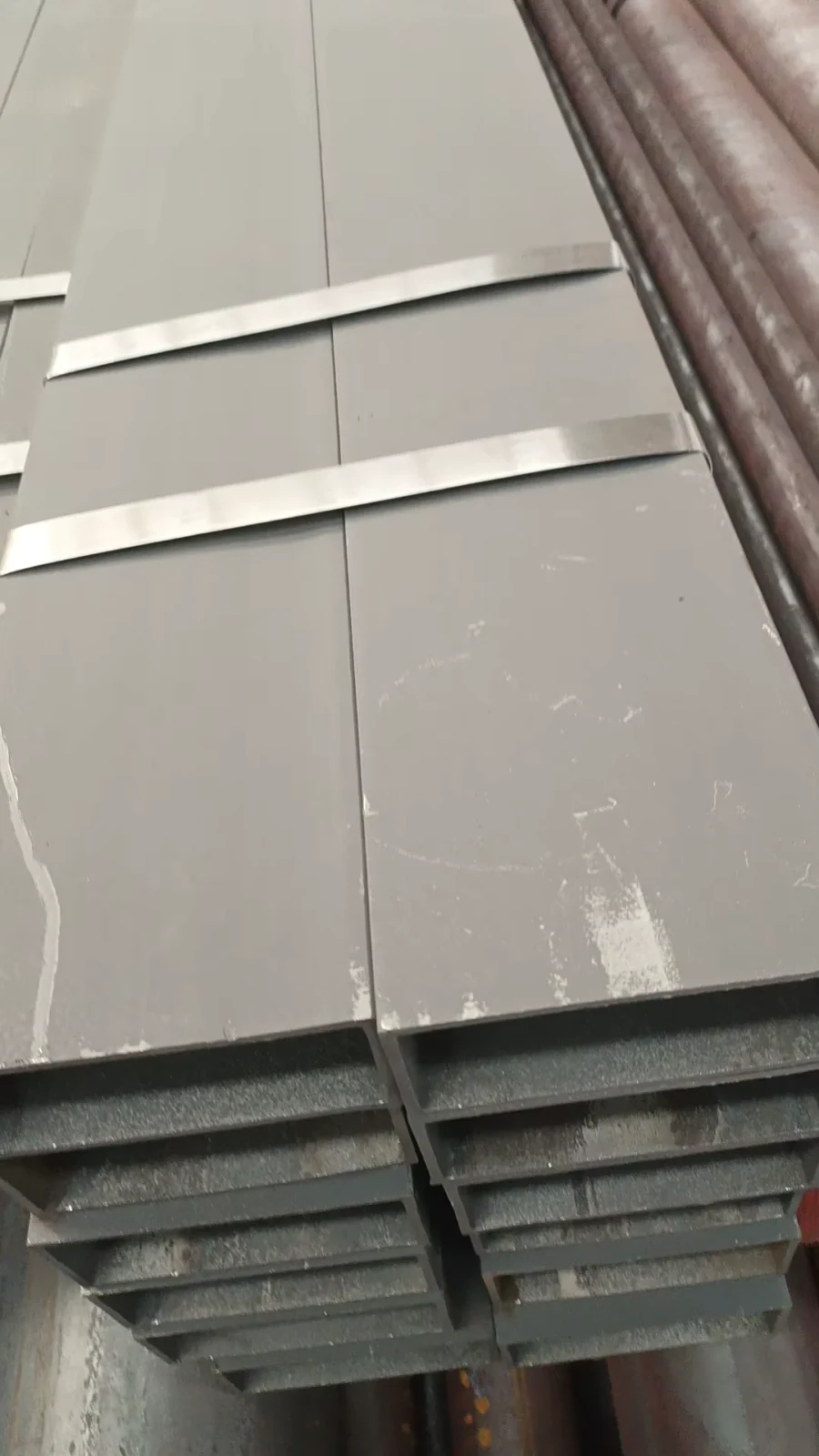

- Galvanized square tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Surface protection maintained through proper stacking separation and moisture barriers for 60–600 g/m² coating weights
- Container loading optimized for 20×20 mm to 500×500 mm size range, maximizing weight per 20ft or 40ft container
- Custom cutting to 2.0–12 m lengths available, with cut ends deburred and protected
- Heat number and steel grade marked on each bundle for site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional export documentation handling
Start Your Procurement with Verified Specifications
Submit your requirements including section dimensions, wall thickness, steel grade, quantity, and destination port to receive a detailed quotation with volume pricing and delivery schedule. We provide mill test certificates and third-party inspection options before contract signing, ensuring material compliance is confirmed prior to production or shipment.
Request Your Q235B Galvanized Square Tube Quotation
Send specifications via email or WhatsApp to receive pricing, available stock confirmation, and certification documentation within 12 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Email: admin@sdxinjiyuan.com
Mobile/WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between hot-dip and cold-dip galvanized square tubes?
A: Hot-dip galvanization produces zinc coating of 200–600 g/m² through immersion in molten zinc, providing superior corrosion resistance for outdoor and harsh environments. Cold galvanization deposits 60–120 g/m² through electroplating, offering a smoother finish suitable for interior or low-exposure applications at lower cost.
Q: Can you supply non-standard sizes and what is the MOQ for custom orders?
A: We produce square tubes from 20×20 mm to 500×500 mm and rectangular tubes from 20×40 mm to 300×500 mm with wall thickness 0.3–20 mm. Custom sizes outside standard ranges are available with MOQ starting from 1 ton, depending on specification complexity.
Q: How do you ensure material traceability and provide mill test certificates for customs clearance?
A: Every production batch is assigned a heat number linking material to chemical composition and mechanical test results. Original mill test certificates ship with each order, and third-party inspection through SGS or BV is available for independent verification.
Q: What is the difference between theoretical weight and actual weight, and how does tolerance affect pricing?
A: Theoretical weight is calculated from nominal dimensions, while actual weight varies within ±5% tolerance. Buyers ordering by theoretical weight should understand that physical weight and material cost reflect actual measurements, which affects both pricing and structural calculations.
Q: Do you offer consolidated multi-product container loading for mixed steel orders?
A: Yes, we consolidate square tubes, rectangular tubes, round pipes, steel plates, and section steel into optimized container loads. This reduces freight costs and simplifies documentation for buyers sourcing multiple steel categories from a single supplier.
