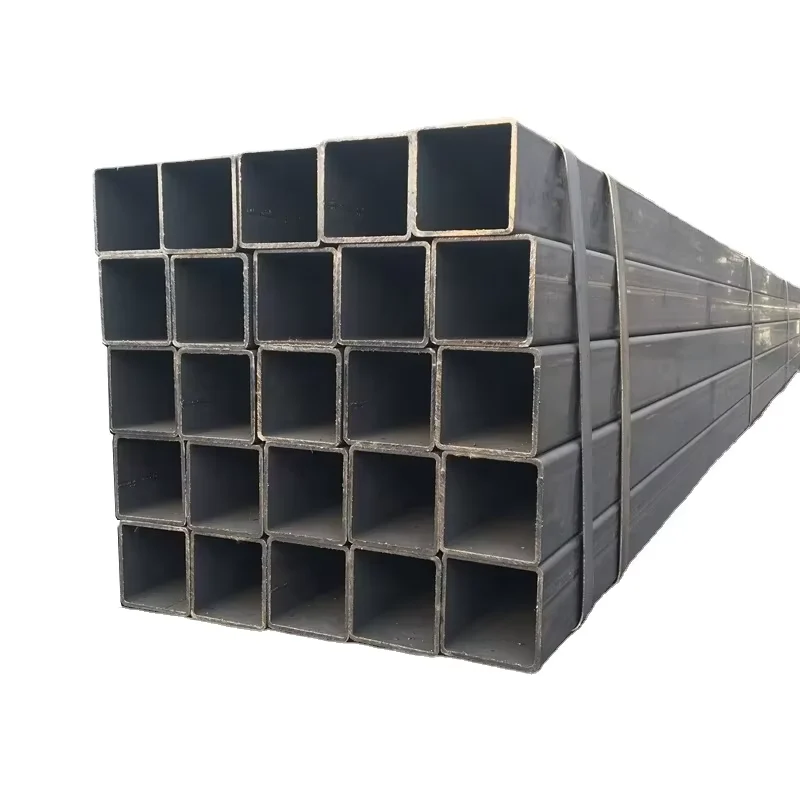

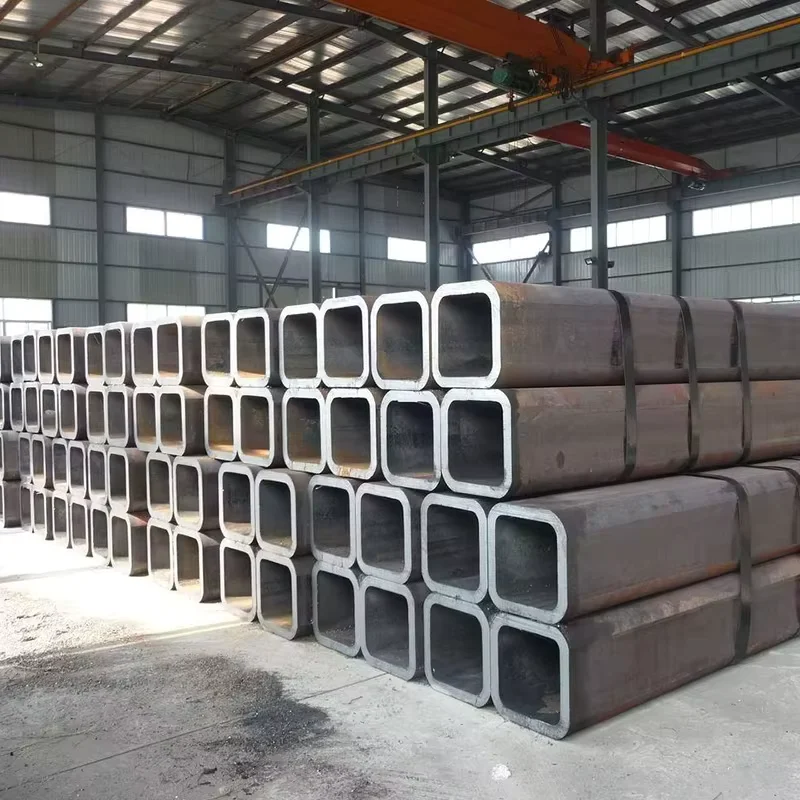

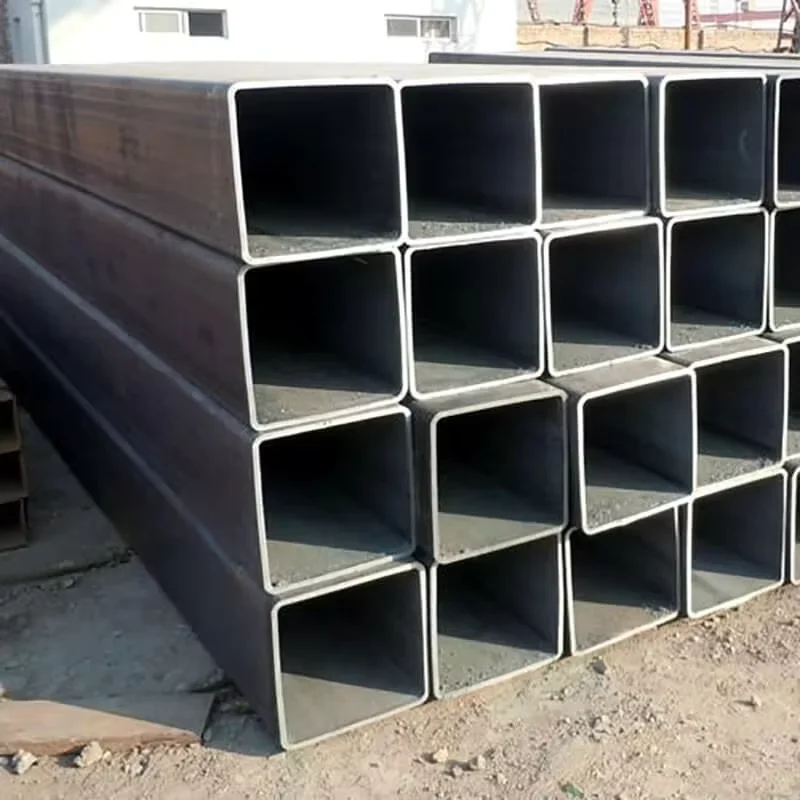

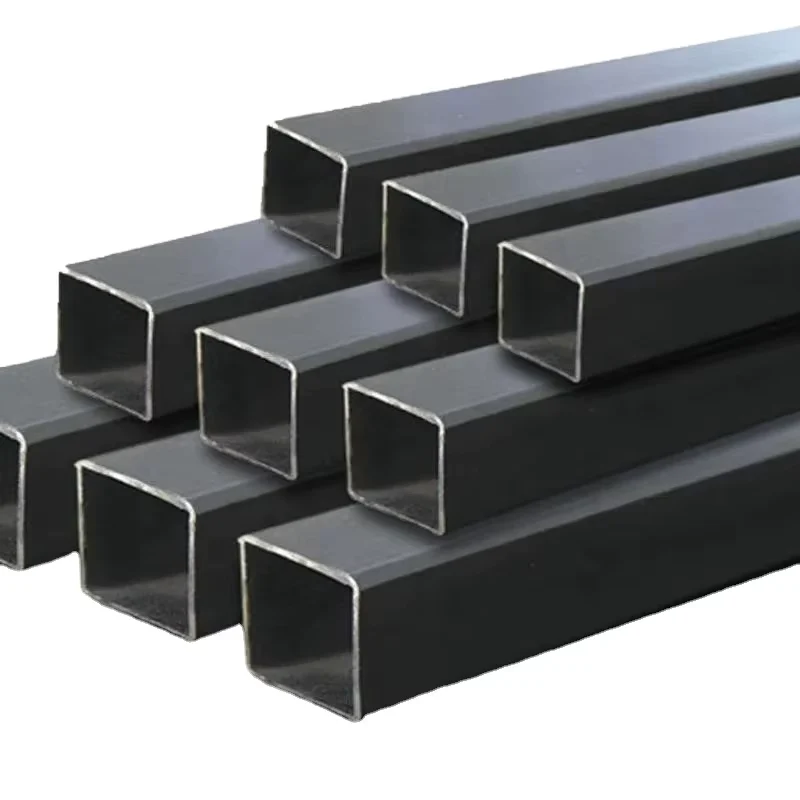

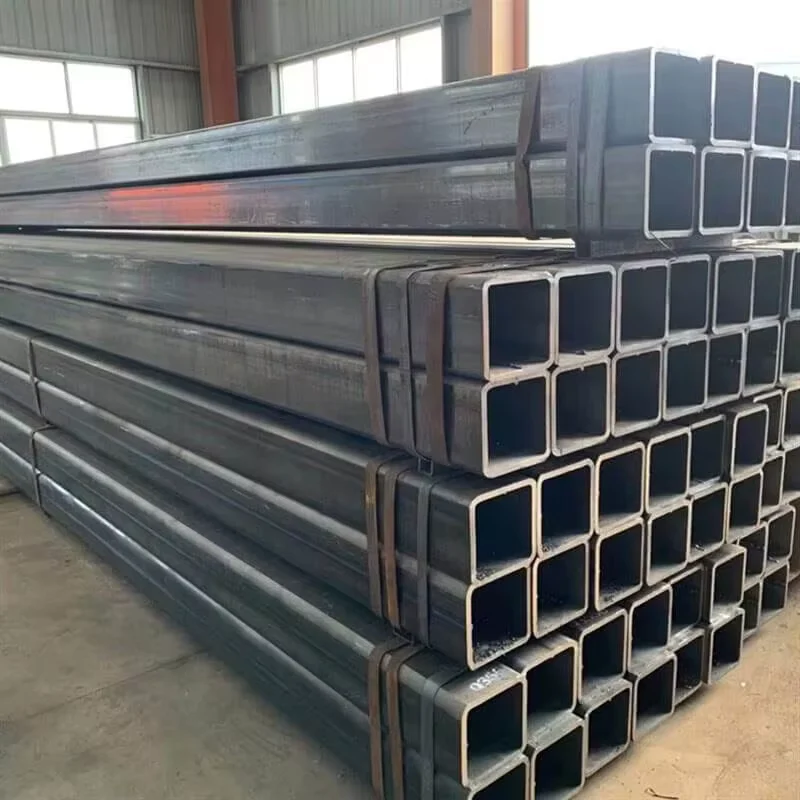

Q235 Q345 S355J2 ERW Square Rectangular Steel Tube Factory Direct Supplier

Description

Factory-Direct ERW Hollow Sections — Shandong Xin Jiyuan runs three production lines with 20,000+ tons monthly capacity, supplying Q235/Q345/S355J2 square and rectangular tubes directly to global buyers without broker markups.

Technical Specifications

Application Suitability

When Wall-Thickness Tolerance Decides Your Project Budget

A ±1% tolerance on an 800×800×50mm tube means the difference between passing structural inspection and scrapping an entire container at the port.

Procurement teams ordering Carbon Steel ERW Square Rectangular Steel Tube for load-bearing frames often discover too late that their supplier’s tolerance claims were optimistic. When wall thickness drifts beyond ±1%, theoretical weight calculations no longer match actual payload — and customs agents in the Middle East and Southeast Asia have begun flagging shipments where declared weight deviates from measured weight by more than a narrow margin [NEED_CITE: weight tolerance enforcement at Middle East ports for structural steel]. Meanwhile, fragmented sourcing — buying tubes from one factory and plates from another — multiplies coordination costs and leaves gaps in material traceability that can stall project handover.

Matching Section Dimensions to Structural Load Paths

Square and rectangular hollow sections in the 15×15mm to 800×800mm range cover everything from light-gauge scaffolding uprights to heavy-duty column sections in industrial warehouses. The closed cross-section of these Carbon Steel ERW Square Rectangular Steel Tube products delivers superior torsional rigidity compared to open profiles, making them the preferred choice for moment-resisting frames where lateral stability matters. For corrosion-prone environments — coastal construction, chemical plant walkways, agricultural structures — hot-dip galvanized coatings extend service life without adding field-maintenance cycles. Our production lines run standard sizes in ready stock while custom lengths and non-standard wall thicknesses roll within typical production lead times.

Engineering Compliance Across EN, ASTM, and GB Frameworks

Structural engineers specifying these hollow sections must confirm that the steel grade meets the governing design code — EN 1993 for European projects, AISC 360 for North American work, or GB 50017 for domestic Chinese construction. Carbon Steel ERW Square Rectangular Steel Tube produced to EN 10219 carries CE marking under the Construction Products Regulation, which is mandatory for customs clearance in EU member states [NEED_CITE: EN 10219 cold-formed hollow section CE marking requirements]. For projects in the Gulf or Africa where ASTM A53 and A500 dominate, supplying mill test certificates that cross-reference S235JR to ASTM equivalents prevents documentation disputes at the port of entry. End preparation — plain, beveled, or threaded — should align with the field connection method specified in the erection drawings to avoid costly rework on site.

Steel Grade Selection and ERW Weld Integrity

The grade range spanning Q195 through Q345 (GB), S235JR through S355J2 (EN), and ASTM A53/A106 covers low-stress bracing members up to primary structural columns. Moving from S235JR to S355J2 increases yield strength, allowing thinner wall sections for the same load capacity — reducing both material cost and self-weight on the foundation. The ERW welding process used for these Carbon Steel ERW Square Rectangular Steel Tube products produces a longitudinal seam that undergoes inline ultrasonic testing; our in-house lab runs three-stage inspection covering dimensional checks, weld seam integrity, and surface coating thickness. Hot-dip galvanizing after forming ensures full zinc coverage including the weld zone, whereas electro-galvanized or painted finishes suit indoor or temporary applications where corrosion exposure is limited. Wall thickness from 1mm to 50mm means the same product family serves both light partition framing and heavy industrial columns — but the tolerance discipline required at the thin end is far more demanding than at the thick end.

The Hidden Cost of Unverified Material Claims

Ordering Carbon Steel ERW Square Rectangular Steel Tube based on price alone, without verified mill test certificates, exposes projects to three failure modes: material grade substitution that fails structural audit, coating thickness below specification that accelerates corrosion, and dimensional non-conformance that triggers rejection during erection. In markets with tightening import controls, customs authorities increasingly demand third-party inspection reports alongside commercial invoices [NEED_CITE: third-party inspection requirements for structural steel imports in GCC countries]. A shipment held at the port for documentation disputes costs more in demurrage than the original price difference between a verified supplier and an unverified one.

Why Global Buyers Source ERW Hollow Sections From Jinan

Shandong Xin Jiyuan operates three simultaneous production lines with monthly capacity exceeding 20,000 tons, producing Carbon Steel ERW Square Rectangular Steel Tube across 2,800+ specifications — meaning most standard sizes ship from ready stock without waiting for a production slot. Factory-direct pricing eliminates broker margins, and volume discount programs reward long-term procurement partners. Every batch carries original mill test certificates documenting chemical composition and mechanical properties per the specified standard, with SGS or BV third-party inspection available on request. Our professional export team handles container loading optimization — critical for heavy sections in the 400×400mm to 800×800mm range where improper stowage wastes cubic capacity — and manages complete documentation packages including certificate of origin, packing lists, and bills of lading. Custom orders for non-standard lengths, special end preparation, or specific coating thickness roll within typical production lead times, with flexible MOQ starting from 1 ton for trial orders.

Documentation & Compliance

• Mill test certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB/T 6728 for each heat number
• CE certificate confirming EN 10210/EN 10219 compliance for S235JR/S275JR/S355J2 hollow sections destined for EU markets
• ISO 9001:2015 quality management certificate covering the full production and inspection workflow
• SGS or BV third-party inspection report verifying coating thickness, dimensional tolerance, and weld seam quality upon request
• Material traceability by heat number linking each tube to its original slab chemistry and rolling record
• Customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination-port requirements

Packaging, Loading & Delivery

• ERW square and rectangular tubes bundled with steel strip ties and edge protectors, sized to match 6m or 12m standard lengths for container optimization
• Hot-dip galvanized Carbon Steel ERW Square Rectangular Steel Tube wrapped with waterproof paper and dunnage to preserve zinc coating integrity during ocean transit
• Container loading plans optimized for heavy-wall sections (20mm–50mm wall thickness in 800×800mm format) to maximize payload without exceeding port weight limits
• Custom cut-to-length service available for non-standard project dimensions, reducing on-site cutting waste for construction crews
• Heat number and steel grade stenciled on each tube end for immediate site identification and traceability verification
• FOB, CIF, and DDP terms supported with professional logistics coordination from Jinan inland depot to destination port

Securing Your Quote with Complete Technical Requirements

Submit your specification sheet — section dimensions, wall thickness, steel grade, surface treatment, quantity, and destination port — to receive a competitive bulk quotation with volume pricing and delivery timeline. For non-standard sizes or project-specific coating requirements, our engineering team will confirm feasibility and lead time before you commit. All quotations include the documentation package your customs broker and project inspector will require.

Start Your Procurement with Verified Mill Documentation

Send your specifications via email or messaging to receive factory-direct pricing and mill test certificates within one business day.

Shandong Xin Jiyuan Special Steel Tube Co., Ltd

Website: www.sdxinjiyuan.com

Tel: +86 531 8573 6315

Mobile/WhatsApp/WeChat: +86 188 5315 7756

Email: admin@sdxinjiyuan.com

Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China

Frequently Asked Questions

Q: How do Q235/Q345 (GB) grades compare to S235JR/S355J2 (EN) and ASTM A53?

A: These grades belong to different national standard systems but share similar mechanical property ranges. Q235B roughly corresponds to S235JR in yield strength category, while Q345B aligns with S355JR/J2. We supply all three systems and can provide cross-reference documentation for projects requiring grade equivalence confirmation.

Q: Can you provide mill test certificates and third-party inspection reports for customs clearance?

A: Yes. Every shipment includes original mill test certificates documenting chemical composition and mechanical properties per the ordered standard. SGS or BV third-party inspection is available on request, with reports issued before container sealing to support customs clearance at your destination port.

Q: What is the MOQ for non-standard sizes and custom lengths?

A: Our flexible MOQ starts from 1 ton, supporting both trial orders and full-container bulk purchases. Standard sizes ship from ready stock, while custom dimensions and special coating requirements are produced within typical production lead times.

Q: When should I choose hot-dip galvanized versus painted or 3LPE coated finish?

A: Hot-dip galvanizing provides the longest corrosion protection for outdoor and marine environments. Painted or varnished finishes suit indoor or temporary applications. 3LPE/3LPP coating is specified for buried or submerged pipelines in oil and gas projects. We produce all options on the same hollow section platform.

Q: How do you optimize container loading for heavy steel tubes?

A: Our export team prepares loading plans based on section dimensions and wall thickness to maximize payload within container weight limits. Heavy-wall sections in large dimensions (400×400mm to 800×800mm) require careful weight distribution, and we coordinate with logistics partners to ensure port-compliant loading.
