Description

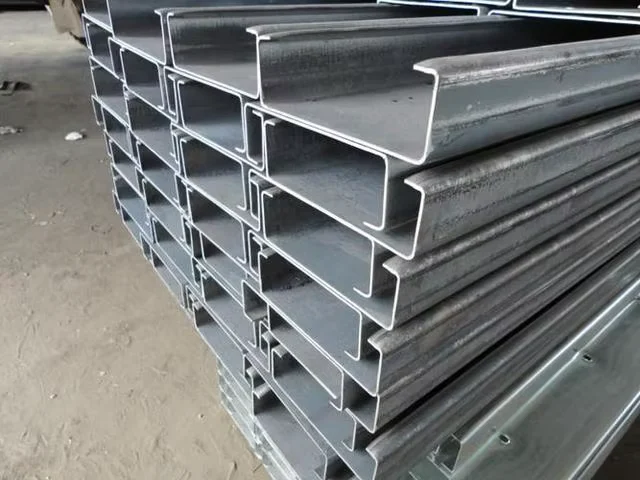

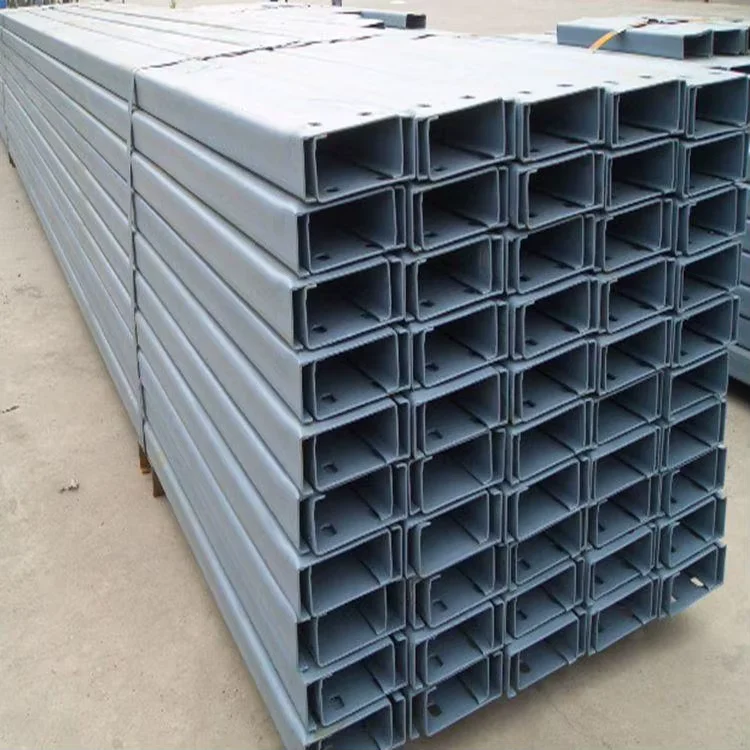

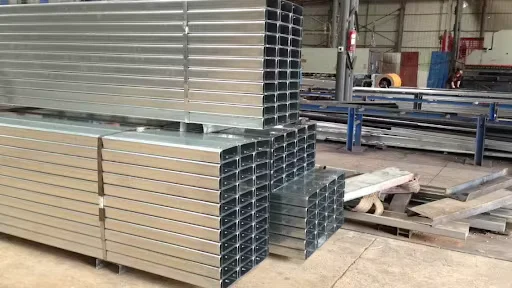

Factory-Direct Galvanized C Channel Steel — Shandong Xin Jiyuan produces DX51D, S235JR, and ASTM A36 profiles on three rolling lines with original mill test certificates for every heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | DX51D / S235JR / ASTM A36 Galvanized C Channel |
| Product Type | C Channel / U Channel (GI Carbon Steel Profile) |
| Steel Grade | DX51D, S235JR, ASTM A36, Q235, Q235B, Q345, Q195, SPHC, SPCC |
| Standard | ASTM, AISI, JIS, GB, DIN, GB/T2101-89, GB9787-88, GB9788-88, JIS G3192-94, DIN17100-80 |
| Section Shape | C Channel / U Channel |
| Size Range | Equal: 20×20–200×200 mm; Unequal: 25×16–200×125 mm |
| Wall Thickness | 3–24 mm |
| Length | 1–12 m or customized |
| Technique | Hot Rolled |
| Surface Treatment | Galvanized, Painted |
| Tolerance | ±1% |
| Ends | Plain / Cut |
| Application | Construction structures, Building frames, Bridges, Transmission towers, Lifting and transportation machinery, Ship building, Container frames, Cable trench supports, Warehouse shelves, Industrial platforms |
| MOQ | 3 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, bridge support structures, transmission tower cross-arms, cable trench covers |
| Industrial Storage | Warehouse pallet racking uprights, container frame corner posts, mezzanine floor beams |
| Machinery & Equipment | Lifting machinery base frames, conveyor support legs, industrial platform stringers |
| Marine & Shipbuilding | Deck hatch coamings, cable tray supports, equipment mounting brackets |
What Dimensional Tolerance Costs on a Galvanized C Channel Structural Frame Order
Tight ±1% tolerance prevents cumulative misalignment across bolted connections.
When galvanized C channels arrive with oversized flanges or inconsistent web depth, fitters on site spend hours grinding or re-drilling before a single bolt goes in. On a warehouse racking project in Southeast Asia, a 2 mm deviation across 6-meter uprights translated into 12 mm of lean at the top beam — enough to fail the plumb check and delay handover by a week. The real cost is not the rework labor; it is the crane idle time and the rescheduled inspection crew. As a Galvanized C Channel Steel Supplier, we hold ±1% on every hot-rolled run because our in-house lab checks dimensional accuracy before the zinc bath, not after.
Matching Galvanized C Channels to Corrosive Environments and Load Paths
Hot-dip galvanized DX51D channels carry a zinc coating that resists atmospheric corrosion for decades in tropical port cities and industrial zones where painted carbon steel would rust within two seasons. The galvanized C Channel Steel Supplier ships profiles with coating thickness verified against GB/T 13912 or ASTM A123, depending on destination. For indoor warehouse shelving where appearance matters more than corrosion resistance, painted Q235B channels offer a cost-effective alternative. Our production team consolidates mixed surface treatments into a single container — galvanized uprights for the exterior canopy, painted beams for interior racks — reducing freight cost per ton.
Structural Compliance and Certification for Global Projects
Engineering specifications for transmission towers and bridge supports typically call for compliance with EN 10219 cold-formed hollow section requirements or equivalent ASTM A500 Grade B/C structural criteria [NEED_CITE: EN 10219 cold-formed hollow section requirements]. Galvanized C channels in S235JR meet the yield strength threshold for European civil works, while ASTM A36 satisfies North American AISC design codes. Every shipment leaves Jinan with original mill test certificates documenting chemical composition and mechanical properties per heat number. For EU-bound projects, Lloyd’s CE certification under EN 10210/EN 10219 clears customs without additional testing delays [NEED_CITE: steel grade equivalence between EN and ASTM standards].
Steel Grade Selection: DX51D vs S235JR vs ASTM A36
DX51D is a commercial-quality galvanized steel grade optimized for forming and bending — ideal for cable trench covers and warehouse shelf brackets where deep drawing is required. S235JR offers higher yield strength for structural frames and transmission tower bracing, with guaranteed impact toughness at room temperature. ASTM A36 serves the North American market with proven weldability and machinability for heavy equipment bases. The Q-series grades (Q235, Q235B, Q345) dominate domestic Chinese projects and Belt & Road infrastructure contracts where GB standards apply. Hot-rolled technique ensures uniform grain structure through the 3–24 mm thickness range, avoiding the surface defects common in cold-formed alternatives.
Hidden Costs of Sourcing Galvanized C Channels Without Mill Verification
Buying galvanized profiles from trading companies without original mill certificates means accepting zinc coating claims on faith. When a Indonesian warehouse project received C channels with 30-micron galvanizing instead of the specified 60 microns, the entire batch failed inspection and return freight cost more than the cargo value [NEED_CITE: galvanized coating thickness inspection standards]. Material traceability gaps also trigger customs holds — without heat-number documentation linking each bundle to its mill test report, port authorities in the Middle East and South America routinely delay clearance for weeks. A Galvanized C Channel Steel Supplier who provides third-party SGS/BV inspection before loading eliminates both risks.
Why Project Buyers Choose Shandong Xin Jiyuan for Galvanized C Channels
Three production lines running simultaneously deliver monthly capacity exceeding 20,000 tons of structural profiles, with galvanized C channels in DX51D and S235JR kept in ready stock for urgent dispatch. Factory-direct pricing eliminates trading company margins, and volume discount programs reward long-term partners with annual procurement above $500K. Our in-house metallurgical lab conducts three-stage inspection — incoming raw material, post-rolling dimensional check, and final coating thickness verification — before any bundle leaves the yard. ISO 9001:2015 quality management and Lloyd’s CE certification ensure every shipment meets international project specifications. Professional export documentation teams handle packing lists, bills of lading, and certificates of origin, while container loading optimization reduces freight cost per ton for mixed-size orders.
Documentation & Compliance
- Mill test certificate documenting DX51D zinc coating weight and S235JR yield strength per EN 10219
- Lloyd’s CE certificate under EN 10210/EN 10219 for EU-bound galvanized C channel shipments
- ISO 9001:2015 quality management certificate covering hot-rolled and galvanized profile production
- SGS or BV third-party inspection report verifying coating thickness and dimensional tolerance before loading
- Material traceability by heat number linking each bundle to its chemical composition and mechanical test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

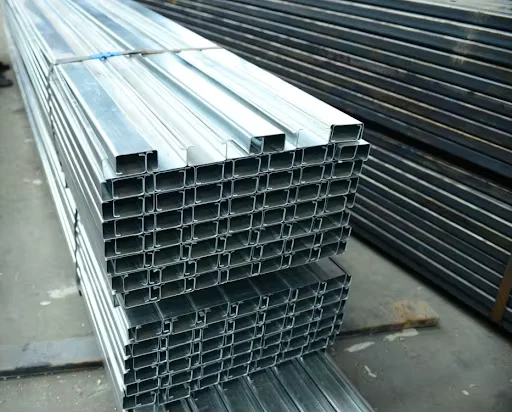

- Galvanized C channels bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Mixed-size container loading optimization: 200×200 mm channels nested with 20×20 mm profiles to maximize payload per TEU
- Custom cutting to 1–12 meter lengths per project drawing, with kerf tolerance held within ±5 mm
- Heat number stenciled on every bundle end for on-site traceability and inspection verification
- FOB Jinan/Qingdao port or CIF/DDP delivery to destination port with full export documentation
- Split shipment capability for trial orders starting at 3 tons MOQ, with consolidated multi-product container loading for repeat buyers
Requesting a Quote for Galvanized C Channel Steel
Submit your specification sheet — including section dimensions, steel grade preference, total tonnage, and destination port — to receive factory-direct pricing with volume discount breakdown and typical production lead times. Our technical team responds within 12 hours with a detailed quotation including mill test certificate availability, third-party inspection options, and container loading recommendations. For non-standard sizes outside the 20×20 to 200×200 mm range, we provide custom rolling quotations with tooling cost and minimum order requirements.
Frequently Asked Questions
Q: What steel grades are available for galvanized C channels, and how do DX51D, S235JR, and ASTM A36 compare?
A: DX51D is a commercial-quality galvanized grade optimized for forming and bending applications like cable trench covers and warehouse brackets. S235JR offers higher yield strength for structural frames and transmission towers with guaranteed room-temperature impact toughness. ASTM A36 serves North American projects with proven weldability for heavy equipment bases. All three grades are available in hot-rolled galvanized finish with original mill test certificates.
Q: Can you provide mill test certificates and third-party inspection reports for customs clearance?
A: Every shipment includes original mill test certificates documenting chemical composition and mechanical properties per heat number. SGS or BV third-party inspection is available upon request before loading to verify zinc coating thickness and dimensional tolerance. Lloyd’s CE certification under EN 10210/EN 10219 is provided for EU-bound shipments to ensure customs clearance without additional testing delays.
Q: What is the MOQ for custom sizes, and can you handle split shipments for trial orders?
A: Standard galvanized C channels in DX51D and S235JR are available from 3 tons MOQ with ready stock for immediate dispatch. Custom sizes outside the 20×20 to 200×200 mm range require minimum order quantities based on rolling setup costs, typically 5–10 tons depending on section dimensions. Split shipments are supported for trial orders, with consolidated container loading available when combining multiple product types.
Q: What surface treatment options are available — hot-dip galvanized vs. painted — and which is suitable for outdoor vs. indoor use?
A: Hot-dip galvanized finish provides long-term corrosion resistance for outdoor applications in tropical climates, industrial zones, and marine environments. Painted finish offers cost-effective protection for indoor warehouse shelving and interior structural frames where appearance matters more than corrosion resistance. Both options are available across the full DX51D, S235JR, and ASTM A36 grade range with coating thickness verified per GB/T 13912 or ASTM A123 standards.
Q: How do you optimize container loading for heavy steel profiles to reduce freight costs?
A: Our export team uses specialized loading software to nest mixed-size galvanized C channels — combining 200×200 mm sections with 20×20 mm profiles — to maximize payload per TEU while maintaining weight distribution. Edge protectors and steel strip bundling prevent zinc coating damage during transit. For projects requiring multiple product types, we consolidate galvanized channels, H-beams, and steel plates into single containers to reduce per-ton freight cost.
Get Factory-Direct Pricing for Galvanized C Channel Steel
Send your specification sheet with section dimensions, steel grade, total tonnage, and destination port to receive a detailed quotation within 12 hours, including mill test certificate availability and container loading recommendations.
