Description

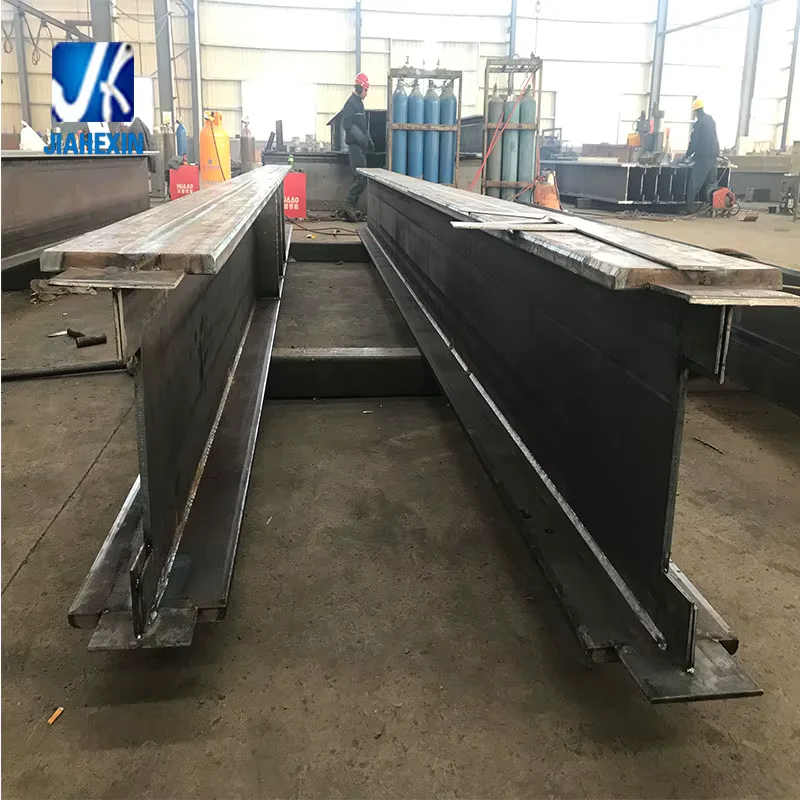

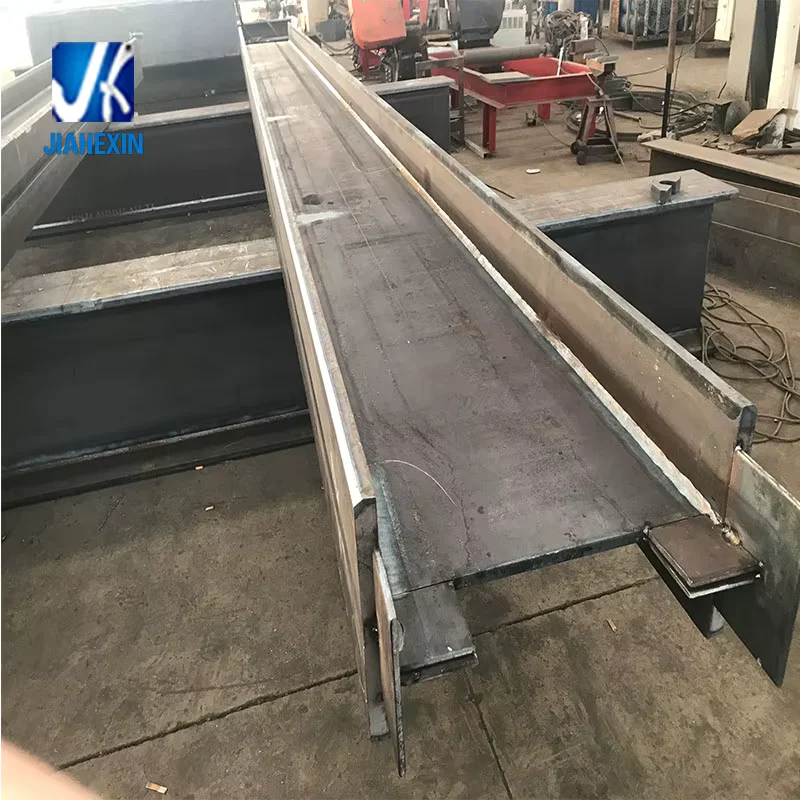

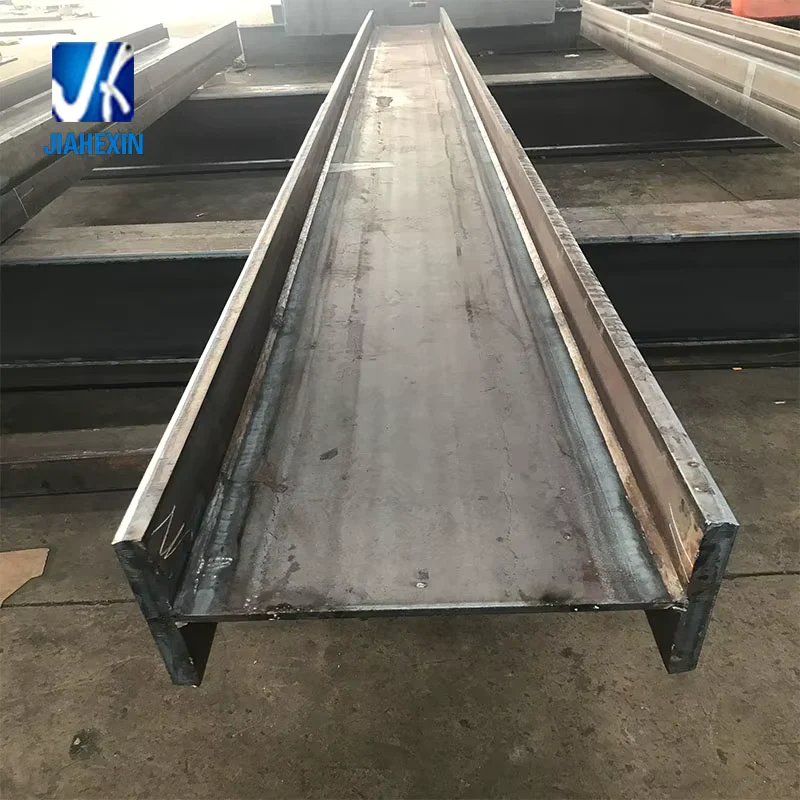

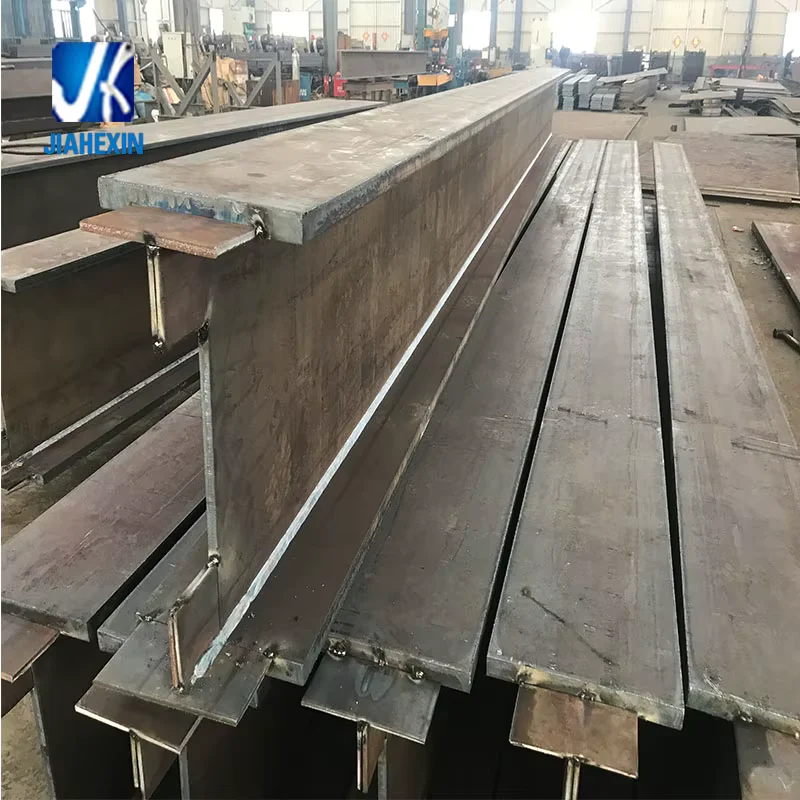

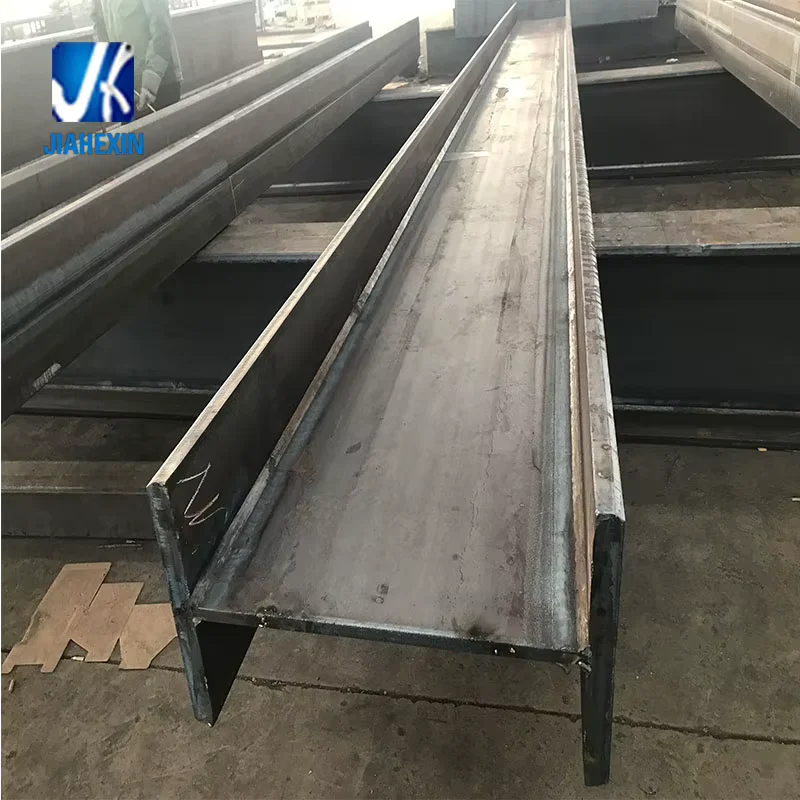

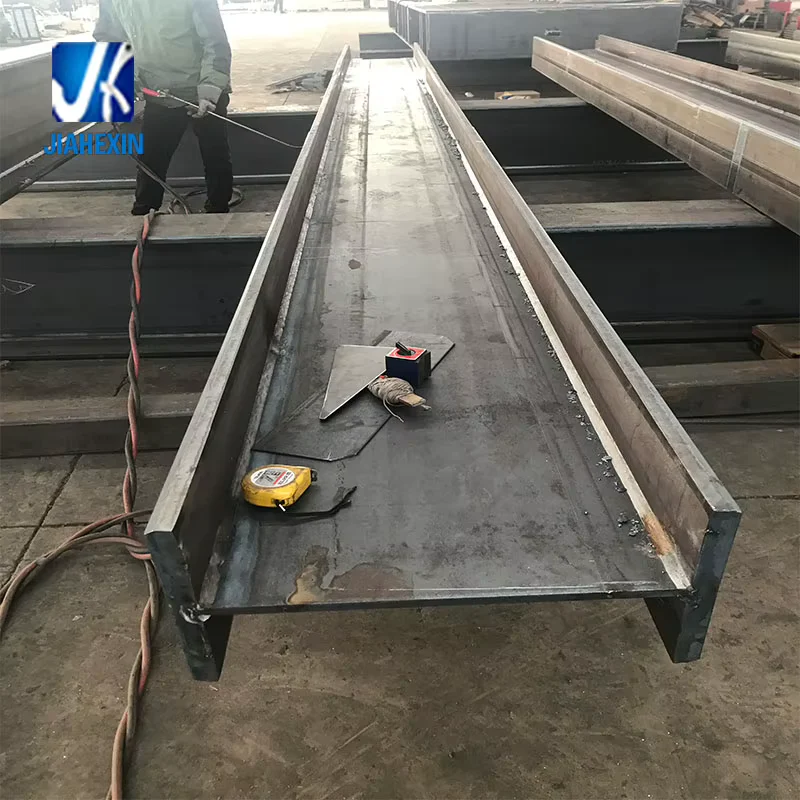

Factory-Direct Welded H-Beam Fabrication β Every Q345B welded H-beam steel structural fabrication order rolls off our own production lines in Jinan, with raw material certificates traced back to heat number before the first cut.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q345B Welded H-Beam Steel Structural Fabrication |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235B, Q345B, Q460C, SS400, S235JR, A36, 45# |
| Standard | GB, JIS, ASTM, AISI, DIN, BS, ISO |
| Section Shape | H-Beam |
| Technique | Welded (CO2 welding, arc welding, robotic welding) |
| Surface Treatment | Powder Coating, Painted, Galvanized, or Natural |
| Tolerance | Β±10% |
| Weight Range | 10 kg β 20,000 kg |
| Processing Services | Cutting, Drilling, Bending, Welding, Assembling, Shot Blasting, Machining, Painting |
| Welding Methods | TIG, MIG, Spot Welding, CO2, Arc Welding |
| Heat Treatment | Normalization, Annealing, Quenching and Tempering (45#) |
| Non-Destructive Testing | PT, MT, UT, RT |
| Inspection | 100% Dimension Inspection, Visual Inspection, Gas Tight Test |
| Application | Steel structure construction, power stations, construction machinery, mining machinery |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Steel workshop frames, warehouse portal frames, large-span building columns |
| Power & Energy | Power plant support structures, large generator base frames, substation steel frameworks |
| Heavy Machinery | Material handling gantry beams, construction machinery chassis, metallurgical equipment platforms |
| Mining & Chemical | Mining conveyor support structures, chemical engineering pipe racks, processing plant mezzanines |
What Fragmented Sourcing Really Costs on a Structural Frame Order
Buying beams, fabrication, and coatings from three different yards never saves money β it multiplies rework risk.
I have watched project teams spend weeks coordinating between a beam supplier, a welding shop, and a paint contractor, only to find the bolt holes drilled by the fabricator do not align with the mill-rolled sections because the second party used a different tolerance baseline. When a Q345B welded H-beam steel structural fabrication order is split across multiple vendors, dimensional drift accumulates at every handoff. On-site crews discover gaps during assembly, and the cost of sending welders back to re-fit connections far exceeds any price difference between a consolidated fabricator and the cheapest individual supplier. [NEED_CITE: cost of rework in structural steel construction projects]
Matching Load Paths and Connection Details to Site Conditions
A Q345B welded H-beam steel structural fabrication order for a power plant support frame must account for dynamic vibration loads, not just static weight. We weld continuity plates and stiffeners directly into the web at connection zones based on the engineer’s node drawings, rather than shipping plain beams and asking the site team to weld additions in uncontrolled conditions. Robotic welding positioners hold each H-beam section at the optimal angle during fillet and groove weld passes, which keeps throat thickness consistent across the full length β something that matters when the structure will carry rotating generator equipment.
Engineering Compliance and Surface Protection Decisions
Structural H-beams destined for European projects must conform to EN 10210 or EN 10219 execution class requirements, while North American buyers typically reference AISC 360 and ASTM material specifications. [NEED_CITE: EN 10210 hot-finished structural hollow section requirements] The surface treatment choice β powder coating for indoor workshop environments, hot-dip galvanizing for outdoor exposure, or industrial paint systems for chemical plant areas β directly affects coating adhesion on weld zones, which is why we perform shot blasting to Sa 2.5 before any coating is applied. Third-party inspection via SGS or BV verifies both dimensional compliance and coating thickness before the container is sealed. [NEED_CITE: surface preparation standards for structural steel coatings]
Steel Grade Selection and Welding Process Fundamentals
Q235B and S235JR serve general construction frames where extreme load capacity is not required, while Q345B provides higher yield strength for heavy industrial structures and long-span portal frames. Q460C steps further into high-strength territory for crane beams and mining equipment where weight reduction matters. When 45# medium carbon steel is specified for machined connection components, quenching and tempering heat treatment restores the toughness lost during cutting and welding. Our welding methods β CO2 gas shielded welding for production speed, TIG for critical root passes, and submerged arc welding for thick flange-to-web joints β are selected based on plate thickness and the structural role of each joint. Non-destructive testing including ultrasonic testing on full-penetration welds and magnetic particle testing on fillet welds catches subsurface defects before surface coating hides them permanently.
The Hidden Price of Wrong-Grade Material and Missing Certificates
A beam stamped Q345B that actually delivers Q235B chemistry will pass visual inspection but fail load testing during project acceptance. [NEED_CITE: steel grade substitution risks in structural engineering] Customs authorities in the Middle East and Southeast Asia increasingly require original mill test certificates matching heat numbers on every piece β shipments without traceable documentation face rejection at the port, and demurrage costs can exceed the steel value itself. Tolerance drift beyond Β±10% on flange thickness means the theoretical weight no longer matches the actual weight, and the structural engineer’s load calculations become invalid. Replacing a single fabricated H-beam after it has been shipped overseas costs many times more than getting the specification right before production starts.
Why Project Buyers Consolidate H-Beam Fabrication With Us
Every Q345B welded H-beam steel structural fabrication order is produced on our own lines in Jinan, so the price you receive is factory-direct with no trading margin layered on. Our in-house laboratory issues original mill test certificates covering chemical composition and mechanical properties for every heat number, and we welcome SGS or BV third-party inspection at any production stage. The factory holds ISO 9001:2015 certification and Lloyd’s CE marking for structural steel products, which clears customs across European, African, and Southeast Asian ports without documentation disputes. We handle the full processing chain β cutting, drilling, bending, robotic welding, shot blasting, and painting β under one roof, so the fabricated components arrive on site ready to bolt together. Professional loading plans optimize container space for heavy fabricated sections, and our export team manages all shipping documentation from commercial invoice to certificate of origin.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition (C, Si, Mn, P, S) and mechanical properties per GB/T 1591, traceable to original heat number
- CE certificate covering EN 10210/EN 10219 execution class compliance for European market structural steel projects
- ISO 9001:2015 quality management system certificate covering the full fabrication process from raw material receiving to final inspection
- SGS or BV third-party inspection report verifying dimensional accuracy, weld quality, and coating thickness before shipment
- Material traceability sheet linking each fabricated H-beam piece to its heat number, mill test certificate, and NDT report
- Complete customs document package including packing list, bill of lading, certificate of origin, and fumigation certificate where required
Packaging, Loading & Delivery
- Q345B and Q460C fabricated H-beams bundled with galvanized steel strips at intervals no greater than 2 meters, with timber sleepers separating layers to prevent coating damage during ocean transit
- Powder-coated and painted surfaces wrapped in PE film with edge protectors before bundling to preserve finish integrity through container loading and unloading
- Hot-dip galvanized H-beam sections loaded with rubber-padded spreader bars to avoid zinc coating scratches, and separated by timber dunnage inside the container
- Custom cut-to-length H-beams up to 12 meters loaded in dedicated 40ft open-top containers or flat racks when standard 20ft units cannot accommodate the length
- Each bundle tagged with waterproof labels showing steel grade, heat number, piece mark, and destination port for rapid identification at the project site
- FOB Jinan or Qingdao port as standard, with CIF and DDP options available to major ports across Southeast Asia, the Middle East, Africa, and South America
Start Your Fabrication Inquiry With Drawings and Specifications
Submit your structural drawings, steel grade requirements, quantity, and destination port to receive a detailed fabrication quotation including mill test certificate commitments and production timeline. Our engineering team reviews connection details and welding procedures within 12 hours, and we can arrange sample pieces or third-party inspection hold points for first-time orders. Confirm your surface treatment preference and any special NDT requirements so the quotation reflects the complete scope of work.
Frequently Asked Questions
Q: Can you fabricate non-standard H-beam sizes that do not appear in typical steel catalogs?
A: Yes. Our production lines handle custom web heights, flange widths, and thicknesses across Q235B, Q345B, and Q460C grades. Send your detailed drawings and we will confirm feasibility, weight per piece, and production timeline.
Q: What is the difference between powder coating, painting, and hot-dip galvanizing for structural H-beams?
A: Hot-dip galvanizing provides the longest corrosion protection for outdoor and marine environments. Powder coating offers a uniform finish with good UV resistance for indoor and architectural applications. Industrial paint systems are the most cost-effective option for sheltered structures or projects with planned maintenance cycles.
Q: Which certificates do you provide for customs clearance and project compliance?
A: Every shipment includes original mill test certificates traceable to heat number, commercial invoice, packing list, bill of lading, and certificate of origin. CE certificates and third-party SGS/BV inspection reports are available for projects requiring European compliance or independent quality verification.
Q: How do you ensure welding quality on heavy fabricated H-beam structures?
A: All structural welds undergo visual inspection and non-destructive testing β ultrasonic testing for full-penetration welds and magnetic particle testing for fillet welds. Welding procedures are qualified per the applicable standard, and welders hold valid certifications for the processes and positions used.
Q: What is the typical production lead time for a custom fabricated H-beam order?
A: Standard fabricated orders in common grades like Q235B and Q345B are typically completed within typical production lead times. Orders requiring Q460C, special heat treatment, or complex multi-piece assemblies may require additional time, which we confirm before contract signing.
Request Your Factory-Direct Fabrication Quote Today
Send your structural drawings, steel grade, quantity, and destination port to receive a complete quotation with mill test certificate commitments and container loading plan.
