Description

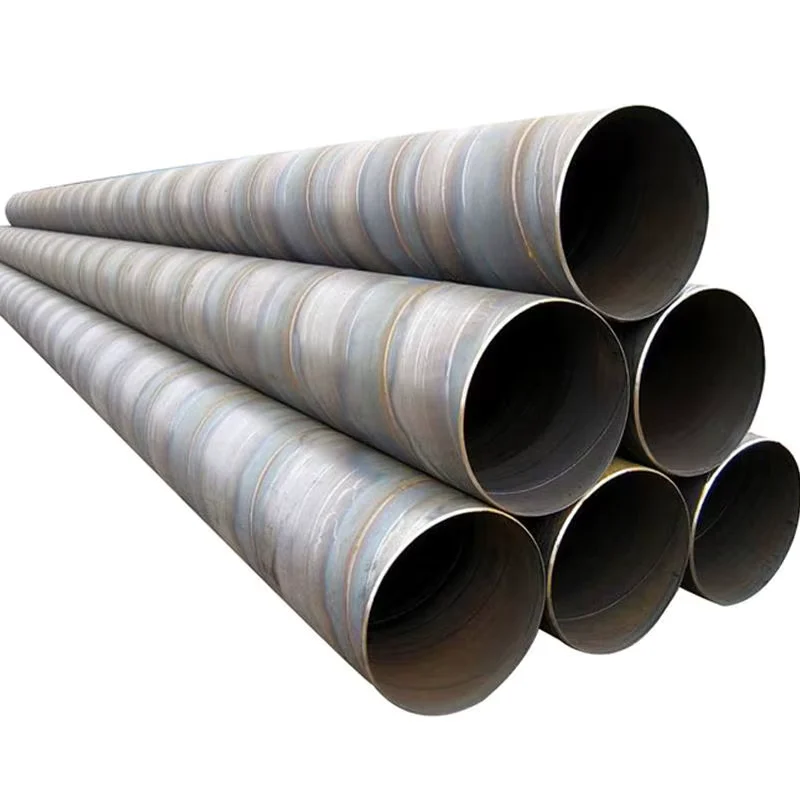

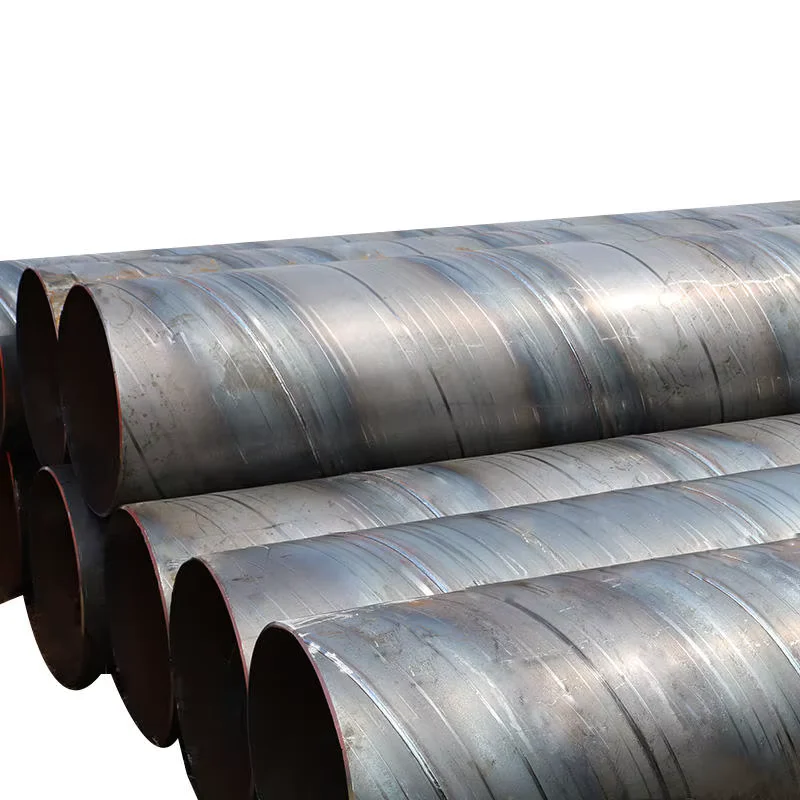

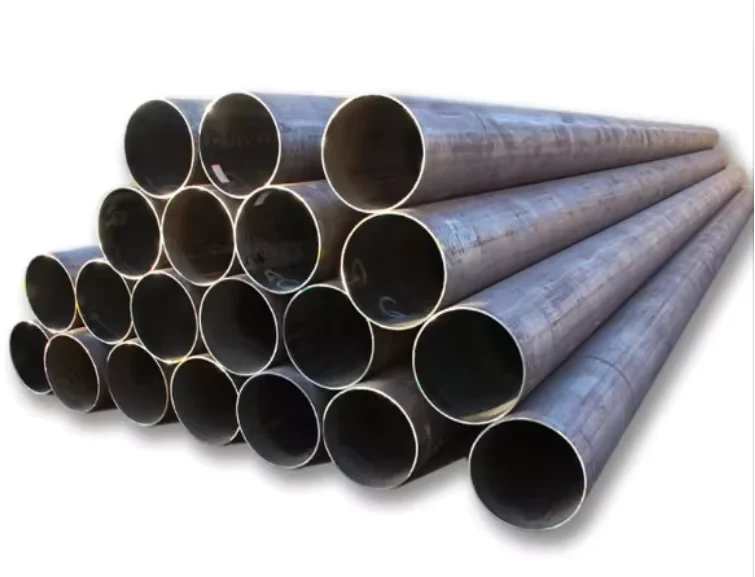

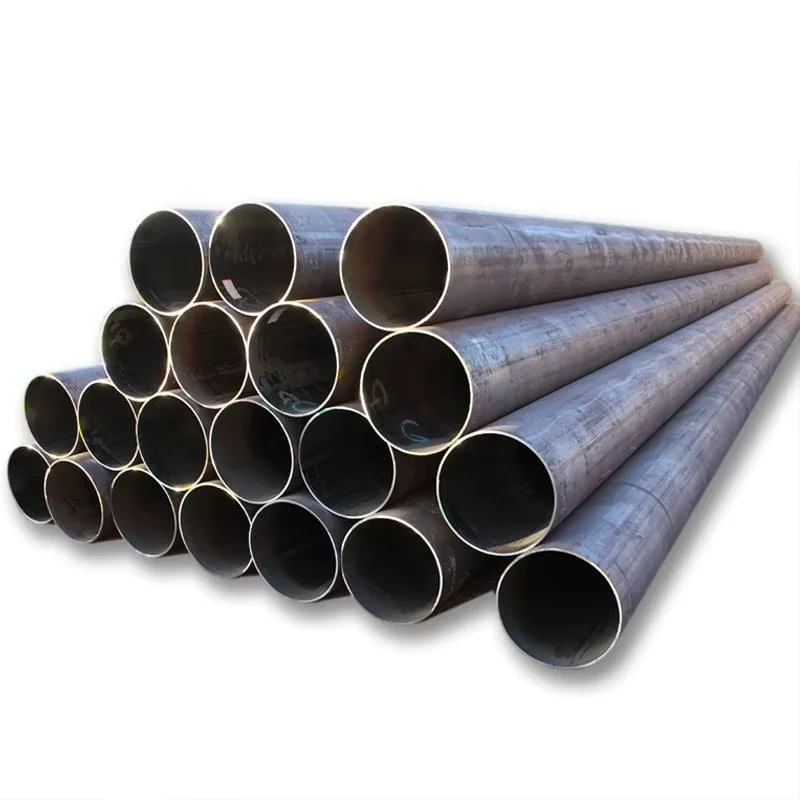

Factory-Direct SSAW Pipe Pricing — Q235B spiral welded steel pipes produced on our own lines with original mill test certificates shipped directly to your project site, eliminating trader markups on every ton.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Spiral Carbon Steel Pipe (219–2220×5–22mm) |
| Product Type | Round Steel Pipe / Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | Q235B |
| Standard | GB |
| Section Shape | Round |
| Size Range | OD 219–2220 mm |
| Wall Thickness | 5–22 mm |
| Length | 5.8–11.8 m (or as required) |
| Technique | SSAW / Spiral Welded |
| Surface Treatment | Antiseptical / Hot Rolled |
| Ends | Plain end / Beveled end / PVC covered and capped / Threaded and coupled |
| External Coating | FBE / 2PE / 3PE / 3PP |
| Application | Piling / Bridge steel casing / Water supply / Pipeline transport / Drainage |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & EPC | Bridge foundation piling, highway sound barrier posts, retaining wall steel casing |
| Municipal Engineering | Urban water supply mains, heat-supply distribution networks, stormwater drainage lines |
| Oil & Gas | Low and medium pressure fluid conveyance, petroleum gathering lines, natural gas distribution |
| Industrial Construction | Factory building column casings, equipment support foundations, chemical plant piping |
| Power Engineering | Cooling water circulation lines, power plant intake and discharge pipelines |
What Negative Wall Tolerance Really Costs on a Bridge Casing Order
A minus-8 percent wall deviation on a spiral pipe can void an entire piling lot at the inspector’s sign-off stage.
I once loaded a batch of SSAW spiral pipes for a water supply casing project in Santos. The third-party inspector caught multiple pieces running minus 8 percent on wall thickness at the port. We had to air-freight replacements at our own cost — and that was before the two-week schedule delay hit the client’s piling crew. Since that job, every spiral pipe leaving our line gets wall thickness verified upfront before it ever reaches the stacking yard. For buyers sourcing a Q235B spiral carbon steel pipe supplier, this is the kind of quality gap that turns a competitive unit price into a costly lesson. Missing or incomplete mill test certificates compound the problem: customs holds, rejected material at the project gate, and re-procurement cycles that no volume discount can offset. [NEED_CITE: impact of wall thickness tolerance on structural pipe acceptance criteria]
Matching Large-Diameter SSAW Pipe to Piling and Casing Demands
Bridge piling and foundation casing work demands pipe that can withstand driving forces, soil abrasion, and long-term groundwater exposure without buckling or corroding through. The OD 219–2220 mm range of this Q235B spiral carbon steel pipe supplier product line covers everything from small-diameter utility casings to large bridge foundation piles, while the 5–22 mm wall thickness band handles both light structural sleeves and heavy-load bearing columns. Our SSAW lines produce these diameters in continuous spiral welds, which means longer individual pipe lengths and fewer field joints on deep piling jobs — a practical advantage when your crew is working on a riverbed foundation with limited access.
Engineering Compliance and Corrosion Protection Selection
Structural piling and casing applications typically fall under engineering specifications that require verified chemical composition and mechanical properties per the applicable standard framework. Q235B conforms to GB standards for carbon structural steel, and full mill test certificates document heat-level chemistry and tensile results for every production run. [NEED_CITE: GB standard requirements for Q235B carbon structural steel] For projects in aggressive soil or marine environments, the external coating options — FBE, 2PE, 3PE, and 3PP — provide layered corrosion resistance that extends service life well beyond bare or antiseptical-treated pipe. End treatments also matter on site: beveled ends prepare the pipe for field welding into continuous casing strings, while PVC-covered and capped ends protect threads and surfaces during ocean transit and yard storage. Certification alignment is equally critical — buyers importing into the EU need CE-marked products under EN 10210 or EN 10219, and our production carries Lloyd’s CE certification alongside ISO 9001:2015 registration to clear those customs requirements without delay. [NEED_CITE: CE certification requirements for structural steel pipe imports into EU markets]
Understanding Q235B Grade and Spiral Welding Process
Q235B sits in the mild carbon steel category with balanced weldability and formability, making it the default grade for general structural piling, water conveyance, and low-to-medium pressure pipeline applications across Chinese domestic projects and many international infrastructure specs. The “Q” designation refers to yield strength classification under the GB system, and the “B” grade indicates room-temperature Charpy impact testing at 20°C — a step above Q235A, which skips impact verification entirely. For buyers comparing grade systems, Q235B broadly corresponds to S235JR under EN standards and ASTM A252 Grade 2 in the American system, though exact equivalence depends on the specific chemical and mechanical requirements of the project specification. [NEED_CITE: steel grade equivalence between Q235B and international standards] The SSAW spiral welding process forms the pipe by continuously winding a steel strip at an angle and submerged-arc welding the seam — this method produces large diameters up to 2220 mm from relatively narrow strip stock, making it cost-effective for projects that need big OD pipe without the expense of seamless or LSAW alternatives. The spiral weld geometry also distributes stress more evenly around the circumference compared to a single straight seam, which is one reason SSAW pipe remains the preferred choice for piling and casing applications where external soil loads dominate.
Hidden Costs of Sourcing Without Verified Certification
Choosing a Q235B spiral carbon steel pipe supplier based solely on quoted unit price exposes buyers to risks that surface long after the container leaves the port. Material that fails to match its stated grade on independent testing triggers full lot rejection at the project inspection stage — and replacing driven piling pipe means pulling installed sections, re-ordering, and remobilizing crews. Missing mill test certificates or certificates that cannot be traced to specific heat numbers create customs clearance failures in markets with strict import documentation requirements. [NEED_CITE: customs documentation requirements for steel pipe imports with mill test certificates] Negative tolerance beyond acceptable limits reduces actual load-bearing capacity below design calculations, creating structural safety concerns that engineers will not sign off on regardless of the commercial terms offered.
Why Project Buyers Source Q235B SSAW Pipe From Our Mill

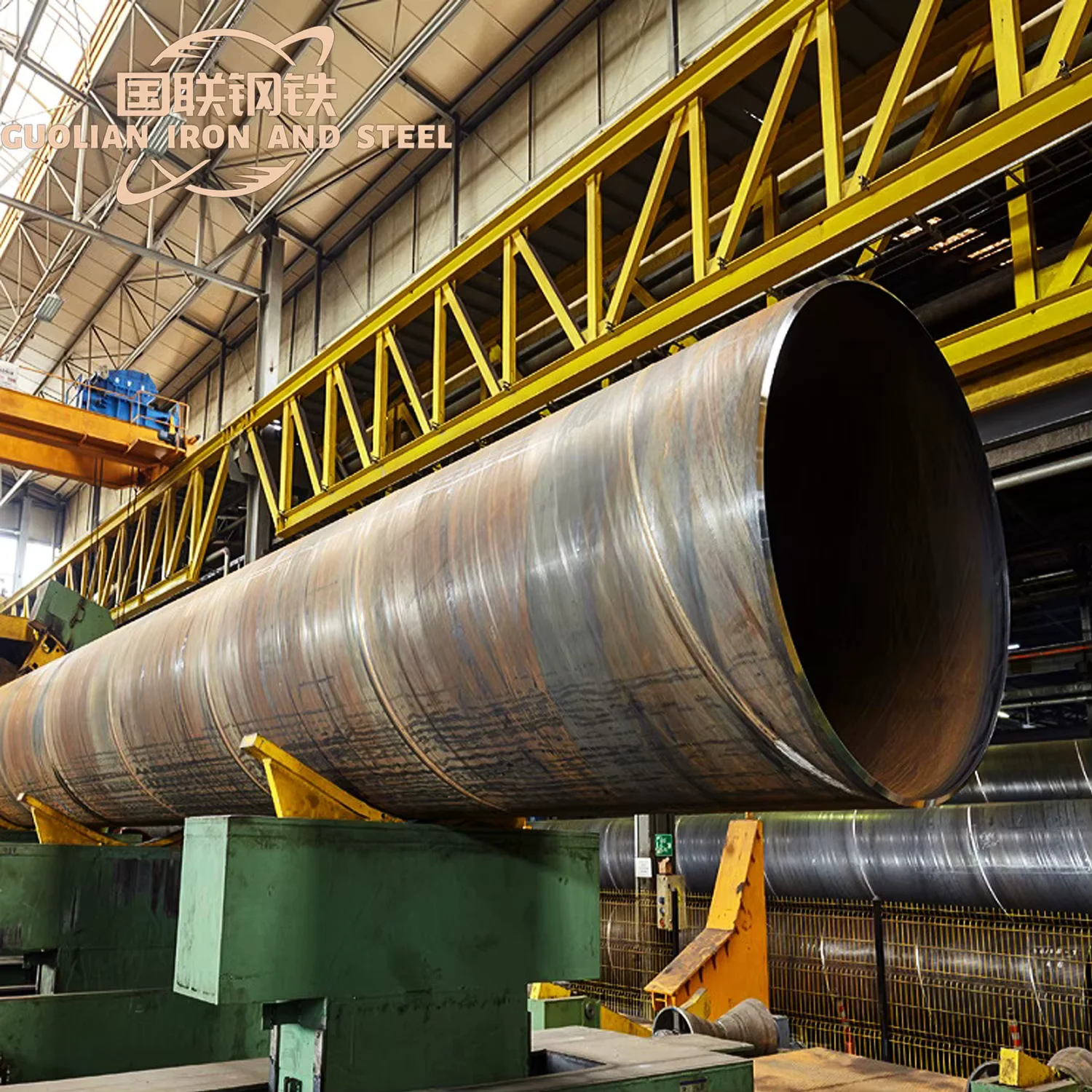

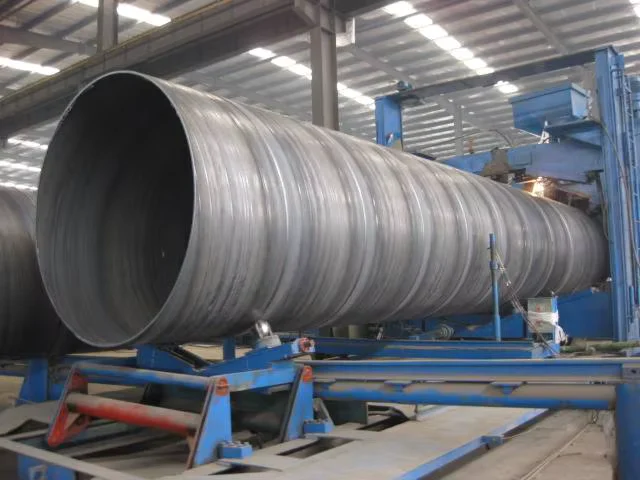

We run three SSAW production lines simultaneously at our Jinan facility, producing over 20,000 tons of spiral welded pipe per month across the full OD 219–2220 mm and WT 5–22 mm range — meaning your order goes directly from our mill to your container without a trading company adding margin or reshuffling your quality documentation. Every heat of Q235B strip we receive is tested in our in-house laboratory before forming begins, and every finished pipe carries an original mill test certificate linking chemical composition and mechanical results to a specific heat number for full traceability. For buyers who need independent verification, we arrange SGS or BV third-party inspection at the mill before loading — the same safeguard that caught the wall thickness issue on that Santos job years ago. Our export team handles the complete documentation package including packing lists, bills of lading, certificates of origin, and coating compliance records, so your customs broker receives a complete file on the first submission. We also optimize container loading for mixed-diameter spiral pipe orders, fitting multiple OD sizes into single containers to reduce per-ton freight costs on consolidated shipments. For long-term partners purchasing above typical project volumes, we review pricing on a six-month cycle with volume-based discount structures built into the contract.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Si, Mn, P, S) and yield/tensile strength per GB standard, traceable to specific heat number
- Lloyd’s CE certificate under EN 10210/EN 10219 for buyers importing structural steel pipe into European Union markets
- ISO 9001:2015 quality management system certificate covering the full SSAW production process from strip inspection to finished pipe
- SGS or BV third-party inspection report available on request, covering wall thickness, OD, weld seam quality, and coating adhesion
- Material traceability documentation linking each pipe to its heat number for project-level quality auditing
- Complete customs document package: commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination-country clearance
Packaging, Loading & Delivery
- Q235B SSAW spiral pipes bundled with steel strip ties and edge protectors to prevent coating damage during ocean transit, with bundle weight optimized for crane handling at destination ports
- External coating (FBE / 2PE / 3PE / 3PP) preserved through plastic wrapping at pipe ends and separator padding between nested pipes in the bundle
- Container loading plans optimized for mixed-OD orders — large-diameter pipe (above 1000 mm) loaded as single pieces, smaller diameters nested to maximize container fill and reduce per-ton freight
- Cut-to-length service available for the 5.8–11.8 m standard range, with non-standard lengths produced to match specific piling depth or casing run requirements
- Heat number and steel grade stenciled on each pipe end for on-site identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional export documentation and real-time container tracking through to final delivery
Starting Your Q235B SSAW Pipe Procurement
Submit your project specifications — outer diameter, wall thickness, total tonnage, coating requirement, and destination port — and receive a detailed quotation with volume pricing, production timeline, and sample mill test certificate format within 12 hours. For non-standard dimensions or custom end treatments, our technical team provides a feasibility review and lead-time estimate before you commit to a deposit.
Request Your Q235B Spiral Pipe Quotation and Mill Test Certificate
Send your specifications by email or WhatsApp to receive factory-direct pricing and complete documentation for your piling or casing project.
Frequently Asked Questions
Q: How does Q235B compare to ASTM A252 or S235JR for piling applications?
A: Q235B broadly aligns with S235JR under EN standards and ASTM A252 Grade 2 in the American system for general structural piling use. All three grades fall in the mild carbon steel category with similar weldability and formability characteristics. Exact equivalence depends on your project specification’s specific chemical composition limits and mechanical testing requirements — we provide full mill test certificates so your engineer can verify compliance against the design standard.
Q: Can you arrange third-party inspection before shipment?
A: Yes. SGS and BV third-party inspections are available on request at our mill before container loading. The inspection covers wall thickness verification, outer diameter measurement, weld seam quality, coating thickness and adhesion, and visual surface examination. The inspection report is included in your shipping documentation package.
Q: What is the difference between 3PE and FBE coating for buried spiral pipe?
A: FBE (fusion-bonded epoxy) provides a single-layer thermoset coating with strong adhesion and chemical resistance, suitable for moderate soil conditions. The 3PE system adds a polyethylene outer layer over the FBE base, providing superior mechanical protection against soil rocks, handling damage, and cathodic disbondment — making it the preferred choice for aggressive burial environments and long-distance pipeline projects. We supply both options and can advise based on your specific soil report and burial depth.
Q: What is the minimum order quantity for custom-length or non-standard coating?
A: We accept trial orders starting from 1 ton for standard specifications from ready stock. Custom lengths, non-standard end treatments, and special coating requirements are produced to order with typical lead times depending on specification complexity and order volume. Contact us with your full specification for a precise timeline.
Q: How do you handle container loading for mixed-diameter spiral pipe orders?
A: Our export team prepares a detailed loading plan before shipment, nesting smaller-diameter pipes inside larger ones where physically possible and using remaining space for bundled accessories or fittings. This optimization reduces the number of containers needed for multi-specification orders and lowers your per-ton freight cost. Loading photos are shared before container sealing for your records.
