Description
Factory-Direct U Channel Steel, No Middlemen Markup — We roll every 5#-40# U channel on our own Jinan production lines and ship straight from the mill yard, so your container price stays at the source.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | U Channel Steel 5#-40# |
| Product Type | Hot rolled U channel / UPN profile |
| Steel Grade | Q235B, Q345B, SS400 |
| Standard | GB/T 706, EN 10025 (material grade equivalent) |
| Section Shape | U channel (parallel flange & tapered flange available) |
| Size Range | 5# to 40# (50 mm – 400 mm depth) |
| Wall Thickness | Per size schedule, hot rolled tolerance |
| Length | 6 m, 9 m, 12 m or cut-to-length |
| Technique | Hot rolling |
| Surface Treatment | Black (mill finish), hot-dip galvanized on request |
| Ends | Plain cut, deburred |
| Application | Structural framing, support brackets, equipment bases |
| MOQ | 1 ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building column bracing, purlin supports, walkway framing |
| Industrial Fabrication | Machine bases, conveyor support rails, platform edges |
| Power & Energy | Solar panel mounting rails, substation cable tray supports |
| Warehouse & Logistics | Racking uprights, mezzanine edge beams, loading dock frames |
Why U Channel Wall-Thickness Tolerance Costs More Than the Steel Itself
A 0.3 mm undersized web on a 40# U channel can drop load capacity by a full safety class.
When structural frames go up on site, the engineer signs off on the drawing — not on the mill sheet. If the web or flange runs thin, the entire bay has to be reinforced or torn down. We learned this the hard way: one early export order got flagged at SGS because a reused groove die had worn past tolerance, and the client’s crew sorted every piece by hand. Since then, every U channel we roll gets dimension-checked against the drawing before it hits the container [NEED_CITE: EN 10025 hot rolled structural steel tolerance requirements].
The second hidden cost is certification gaps. Customs in the EU, Middle East, and Southeast Asia increasingly demand EN 10219 or EN 10025 traceability on structural channels. Missing heat numbers or unsigned mill test certificates mean the cargo sits at port while the buyer scrambles for paperwork.
How Hot Rolled U Channel Matches Structural Framing Loads
Hot rolled U channel in Q345B delivers higher yield strength than Q235B at the same section size, letting engineers spec a lighter profile for the same span — critical on solar mounting rails and conveyor supports where dead weight adds up. The hot rolling process produces a grain structure that handles welding and on-site drilling without cracking at the web-flange junction, which matters when site crews are bolting and welding in one pass. For corrosive environments such as coastal infrastructure or chemical plant walkways, we hot-dip galvanize after rolling so the zinc coat covers the inner radius where rust starts first.
Engineering Compliance and Grade Selection Across Markets
Projects designed to EN 1993 or AISC specifications require documented yield strength and traceable heat numbers. Q235B maps roughly to S235JR, and Q345B maps to S355JR in most equivalence tables, but the mill test certificate must state the actual standard the steel was rolled to — equivalence notes alone will not clear customs in the EU or Australia [NEED_CITE: steel grade equivalence between GB, EN and ASTM standards]. For projects in the Middle East and Africa, SS400 remains the default spec on Japanese-influenced drawings, and we keep it in ready stock alongside Q235B and Q345B so mixed containers can load without waiting for a second production run. Cut-to-length service at the mill also means site crews receive exact lengths, reducing scrap and re-cut time on the scaffold.
Steel Grade and Hot Rolling Process Explained for Buyers
Q235B is a mild carbon structural steel with minimum 235 MPa yield — the workhorse for general framing, brackets, and non-critical supports. Q345B steps up to 345 MPa yield with added manganese, making it the go-to for load-bearing beams, solar racking, and heavy equipment bases where section weight must stay low. SS400 sits in the same family as Q235B but follows JIS G3101 chemistry, which matters when the project engineer signs off on Japanese drawings.
Hot rolling shapes the channel at temperatures above 900 °C, which gives the web-to-flange radius a continuous grain flow that cold bending cannot match. This is why hot rolled U channel handles site welding and punching better than cold-formed alternatives — the heat-affected zone stays predictable. Wall thickness on hot rolled sections follows a wider tolerance band than cold-formed profiles, so buyers should always confirm the actual measured thickness on the mill test certificate rather than relying on catalog weight alone [NEED_CITE: hot rolled vs cold formed structural steel tolerance comparison].
Hidden Costs of Buying U Channel Without Verified Mill Data
The cheapest offer on U channel often becomes the most expensive once the cargo reaches port.
Material that arrives with no heat number, or with a mill test certificate that does not match the stamped grade, fails inspection on site. The buyer then faces three choices: pay for third-party re-testing, accept the cargo with a structural downgrade from the engineer, or ship it back. Any of these paths delays the project by weeks and eats the original price saving. Certification gaps also trigger customs holds — EU ports routinely detain structural steel without EN 10025 or EN 10219 documentation, and Middle Eastern project owners reject cargo lacking SGS or BV inspection reports [NEED_CITE: EN 10219 cold-formed and EN 10025 hot-rolled structural steel documentation requirements]. Negative tolerance abuse is the third trap: some mills ship U channel at the bottom of the tolerance band and charge by theoretical weight, so the buyer pays for steel that is not there. We ship by actual measured weight and include the caliper readings on every mill test certificate.
Why Buyers Source U Channel From Xin Jiyuan

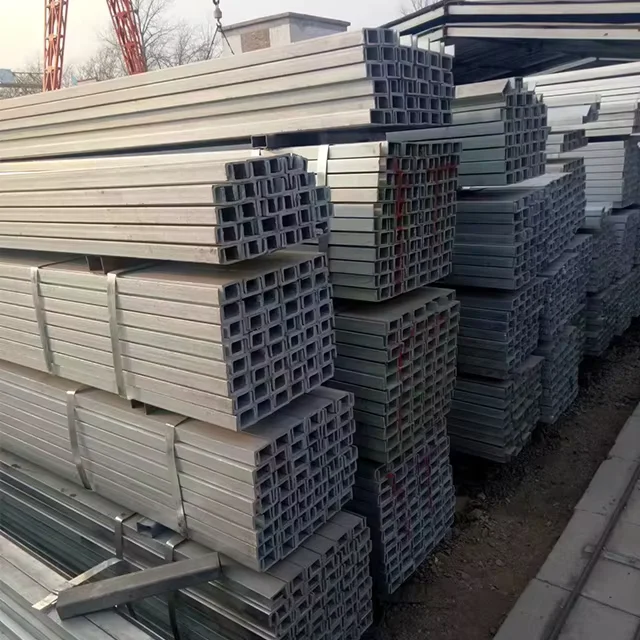

We run three hot rolling lines in Jinan and keep 2,800+ structural sections in our own yard, so a 40# U channel order in Q345B can ship from stock without waiting for a production slot. Factory-direct pricing means no trading company margin sits between your PO and our mill sheet. Every batch rolls with original mill test certificates showing heat number, chemistry, and yield — and we welcome SGS or BV third-party inspection at our plant before loading. Our export team has handled structural steel shipments to 50+ countries and knows how to pack U channel so the flanges do not bend during ocean transit. Custom cut-to-length, galvanized finish, and mixed-section container loading are all handled in-house, so one contact covers the order from mill to port.
Documentation & Compliance
- Mill test certificate documenting Q235B / Q345B / SS400 chemical composition and yield strength per GB/T 706, with heat number traceability
- CE certificate covering EN 10210 and EN 10219 for projects entering the EU market
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report available on request, covering dimensions, surface, and mechanical tests
- Material traceability by heat number stamped on each piece and matched to the mill test certificate
- Customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

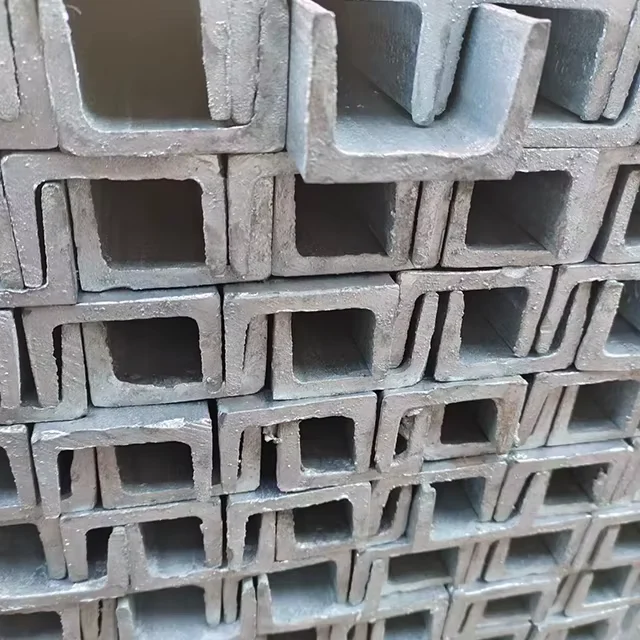

- U channel bundled with galvanized steel strips at both ends, with wooden or rubber edge protectors to prevent flange damage during transit

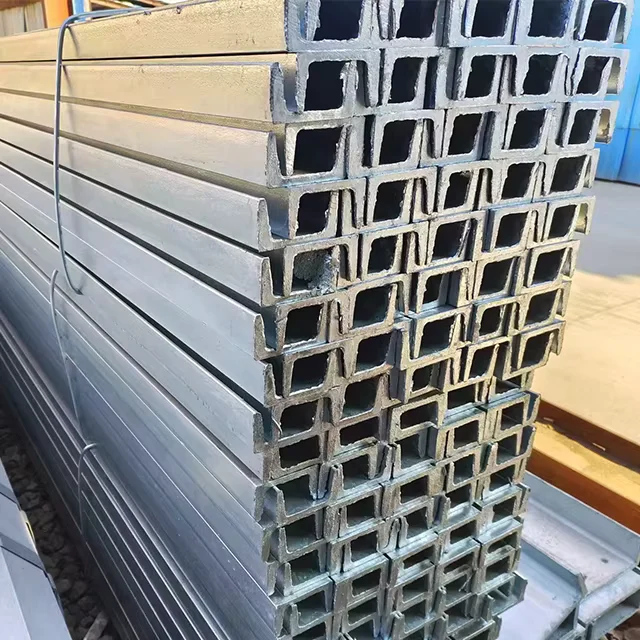

- Hot-dip galvanized U channel wrapped with waterproof paper and separated by rubber spacers to preserve the zinc coating
- 6 m and 9 m lengths loaded in 20 ft containers; 12 m lengths shipped in 40 ft open-top or flat-rack containers with chocked supports
- Cut-to-length U channel packed separately by size and tagged with heat number, steel grade, and length for easy site identification
-唛头 stenciled on each bundle showing steel grade (Q235B / Q345B / SS400), size, heat number, and destination port
- FOB Jinan or Qingdao port, with CIF and DDP options available; container loading photos sent before seal closure
Send Your U Channel Specs and Get a Mill-Direct Quote
Email or WhatsApp your drawing or spec list — size range, steel grade, surface finish, quantity, and destination port — and we return a factory-direct offer with lead time and mill test certificate sample within 12 hours. Non-standard sizes, custom lengths, and mixed-section container loading are quoted on the same ticket.
Get Your U Channel Quote With Mill Test Certificate
Send your specs to admin@sdxinjiyuan.com or WhatsApp +86 188 5315 7756 for a factory-direct offer within 12 hours.
