Description

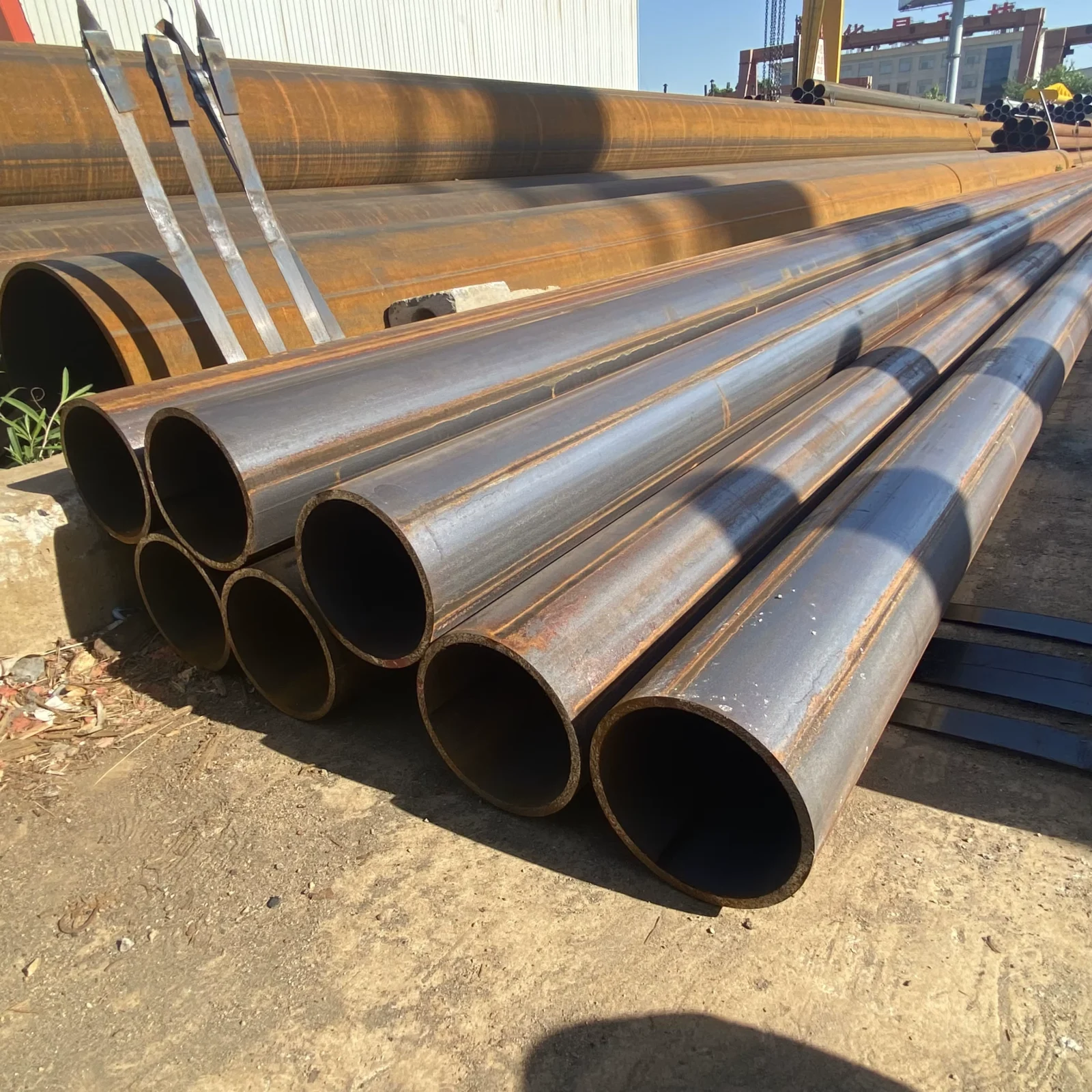

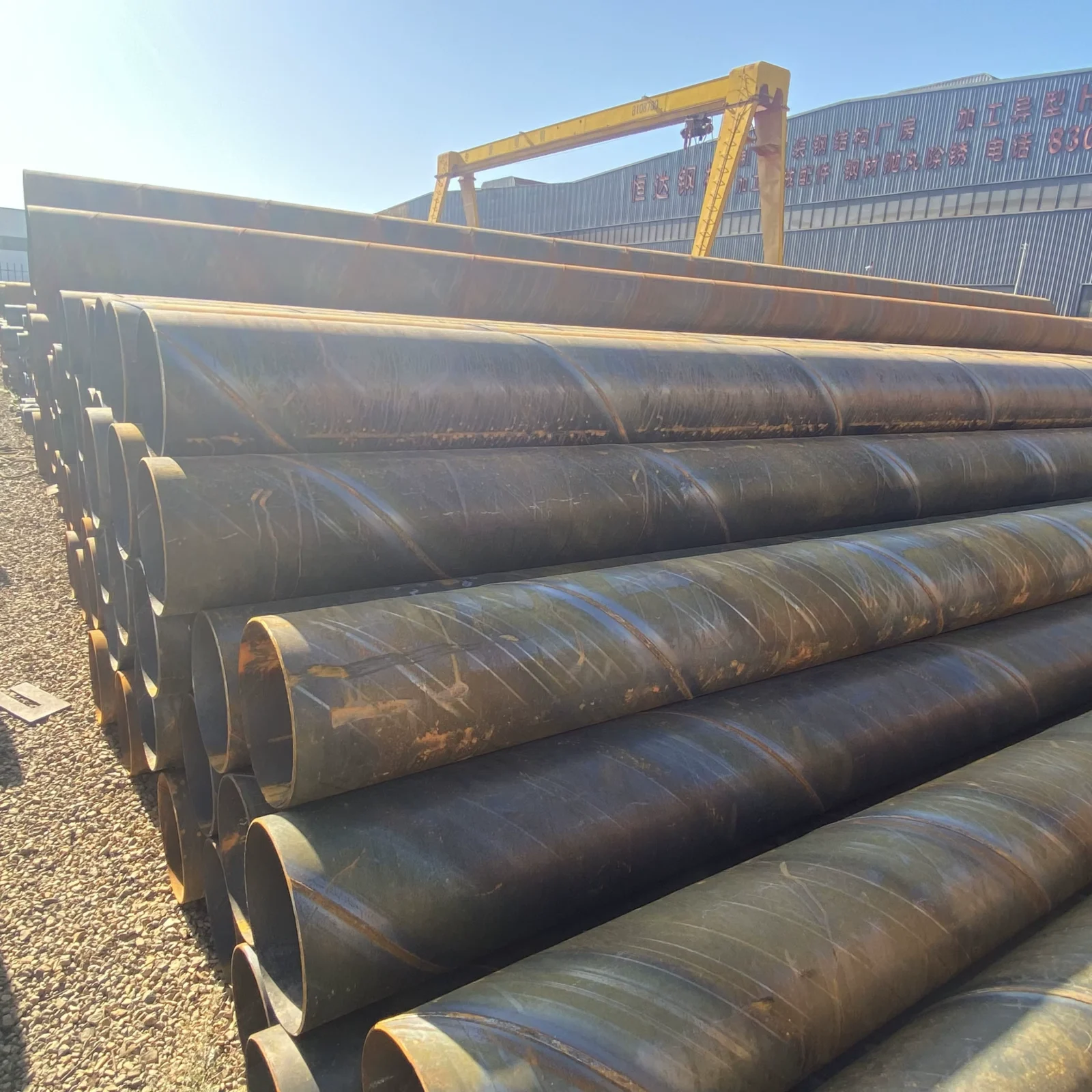

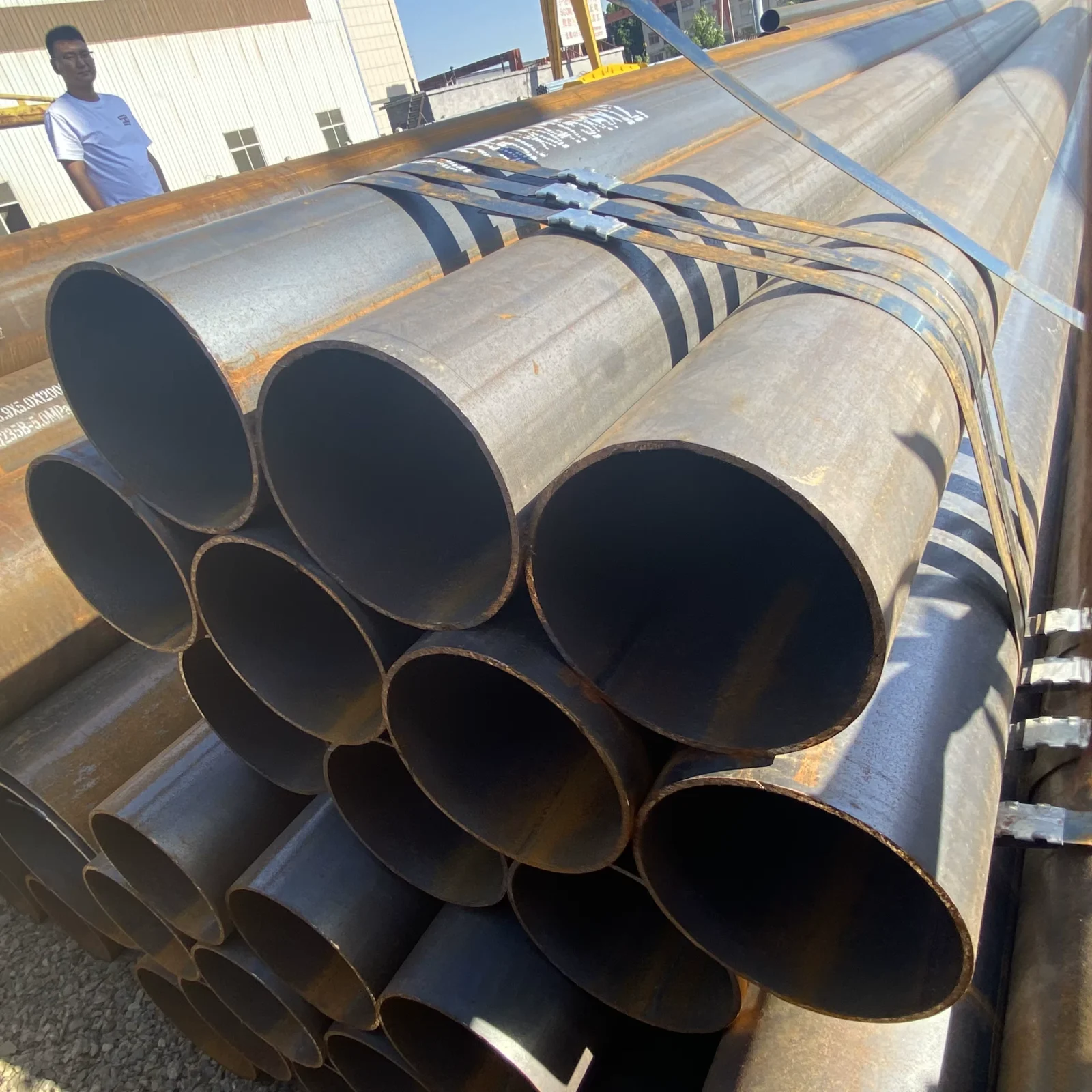

API 5L SSAW spiral welded steel pipe supplier — Factory-direct pricing with no middlemen, every batch backed by original mill test certificates and available for SGS/BV third-party inspection.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Spiral Welded Steel Pipe |
| Product Type | Round Steel Pipe / SSAW Steel Pipe |
| Steel Grade | Q235, Q235B, S275, S275JR, A53, ST37 |
| Standard | API 5L, ASTM A53, EN 10219, JIS, SNI, ISO 9001, CE |
| Section Shape | Round |
| Outer Diameter | 10mm–2500mm |
| Wall Thickness | 1mm–50mm |
| Length | 1m–18m |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Hot Rolled / Black / Oiled / Galvanized / Internal Varnished |
| Tolerance | ±1% |
| Ends | Plain End / Beveled End / Threaded End / Grooved End with Coupling |
| Application | Fluid transport / Oil & Gas pipeline / Water supply / Construction scaffolding / Structural piling / Low-pressure fluid conveyance |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Transmission pipelines, gathering lines, low-pressure distribution networks |
| Municipal Infrastructure | Urban water supply mains, drainage systems, sewage conveyance |
| Construction & Piling | Foundation piling, bridge substructure support, retaining wall anchoring |
| Industrial Plant | Cooling water circuits, process fluid lines, plant scaffolding structures |
What Weld Seam Consistency Costs on a Large-Diameter Pipeline Order
Spiral submerged arc welding produces a helical seam that distributes stress more evenly across the pipe body than a single longitudinal weld, but only when the weld penetration and bead profile are controlled within API 5L tolerances.
Global buyers sourcing large-diameter pipeline steel frequently encounter inconsistent weld quality — porosity, incomplete fusion, or slag inclusions that only surface during hydrostatic testing or field bending. Missing API/CE traceability compounds the problem: without heat-number-linked mill certificates, customs authorities in markets like Brazil, Saudi Arabia, or the EU can hold an entire container at the port. [NEED_CITE: API 5L specification requirements for spiral welded pipe] Fragmented supplier coordination adds further risk — buying pipe from one source and fittings from another means mismatched end preparations and delayed on-site welding.
Matching OD Range to Pipeline and Piling Engineering Demands
The 10mm–2500mm outer diameter range of this API 5L SSAW spiral welded steel pipe covers everything from small-bore process lines to large-diameter water transmission and structural piling. For piling applications, the spiral seam geometry provides superior resistance to ovalization during driving — a critical factor when pipes must withstand impact loads into dense soil or marine substrates. Our three dedicated SSAW lines produce standard and non-standard diameters with ±1% tolerance, and we consolidate multi-diameter orders into a single shipment so project teams receive matched batches with unified heat numbers.
Engineering Compliance and Certification Requirements
Large-diameter SSAW pipes used in structural piling or fluid transmission must meet specific engineering codes: EN 1993 for European steel structures, AISC for North American projects, and local piling standards that reference API 5L or ASTM A53 material properties. [NEED_CITE: EN 10219 cold-formed hollow section requirements] Surface treatment selection — hot-dip galvanizing for coastal or buried environments, oiled finish for temporary storage, or internal varnishing for water mains — directly affects service life and must be specified at inquiry stage. Steel grade equivalence also matters: Q235B maps broadly to S275JR and A53 Grade B in carbon content and yield behavior, but project engineers must confirm chemical composition limits against their design code. [NEED_CITE: steel grade equivalence between EN and ASTM standards] CE certification under EN 10210/10219 is mandatory for EU market entry, and every shipment carries original mill test certificates documenting compliance.
Steel Grade Selection and SSAW Process Fundamentals
The Q-series (Q235, Q235B) dominates domestic Chinese specifications and maps to S275/S275JR in European systems and A53/ST37 in ASTM/JIS frameworks — all are low-carbon structural grades suited to welding, forming, and moderate-pressure fluid service. The SSAW process forms the pipe from steel coil in a continuous helical pattern, allowing production of diameters up to 2500mm from a single coil width — an economic advantage over LSAW for large-bore orders where seamless alternatives become prohibitively expensive. Submerged arc welding under flux provides deep penetration and smooth internal bead profiles, reducing turbulence in fluid transmission applications. Surface treatment options — black (as-rolled), oiled for short-term corrosion protection, hot-dip galvanized for aggressive environments, or internally varnished for potable water — are applied post-weld and must be matched to the installation environment. Wall thickness from 1mm to 50mm covers thin-wall scaffolding tubes through heavy-wall pressure piping, and the ±1% tolerance ensures dimensional consistency across long production runs.
Hidden Costs of Incorrect Grade or Missing Certification
Specifying the wrong steel grade — for example, substituting Q195 where Q235B is required — may pass visual inspection but fails during mechanical testing or field welding, triggering costly rework and project delays. Missing or incomplete mill test certificates cause customs holds in strict-documentation markets, with demurrage charges accumulating daily. [NEED_CITE: customs documentation requirements for steel pipe imports] Negative tolerance abuse — where actual wall thickness falls below the specified minimum — reduces pressure rating and structural load capacity, creating safety liability that only surfaces during hydrostatic testing or in-service failure. Third-party inspection by SGS or BV before shipment catches these discrepancies at the factory, not the job site.
Procurement Confidence from Factory-Direct Supply
As a high-volume manufacturer operating three SSAW production lines with monthly capacity exceeding 20,000 tons, we supply factory-direct with no trading markup — volume discounts apply for long-term partners and repeat orders. Our in-house laboratory conducts three-stage inspection (chemical composition, mechanical properties, dimensional verification) and issues original mill test certificates per heat number, with SGS/BV third-party inspection available on request. We maintain large ready stock of standard diameters and wall thicknesses for urgent dispatch, while custom non-standard sizes and定尺 lengths run through dedicated production scheduling. Every export order includes professional container loading optimization — for SSAW pipes, this means十字-support bracing at each pipe end to prevent ovalization during ocean transit, a lesson learned from costly field replacements on overseas projects. Complete export documentation — packing list, bill of lading, certificate of origin, CE/ISO certificates — is prepared by our dedicated export team to ensure smooth customs clearance at destination ports.
Documentation & Compliance
- Mill test certificate documenting Q235B / S275JR / A53 chemical composition and mechanical properties per API 5L and ASTM A53, linked to heat number for full traceability
- CE certificate under EN 10210 / EN 10219 for European market compliance on structural and pipeline applications
- ISO 9001:2015 quality management certificate covering all SSAW production lines and inspection processes
- SGS or BV third-party inspection report available upon request, covering dimensional checks, weld seam ultrasonic testing, and hydrostatic pressure verification
- Material traceability by heat number from coil input through finished pipe, documented in mill test certificate
- Customs documentation package including packing list, bill of lading, certificate of origin, and CE/ISO compliance declarations
Packaging, Loading & Delivery

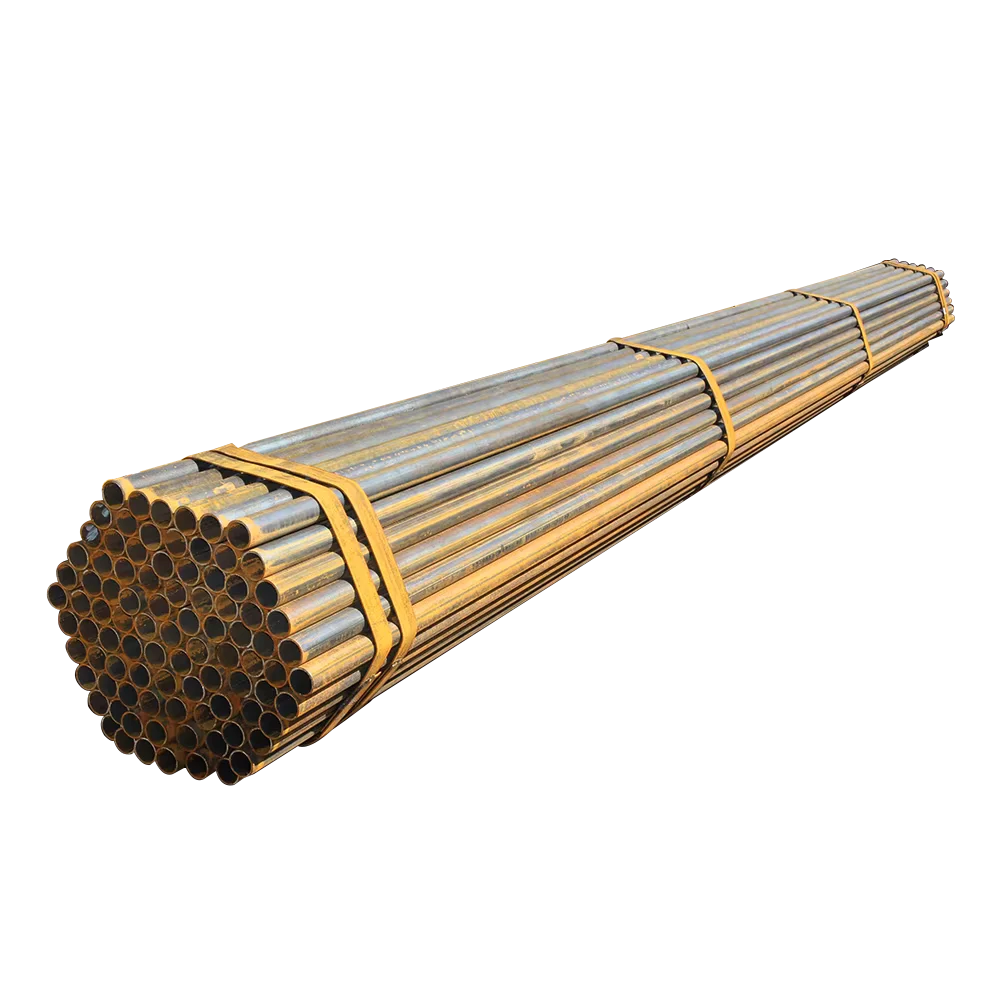

- SSAW pipes bundled with steel strips and edge protectors; large-diameter pipes (above 1000mm OD) shipped loose with end caps to prevent ovalization
- Oiled or galvanized surface treatment preserved through plastic wrapping and separation pads to avoid coating damage during transit
- Container loading optimized by diameter and length — 18m pipes require open-top or flat-rack containers; shorter lengths (6m–12m) fit standard 40ft containers with internal十字-support bracing at pipe ends
- Custom cut-to-length available within the 1m–18m range, with cut ends deburred and protected
- Heat number and steel grade stenciled on each pipe end for site identification and traceability verification
- FOB, CIF, and DDP terms available; professional export team handles customs clearance and door-to-door logistics coordination
Start Your SSAW Pipe Inquiry with Specifications
Submit your required outer diameter, wall thickness, steel grade, quantity, and destination port — we respond within 12 hours with competitive bulk pricing, delivery schedule, and available mill test certificate formats. For non-standard diameters or定尺 lengths outside stock range, we provide production lead time and MOQ confirmation. All inquiries include clarification on certification requirements (API 5L, CE, SGS/BV inspection) to ensure smooth customs clearance at your destination.
Frequently Asked Questions
Q: How does SSAW compare to LSAW and seamless pipe for large-diameter pipeline projects?
A: SSAW spiral welded pipe offers cost advantages for diameters above 500mm, as it forms from coil in a continuous helical pattern without the diameter limitations of LSAW or the extreme cost of seamless for large bores. The spiral seam distributes stress more evenly, making it suitable for low-to-medium pressure fluid transmission and structural piling. Seamless pipe remains preferred for high-pressure or critical sour service applications.
Q: What is the equivalence between Q235B, A53, and S275JR steel grades?
A: Q235B, ASTM A53 Grade B, and S275JR are all low-carbon structural grades with similar chemical composition ranges and yield strength behavior. They are broadly interchangeable for general structural and low-pressure fluid applications, but project engineers should confirm specific chemical limits and mechanical property requirements against their design code before substitution.
Q: What documentation is provided with each shipment?
A: Every shipment includes original mill test certificates documenting chemical composition and mechanical properties per heat number, linked to API 5L / ASTM A53 / EN 10219 standards as specified. CE certificates, ISO 9001 compliance declarations, packing lists, bills of lading, and certificates of origin are included. SGS or BV third-party inspection reports are available upon request.
Q: What is the lead time for non-standard outer diameters or wall thicknesses?
A: Standard sizes from our ready stock ship within days. Custom non-standard diameters, wall thicknesses, or lengths outside stock range follow typical production lead times based on order volume and production scheduling. We confirm specific timelines at quotation stage.
Q: How is invoicing calculated — theoretical weight or actual weight?
A: All SSAW pipes are invoiced by theoretical weight based on specified outer diameter, wall thickness, and length, calculated per standard steel density. The ±1% tolerance applies to dimensional production, not weight calculation.
Secure Your API 5L SSAW Spiral Welded Steel Pipe Supply
Submit your specifications — diameter, wall thickness, grade, quantity, and destination — to receive factory-direct pricing and mill test certificate confirmation within 12 hours.
