Description
Factory-Direct SSAW Pipe Supply — Every Q235 SSAW spiral welded steel pipe ships from our own production lines in Jinan with original mill test certificates, eliminating middleman markups on bulk project orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe |
| Steel Grade | Q195, Q215, Q235, Q345B, Q345C, Q345D, Q345E |
| Standard | API 5L, ASTM A53, ASTM A53M, BS EN 10296, JIS G3466, GB/T 9711 |
| Section Shape | Round |
| Outer Diameter | 65–2000 mm |
| Wall Thickness | 2.5–30 mm |
| Length | 1–12 m |
| Technique | SSAW (Spirally Submerged Arc Welding) |
| Surface Treatment | Bare, Black Painted, PE Coated, Epoxy Coated, Oiled, Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Beveled (customizable) |
| Invoicing | By Actual Weight |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas Transmission | Long-distance natural gas and petroleum pipelines requiring API 5L compliance |
| Municipal Infrastructure | Urban water supply networks, drainage systems, steam heating distribution |
| Chemical Processing | Process piping for chemical plants with epoxy or PE coated corrosion protection |
| Power Generation | Cooling water circuits and thermal power station penstocks |
| Marine & Port Engineering | Piling foundations, dredging pipelines, bridge support structures |
| Steel Structure Fabrication | Column casings, structural supports for industrial buildings |
What Negative Wall Tolerance Does to a Pipeline Budget
A pipe that passes visual inspection at the mill can fail hydrostatic pressure testing at the job site.
I once watched a container of SSAW pipe get held at a Middle Eastern port because the buyer’s third-party inspector measured wall thickness below the specified minimum. The supplier had relied on theoretical weight invoicing while pushing wall tolerance to the edge. The cargo sat for weeks, the project schedule slipped, and the buyer paid demurrage plus re-inspection fees. When you source a Q235 SSAW spiral welded steel pipe for pressure transmission, tolerance is not a paperwork detail — it determines whether the pipe survives field acceptance testing. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
Matching Large-Diameter SSAW Pipe to Pressure and Structural Applications
The 65–2000 mm outer diameter range covers everything from municipal water distribution headers to large-bore piling casings. For buried pipelines in corrosive soil conditions, PE coated or 3LPE surface treatment extends service life without field coating. Beveled ends allow direct butt-weld connection on transmission pipeline spreads, while plain ends suit mechanical coupling systems used in dredging and dewatering projects. Each Q235 SSAW spiral welded steel pipe undergoes hydrostatic testing and non-destructive weld inspection before dispatch.
Engineering Compliance Across Pressure and Structural Codes
Spiral welded pipe produced under API 5L and GB/T 9711 meets the chemical composition and mechanical property requirements for onshore and offshore transmission pipelines. For European structural applications, compliance with BS EN 10296 confirms suitability for mechanical and general engineering use. Wall thickness up to 30 mm accommodates high-pressure gas transmission and heavy-wall piling in soft marine soils. [NEED_CITE: API 5L PSL1 and PSL2 requirements for spiral submerged arc welded pipe] Buyers specifying ASTM A53 Grade B for US projects receive material that conforms to the equivalent tensile and yield criteria. Mill test certificates document heat-level chemistry and mechanical results for traceability during project handover.
Steel Grade Selection and Spiral Welding Process Fundamentals

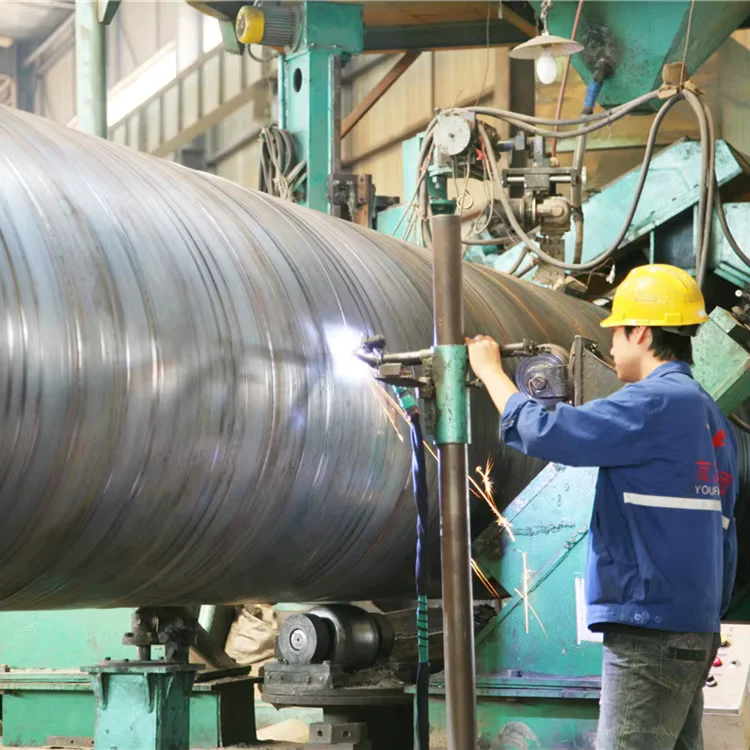

The Q-series carbon structural steels (Q195 through Q345E) follow the Chinese GB standard system, where the number indicates minimum yield strength in MPa. Q235 remains the default grade for general water transmission and piling, while Q345B/C/D/E provides higher yield strength for pressure-rated pipelines and low-temperature service. The SSAW process forms the pipe by helically winding steel coil and welding with submerged arc, producing a continuous spiral seam. This method allows economical production of large diameters above 500 mm that straight-seam ERW lines cannot reach. [NEED_CITE: comparison of SSAW and LSAW manufacturing processes for large diameter pipe] Surface treatment selection depends on service environment: bare or oiled pipe suits temporary or indoor use, black painted provides short-term atmospheric protection, while PE coated and epoxy coated systems resist soil-side corrosion in direct-burial applications.
Hidden Costs of Sourcing Without Verified Tolerance and Certification
Pipes delivered with wall thickness at the lower tolerance limit reduce actual load-bearing capacity and may fail design calculations under external soil loads or internal pressure. Missing or forged mill test certificates trigger customs holds and project owner rejection, particularly on government-funded infrastructure. [NEED_CITE: consequences of non-compliant steel pipe documentation in international procurement] A Q235 SSAW spiral welded steel pipe batch without proper heat-number traceability cannot be approved for pressure service under API 5L, forcing the buyer to either reject the cargo or absorb the cost of replacement pipe and schedule delay.
Why Project Buyers Source Q235 SSAW Pipe Directly from Our Jinan Facility

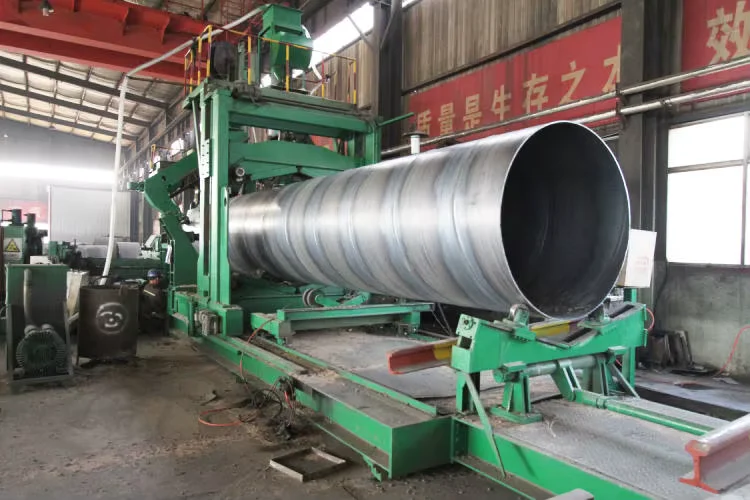

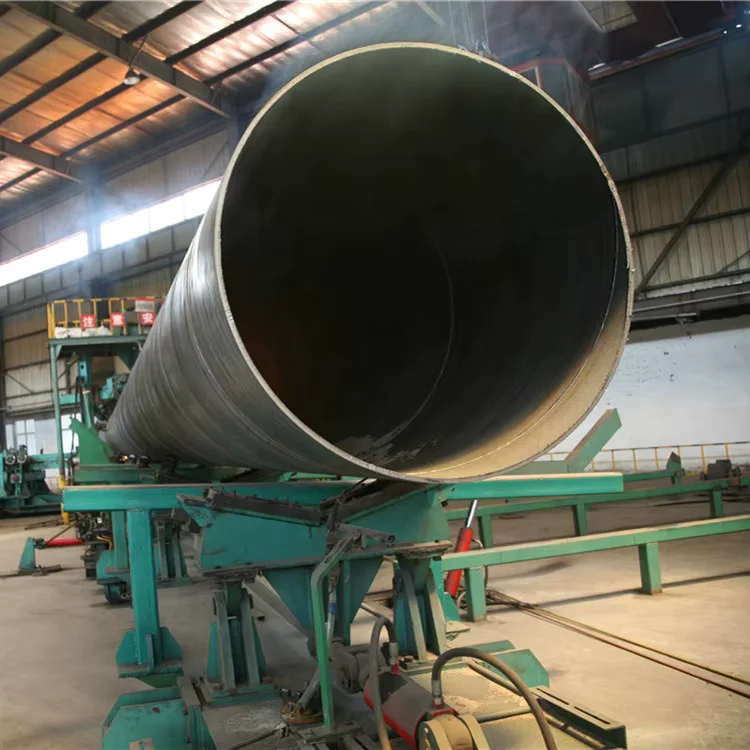

Our three dedicated SSAW production lines run simultaneously, delivering monthly capacity exceeding 20,000 tons without subcontracting to uncontrolled workshops. Every heat of steel carries original mill test certificates showing chemical composition and mechanical properties — we do not issue generic certificates copied across batches. The ±1% wall thickness tolerance is verified by ultrasonic measurement at multiple points around the pipe circumference before shipment. For buyers needing mixed-size container loads, we consolidate various OD and WT combinations into a single shipment, reducing per-ton freight cost on project orders. SGS or BV third-party inspection is arranged on request, with the inspector witnessing hydrostatic testing and dimensional checks before container sealing.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition (C, Si, Mn, P, S) and tensile test results per GB/T 9711 and API 5L
- CE certificate conforming to EN 10210/EN 10219 for buyers requiring European structural compliance
- ISO 9001:2015 quality management certificate covering the full SSAW production and inspection process
- SGS or BV third-party inspection report verifying wall thickness, weld seam quality, and hydrostatic test pressure
- Heat number traceability linking each pipe to its steel coil chemistry and rolling records
- Export customs documents including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery
- Q235 SSAW pipes bundled with steel strip bands and padded at contact points to prevent surface damage to PE coated or galvanized finishes during ocean transit
- Bare and oiled pipe ends fitted with plastic caps to protect beveled edges and prevent moisture ingress inside the pipe bore
- Container loading plans optimized for large-diameter pipe (OD above 500 mm) loaded nested or on cradles to maximize TEU utilization

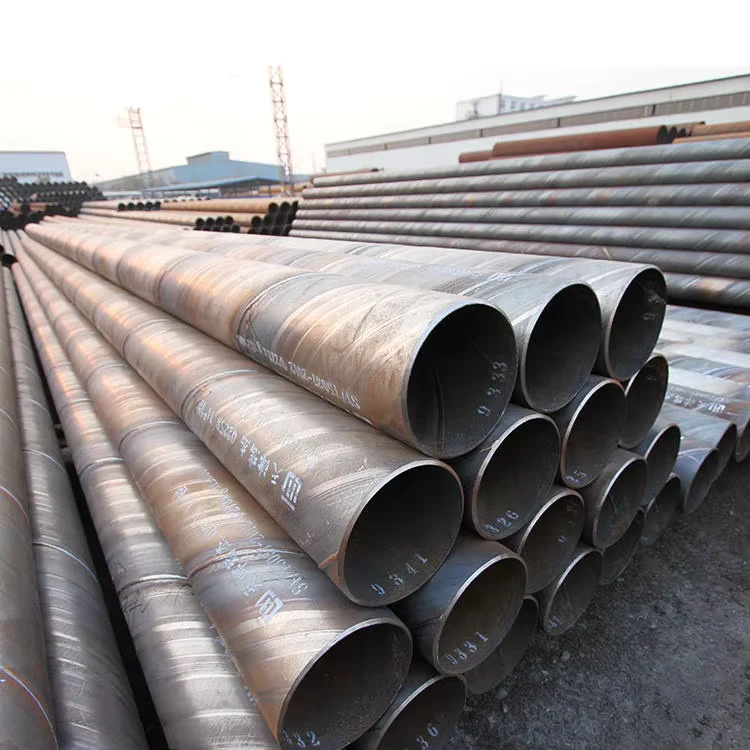

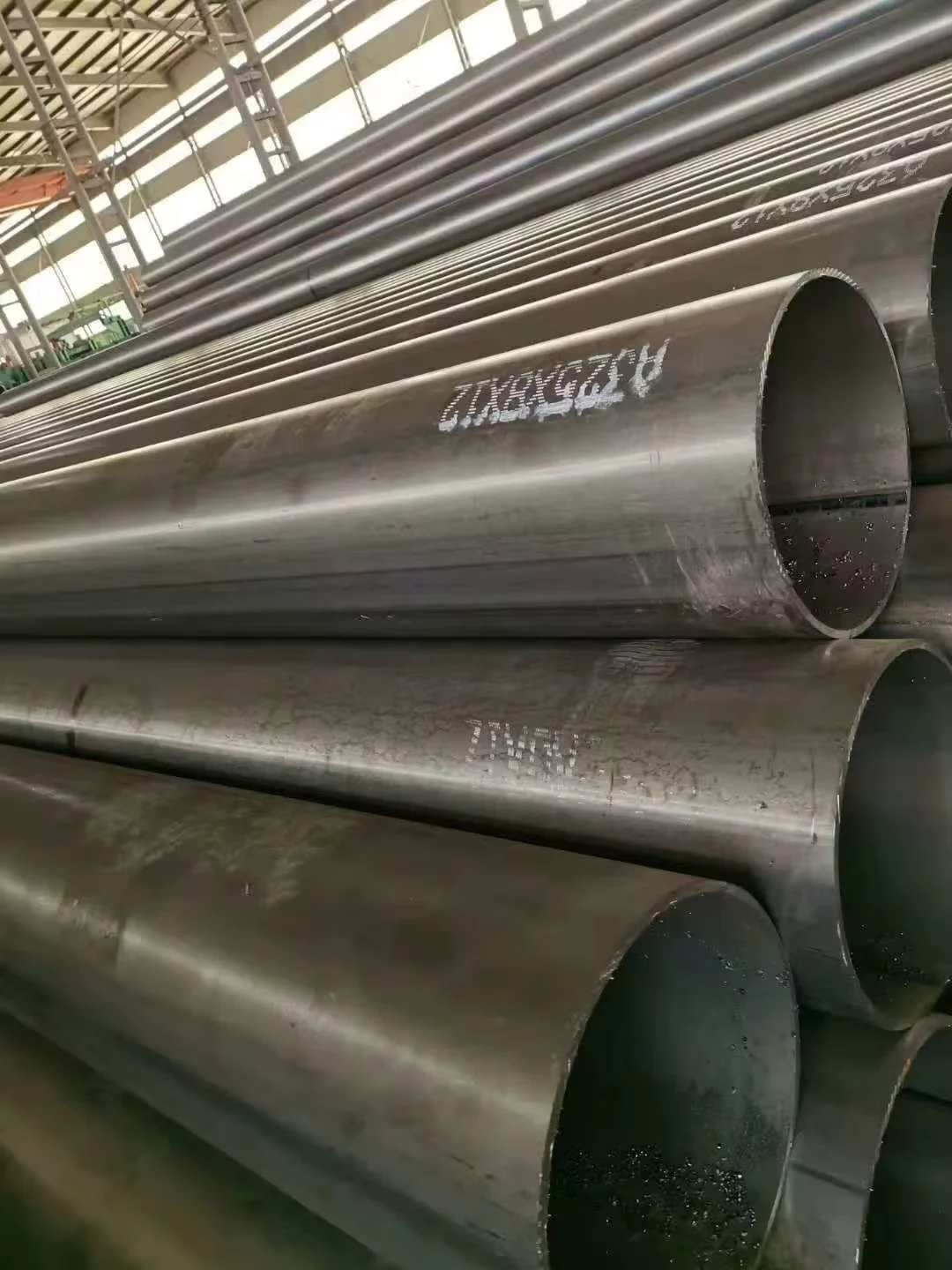

- Cut-to-length service available within the 1–12 m range, with pieces marked by heat number, steel grade, OD, and WT for site identification
- FOB Jinan/Qingdao, CIF destination port, or DDP project site terms supported with full export documentation handling
Start Your Q235 SSAW Pipe Procurement
Submit your pipe specifications — outer diameter, wall thickness, steel grade, surface treatment, quantity, and destination port — and receive a factory-direct quotation with volume pricing within 12 hours. We will attach sample mill test certificates from recent Q235 production runs so you can verify material compliance before placing your order.
Request Factory-Direct Pricing and Mill Test Certificates
Send your Q235 SSAW spiral welded steel pipe inquiry with OD, WT, length, quantity, and destination to receive bulk pricing and material documentation.
Email: admin@sdxinjiyuan.com
WhatsApp / WeChat: +86 188 5315 7756
Tel: +86 531 8573 6315
Frequently Asked Questions
Q: What is the difference between Q235 and ASTM A53 Grade B for SSAW pipe?
A: Q235 follows the Chinese GB/T 700 standard and is the most commonly specified grade for water transmission, piling, and general structural SSAW pipe. ASTM A53 Grade B is the equivalent specification in the US system. Both grades offer similar yield strength levels and are suitable for low to medium pressure applications. We produce Q235 SSAW spiral welded steel pipe that can be certified to meet ASTM A53 Grade B mechanical requirements when specified at order placement.
Q: How do you verify wall thickness tolerance before shipment?
A: Each pipe is measured at multiple positions along the length using ultrasonic thickness gauges. Results are recorded on the mill test certificate and compared against the specified nominal wall thickness. Our ±1% tolerance commitment means a pipe ordered at 8 mm wall will measure between 7.92 mm and 8.08 mm at any point. Buyers may request SGS or BV third-party inspection to witness dimensional verification before container loading.
Q: What surface treatment should I specify for buried pipeline service?
A: For direct-burial water or gas pipelines, PE coated or 3-layer polyethylene (3LPE) coating provides the most reliable long-term corrosion resistance against soil moisture and chemical exposure. Epoxy coating suits chemical plant piping where resistance to specific process chemicals is required. Galvanized coating is typically selected for above-ground or marine splash-zone applications. We apply the specified coating on our dedicated treatment lines before delivery.
Q: Can you supply non-standard diameters or wall thicknesses outside the listed range?
A: Our standard SSAW production covers OD 65–2000 mm and WT 2.5–30 mm. For dimensions outside this range, we evaluate feasibility based on our mill setup capabilities and raw material coil availability. Non-standard orders typically require higher MOQ and longer production lead times. Contact us with your specific requirements for a technical and commercial assessment.
Q: What is the minimum order quantity and typical lead time?
A: The MOQ for Q235 SSAW spiral welded steel pipe is 5 tons. Standard sizes in our ready stock can ship within typical production lead times, while custom surface treatment or non-standard dimensions require additional processing time. We provide a specific delivery schedule with each quotation based on current mill workload and order complexity.
