Description
Factory-Direct SSAW Pipe Supply — Every batch of API 5L SSAW spiral welded steel pipe ships with original mill test certificates, eliminating middlemen markups on large-diameter piling and pipeline orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Spiral Welded Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | Q235, Q345, ASTM A53 Grade B, ASTM A500 Grade A/B/C, ASTM A252 |
| Standard | API 5L, GB/T 9711-2011, ASTM A53, ASTM A252, ASTM A500, GB/T 3091, GB/T 13793 |
| Section Shape | Round |
| Size Range | OD 219–4200 mm |
| Length | 6–12 m |
| Technique | Spiral Submerged-Arc Welded (SSAW) |
| Surface Treatment | Bare or Painted |
| Ends | Plain or Beveled |
| Processing Services | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Fluid transport, Gas pipeline, Oil pipeline, Piling, Structural applications, Drill pipe |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & Piling | Bridge foundation piles, retaining wall structures, port and marine jetty supports |
| Oil & Gas Transmission | Onshore gathering lines, low-pressure distribution pipelines, slug catchers |
| Water & Wastewater | Raw water conveyance mains, outfall diffusers, intake structures |
| Industrial Structures | Plant column supports, pipe rack stanchions, heavy equipment foundations |
What Loading Plans Decide Before the Vessel Leaves Port
Improper nesting of large-diameter SSAW pipes crushes beveled ends and triggers full-container rejection at destination.
I watched a Jakarta foundation job lose two full replacement containers because 36-inch SSAW piling pipes were stacked flat without nesting smaller diameters inside — the stack weight deformed every bevel end before the vessel cleared the coast. The SGS inspector flagged each one. For buyers sourcing API 5L SSAW spiral welded steel pipe in OD 219–4200 mm, the loading plan is not a logistics detail; it is a quality control step. Beyond that, inconsistent steel grade traceability and missing mill certificates cause customs holds that delay pile-driving schedules by weeks [NEED_CITE: customs clearance requirements for steel pipe imports in Southeast Asian markets].
Matching OD 4200 mm Spiral Pipe to Piling and Pipeline Loads
Large-diameter SSAW pipe in Q345 and API 5L grades carries the hoop stress and axial compression demanded by deep foundation piling and long-span pipeline routes. The spiral weld seam distributes load along the helical line, making it suitable where straight-seam alternatives cannot be produced at this diameter. Our production lines run OD 219–4200 mm in 6–12 m lengths, with plain or beveled ends ready for field welding or pile driving — and the API 5L SSAW spiral welded steel pipe is stocked for urgent split shipments from Jinan.
Engineering Compliance and Certification Pathways
Piling specifiers referencing ASTM A252 or API 5L need mill documentation that matches the heat number on every pipe. For EU-bound projects, Lloyd’s CE certification under EN 10210/10219 satisfies structural directive requirements; for North American pipeline work, ASTM A53 Grade B and API 5L PSL1/PSL2 traceability is expected [NEED_CITE: API 5L PSL requirements for spiral welded line pipe]. Surface treatment — bare for driven piles, painted for exposed structural or above-grade pipeline — is selected based on soil corrosivity and design service life. Custom lengths and end treatments (beveled for welding, plain for coupling) are produced to order with typical production lead times.
Steel Grade Selection and Spiral Welding Metallurgy
Q235 and Q345 cover the majority of domestic and export piling work, with Q345 offering higher yield strength for deeper foundations and heavier axial loads. ASTM A252 Grade 2 and Grade 3 serve the same piling market under US specification frameworks, while API 5L X42–X60 equivalents handle pressurized fluid and gas transmission. The spiral submerged-arc welding process forms the seam under flux protection from both inside and outside, producing a weld zone with ductility close to the base metal — critical when pipes undergo field bending or driving into dense soil. Bare finish is standard for driven piles where coating damage is unavoidable; painted finish protects above-grade structural columns and rack stanchions from atmospheric corrosion.
Hidden Costs of Unverified Pipe Procurement
Pipes shipped without heat-number traceability fail third-party inspection at the destination port, triggering re-export or scrap costs that exceed the original purchase price. Steel grade substitution — Q235 delivered where Q345 was specified — compromises structural load calculations and voids engineer sign-off, forcing costly reinforcement or full replacement [NEED_CITE: structural steel grade substitution risks in foundation piling]. Missing CE or mill certificates delay customs clearance in the EU and Middle East, adding demurrage charges that erase any per-ton savings from unverified suppliers.
Why Buyers Return for API 5L SSAW Spiral Welded Steel Pipe
Factory-direct pricing means no trading-company margin sits between the mill and the buyer — volume discounts apply for long-term partners ordering API 5L SSAW spiral welded steel pipe across multiple projects. Every batch carries original mill test certificates documenting chemical composition and mechanical properties, with SGS or BV third-party inspection available before loading. Our 3 production lines produce 20,000+ tons monthly across 2,800+ specifications, so standard sizes ship from ready stock while custom lengths and end treatments are produced within typical lead times. Professional export teams optimize container loading for large-diameter pipe — nesting smaller OD inside larger OD to prevent end deformation — and handle full customs documentation including certificate of origin and bill of lading.
Documentation & Compliance
- Mill test certificate documenting Q235/Q345 chemical composition and mechanical properties per GB/T 9711-2011 and API 5L, with heat number traceability on every pipe
- Lloyd’s CE certificate covering EN 10210/10219 for EU structural and piling projects requiring factory production control compliance
- ISO 9001:2015 quality management certificate covering the full production and inspection workflow for SSAW spiral welded steel pipe
- SGS or BV third-party inspection report available on request, covering dimensional checks, weld seam ultrasonic testing, and hydrostatic pressure verification
- Material traceability by heat number stamped on each pipe, matching the mill test certificate for project handover documentation
- Full customs document package including packing list, bill of lading, and certificate of origin for destination-country clearance

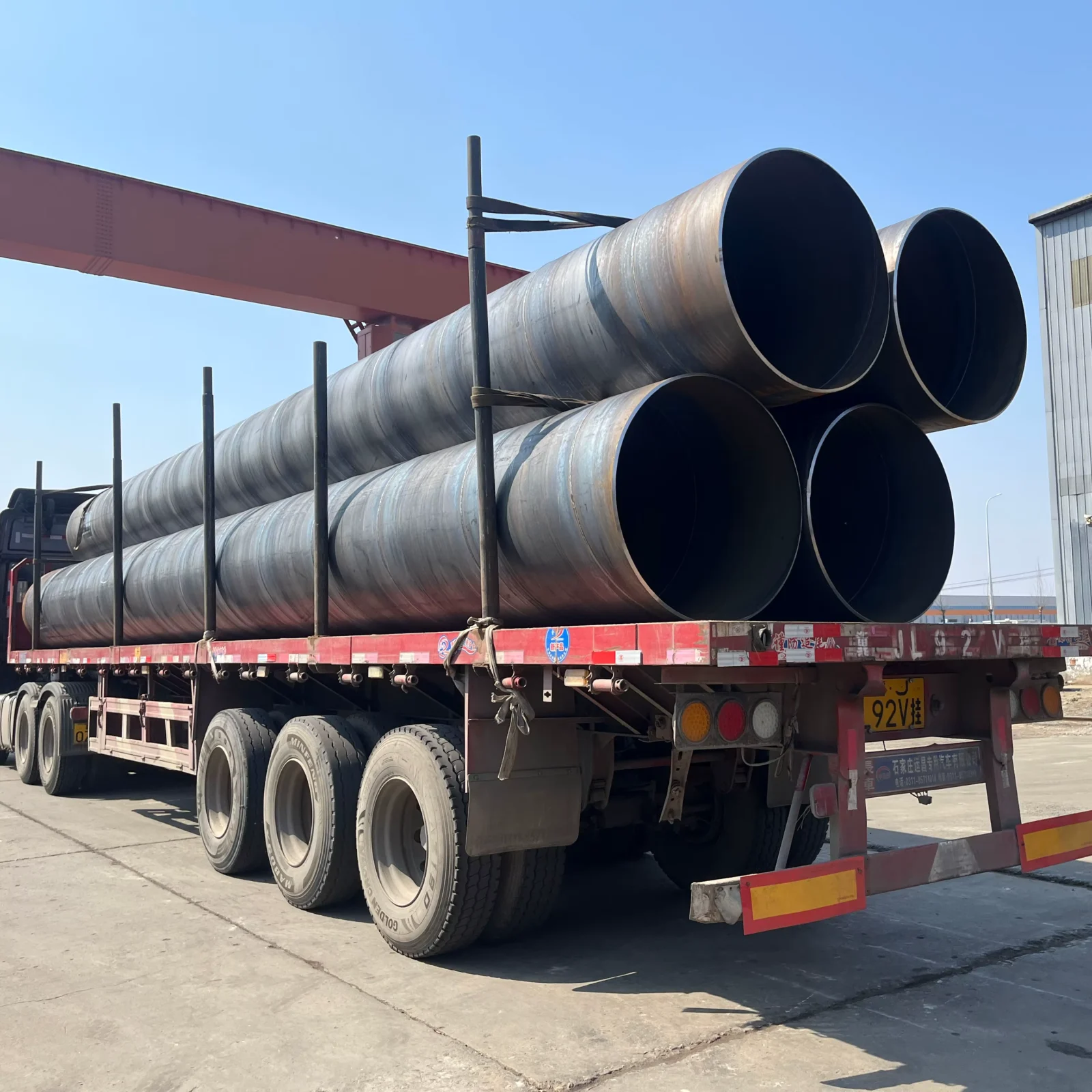

Packaging, Loading & Delivery
- Bare SSAW pipes in Q235/Q345 bundled with steel strips and edge protectors to prevent coating damage and end deformation during ocean transit
- Painted finish pipes wrapped with waterproof cloth and separated by rubber spacers to preserve surface coating through port handling and container loading
- Large-diameter OD 1000–4200 mm pipes loaded vertically or nested with smaller OD pipes inside to maximize container weight utilization and protect beveled ends
- Standard 6–12 m lengths cut to project-specified sizes, with beveled or plain ends protected by plastic caps before bundling
- Heat number and steel grade stenciled on each pipe for site identification, with bundle tags matching the mill test certificate
- FOB, CIF, and DDP terms available with professional container loading plans optimized for heavy large-diameter pipe shipments
Request a Quote with Mill Test Certificates
Submit your specification sheet — OD, wall thickness, length, steel grade, quantity, and destination port — to receive a factory-direct quotation with volume pricing and mill test certificate samples. Our team responds within 12 hours with loading plans, certification documentation, and production timelines for your API 5L SSAW spiral welded steel pipe order.
Frequently Asked Questions
Q: What steel grade equivalents does API 5L SSAW spiral welded steel pipe cover for international projects?
A: We supply Q235 and Q345 per Chinese national standards, ASTM A53 Grade B, ASTM A500 Grade A/B/C, and ASTM A252 for piling — all produced on the same SSAW lines with full cross-reference documentation for EU, North American, and Southeast Asian specifications.
Q: Are mill test certificates provided with every shipment of large-diameter SSAW pipe?
A: Yes, every batch of API 5L SSAW spiral welded steel pipe ships with original mill test certificates documenting chemical composition and mechanical properties, with heat number traceability stamped on each pipe.
Q: Can third-party inspection be arranged before container loading?
A: SGS and BV third-party inspections are available on request, covering dimensional verification, weld seam ultrasonic testing, surface treatment checks, and hydrostatic testing as required by your project specification.
Q: How are large-diameter pipes loaded to prevent end damage during ocean freight?
A: Pipes in OD 1000–4200 mm are nested with smaller diameters inside or loaded vertically with dedicated securing plans, and beveled ends are protected by plastic caps — a loading method developed from field experience to prevent the end deformation that causes SGS rejection at destination.
Q: What is the minimum order quantity for custom-length SSAW pipe?
A: Trial orders start from 1 ton, with full-container bulk orders supported across all standard and custom specifications in Q235, Q345, and API 5L grades.
Get Factory-Direct Pricing on Your Next SSAW Pipe Order
Send your specification sheet — OD, wall thickness, steel grade, quantity, and destination port — to receive a bulk quotation with mill test certificates and optimized loading plans within 12 hours.
