Description

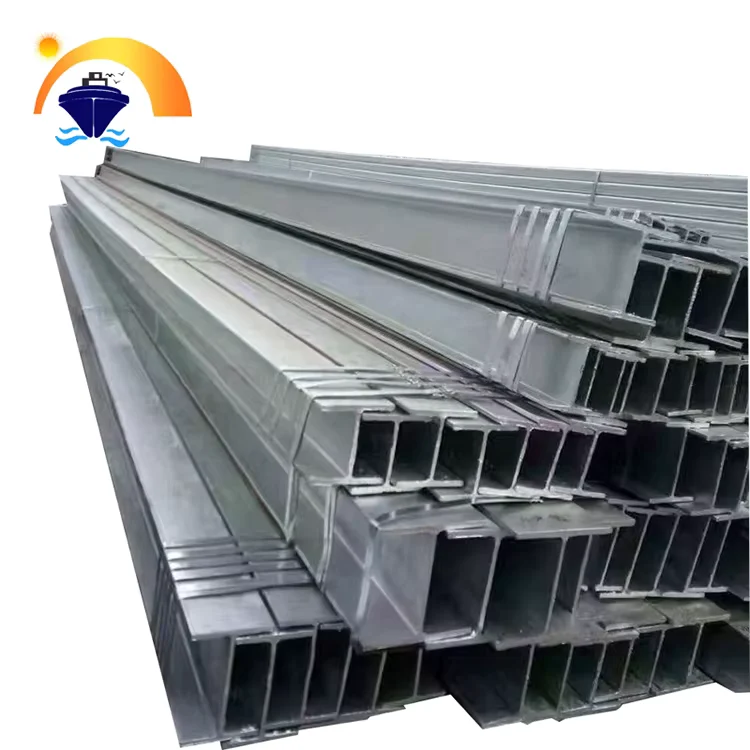

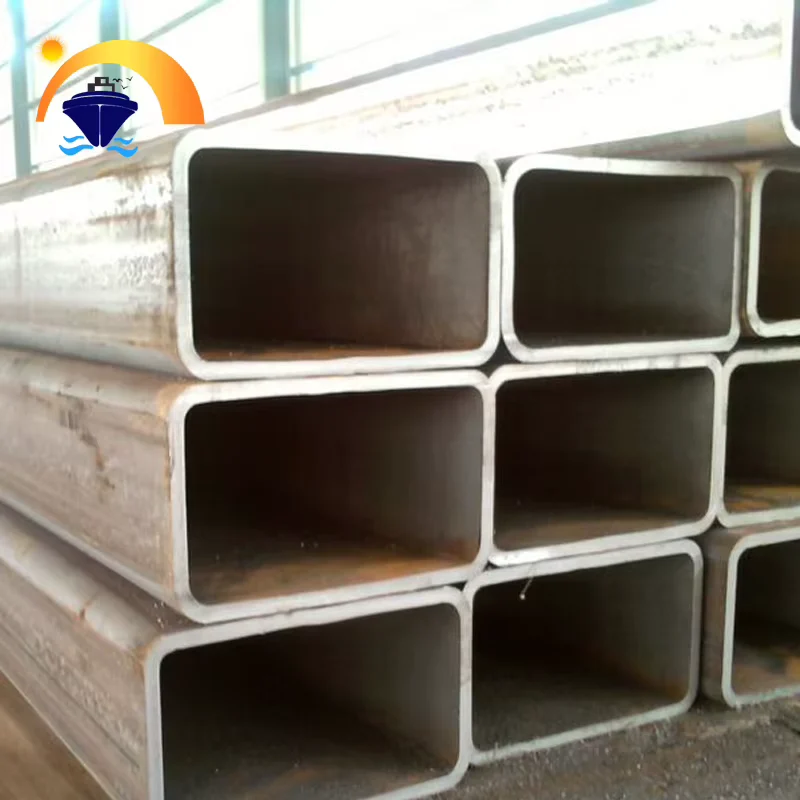

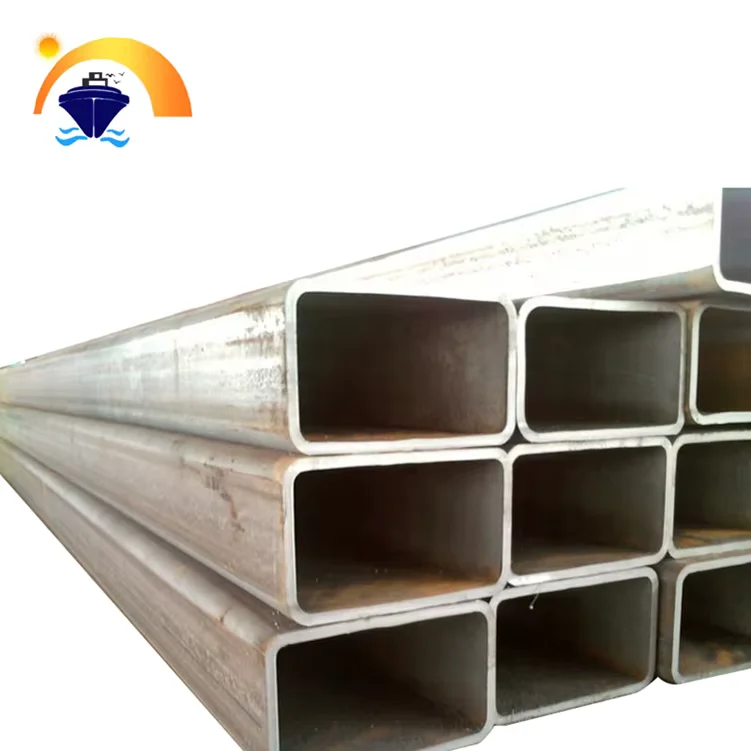

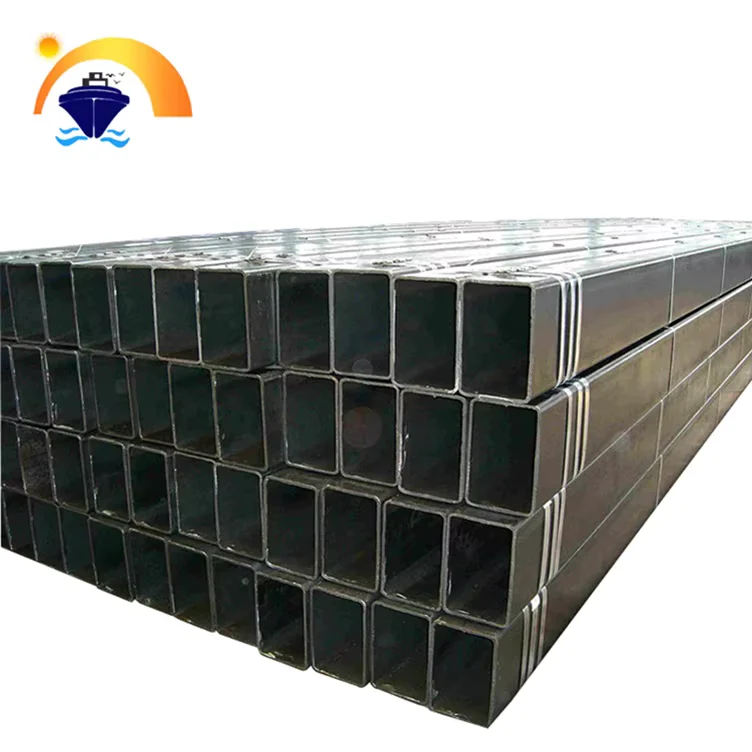

Factory-Direct Hot-Dip Galvanized Rectangular Steel Tube — Q195 to Q345 grades produced on 3 in-house lines with original mill test certificates for every heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Hot-Dip Galvanized Rectangular Steel Tube |
| Product Type | Rectangular Steel Tube (Galvanized) |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | GB |
| Section Shape | Rectangular |
| Size Range | 10–914 mm side length |
| Length | Customer’s Request |
| Technique | Welded (ERW) |
| Surface Treatment | Hot-Dip Galvanized Coated |
| Tolerance | ±5% |
| Application | Steel structures / Construction frames / Scaffolding / Machinery / Furniture |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, column supports, roof trusses, curtain wall systems |
| Scaffolding & Access | Scaffold uprights, cross braces, guardrail posts in outdoor sites |
| Industrial Machinery | Equipment frames, conveyor supports, machine base structures |
| Furniture & Interior | Display racks, shelving systems, structural legs for heavy-duty furniture |
Where Zinc Coating Thickness Decides Site Acceptance
Every micron of galvanizing matters when tubes reach a humid coastal job site.
I once watched a full container of GI rectangular tubes get rejected at an African port because the zinc layer failed adhesion testing on-site. The supplier had skipped post-galvanizing quench control to save time. That batch cost the buyer three weeks of delay and double freight. When sourcing a Hot-Dip Galvanized Rectangular Steel Tube, inconsistent coating thickness means premature rust at weld seams, failed inspector sign-offs, and re-procurement at peak project cost. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel] Buyers also face specification gaps — standard catalogs rarely cover non-standard side lengths, and custom orders often carry prohibitive MOQs from trading companies with no production control.
Matching Structural Load and Corrosion Resistance for Frame Projects
Hot-dip galvanized rectangular steel tubes in Q235 and Q345 grades serve load-bearing frames where both structural rigidity and long-term corrosion protection are non-negotiable. The rectangular profile offers flat bearing surfaces for bolted or welded connections, reducing the need for gusset plates. In scaffolding and outdoor infrastructure, the zinc coating must withstand continuous exposure to rain, salt spray, and UV without peeling at cut edges. We produce these tubes in-house with controlled dipping time and bath temperature, ensuring uniform zinc adhesion across all four faces — a detail that separates mill-direct supply from trader-repackaged stock.
Engineering Compliance and Certification Requirements
Structural rectangular tubes used in load-bearing frames must conform to recognized engineering norms. For projects targeting European markets, CE certification under EN 10219 for cold-formed welded hollow sections is often mandatory for customs clearance and site inspection approval. [NEED_CITE: EN 10219 cold-formed hollow section compliance requirements] In regions following GB standards, Q235 and Q345 grades provide traceable yield strength classifications aligned with domestic structural design codes. Third-party inspection by SGS or BV confirms coating thickness, dimensional tolerance, and chemical composition before shipment — a step that prevents port rejections and project compliance failures. Custom cut-to-length options reduce on-site welding waste and accelerate installation schedules.
Steel Grade Selection and Galvanizing Process Fundamentals
Q195 through Q345 represent a progression in yield strength within the Chinese GB standard system, where Q235 serves general structural frames and Q345 handles heavier load-bearing applications. [NEED_CITE: steel grade equivalence between GB Q series and international standards] The hot-dip galvanizing process involves immersing cleaned ERW welded tubes in molten zinc at controlled temperatures, forming a metallurgical bond that provides both barrier and sacrificial corrosion protection. Unlike electro-galvanizing, hot-dip coating delivers thicker zinc layers suitable for outdoor and industrial environments. The ±5% dimensional tolerance on side lengths ensures compatibility with standard connection hardware while allowing minor adjustments during assembly. ERW welding produces a continuous longitudinal seam that, after galvanizing, remains protected by the zinc coating — eliminating the exposed weld line vulnerability common in poorly processed tubes.
Hidden Costs of Unverified Galvanized Tube Procurement
Purchasing galvanized rectangular tubes without verified mill test certificates creates compounding risks. Coating thickness below standard leads to accelerated corrosion at weld seams, requiring costly re-coating or full tube replacement. [NEED_CITE: consequences of substandard galvanizing coating on structural steel] Missing CE or ISO documentation triggers customs holds, demurrage charges, and project timeline overruns. Negative tolerance abuse — where actual wall thickness falls below declared specifications — reduces load capacity and fails structural inspector approval, forcing complete material replacement at the buyer’s expense.
Direct Mill Supply with Full Traceability and Export Support
As a factory operating 3 simultaneous production lines with monthly capacity exceeding 20,000 tons, we eliminate trader markups and provide volume-based pricing for long-term partners. Every heat number carries an original mill test certificate documenting chemical composition and mechanical properties. Our in-house laboratory conducts three-stage inspection before galvanizing, after dipping, and pre-shipment. For buyers requiring independent verification, SGS or BV third-party inspection is arranged on request. We maintain ready stock across 2,800+ standard specifications, enabling split shipments and urgent order fulfillment without full production lead times. Professional export documentation — including packing lists, bills of lading, and certificates of origin — is prepared by our dedicated team, with container loading optimized to maximize payload and minimize freight cost per ton.
Documentation & Compliance
- Mill test certificate documenting Q235 or Q345 chemical composition and mechanical properties per GB standard for each heat number
- CE certificate covering EN 10219 cold-formed welded hollow sections for European market customs clearance
- ISO 9001:2015 quality management system certificate covering production and inspection processes
- SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality
- Material traceability by heat number linked to original mill test certificate and production batch record
- Complete customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

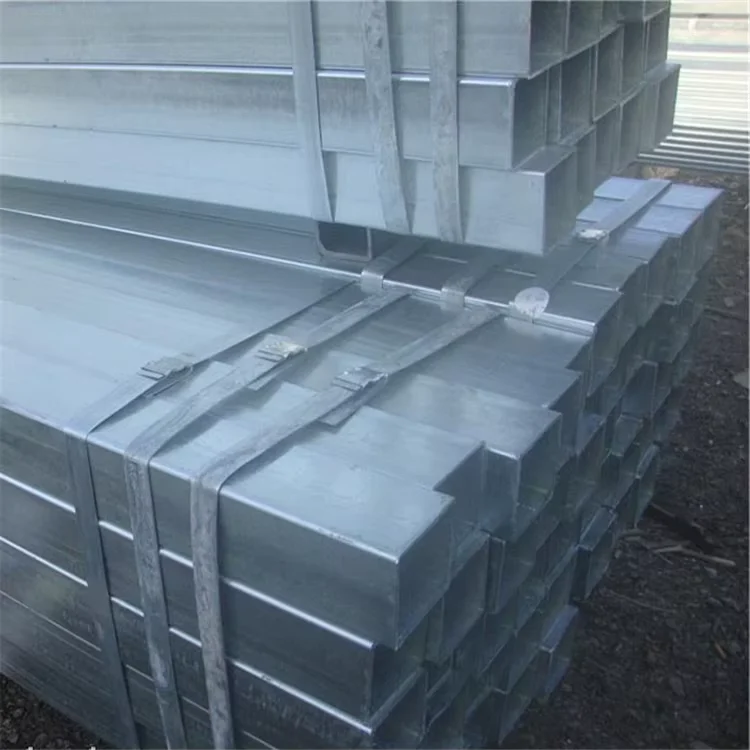

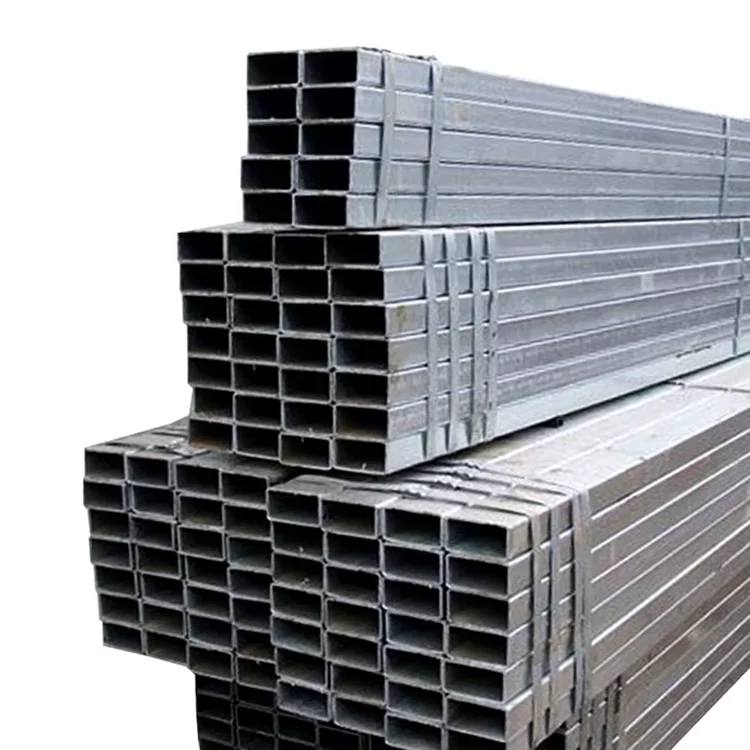

- Hot-dip galvanized rectangular tubes bundled with steel strips and edge protectors to prevent zinc coating damage during handling and ocean transit
- Seaworthy packaging with waterproof wrapping for Q235 and Q345 grades to preserve surface finish in humid container conditions
- Container loading optimization for 10–914 mm side length tubes, maximizing payload per 20ft or 40ft container based on length and wall thickness
- Custom cut-to-length service available to reduce on-site cutting waste and accelerate scaffolding or frame installation
- Heat number and steel grade markings stenciled on each bundle for site identification and inspection traceability
- FOB, CIF, and DDP shipping options with professional documentation handling for global port delivery
Start Your Bulk Procurement with Verified Specifications
Submit your required side lengths, wall thickness, steel grade (Q195–Q345), quantity, and destination port to receive a factory-direct quotation within 12 hours. We provide original mill test certificates and can arrange SGS/BV third-party inspection before shipment. For non-standard sizes or custom lengths outside stock range, production lead times and MOQ flexibility are confirmed based on your project schedule.
Frequently Asked Questions
Q: What is the steel grade equivalence between Q235 and international standards?
A: Q235 in the GB system corresponds roughly to S235JR in EN standards and ASTM A500 Grade A in the US system, though exact chemical composition and mechanical property verification through mill test certificates is recommended for project-specific compliance.
Q: What zinc coating thickness can be expected on hot-dip galvanized rectangular tubes?
A: Hot-dip galvanizing typically produces coating thickness meeting GB requirements for structural steel, with uniform coverage across all surfaces. Specific coating weight or thickness can be verified through SGS or BV third-party inspection reports upon request.
Q: Can non-standard side lengths be produced outside the 10–914 mm range?
A: Custom sizes outside standard stock range are available based on production feasibility. Trial orders starting from 1 ton are accepted, with full-container bulk orders receiving volume-based pricing.
Q: How is material traceability maintained for each shipment?
A: Every bundle carries a heat number linked to the original mill test certificate documenting chemical composition and mechanical properties. Third-party inspection reports from SGS or BV can be arranged to independently verify compliance before shipment.
Q: What shipping and documentation support is provided for international orders?
A: We handle complete export documentation including packing lists, bills of lading, and certificates of origin. Container loading is optimized for maximum payload, with FOB, CIF, and DDP terms available based on destination port requirements.
Get Factory-Direct Pricing with Mill Test Certificates
Send your specification sheet — including side dimensions, wall thickness, steel grade, quantity, and destination — to receive a detailed quotation and sample mill test certificate within 12 hours.
