Description
Factory-Direct Fabrication with Mill-Tested Traceability — Every Q235/Q345/A36 steel structure component leaves our Jinan facility with original mill test certificates and third-party inspection options, eliminating middlemen markups on custom fabrication orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345/A36 Fabricated Steel Structure |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235, Q345, A36, SS400, S235JR, ST37, S355 |
| Standard | GB |
| Technique | Welding, Drilling, Cutting, Painting |
| Tolerance | ±1% |
| Surface Treatment | Galvanized / Black / Painted |
| Length | As client’s request |
| Drawing Design | As client’s drawing |
| Application | Frame Part, Steel Structure Frame |
| Type | Heavy |
| MOQ | 1 Ton (for stocks); 3-5 Tons (for customized) |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, warehouse structures, bridge support components |
| Industrial Manufacturing | Machinery frames, equipment platforms, conveyor structures |
| Energy & Utilities | Solar mounting structures, wind turbine base frames |
| Commercial Building | Mezzanine floors, steel structure platforms, parking structures |
What Tolerance Deviation Costs on a Structural Frame Order
±1% fabrication tolerance prevents field rework and connection failures.
When H-beam connection plates arrive 15mm off spec, the entire container sits at port while crews wait for replacements. I’ve seen warehouse projects in Southeast Asia lose three weeks because nobody cross-checked cutting plans against fabrication drawings before production started. Custom Steel Structure Parts Fabrication Supplier operations that skip drawing verification pass these costs directly to the job site — bolt holes misaligned, weld prep surfaces contaminated, and structural members refusing to seat properly. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
Precision Matching for Heavy Structural Frames
Custom Steel Structure Parts Fabrication Supplier capabilities matter most when drawings call for non-standard lengths or complex node connections. Our fabrication lines handle Q235 through S355 grades across varying thicknesses, maintaining ±1% tolerance on critical dimensions. Whether your project needs galvanized finish for coastal exposure or painted surfaces for indoor industrial platforms, the cutting plan gets verified against actual mill material before any piece hits the floor.
Engineering Compliance and Certification Pathways
Structural frames serving EU markets require CE certification under EN 10219 for cold-formed welded hollow sections, while North American projects typically specify ASTM A36 or A572 grades. [NEED_CITE: steel grade equivalence between EN and ASTM standards] Our fabrication facility produces to GB standards with full chemical composition and mechanical property documentation, supporting third-party inspection through SGS or BV when project specs demand independent verification. Surface treatment selection — hot-dip galvanized for corrosion resistance or shop primer for field welding — gets determined during the drawing review phase, not after material arrives on site.
Steel Grade Selection and Fabrication Process
Q235 and A36 serve general structural applications where formability matters more than ultimate strength, while Q345 and S355 provide higher yield points for heavily loaded columns and beam connections. SS400 and ST37 represent Japanese and German designations respectively, covering similar mechanical property ranges. The welding process adapts to each grade’s carbon equivalent — higher strength steels require preheat controls and specific filler metal selection to prevent hydrogen cracking. Surface treatment follows fabrication completion: galvanized coatings protect against atmospheric corrosion for outdoor structures, while painted finishes allow color matching for architectural applications.
Hidden Costs of Unverified Fabrication Sources
Material certificates that don’t match actual chemistry create inspection failures during project handover. [NEED_CITE: structural steel certification requirements for international projects] When S355 components arrive with S235 test reports, engineers must either reject the shipment or conduct expensive independent testing. Negative tolerance abuse on plate thickness reduces load capacity below design calculations, forcing structural reassessment or member replacement. Customs clearance delays occur when mill test certificates lack proper translation or don’t reference the correct material standard.
Why Project Teams Source Fabrication Here
Our Jinan facility operates three production lines simultaneously, handling 20,000+ tons monthly capacity across standard and custom specifications. Every fabrication order receives in-house laboratory verification with original mill test certificates documenting chemical composition and mechanical properties. Third-party inspection through SGS or BV available for projects requiring independent quality verification. The professional export team manages container loading optimization — heavy structural components get positioned to maximize payload while protecting finished surfaces during ocean transit. Flexible MOQ from 1-ton trial orders to full-container bulk shipments supports both project procurement and ongoing supply agreements.
Documentation & Compliance
- Mill test certificate documenting Q235/Q345/A36 chemical composition and mechanical properties per GB standards
- CE certificate available for EN 10219 compliance when serving European construction markets
- ISO 9001:2015 quality management system certification covering fabrication processes
- SGS or BV third-party inspection reports available upon request for project-specific verification
- Material traceability maintained by heat number from mill plate through fabrication completion
- Complete customs documentation package including packing list, bill of lading, and certificate of origin

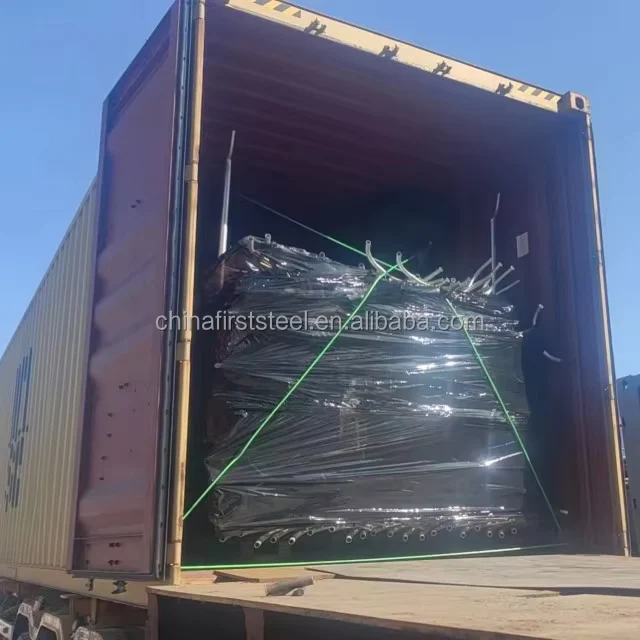

Packaging, Loading & Delivery
- Heavy fabricated components secured with steel strip bundling, edge protectors preventing surface damage during transit
- Galvanized surfaces wrapped with moisture barriers preserving zinc coating integrity during ocean shipment
- Container loading plans optimized for structural frame dimensions, maximizing payload within weight restrictions
- Custom length cutting completed per drawing specifications, reducing field modification requirements
- Heat number and steel grade identification marked on each component for site traceability
- FOB, CIF, or DDP logistics options with professional export documentation handling
Getting Your Fabrication Quote Started
Submit your structural drawings with material specifications, steel grade requirements, quantity, and destination port to receive competitive pricing within 12 hours. Our engineering team reviews fabrication feasibility and provides mill test certificate samples for quality verification before contract signing. Custom Steel Structure Parts Fabrication Supplier services include drawing optimization suggestions that reduce material waste while maintaining structural integrity.
Frequently Asked Questions
Q: What MOQ applies for custom fabricated steel structures?
A: Stock items require 1-ton minimum orders, while custom fabrication based on client drawings starts at 3-5 tons depending on complexity and steel grade requirements.
Q: Can you provide third-party inspection for project compliance?
A: Yes, SGS and BV inspection services are available upon request, with original mill test certificates provided for every shipment documenting chemical composition and mechanical properties.
Q: What surface treatment options work best for outdoor structural applications?
A: Hot-dip galvanizing provides long-term corrosion protection for exposed structures, while painted finishes suit indoor applications or projects requiring specific color matching.
Q: How do you handle non-standard sizes not in typical catalogs?
A: Our fabrication lines produce custom lengths and dimensions per client drawings, with ±1% tolerance maintained on critical dimensions through verified cutting plans.
Q: What documentation supports customs clearance for international shipments?
A: Complete packages include mill test certificates, packing lists, bills of lading, certificates of origin, and CE documentation when required for European markets.
Request Factory-Direct Fabrication Pricing
Email your structural drawings and specifications to receive competitive quotes with mill test certificate samples within 12 hours.
