Description
Factory-direct pricing with no middlemen — Every Q235 Hot Dipped Galvanized Steel Pipe ASTM A53 Sch 40 ships directly from our Jinan production lines, eliminating trading margins on bulk orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Hot Dipped Galvanized Steel Pipe |
| Product Type | Galvanized Steel Pipe (Round) |
| Steel Grade | Q235, DX51D, SGCC, G450, G550, S550GD |
| Standard | ASTM A53, GB, JIS |
| Section Shape | Round |
| Size Range | 1/2″ to 8″ (21.3mm–219.1mm) |
| Wall Thickness | Sch 40 (2.0–8.2mm depending on OD) |
| Length | 1–12m |
| Technique | Hot-Dipped Galvanized |
| Surface Treatment | Zinc Coating 30–600 g/m² |
| Ends | Plain / Threaded |
| Application | Water supply, construction support, scaffolding, fencing, structural frames |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water supply pipelines, drainage support columns |
| Building & Construction | Scaffolding uprights, structural frames, roof purlins |
| Agriculture & Fencing | Perimeter fencing posts, greenhouse framework supports |
| Industrial Facilities | Conveyor support structures, equipment mounting frames |
Zinc Coating Weight Decides Whether Your Galvanized Pipe Survives the Job Site
Hot-dip galvanizing at Z30–Z600 g/m² separates a pipe that lasts 5 years from one that rusts through in 18 months.
Global buyers routinely specify galvanized pipe without defining zinc coating thickness — then wonder why the first batch corrodes at weld points within a single rainy season. A Z30 coating may suffice for indoor structural frames, but outdoor scaffolding exposed to coastal humidity demands Z275 minimum. When certification documents omit zinc weight data, customs inspectors in destination ports flag the shipment for missing compliance evidence, and project engineers refuse acceptance. [NEED_CITE: hot-dip galvanizing coating thickness standards per ASTM A123]
Matching ASTM A53 Sch 40 Wall Thickness to Structural Load Requirements
Sch 40 wall thickness on a Hot Dipped Galvanized Steel Pipe ASTM A53 Sch 40 provides the pressure rating and structural rigidity that water supply networks and scaffolding uprights demand. At 1/2″ OD the wall measures 2.77mm; at 8″ OD it reaches 8.18mm — both maintaining the dimensional consistency that threaded connections and clamp fittings require on active construction sites. Our production lines hold tolerance within standard limits across the full 1/2″–8″ range, so site crews never waste shifts grinding pipe ends to fit.
Engineering Compliance Across Corrosive Environments and Certification Frameworks
A Hot Dipped Galvanized Steel Pipe ASTM A53 Sch 40 destined for Middle East coastal projects faces salt-laden air that accelerates zinc consumption; specifying Z450–Z600 coating weight extends service life without switching to more expensive alloy alternatives. For European buyers, Lloyd’s CE certification under EN 10210/10219 confirms dimensional and chemical compliance, while ASTM A53 marking satisfies North American procurement specifications. Threaded ends per NPT or BSPT standards allow direct installation into existing water supply networks without field welding — eliminating weld-zone corrosion that undermines galvanized protection. [NEED_CITE: galvanized steel pipe corrosion resistance in marine environments]
Understanding Hot-Dip Galvanizing and Steel Grade Selection for Galvanized Pipe
The hot-dip galvanizing process immerses bare steel pipe in molten zinc at approximately 450°C, creating a metallurgical bond that produces zinc-iron alloy layers beneath a pure zinc outer coat. This differs fundamentally from electro-galvanizing, where zinc deposits electrolytically at 15–25 g/m² — adequate for indoor appliance housings but insufficient for outdoor structural exposure. Steel grade selection directly affects galvanizing quality: Q235 carbon content below 0.22% ensures uniform zinc adhesion without flaking, while higher-strength grades like S550GD require controlled silicon levels to prevent excessive coating growth that causes brittleness. The Sch 40 wall thickness standard originated in American pipe sizing conventions and remains the default specification for pressure-rated water supply and structural applications worldwide.
Hidden Costs When Galvanized Pipe Arrives Without Proper Certification
A container of galvanized pipe without original mill test certificates faces customs holds at destination ports — and project engineers cannot sign off on structural installations without documented chemical composition and mechanical test results. Zinc coating below specified weight passes visual inspection on arrival but fails within months, forcing full replacement at multiples of the original pipe cost. Negative wall thickness tolerance beyond standard limits reduces pressure capacity on water supply lines and triggers rejection during hydrostatic testing. [NEED_CITE: ASTM A53 galvanized pipe dimensional tolerance requirements]
Procurement Confidence from a Manufacturer That Loads Its Own Containers
Every Hot Dipped Galvanized Steel Pipe ASTM A53 Sch 40 leaves our Jinan facility with original mill test certificates documenting chemical composition and coating weight — no trading company re-labels or re-packages our output. Our three production lines running simultaneously deliver monthly capacity exceeding 20,000 tons, supporting both trial orders at 5-ton MOQ and full-container bulk procurement without quality variation. ISO 9001:2015 certified production and Lloyd’s CE certification provide documented compliance for regulated markets, while SGS or BV third-party inspection is available for buyers who require independent verification before shipment. We optimize container loading for 1–12m pipe lengths, maximizing weight utilization in 20ft and 40ft containers while protecting the zinc coating from transit damage.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition, yield strength, and zinc coating weight per ASTM A53 and GB standards
- Lloyd’s CE certificate confirming compliance with EN 10210/EN 10219 for European market structural applications
- ISO 9001:2015 quality management certificate covering hot-dip galvanizing process control and dimensional inspection
- SGS or BV third-party inspection report available for independent verification of coating thickness and mechanical properties
- Material traceability by heat number linking each pipe bundle to original steel coil test data
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination port clearance

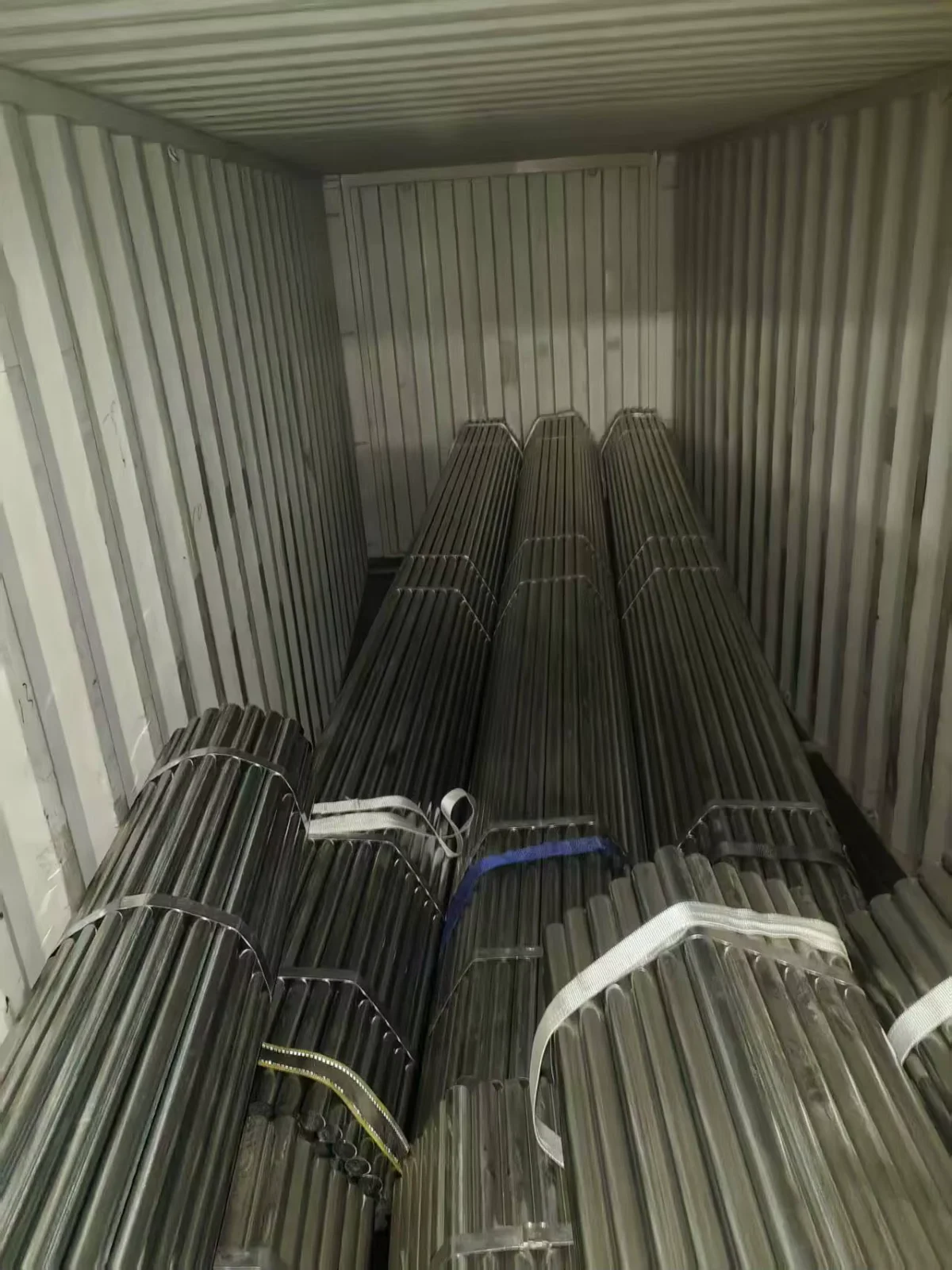

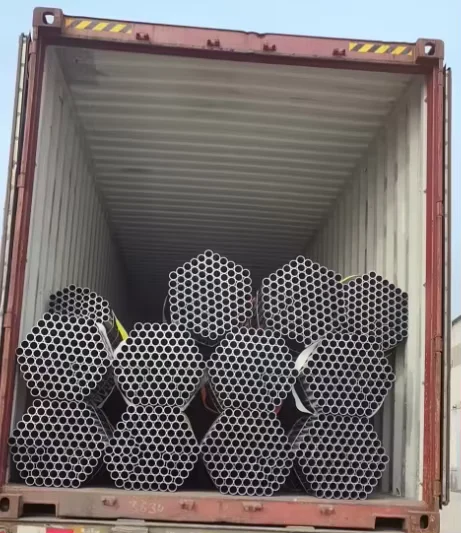

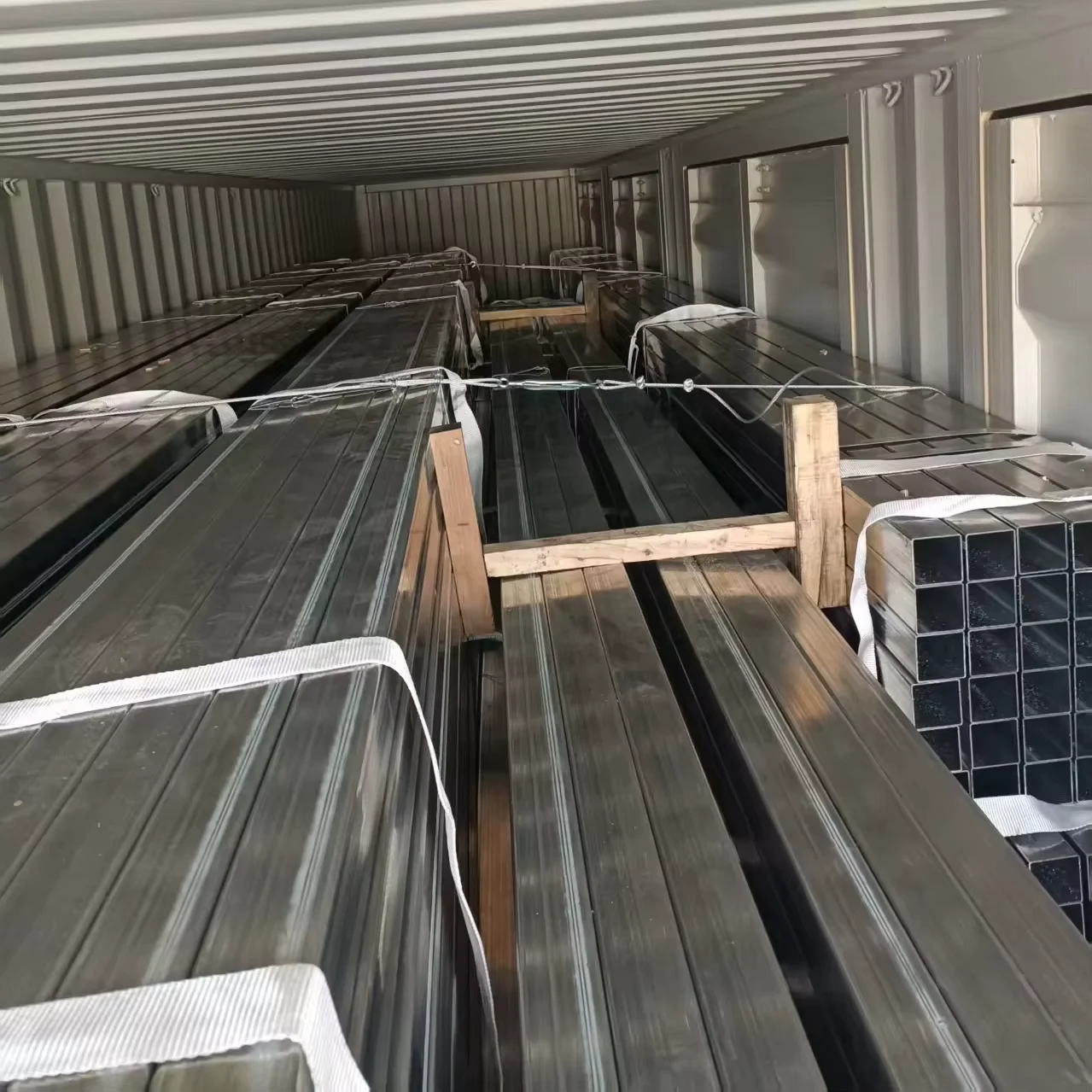

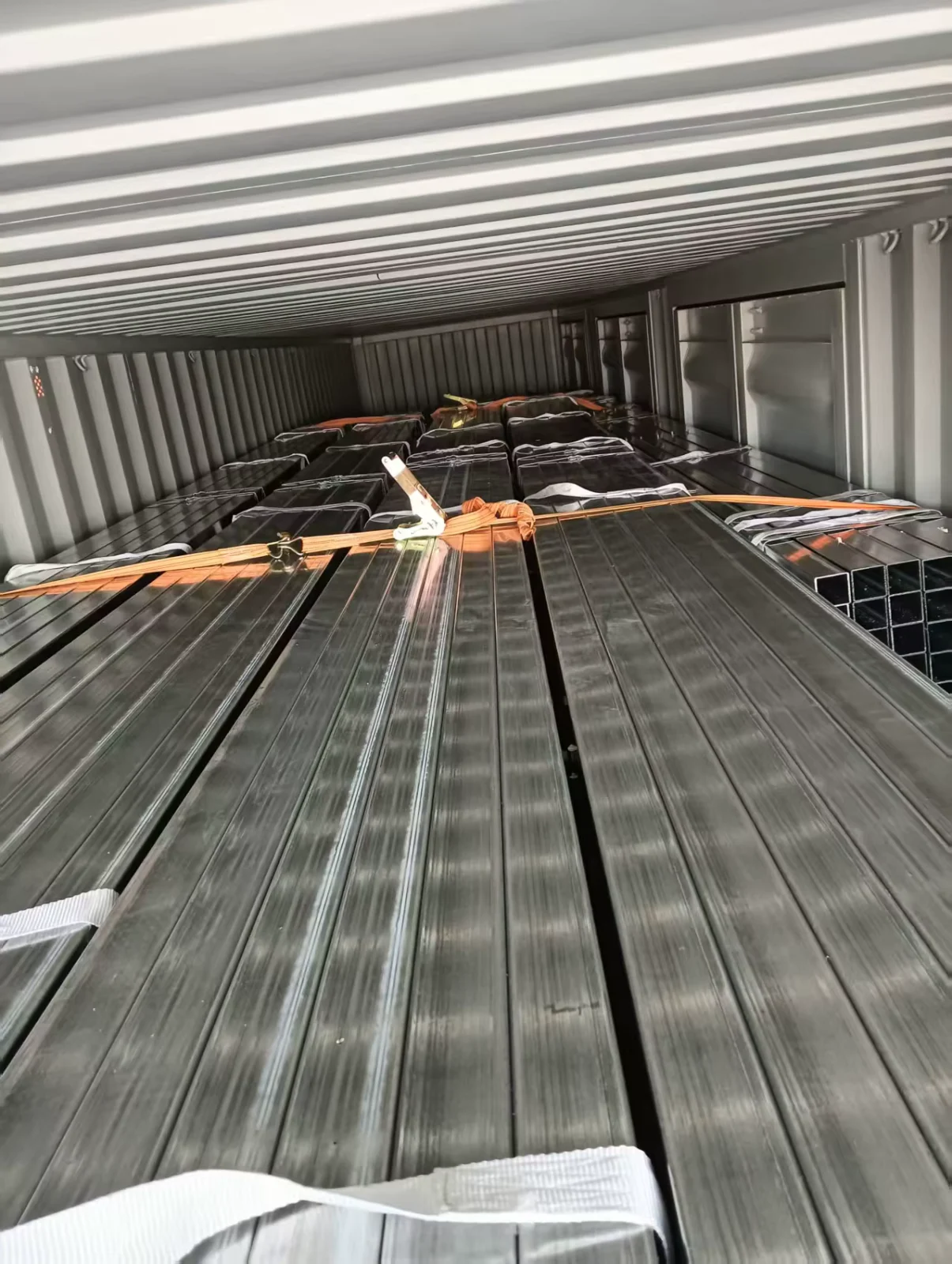

Packaging, Loading & Delivery
- Q235 Hot Dipped Galvanized Steel Pipe bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean transit
- Threaded ends capped with plastic protectors preventing thread damage and moisture ingress across 1–12m lengths
- Container loading plans optimized for Sch 40 wall thickness pipe in 1/2″–8″ OD range, maximizing weight per 20ft or 40ft container
- Heat number and steel grade stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional export documentation handling
- Split shipment capability for buyers requiring phased delivery against bulk contract quantities
Submit Specifications for Bulk Pricing and Mill Test Certificates
Send your required OD, wall thickness, length, zinc coating weight, and destination port — we return a competitive bulk quote with volume discount structure, production lead time, and sample mill test certificate within 12 hours. For non-standard sizes or custom coating specifications, our engineering team provides technical confirmation before contract signing.
Request Your Hot Dipped Galvanized Steel Pipe ASTM A53 Sch 40 Quote
Submit specifications via email at admin@sdxinjiyuan.com or WhatsApp at +86 188 5315 7756 to receive pricing and documentation.
Frequently Asked Questions
Q: What zinc coating weight should I specify for outdoor construction applications?
A: For outdoor scaffolding and structural frames exposed to weather, specify Z275 minimum coating weight. Coastal or industrial environments with high humidity or chemical exposure require Z450–Z600 for extended corrosion protection. Indoor applications may accept Z30–Z60 depending on humidity levels.
Q: Can I order threaded ends for direct installation into existing water supply systems?
A: Yes, we supply Hot Dipped Galvanized Steel Pipe ASTM A53 Sch 40 with plain or threaded ends. Threaded ends are available in NPT or BSPT standards for direct connection to existing pipeline infrastructure without field welding.
Q: What documentation do you provide for customs clearance and project compliance?
A: Every shipment includes original mill test certificates documenting chemical composition, mechanical properties, and zinc coating weight. We also provide CE certificates for European markets, ISO 9001:2015 certification, and complete export documentation including packing list, bill of lading, and certificate of origin.
Q: What is the minimum order quantity and can I order trial quantities?
A: The MOQ for Hot Dipped Galvanized Steel Pipe ASTM A53 Sch 40 is 5 tons. We support trial orders for quality verification before committing to bulk procurement, with the same mill test certificate documentation provided for all order sizes.
Q: How do you ensure the zinc coating survives container shipping?
A: We bundle galvanized pipe with steel strips and install edge protectors to prevent coating abrasion during transit. Container loading plans maximize weight utilization while protecting the zinc surface, and we seal threaded ends with plastic caps to prevent moisture damage.
