Description
Factory-Direct Bulk Supply — 3 production lines running 20,000+ tons monthly with original mill test certificates on every ASTM A106 A53 Seamless Carbon Steel Round Pipe order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Seamless Carbon Steel Round Pipe |
| Product Type | Seamless Round Steel Pipe |
| Steel Grade | 10#, 20#, 35#, 45#, Q235, Q345 (16Mn), Q195, Q215, 40Cr, 15CrMo, 45Mn2 |
| Standard | ASTM A106, ASTM A53, ASTM A178, API 5L, GB, DIN, BS, JIS |
| Section Shape | Round |
| Outer Diameter | 21.3–1420 mm |
| Wall Thickness | 2.11–300 mm |
| Length | 6 m / 6.4 m / 12 m (or as required) |
| Technique | Seamless (Cold Rolled) |
| Surface Treatment | Slightly Oiled / Black |
| Tolerance | ±1% |
| Ends | Plain / Beveled (as required) |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Fluid transport / Boiler pipe / Oil & gas pipeline / Hydraulic systems / Structural engineering / Machinery parts / Chemical fertilizer industry / Automobile & tractor components |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | High-pressure transmission pipelines, wellhead flow lines, gathering systems |
| Power Generation | Boiler tubes, superheater elements, steam conveyance in thermal plants |
| Chemical Processing | Reactor feed lines, heat exchanger tubes, corrosive fluid transport |
| Structural Engineering | Load-bearing columns, truss members, bridge support pylons |
| Machinery Manufacturing | Hydraulic cylinder barrels, shaft sleeves, automotive drive axles |
| Infrastructure | Urban water supply networks, fire protection risers, piling foundations |
What Steel Grade Equivalence Costs on a Customs Clearance Delay
Mismatched grade documentation turns a routine shipment into a port-side detention.
Buyers sourcing ASTM A106 A53 Seamless Carbon Steel Round Pipe from China frequently face a silent trap: the mill test certificate lists a Chinese grade like Q235 or 20#, but the purchase order specifies ASTM A106B. Without a clear cross-reference table signed off by both parties, customs agents in Dubai, Lagos, or Santos may hold the container pending third-party verification. I once watched a full truckload of seamless pipe sit in Jebel Ali for eleven days because the MTC showed 19Mn5 instead of the expected ASTM designation — even though the chemistry was functionally identical. The re-inspection bill exceeded the freight savings from choosing the lowest FOB quote. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Matching Wall Thickness Tolerance to High-Pressure Service Conditions
Cold-rolled seamless process delivers ±1% wall thickness tolerance across OD 21.3–1420 mm, which matters when ASTM A106 A53 Seamless Carbon Steel Round Pipe enters boiler or hydraulic circuits. A 0.5 mm deviation on a 10 mm WT tube means the difference between passing hydrostatic test at 20 MPa and failing at 18 MPa. Our in-house lab runs chemical composition analysis and mechanical property testing on every heat number before the pipe leaves Jinan. For projects requiring API 5L or ASTM A106B compliance, we provide original MTCs traceable to the heat, with SGS or BV inspection available at the port before container sealing.
Structural Load Requirements and Certification Pathways
When ASTM A106 A53 Seamless Carbon Steel Round Pipe serves as load-bearing members in infrastructure frames, the governing code — whether AISC 360 in North America or EN 1993 in Europe — demands verifiable yield strength and elongation data. Q345 (16Mn) offers higher yield than Q235 for heavy-duty columns, while 20# and 45# grades suit machined components requiring predictable tensile behavior. CE certification under EN 10210/10219 opens EU markets without re-testing, and our factory holds Lloyd’s CE FPC approval. For non-standard lengths or beveled ends ready for field welding, we cut to order within typical production lead times. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
Why Cold-Rolled Seamless Outperforms ERW in Critical Service
The cold-rolled seamless method eliminates the weld seam inherent in ERW pipe, removing the weakest link in high-pressure or cyclic-load applications. ASTM A106 A53 Seamless Carbon Steel Round Pipe produced this way shows uniform grain structure around the full circumference, critical when fluid velocity creates erosion-corrosion at the weld line of inferior alternatives. Surface treatment — slightly oiled for indoor storage or black for immediate painting — depends on transit duration and final coating plan. Grades like 15CrMo and 40Cr add chromium or molybdenum for elevated-temperature creep resistance in boiler service, while 45Mn2 targets high-strength shafting in mining equipment.
Hidden Costs of Unverified Grade Substitution
Ordering Q235 when the drawing calls for ASTM A106B may save dollars on the invoice but triggers rework when the engineer’s inspector flags the yield strength gap. ASTM A106 A53 Seamless Carbon Steel Round Pipe shipped without proper MTC or with forged heat numbers risks entire batch rejection at destination, plus demurrage charges that dwarf the original price difference. Negative tolerance abuse — where actual wall thickness falls below the specified minimum — compromises pressure rating and voids insurance coverage on operational pipelines. [NEED_CITE: ASTM A106 grade B chemical composition requirements]
Why Bulk Buyers Return for Repeat Orders
Factory-direct pricing means no trading company markup on ASTM A106 A53 Seamless Carbon Steel Round Pipe, with volume discounts unlocking at container-level quantities. Our 2,800+ specification inventory covers urgent split shipments while custom orders for non-standard OD/WT combinations run on three simultaneous production lines. Every batch carries original mill test certificates, and third-party inspection by SGS or BV is coordinated on-site before loading. Professional export documentation — including packing list, bill of lading, and certificate of origin — clears customs in 50+ destination countries without agent intervention. Container loading optimization maximizes payload for 6 m and 12 m lengths, reducing per-ton freight cost on CIF deals.
Documentation & Compliance
- Mill test certificate documenting Q235 or 20# chemical composition and tensile properties per ASTM A106, traceable to individual heat number
- CE certificate under EN 10210/10219 for structural hollow sections entering European Union markets
- ISO 9001:2015 quality management system certificate covering full production and inspection workflow
- SGS or BV third-party inspection report verifying dimensions, surface quality, and mechanical test results before shipment
- Material traceability sheet linking each pipe bundle to heat number, production date, and test sample location
- Customs document package including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery

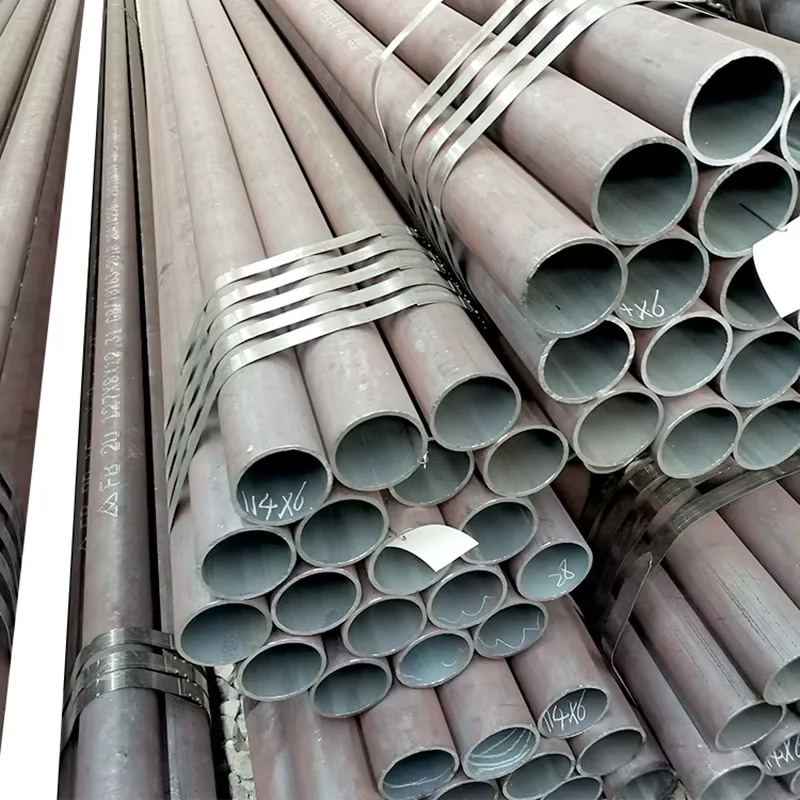

- Slightly oiled ASTM A106 A53 Seamless Carbon Steel Round Pipe bundled with steel strips and edge protectors to prevent surface scratching during ocean transit
- Black finish pipes stacked in seaworthy bundles with waterproof wrapping for open-deck container loading
- 6 m and 12 m lengths optimized for 20ft and 40ft open-top containers with wooden chocks preventing longitudinal shift
- Custom cut lengths under 6 m loaded in nested configurations to maximize container payload and reduce freight per ton
- Heat number and steel grade stenciled on each pipe end for site identification and MTC cross-referencing
- FOB Qingdao or CIF destination port options with door-to-door logistics coordination for project site delivery
Requesting a Quote with Full Technical Backup
Submit your specification sheet — including OD, WT, length, steel grade, quantity, and destination port — to receive a competitive bulk quotation with volume discount tiers. We attach sample mill test certificates for your review before contract signing, and confirm SGS/BV inspection availability for your region. Non-standard sizes or special end preparations receive engineering feedback within typical response windows.
Frequently Asked Questions
Q: Can Q235 grade substitute for ASTM A106B in high-temperature service?
A: Q235 and ASTM A106B have overlapping but not identical chemical composition and mechanical property ranges. For non-critical structural applications, substitution may work with engineer approval, but boiler or pressure piping requires strict ASTM A106B compliance with documented carbon content limits.
Q: What does the mill test certificate include for seamless carbon steel round pipe?
A: Each MTC documents chemical composition (carbon, manganese, silicon, phosphorus, sulfur content), tensile test results (yield strength, tensile strength, elongation), and hydrostatic test pressure if applicable, all traceable to the specific heat number printed on the pipe.
Q: Do you offer non-standard wall thickness or custom cut lengths?
A: Yes, our three production lines handle custom OD/WT combinations outside standard schedules, with typical production lead times for special orders. Minimum order quantity remains 1 ton for custom specifications.
Q: How do you ensure negative tolerance stays within acceptable limits?
A: Our ±1% wall thickness tolerance on cold-rolled seamless pipe ensures actual measurements remain within ASTM A106 and A53 permissible variations. Third-party inspection by SGS or BV can verify dimensions before shipment if required by your purchase order.
Q: What surface treatment options are available for corrosion protection?
A: Standard delivery is slightly oiled for indoor storage or black finish for immediate painting. Galvanized coating, 3PE anti-corrosion wrapping, or epoxy lining can be applied based on service environment requirements, with separate quotation for additional processing.
Get Your ASTM A106 A53 Seamless Carbon Steel Round Pipe Quote with Mill Test Certificate
Send your specification requirements via email or WhatsApp to receive factory-direct pricing, available stock confirmation, and sample documentation within one business day.
