Q195 Q235 Q335 ERW Spiral Weld Carbon Steel Pipe API 5L ASME A53 Factory Direct Supplier

Description

Factory-Direct Spiral Pipe Supply — Every Q195/Q235/Q335 ERW spiral weld carbon steel pipe rolls off our own production lines with original mill test certificates, eliminating trader markups on large-diameter pipeline orders.

Technical Specifications

Application Suitability

What a Missing Mill Certificate Costs on an API 5L Pipeline Shipment

A pretty mill cert means nothing if the yield strength fails at the destination port.

I once saw an entire container of spiral pipes rejected after SGS re-testing at the discharge port — the reported yield strength fell short of the specified grade, and the buyer had no leverage because the paperwork looked flawless on paper. For global buyers sourcing an API 5L ERW spiral weld carbon steel pipe supplier, the gap between certificate data and actual material performance is the single most expensive blind spot in bulk procurement. Customs authorities in the Middle East and Southeast Asia are tightening document verification, and a mismatch between heat numbers and physical markings can freeze a shipment for weeks. [NEED_CITE: EN 10219 cold-formed hollow section certification requirements]

Matching Large-Diameter Spiral Pipe to Pipeline and Piling Demands

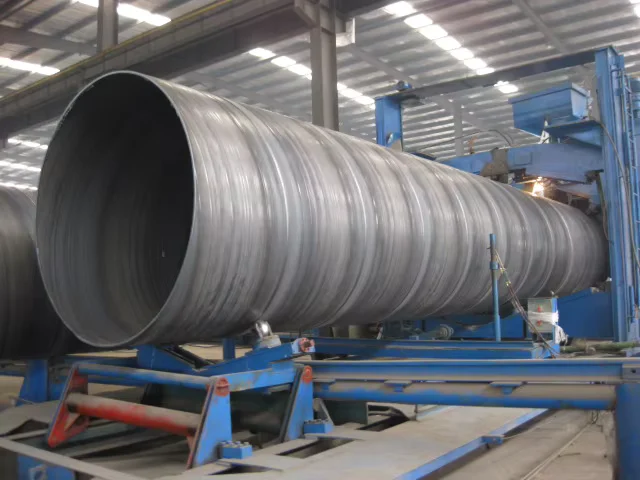

Spiral welded construction allows outer diameters up to 3200mm — far beyond what straight-seam ERW or seamless processes can economically produce. For oil and gas trunk lines, the API 5L standard governs chemical composition limits and hydrostatic test requirements, while the Q195–Q335 grade range covers low-to-medium pressure fluid transport and structural piling where extreme tensile demands are secondary to dimensional availability and cost efficiency. Our production lines run three spiral welding stations simultaneously, holding ready stock in standard diameters and producing custom wall thicknesses within typical lead times — meaning an API 5L ERW spiral weld carbon steel pipe supplier can ship 600mm OD × 10mm WT pipes from inventory while a 2400mm OD order rolls to specification.

Engineering Compliance Across Standards and Coating Systems

Structural designers working to EN 1993 or AISC frameworks need verified material properties, not just grade labels. The Q195/Q235/Q335 system aligns broadly with ASTM A53 Grade B and API 5L Grade A/B in carbon-manganese chemistry, but equivalence is not automatic — buyers must confirm mill test certificates against project specifications before contract signing. [NEED_CITE: steel grade equivalence between GB, ASTM, and API standards] For buried pipeline applications, coating selection directly determines service life: FBE suits single-layer corrosion protection up to moderate temperatures, while 3PE combines epoxy adhesion with polyethylene mechanical resistance for aggressive soil conditions. End finishes — plain, beveled, or threaded and coupled — must match the field welding or mechanical joint method specified by the EPC contractor, and ordering the wrong end type generates costly on-site rework.

Understanding Q-Series Grades and Spiral Weld Metallurgy

The Q-series designation (Q195, Q235, Q335) references minimum yield strength in MPa under the Chinese GB system, where the number after “Q” indicates the yield point. Q195 serves light structural and fencing applications; Q235 is the workhorse grade for general pipeline and piling use, offering balanced weldability and formability; Q335 steps up strength for higher-load structural members. Spiral welding (SSAW) produces a helical seam that distributes residual stress more evenly than a single straight seam, making it the preferred process for large-diameter pipes above 500mm OD where seamless production becomes cost-prohibitive. [NEED_CITE: SSAW vs ERW weld seam stress distribution in large-diameter pipe] External coatings — FBE, 2PE, 3PE, 3PP — are applied after weld completion and surface preparation, with coating thickness and adhesion tested per project specification. Wall thickness tolerance of ±1% means that a 10mm nominal wall can measure between 9.9mm and 10.1mm; for theoretical weight invoicing, this tolerance directly affects per-ton pricing and must be agreed before order confirmation.

The Hidden Price of Unverified Spiral Pipe Procurement

Ordering by grade label alone — without demanding original mill test certificates tied to specific heat numbers — exposes the buyer to material substitution risk. A pipe stamped Q235 that actually performs as Q195 will pass visual inspection but fail under hydrostatic proof testing at the project site, triggering rejection, replacement shipping costs, and schedule delays that dwarf the initial price saving. Certification gaps also create customs friction: ports in Saudi Arabia, Nigeria, and Indonesia routinely hold steel shipments lacking properly legalized documents or third-party inspection stamps. [NEED_CITE: customs documentation requirements for steel pipe imports in Middle East markets] The cost of an SGS or BV pre-shipment inspection is a fraction of the demurrage and re-procurement expenses that follow a failed destination-port test.

Procurement Confidence Built on Traceable Production

Every API 5L ERW spiral weld carbon steel pipe leaving our Jinan facility carries an original mill test certificate documenting chemical composition and mechanical properties by heat number — no broker intermediaries, no certificate trading. Our in-house理化 laboratory runs three-stage inspection (incoming material, in-process weld, finished dimension and coating) before any shipment clears the gate. With 2,800+ specifications in ready stock across round pipe, square and rectangular tube, plate, and section steel, project buyers consolidate multiple product categories into single-source container shipments, reducing coordination overhead and freight cost. Lloyd’s CE certification under EN 10210/EN 10219 and ISO 9001:2015 quality management provide the documentary foundation for European and global project compliance, while optional SGS/BV third-party inspection offers independent verification for buyers who require it. Our export team handles container loading optimization — critical for large-diameter pipe where nesting and bracing determine how many meters fit in a 40ft open-top or flat-rack — and manages full export documentation from commercial invoice through certificate of origin.

Documentation & Compliance

• Mill test certificate documenting Q195/Q235/Q335 chemical composition and mechanical properties per heat number, aligned with API 5L and ASME A53 reporting formats
• CE certificate under EN 10210/EN 10219 for structural hollow sections, supporting European market customs clearance and project specification compliance
• ISO 9001:2015 quality management system certificate covering full production scope from raw material receipt through finished pipe dispatch
• SGS or BV third-party inspection report available on request, covering dimensional verification, coating thickness measurement, and witness testing
• Full material traceability from steel coil heat number through finished pipe identification, with heat number stenciled on every pipe end
• Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin legalized for destination-country customs

Packaging, Loading & Delivery

• Q195/Q235/Q335 spiral pipes bundled with steel strip ties and edge protectors, sized to match 5.8m–11.8m standard lengths for secure ocean transit
• Hot-rolled or antiseptical-coated surfaces protected with anti-rust oil or end caps; FBE/3PE-coated pipes receive additional wrapping to prevent coating damage during handling
• Container loading plans optimized for large-diameter pipe (159mm–3200mm OD), maximizing meters per 20ft or 40ft container through nested stacking and timber bracing
• Custom cut-to-length service available for 6m and 12m定尺 orders, with cut ends deburred and capped per buyer specification
• Every pipe stenciled with heat number, steel grade (Q195/Q235/Q335), outer diameter, wall thickness, and manufacturer marking for site traceability
• FOB, CIF, and DDP shipping terms supported, with professional export documentation and port coordination for global destinations

Starting Your Spiral Pipe Inquiry

Submit your specification sheet — outer diameter, wall thickness, steel grade, coating requirement, quantity, and destination port — and receive a detailed quotation with volume pricing, production timeline, and mill test certificate sample within 12 hours. For non-standard dimensions or custom coating specifications, our technical team will confirm feasibility and lead time before contract commitment.

Request Your API 5L Spiral Pipe Quotation

Send your specification and quantity to receive factory-direct pricing and mill test documentation.

Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@sdxinjiyuan.com

Frequently Asked Questions

Q: How do Q195/Q235/Q335 grades compare to ASTM A53 and API 5L equivalents?

A: The Q-series references minimum yield strength in MPa under the Chinese GB system. Q235 broadly aligns with ASTM A53 Grade B in carbon-manganese chemistry, while API 5L Grade A/B covers similar composition ranges. We provide cross-reference documentation and mill test certificates formatted to international standards so your project engineer can verify equivalence against specification requirements.

Q: Can you provide original mill test certificates and arrange third-party inspection?

A: Every batch ships with an original mill test certificate documenting chemical composition and mechanical properties by heat number. SGS or BV third-party inspection is available on request, covering dimensional checks, coating thickness, and witness testing before shipment.

Q: What is the MOQ for non-standard outer diameter or wall thickness?

A: We offer flexible MOQ starting from trial quantities for custom specifications. Standard sizes in Q195/Q235/Q335 are held in ready stock for immediate dispatch; non-standard dimensions are produced to order with confirmed lead times before contract signing.

Q: When should I specify FBE versus 3PE coating for pipeline applications?

A: FBE (fusion-bonded epoxy) provides single-layer corrosion protection suitable for moderate soil conditions and temperatures up to approximately 100°C. 3PE (three-layer polyethylene) combines epoxy primer with adhesive and polyethylene outer layer for superior mechanical resistance in rocky backfill or high-moisture environments. Selection depends on soil corrosivity, installation method, and project design life.

Q: What production lead time should I expect for bulk spiral pipe orders?

A: Standard specifications in Q195/Q235/Q335 ship from ready stock. Custom orders — including non-standard dimensions, special coating, or cut-to-length — follow typical production lead times confirmed at quotation stage. Our three spiral welding lines running simultaneously support monthly capacity exceeding 20,000 tons for large-volume project supply.
