Description
Factory-Direct Wear Plates with Verified Hardness — Every NM400 NM450 NM500 wear resistant steel plate ships with original mill test certificates documenting Brinell hardness, chemical composition, and ultrasonic inspection results per batch.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NM400/NM450/NM500 Wear-Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR500, XAR400, XAR450, XAR500, XAR600, Dillidur400, Dillidur500, QUARD400, QUARD450, QUARD500, FORA400, FORA500, Creusabro4800, Creusabro8000, RAEX400, RAEX450, RAEX500 |
| Standard | GB/T 24186, AISI, JIS, ASTM, DIN, EN, GB |
| Section Shape | Plate |
| Thickness | 3.5–16mm or custom |
| Width | 0.6m–3m or custom |
| Length | 1m–12m or custom |
| Technique | Hot Rolled |
| Surface Treatment | AR / TMCP / Q+T delivery condition |
| Tolerance | ±1% |
| Surface Brinell Hardness (NM360) | 330–390 HBW |
| Surface Brinell Hardness (NM400) | 370–430 HBW |
| Surface Brinell Hardness (NM450) | 420–480 HBW |
| Surface Brinell Hardness (NM500) | ≥470 HBW |
| Processing Service | Laser Cutting, Plasma Cutting, Welding, Punching, Bending, Decoiling |
| Application | Engineering machinery, Mining machinery, Metallurgical equipment, Thermal power equipment, Construction machinery, Shot blasting machinery |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining & Aggregate | Crusher liners, chute liners, scraper machine liners, grab bucket edge plates |
| Construction & Concrete | Concrete mixer drum liners, pump truck boom plates, dust collector liners |
| Thermal Power & Cement | Coal mill liners, coal conveying pipes, clinker cooler plates |
| Engineering Machinery | Loader bucket bottom plates, bulldozer blade edge liners, excavator bucket side cutters |
| Metallurgical Equipment | Sintering conveyors, scraper liners, coke oven door frames |
What Negative Thickness Tolerance Costs on a Wear Plate Order
A plate that tests 370 HBW on paper but delivers 340 HBW on-site will out of service long before the scheduled maintenance window.
I once stood at a Brazilian mining site watching a full container of wear plate cut pieces get rejected. The thickness tolerance sat entirely on the negative side — theoretical weight versus actual weight diverged nearly 8 percent. Mounting holes did not align. The entire shipment had to be re-cut on location. [NEED_CITE: thickness tolerance standards for hot-rolled steel plates per EN 10051] When procurement teams source NM400 NM450 NM500 wear resistant steel plate from fragmented suppliers, hardness traceability breaks down. One batch arrives with incomplete chemistry reports, another ships without ultrasonic testing records, and the cutting service outsources to a third-party shop that does not control interpass temperature. The result is inconsistent wear life across identical machine positions.
Matching Hardness Grades to Abrasion Severity in Mining and Cement

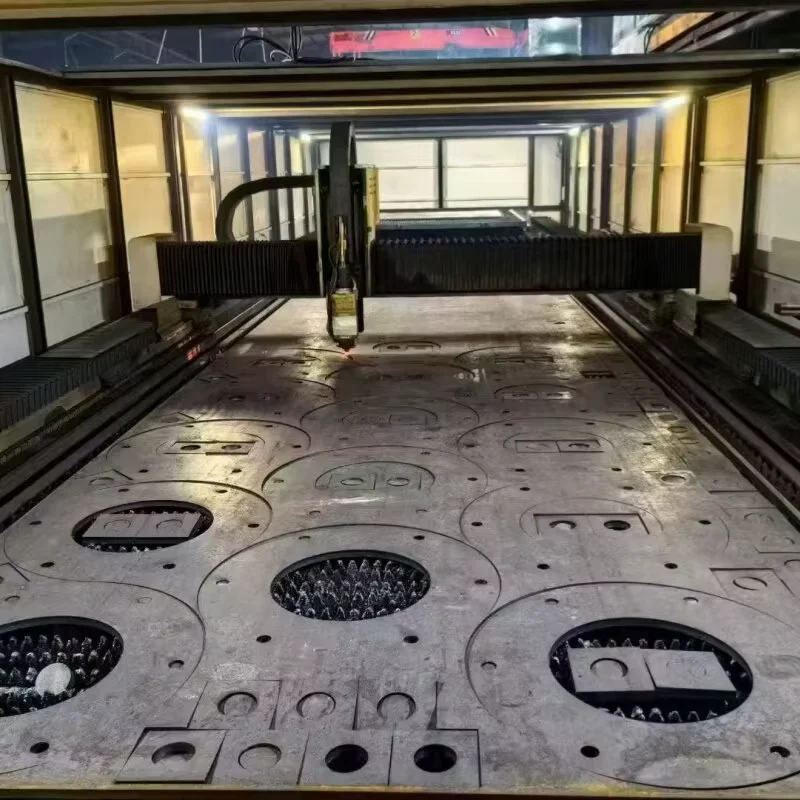

Selecting the correct Brinell hardness range determines whether a liner lasts two months or six. NM400 at 370–430 HBW handles moderate-impact abrasion in chute liners and conveyor skirting, while NM500 at ≥470 HBW is specified for high-stress crusher jaws and hammer mill beaters where impact and grinding coexist. Our in-house 12000W fiber laser cutting produces shaped parts directly from stock plates, so a mining buyer ordering NM450 scraper liners and NM500 crusher inserts receives both from a single heat-traceable batch — no mixed certificates, no guessing which plate came from which mill run.
Weldability, Pre-Heating, and Structural Code Compliance
Wear-resistant plates above NM450 demand controlled pre-heating and low-hydrogen electrodes to prevent hydrogen-induced cracking in heat-affected zones. [NEED_CITE: pre-heating recommendations for high-hardness steel welding per AWS D1.1] The Q+T delivery condition used for NM500 and NM600 grades improves weldability compared to as-rolled equivalents, but field teams still require documented carbon equivalent values and filler metal matching guidelines. Every shipment includes original mill test certificates showing chemical composition — particularly the controlled low phosphorus (≤0.015%) and low sulfur (≤0.003%) content — so welding engineers can calculate pre-heat temperature without requesting supplementary data.
Steel Grade Equivalence Across GB, DIN, NF, and SFS Systems
Procurement teams working on international projects often receive specifications calling for Dillidur400, Creusabro4800, RAEX400, or XAR400 — and need to confirm whether a Chinese GB/T 24186 NM400 plate qualifies as a substitute. The Brinell hardness bands overlap: NM400 (370–430 HBW) maps to XAR400 and Dillidur400, while NM450 (420–480 HBW) aligns with Creusabro4800 and RAEX450. [NEED_CITE: wear-resistant steel grade equivalence mapping between EN, DIN, and GB standards] The critical differentiator is not the hardness number alone but the chemical composition control and delivery condition. Our multi-grade coverage spans Chinese NM series, European XAR and Dillidur equivalents, French FORA and Creusabro grades, and Finnish RAEX — allowing project specifiers to consolidate sourcing under one supplier with unified certification documentation.
Hidden Costs of Unverified Hardness and Missing Certificates
Plates that fail hardness verification at the project gate trigger a cascade: customs holds due to incomplete material documentation, structural rejections because the delivered grade does not match the engineering specification, and field rework when cut pieces warp from uncontrolled residual stress. [NEED_CITE: material certification requirements for wear-resistant steel in mining equipment procurement] A plate labeled NM400 that actually delivers 330 HBW will wear through in half the expected service life — the cost of early replacement far exceeds the price difference between verified and unverified material. Third-party SGS or BV inspection at the loading port catches these discrepancies before the container seals, not after the crane unloads at the mine site.
Why Project Buyers Consolidate Wear Plate Procurement Here

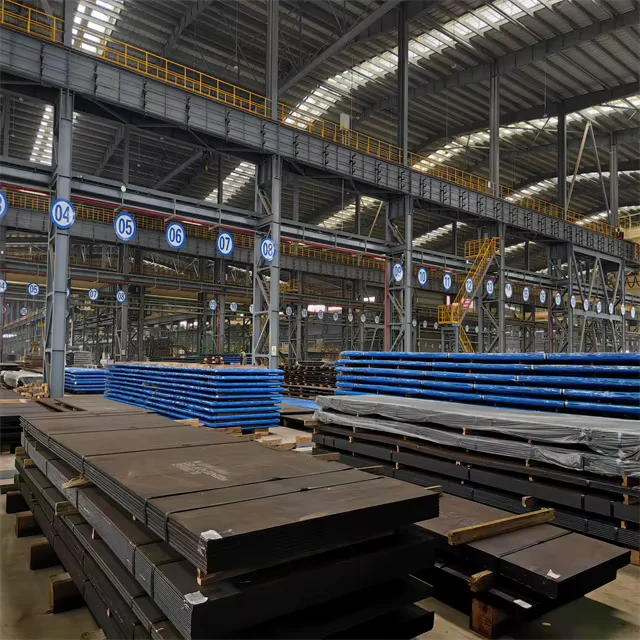

Our three production lines run simultaneously with monthly capacity exceeding 20,000 tons, covering the full NM360 through NM600 range plus international equivalents — so a mining buyer sourcing crusher liners, chute plates, and bucket edge material receives everything from one inventory with consistent heat-number traceability. Every NM400 NM450 NM500 wear resistant steel plate ships with original mill test certificates, and third-party SGS or BV inspection is available on request before container loading. The in-house 12000W fiber laser cutting and plasma cutting capability eliminates the need to outsource shaped parts to separate processors, removing the quality gap that opens when cutting is handled by a shop that never sees the original material certificate. Volume-based pricing applies for long-term partners, and flexible MOQ from 1 ton supports both trial orders and full-container bulk procurement. Professional export documentation handling ensures customs clearance files — packing list, bill of lading, certificate of origin — are complete and consistent with the material certificates.
Documentation & Compliance
- Mill test certificate documenting NM400/NM450/NM500 chemical composition, Brinell hardness, and impact test results per GB/T 24186 for each heat number
- CE certificate (EN 10210/EN 10219) confirming production system compliance for projects requiring European market access
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report verifying surface hardness, dimensional tolerance, and ultrasonic testing results at the loading port
- Material traceability by heat number linking every cut piece back to the original slab chemistry and rolling records
- Complete customs documentation package including packing list, bill of lading, and certificate of origin matched to mill test certificate heat numbers
Packaging, Loading & Delivery
- NM400 NM450 NM500 wear resistant steel plate bundled with high-tensile steel strips and edge protectors to prevent surface scratching during ocean transit

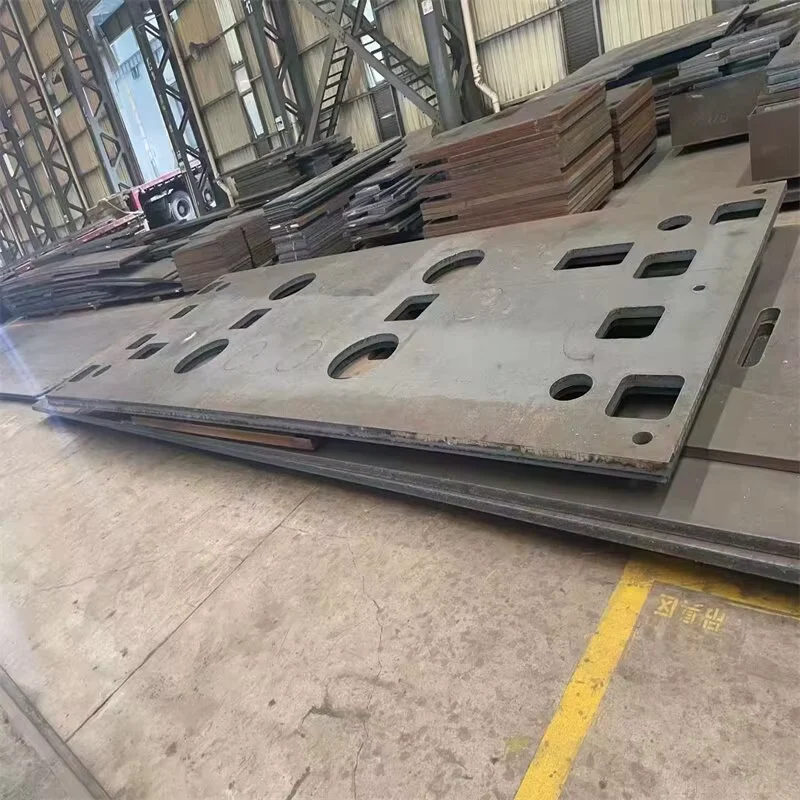

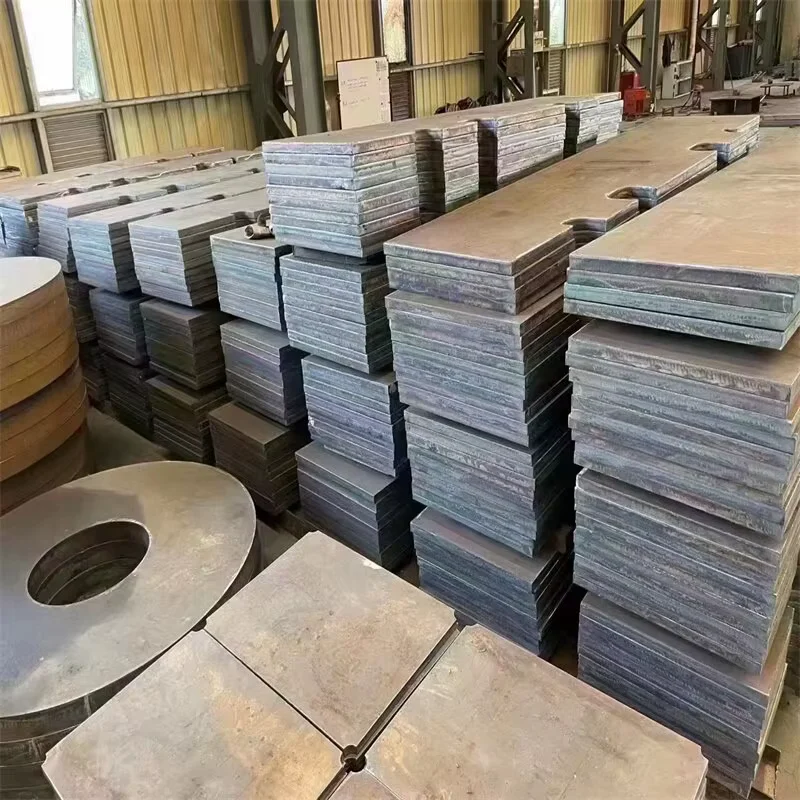

- Cut pieces nested and separated by rubber spacers to preserve laser-cut edge quality and prevent inter-piece abrasion in the container
- Container loading optimized by our professional team based on plate dimensions (up to 3m width, 12m length) to maximize weight utilization within shipping limits
- Heat number and steel grade stenciled on each plate surface for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with real-time tracking from Jinan port to destination
- Custom-length cut pieces (1m–12m) shipped with dimensional inspection reports confirming tolerance within ±1%
Start Your Wear Plate Procurement
Submit your specifications — steel grade, thickness, width, length, quantity, and destination port — to receive a competitive bulk quotation with volume pricing, delivery schedule, and sample mill test certificates. For custom-shaped cut parts, provide CAD drawings or dimensional sketches to confirm laser cutting feasibility and tolerance. Our team responds within 12 hours with pricing, certification availability, and container loading estimates.
Request a Quote with Mill Test Certificates
Send your NM400 NM450 NM500 wear resistant steel plate requirements to admin@sdxinjiyuan.com or contact via WhatsApp at +86 188 5315 7756 for bulk pricing and certification documentation.
