Description
Factory-direct alloy plate processing — D2, Q345, AR500 and 30+ grades cut, bent, and machined in-house with original mill test certificates.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | D2 Alloy Steel Plate (Custom Processing) |
| Product Type | Machined Steel Product / Steel Plate |
| Steel Grade | D2, Q235, Q345, SS400, ST37-2, ST52, Q420, Q460, S235JR, S275JR, S355JR, A36, 45#, 16Mn, 40Cr, 42CrMo, 15CrMo, 20Cr, 20CrMo, 30CrMo, 65Mn, 60Si2MnA, NM360, NM400, NM450, NM500, AR400, AR450, AR500, Q245R, Q345R, Q355, S355J2, A572GR50 |
| Standard | AISI, ASTM, DIN, JIS, GB, EN, API, ISO 9001, CE |
| Section Shape | Flat Sheet / Plate |
| Thickness | 1.2–300mm (Hot Rolled: 2.75–100mm) |
| Width | 30–2200mm |
| Length | 1–12m (customizable) |
| Technique | Hot Rolled |
| Surface Treatment | Black, Bare, Oiled, Shot Blasted, Spray Paint, Coated, Galvanized |
| Tolerance | ±1% |

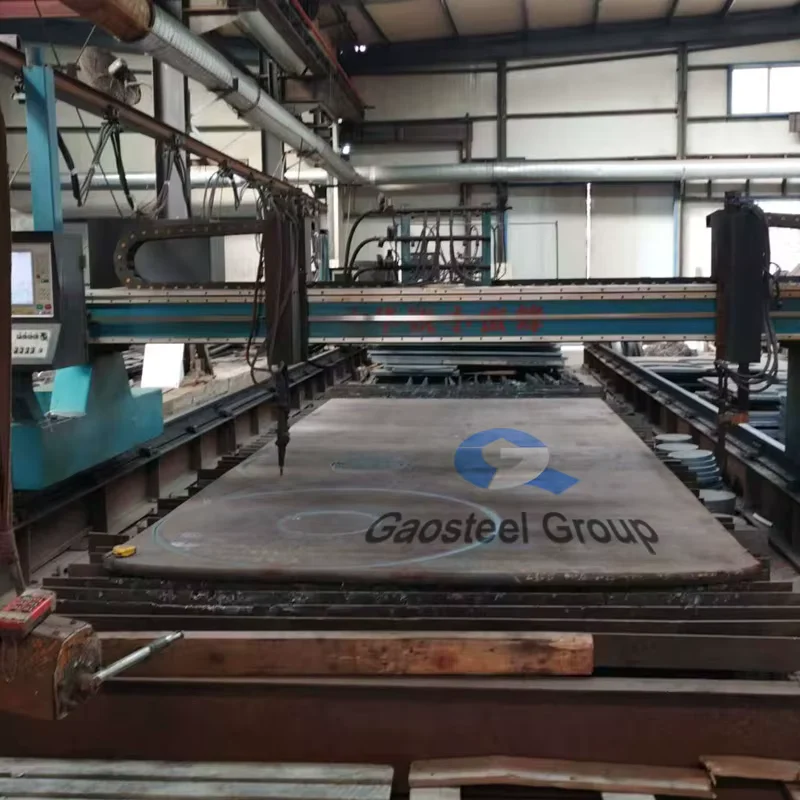

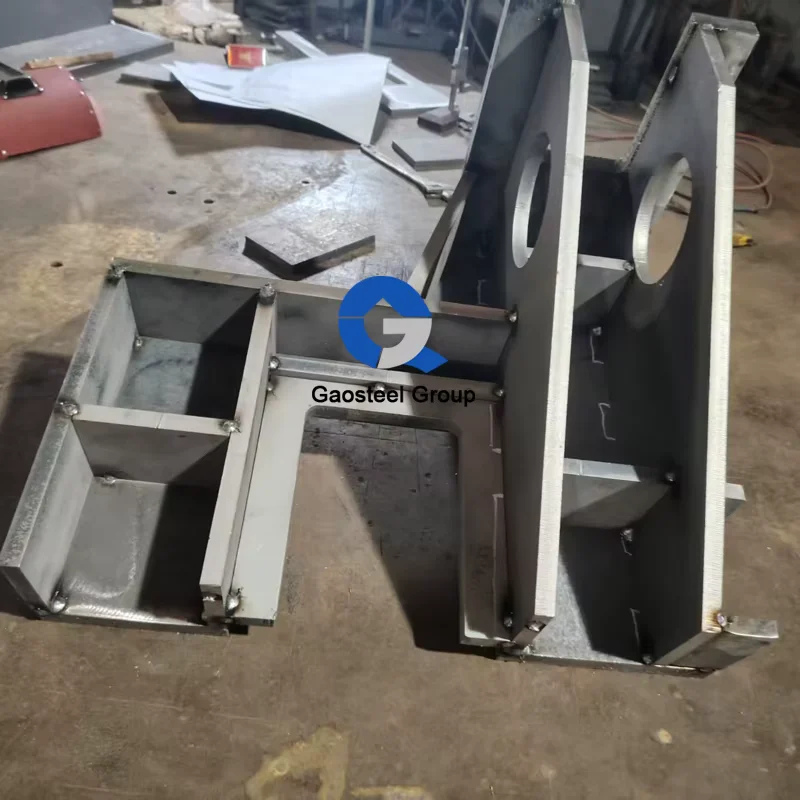

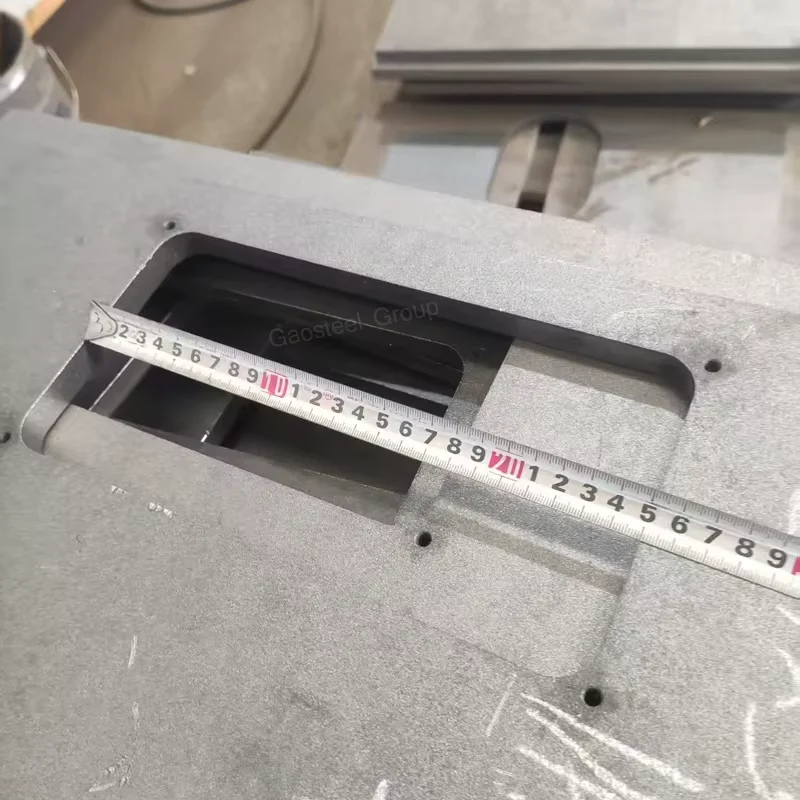

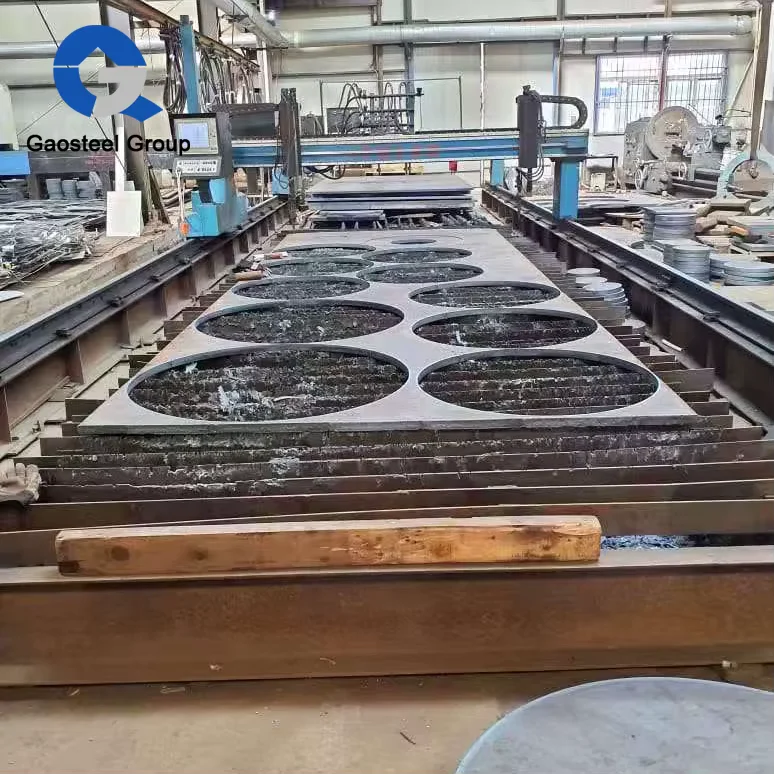

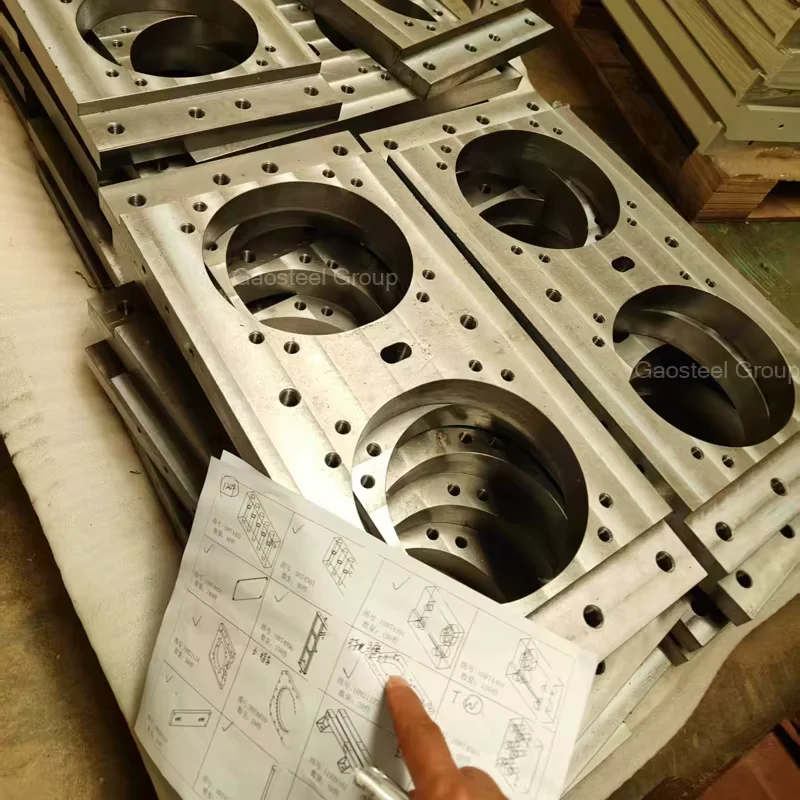

| Processing Services | Laser cutting, bending, punching, welding, CNC machining |
| Application | Construction, machinery manufacturing, container manufacturing, shipbuilding, bridges, pressure vessels, boilers, automotive, metal parts fabrication, embedded parts |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machinery Manufacturing | Structural frames, wear-resistant liners, die plates, conveyor components, embedded parts |
| Construction & Infrastructure | Bridge gusset plates, building frame connections, scaffolding base plates |
| Pressure Vessels & Boilers | Boiler end caps, vessel shell plates, heat exchanger baffles |
| Shipbuilding | Hull structural plates, deck stiffeners, bulkhead panels |
| Automotive & Transport | Trailer floor plates, chassis reinforcement brackets, container corner castings |
Mixing Carbon and Alloy Grades in One Container Creates Traceability Gaps
Every heat number must match its mill test certificate before the container is sealed.
When buyers consolidate Q345 structural plates with D2 tool steel or NM400 wear-resistant grades in a single shipment, documentation often gets mixed up at the mill or during loading. I once saw a 12mm and 30mm plate order labeled under JIS G4404 arrive in Mumbai with carbon content drifting 0.03% off the mill cert — the entire container was held at port, and demurrage charges erased the order margin. [NEED_CITE: material traceability requirements for alloy steel plate procurement] The Custom Alloy Steel Plate Processing Supplier must guarantee that each plate’s heat number is physically marked and cross-referenced to its corresponding chemical composition report, not just listed on a shared document.
Matching D2 and Wear-Resistant Grades to High-Stress Engineering Environments
D2 tool steel and NM-series wear plates serve fundamentally different functions from structural carbon grades. D2 offers high hardness and wear resistance for die plates and cutting tool inserts, while NM360–NM500 and AR400–AR500 grades handle abrasive environments in mining chutes and excavator buckets. The Custom Alloy Steel Plate Processing Supplier must understand which grade suits the actual service condition — not just cut whatever the drawing says. Our in-house processing team reviews each drawing against the specified grade’s intended application, flagging mismatches before production begins.
Structural Compliance and Surface Treatment Selection for Project Delivery
Engineering projects require plates to meet specific load-bearing codes such as EN 1993 for European structures or AISC standards for North American builds. Boiler and pressure vessel applications demand Q245R or Q345R grades with certified impact testing at specified temperatures. Surface treatment choice directly affects field performance: shot-blasted plates accept paint systems better for outdoor structures, while oiled or galvanized finishes protect against transit corrosion for machined components. [NEED_CITE: surface preparation standards for structural steel plate coating adhesion] Certification alignment matters at customs — CE-marked plates under EN 10219 clear EU ports without re-inspection, while SONCAP or SASO compliance is mandatory for West African and Middle Eastern destinations.
Hot Rolled Process and Thickness Tolerance: What ±1% Means for Machined Parts
Hot rolling produces plates with consistent grain structure across the cross-section, essential for CNC machining where internal voids or laminations cause tool breakage. The ±1% thickness tolerance means a 20mm plate measures between 19.8mm and 20.2mm — acceptable for structural frames but potentially problematic for precision die assemblies requiring tight stack heights. Alloy grades like 42CrMo and 15CrMo undergo controlled rolling and heat treatment to achieve the hardness levels needed for gear blanks and shaft components. Wear-resistant grades NM400 and AR500 are quenched and tempered to deliver surface hardness that resists abrasion without becoming brittle under impact loading.
The Hidden Cost of Unverified Mill Certificates on Alloy Plate Orders
Ordering D2 or 42CrMo plates without verified chemical composition reports risks receiving substituted grades that fail in service. A plate marketed as 42CrMo but actually delivering 35CrMo chemistry will not achieve the required hardenability for heat-treated components, leading to field failures and warranty claims. [NEED_CITE: consequences of steel grade substitution in critical engineering applications] Missing or falsified mill test certificates cause customs holds, project inspection rejections, and costly delays. The Custom Alloy Steel Plate Processing Supplier must provide original mill certificates with heat-by-heat chemistry, not consolidated documents covering multiple heats.
Why Engineering Buyers Source Custom Alloy Steel Plate Processing from Shandong Xin Jiyuan
We operate three production lines with monthly capacity exceeding 20,000 tons, covering over 2,800 specifications in ready stock for urgent orders. Every plate leaving our facility carries an original mill test certificate tied to its specific heat number, verified by our in-house laboratory through three-stage inspection before shipment. Third-party inspection by SGS or BV is available on request for buyers requiring independent verification. Our professional export team optimizes container loading for heavy plates, maximizing weight utilization while ensuring damage-free transit. We serve steel traders, import wholesalers, and project buyers across 50+ countries with factory-direct pricing and volume discount programs for long-term partners.
Documentation & Compliance
- Mill test certificate documenting D2 chemical composition including carbon, chromium, and vanadium content per AISI standards
- CE certificate confirming compliance with EN 10219 for structural hollow sections when plates are fabricated into welded assemblies
- ISO 9001:2015 quality management certificate covering the entire production and inspection process
- SGS or BV third-party inspection report verifying dimensional tolerance and surface quality before shipment
- Material traceability report linking each plate’s heat number to its chemical composition and mechanical test results
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for destination-specific clearance
Packaging, Loading & Delivery
- Heavy plates bundled with high-tensile steel straps and edge protectors to prevent coating damage during ocean transit
- Shot-blasted and painted plates wrapped in waterproof paper with desiccant packs to prevent condensation damage
- Container loading plans optimized for 20ft and 40ft containers, maximizing weight capacity for thick plates while maintaining weight distribution
- Custom cutting to exact project lengths between 1–12m, reducing on-site waste and secondary cutting costs
- Each plate marked with heat number, steel grade, and dimensional specifications for on-site identification
- FOB, CIF, and DDP shipping options with real-time tracking and professional port coordination
Getting Your Custom Alloy Plate Quote Started
Submit your specifications including steel grade, thickness, width, length, quantity, and destination port to receive a competitive bulk quote within 12 hours. For custom processed parts, provide detailed drawings specifying cutting dimensions, hole patterns, bending radii, and surface treatment requirements. We will confirm material availability, production lead time, and provide mill test certificate samples for your approval before order confirmation.
Request Your D2 Alloy Steel Plate Quote with Mill Test Certificate
Send your specifications and drawings to receive factory-direct pricing and material documentation within 12 hours.
