Description
Factory-Direct Structural Fabrication — Every metal frame is laser-cut and welded in-house, backed by original mill certificates for full material traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Structural Steel Fabrication |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Customized (per project requirements) |
| Standard | Per project specifications |
| Section Shape | Customized (Metal Frame / Structural Frame) |
| Technique | Laser Cutting / Sheet Metal Processing / Metal Fabrication |
| Surface Treatment | Customized Color / Painted |
| Design | 100% Custom Made (OEM/ODM Service) |
| Application | Steel structures / Construction frames / Industrial equipment frames / Machinery frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, warehouse portals, bridge support assemblies, scaffolding structures |
| Industrial Equipment | Machinery base frames, conveyor support structures, processing platform frames |
| EPC Contractors | Multi-category structural assemblies with consolidated container loading |
| Energy & Utilities | Solar mounting frames, wind farm structural components, substation support structures |
What Fragmented Sourcing Really Costs on a Structural Frame Project
Buying plates, beams, and fabrication from separate suppliers adds coordination overhead and compliance gaps that no single purchase order can fix.
On a warehouse frame project in Southeast Asia, the fabricator’s mill certs claimed S355 for every H-beam, but a portable spectrometer kept catching carbon readings that did not add up. Q235 material had been mixed into the lot — two containers were already welded and bolted before the third-party inspector flagged it. The entire structural batch had to be pulled apart and re-sourced. [NEED_CITE: material traceability requirements under EN 10219 cold-formed hollow sections] When you source custom structural steel fabrication from a single factory that controls cutting, welding, and certification in-house, that failure mode simply does not exist. Every heat number traces back to the original slab, and every batch ships with matching mill test certificates.
Matching Precision Laser-Cut Frames to Structural Load Paths

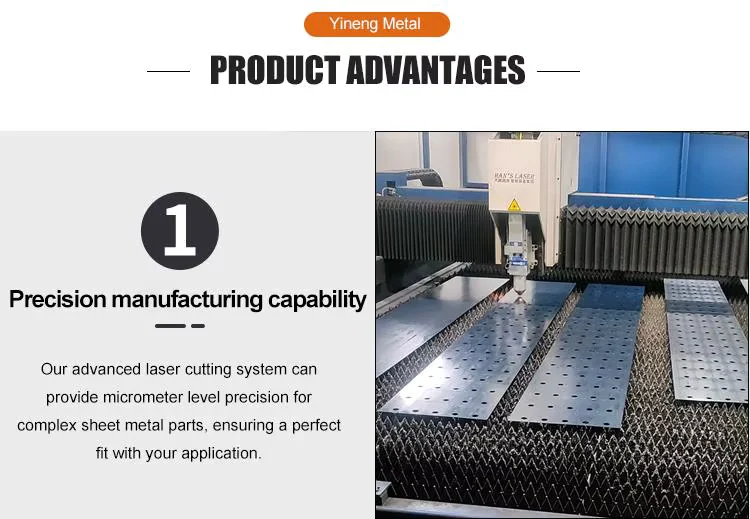

Custom structural steel fabrication produced through laser cutting delivers dimensional accuracy that conventional flame-cut methods cannot match, particularly at connection nodes where bolt-hole alignment and weld prep bevels must hold within tight tolerances. For construction frames and industrial equipment frames, this precision reduces on-site rework and ensures that bolted or welded connections seat correctly under design loads. As a Custom Structural Steel Fabrication Supplier, we program each frame directly from the client’s CAD files, so the as-delivered geometry matches the structural model without field adjustments.
Engineering Compliance and Certification Pathways
Structural frames destined for European markets must conform to EN 10219 or EN 10210 dimensional and material requirements, while North American projects typically reference ASTM A500 or AISC design guides. [NEED_CITE: EN 10219 cold-formed welded hollow section technical delivery conditions] Steel grade selection — whether S-series non-alloy grades, Q-series Chinese structural grades, or ASTM equivalents — directly affects yield capacity, weldability, and low-temperature toughness. Surface treatment choices (primer paint, hot-dip galvanizing, or custom coating systems) are matched to the corrosion environment the frame will face in service. All certifications — CE marking under EN 10210/10219, ISO 9001:2015, and FPC — are maintained in-house, so customs documentation and project compliance files ship with every container. [NEED_CITE: steel grade equivalence mapping between EN 10219 and ASTM A500 standards]
How Steel Grade and Fabrication Process Shape Structural Performance
The structural behavior of a fabricated steel frame depends on three interacting variables: base material grade, cutting and joining method, and surface protection. Higher yield strength grades such as S355 or Q355 allow thinner sections under the same design load, reducing overall weight while maintaining load-bearing capacity — but they demand tighter weld procedure controls to avoid hydrogen-induced cracking. Laser cutting produces a narrow heat-affected zone with clean edges, eliminating the dross and micro-cracks that flame cutting can leave and that must be ground out before welding. For frames exposed to outdoor or industrial atmospheres, a properly applied paint system or galvanizing layer extends service life far beyond bare steel, and the surface prep quality (Sa 2.5 blast cleaning, for example) matters as much as the coating thickness itself. Wall thickness tolerance also affects theoretical weight calculations; a frame built from stock that runs at the lower edge of the tolerance band will weigh less on paper but may not deliver the section modulus the structural engineer specified.
The Hidden Cost of Wrong-Grade Material in Fabricated Structures
When a fabricated frame arrives on site with steel grade that does not match the mill certificate, the consequences cascade. Weld procedures qualified for S355 may produce brittle joints on misidentified lower-grade material, or conversely, preheat requirements for higher grades may be skipped because the paperwork says otherwise. [NEED_CITE: structural steel material verification and traceability under EN 10219] Customs authorities in the EU and Middle East increasingly hold shipments lacking complete EN or ASTM certification, causing port demurrage costs that dwarf the material price difference. A frame that fails third-party inspection after erection means cutting, re-fabrication, and schedule delays that no volume discount can compensate for.
Procurement Confidence Built on Factory Control
Every custom structural steel fabrication order runs through our in-house理化实验室 for three-stage inspection — incoming material verification, in-process weld and dimensional checks, and final pre-shipment audit. Original mill test certificates accompany each heat lot, and SGS or BV third-party inspection is available at the client’s request. With over 2,800 specifications in ready stock and three production lines operating simultaneously, we consolidate plates, sections, tubes, and fabricated frames into a single container load, eliminating the coordination risk of multi-supplier orders. Factory-direct pricing means no trading margins, and volume discount programs reward long-term procurement partnerships. Our export team handles documentation, customs clearance, and container loading optimization so that heavy structural pieces arrive without transit damage and with every compliance file in order.
Documentation & Compliance
- Mill test certificate documenting chemical composition and mechanical properties per project-specified steel grade and standard
- CE certificate covering EN 10210 and EN 10219 for structural hollow sections and fabricated assemblies destined for European markets
- ISO 9001:2015 quality management certificate covering the full fabrication process from material receipt to final inspection
- SGS or BV third-party inspection report available upon request for independent verification before shipment
- Full material traceability by heat number linking each fabricated component back to the original slab test report
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Fabricated steel frames secured in steel-strip bundles with timber edge protectors to prevent coating damage during ocean transit
- Painted and custom-colored surfaces wrapped in waterproof PE film and separated by rubber spacers to preserve finish integrity
- Container loading plans optimized by our export team to maximize weight utilization for heavy structural assemblies within 20ft and 40ft open-top or flat-rack containers
- Custom cut-to-length fabrication available per project drawings, with each piece marked by heat number and piece mark for on-site identification
-唛头 and piece marks stenciled on every member showing steel grade, heat number, and drawing reference for traceability at the erection stage
- FOB, CIF, and DDP shipping terms available with real-time tracking and door-to-door logistics coordination
Start Your Structural Fabrication Inquiry
Submit your project drawings, steel grade requirements, tonnage, and destination port to receive a competitive bulk quotation with full material certification details. Our engineering team reviews each drawing set and returns a fabrication proposal including cutting plans, weld procedures, and surface treatment recommendations within 12 hours. Confirm your certification requirements and third-party inspection needs upfront so that all compliance documents are prepared alongside production.
Request Your Fabrication Quote with Mill Certificates
Send your specifications, steel grade, and quantity to receive factory-direct pricing and complete documentation.
