Description
Factory-Direct Sheet Metal Fabrication — Carbon steel, stainless steel, and aluminum parts processed from raw coil to finished assembly on three production lines with dimensional tolerance held to ±0.1–0.3 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Sheet Metal Processed Parts |
| Product Type | Machined Steel Product / Plate Cutting and Processing |
| Steel Grade | Carbon Steel, Low Carbon Steel, Cold Rolled Steel, Hot Rolled Steel, Stainless Steel (SS201, SS303, SS304, SS316), Aluminum (AL5052, AL6061, AL6063, AL7075), Galvanized Steel Sheet |
| Standard | ISO 9001, CE |
| Section Shape | Custom sheet metal profiles (enclosures, frames, cabinets, chassis) |
| Size Range | Laser cutting max 6000×2000 mm |
| Wall Thickness | Laser cutting T ≤ 16 mm; CNC cutting T ≤ 12 mm; CNC bending T ≤ 1 mm (length ≤ 4100 mm) |
| Length | Up to 6000 mm (laser cutting) |
| Technique | Laser cutting, CNC bending, CNC punching, flanging, welding (argon arc, CO2 gas metal arc, spot welding), deep drawing, stamping |
| Surface Treatment | Galvanizing, electroplating, painting/spraying, polishing, sandblasting, anodizing |
| Tolerance | Dimensional tolerance ±0.1–0.3 mm |
| Ends | Per drawing specification |
| Application | Electrical control cabinets, frames, enclosures, automotive parts, medical equipment parts, machinery and equipment parts, energy storage enclosures, metal chassis |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Electrical & Energy Infrastructure | Control cabinets, energy storage enclosures, equipment frames |
| Industrial Machinery | Machinery housings, custom chassis, structural brackets |
| Automotive & Medical Equipment | Precision sheet metal parts with tight tolerance requirements |
What Fragmented Sourcing Costs on a Multi-Process Sheet Metal Order
Coordinating cutting, bending, welding, and finishing across separate vendors adds lead time, freight cost, and quality variance that no single supplier quote can capture.
Global buyers often source laser-cut blanks from one shop, send them to a bending house, then ship to a welder, and finally outsource surface treatment — each handoff introduces alignment drift, surface contamination, and scheduling delays. A 3 mm翘曲 deviation on a batch of carbon steel brackets once forced full rework on a warehouse project in São Paulo, pushing the timeline back three weeks. When a custom carbon steel sheet metal processing supplier handles every step under one roof, the same drawing controls the same part from flat sheet to finished assembly, and tolerance stacking stays within ±0.1–0.3 mm across all operations. [NEED_CITE: cost of fragmented sheet metal supply chain in project procurement]
Matching Enclosure and Chassis Geometry to Structural Load Paths

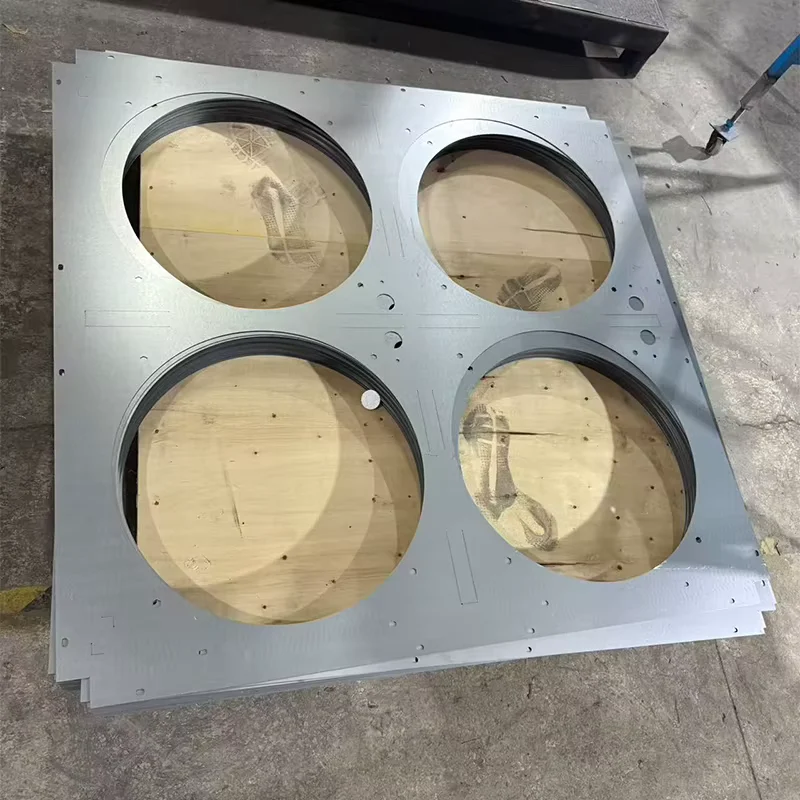

A custom carbon steel sheet metal processing supplier produces control cabinet frames and energy storage enclosures where flat-panel rigidity, corner joint strength, and mounting-hole alignment all matter simultaneously. Laser cutting delivers clean edges on panels up to 6000 mm, CNC bending forms return flanges without micro-cracking on carbon steel up to T ≤ 1 mm at lengths up to 4100 mm, and argon arc or CO2 gas metal arc welding seals seams to prevent dust and moisture ingress. The result is an enclosure that meets IP-rated requirements without secondary machining at the job site.
Engineering Compliance and Certification Requirements
Sheet metal structures serving European construction or infrastructure projects must conform to EN 1993 design rules for thin-gauge members, and CE marking under EN 10219 or EN 10210 confirms that the fabrication process meets dimensional and material traceability standards. [NEED_CITE: EN 10219 cold-formed structural hollow section compliance] For corrosion-prone environments — coastal installations, chemical plants, outdoor energy storage — galvanizing or powder coating extends service life far beyond bare carbon steel. A custom carbon steel sheet metal processing supplier with in-house surface treatment capability ensures coating adhesion is tested before shipment, avoiding field peeling that no amount of touch-up painting can fix. Material certificates tied to heat numbers let inspectors verify grade equivalence between EN, ASTM, and JIS systems without delay. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Steel Grade Selection and Process Fundamentals
Carbon steel grades from Q195 through Q235 cover general-purpose framing where formability matters more than yield strength, while low carbon and cold rolled variants provide smoother surfaces for visible enclosure panels. Stainless steel series — SS201 through SS316 — address food-grade, medical, or marine environments where corrosion resistance outweighs material cost. Aluminum alloys AL5052 through AL7075 serve lightweight chassis and heat-dissipation enclosures where weight reduction is critical. Laser cutting at T ≤ 16 mm produces kerf widths narrow enough to hold ±0.1 mm on internal features, while CNC bending on thinner gauges maintains bend-radius consistency without springback compensation errors. Welding method selection — argon arc for stainless, CO2 gas metal arc for carbon steel, spot welding for thin-gauge lap joints — directly affects joint strength and post-weld distortion, which is why a custom carbon steel sheet metal processing supplier controls all three in-house rather than outsourcing.
Hidden Costs of Incorrect Material or Tolerance Specification
Ordering carbon steel brackets specified as Q235 but receiving unmarked material with inconsistent carbon content leads to weld cracking under load — a failure mode that passes visual inspection but fails structural testing at the site. [NEED_CITE: material traceability requirements in structural steel fabrication] Dimensional tolerance drift beyond ±0.3 mm on mounting holes forces field re-drilling, which damages galvanized coatings and voids corrosion warranties. Missing mill test certificates or CE documentation causes customs holds that delay project milestones by weeks, turning a competitive unit price into an expensive lesson. A custom carbon steel sheet metal processing supplier who provides original material certificates and supports third-party inspection before shipment eliminates these risks at the source.
Procurement Confidence Through Integrated Capability

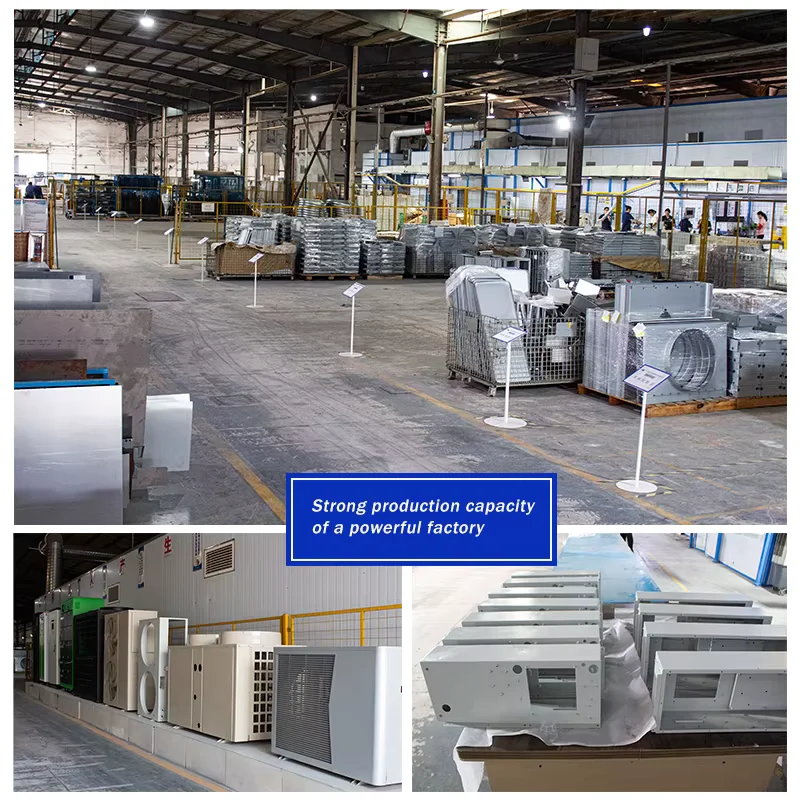

Shandong Xin Jiyuan Special Steel Tube Co., Ltd operates three production lines running simultaneously with monthly capacity exceeding 20,000 tons, covering laser cutting, CNC bending, punching, welding, and full surface treatment under one roof. Every batch ships with original mill test certificates, and SGS or BV third-party inspection is available on request for pre-shipment verification. The factory maintains ISO 9001:2015 certification and CE marking for European market compliance, with in-process first-piece and random sampling inspection at each production stage. Large ready stock on standard specifications supports urgent orders, while custom drawings in DWG, STEP, IGS, STL, or DXF format receive engineering review and quotation within 12 hours. Professional export teams handle documentation, customs clearance, and container loading optimization for multi-product consolidated shipments. Volume discount programs reward long-term partners with pricing reviews every six months, and flexible MOQ from trial orders to full-container bulk quantities accommodates both project-specific and recurring procurement needs.
Documentation & Compliance
- Mill test certificate documenting carbon steel chemical composition and mechanical properties per drawing specification, with heat number traceability on every piece
- CE certificate confirming fabrication compliance with EN 10219 cold-formed structural requirements for European market entry
- ISO 9001:2015 quality management certificate covering in-process inspection records from cutting through final surface treatment
- SGS or BV third-party inspection report available for pre-shipment dimensional verification and coating thickness measurement
- Material traceability report linking each batch to original coil heat number and mill production date
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Laser-cut carbon steel panels stacked with interleaved protective film and edge protectors to prevent surface scratching during ocean transit
- CNC-bent enclosures packed in wooden crates with internal bracing to maintain ±0.1–0.3 mm dimensional tolerance under container stacking loads
- Galvanized sheet metal parts bundled with waterproof wrapping to preserve zinc coating integrity through humidity exposure during shipping
- Container loading plans optimized for mixed-product shipments combining carbon steel chassis, stainless steel brackets, and aluminum enclosures in a single 40ft container
- Heat number and steel grade marking on every piece for on-site material verification and customs inspection
- FOB, CIF, and DDP shipping options with real-time tracking and professional export documentation handling
Starting Your Custom Sheet Metal Procurement
Submit your drawing files in DWG, STEP, IGS, STL, or DXF format along with material grade, quantity, and destination port to receive a competitive bulk quotation with volume pricing and typical production lead times. Engineering review confirms dimensional feasibility and tolerance achievability before contract signing, and mill test certificates are provided with every shipment for your quality records.
Request Factory-Direct Quotation with Material Certification
Send your specifications and drawing files to receive bulk pricing, material certificates, and delivery scheduling within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxinjiyuan.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxinjiyuan.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What file formats do you accept for custom sheet metal quotation?
A: We accept DWG, STEP, IGS, STL, and DXF formats for engineering review and rapid quotation turnaround. Our technical team reviews each drawing for dimensional feasibility and tolerance achievability before providing pricing.
Q: What is the dimensional tolerance for laser cutting and CNC bending?
A: Laser cutting achieves dimensional tolerance of ±0.1–0.3 mm on carbon steel up to 16 mm thickness and stainless steel or aluminum within the same range. CNC bending maintains consistent bend angles and radii on material thickness up to 1 mm at lengths up to 4100 mm.
Q: Can you handle multi-material orders in one shipment?
A: Yes, we process carbon steel, stainless steel (SS201–SS316), aluminum alloys (AL5052–AL7075), and galvanized sheet on the same production lines and can consolidate multiple materials into a single container shipment with optimized loading plans.
Q: What surface treatment options are available for carbon steel sheet metal parts?
A: We offer galvanizing, electroplating, painting/spraying, powder coating, polishing, sandblasting, and anodizing for aluminum components. All surface treatments are performed in-house with adhesion and thickness testing before shipment.
Q: Do you provide material certificates and support third-party inspection?
A: Every batch ships with original mill test certificates documenting chemical composition and mechanical properties. SGS or BV third-party inspection is available on request for pre-shipment dimensional verification and quality confirmation.
