Description
Factory-Direct ASTM A192 Boiler Tubes — Every SCH 120 tube undergoes wall-thickness verification before dispatch, eliminating negative tolerance risks that once sent an entire container back from Dubai port.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A192 Seamless Carbon Steel Boiler Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | 10#, 20#, 35#, 45#, 16Mn, 40Cr, 15CrMo, 45Mn2, Q235, Q345, Q195, Q215 |
| Standard | ASTM A192, API, BS, DIN, GB, JIS |
| Section Shape | Round |
| Wall Thickness | SCH 120 |
| Length | 6 m, 6.4 m, 12 m |
| Technique | Hot Rolled |
| Surface Treatment | Cold Rolled, Slightly Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per requirement) |
| Application | Boiler systems, High-pressure fluid transport, Oil & gas pipelines, Chemical fertilizer plants, Structural applications, Machinery parts |
| MOQ | 5 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Power Generation | High-pressure steam lines, superheater tubes, water-wall panels in utility and industrial boilers |
| Oil & Gas | Downstream refinery piping, heat exchanger bundles, high-temperature process lines |
| Chemical Processing | Reactor feed lines, ammonia synthesis loops, urea plant piping in fertilizer facilities |
| Heavy Machinery | Hydraulic cylinder barrels, high-pressure fluid conveyance in press and crane systems |
What Wall-Thickness Tolerance Costs on a Boiler Tube Order
A ±1% tolerance on SCH 120 boiler tubes prevents field rework and hydrotest failures.
When wall thickness drifts beyond specification, boiler assemblers face tube-to-tubesheet fit-up gaps that require reaming or outright rejection. Procurement teams sourcing ASTM A192 seamless carbon steel boiler pipe supplier materials from multiple vendors often discover inconsistent dimensional accuracy only after pipes arrive on-site — by then, crane time and weld crews are already committed. Missing or forged mill test certificates compound the problem: customs authorities in the EU and Middle East increasingly flag shipments without verifiable heat-number traceability, delaying project commissioning by weeks. [NEED_CITE: ASTM A192 dimensional tolerance requirements for high-pressure boiler tubes]
Matching High-Pressure Boiler Environments
ASTM A192 seamless carbon steel boiler pipe supplier offerings in SCH 120 wall thickness address the sustained internal pressures found in industrial steam systems and heat exchanger circuits. The hot-rolled seamless manufacturing process eliminates weld seams — a critical factor when tubes operate under cyclic thermal loading above 350°C. Carbon steel grades 10# through 45# provide adequate strength for moderate-pressure boiler circuits, while 16Mn and 15CrMo alloy options extend service capability into higher-temperature zones where creep resistance becomes the governing design criterion.
Engineering Compliance and Certification Pathways
Boiler tube procurement for international projects must satisfy both material standards and destination-country import regulations. ASTM A192 governs minimum-wall seamless carbon steel tubes for high-pressure service in North American and API-aligned markets, while EN 10216-2 covers equivalent non-alloy and alloy steel tubes for European pressure equipment directives. Our ASTM A192 seamless carbon steel boiler pipe supplier inventory carries original mill test certificates documenting chemical composition and mechanical properties per heat number, enabling third-party SGS or BV inspection before container sealing. [NEED_CITE: EN 10216-2 versus ASTM A192 material equivalence for pressure applications]
Steel Grade Selection and Hot-Rolled Seamless Technology
Carbon steel grades in the 10#–45# range follow the Chinese GB/T 699 designation system, where the numeral indicates approximate carbon content in hundredths of a percent — 20# steel contains roughly 0.20% carbon, balancing formability with tensile strength for boiler tube applications. The 16Mn grade adds manganese for improved hardenability and low-temperature toughness, while 15CrMo introduces chromium and molybdenum for elevated-temperature creep resistance in superheater service. Hot-rolled seamless production pierces a solid billet and elongates it over a mandrel, producing a homogeneous grain structure without the weld-line vulnerabilities inherent in ERW or SSAW processes — essential when internal pressures exceed 10 MPa. The ±1% tolerance on SCH 120 wall thickness ensures that theoretical weight calculations match actual delivered mass, preventing structural miscalculations during boiler drum design.
Hidden Costs of Incorrect Boiler Tube Procurement
Specifying the wrong steel grade or accepting excessive negative tolerance creates cascading project risks. Tubes that fail hydrostatic testing at the assembler’s yard trigger container-level rejection — the original cost of the pipe becomes a fraction of the total loss when weld crews, crane rentals, and project timelines are factored in. Certification gaps prove equally expensive: shipments lacking original mill test certificates or carrying incomplete heat-number documentation face customs holds in ports from Rotterdam to Jebel Ali, with demurrage charges accumulating daily. [NEED_CITE: consequences of negative tolerance exceedance in pressure vessel tube procurement]
Procurement Confidence Through Verified Supply
As a factory-direct ASTM A192 seamless carbon steel boiler pipe supplier, we eliminate intermediary markups while maintaining full traceability from billet to finished tube. Our in-house metallurgical laboratory conducts three-stage inspection covering dimensional verification, chemical spectroscopy, and mechanical testing before any batch leaves the mill. Every shipment includes original mill test certificates with heat-number correlation, and we accommodate SGS or BV third-party inspection at the buyer’s request. With 2,800+ specifications in ready stock and monthly capacity exceeding 20,000 tons, we support both urgent split shipments and full-container bulk orders with optimized container loading plans that maximize payload per TEU.
Documentation & Compliance
- Mill test certificate documenting 20# and 15CrMo chemical composition plus tensile and flattening test results per ASTM A192
- ISO 9001:2015 quality management certificate covering seamless boiler tube production processes
- SGS or BV third-party inspection report available upon request, verifying dimensional accuracy and surface condition

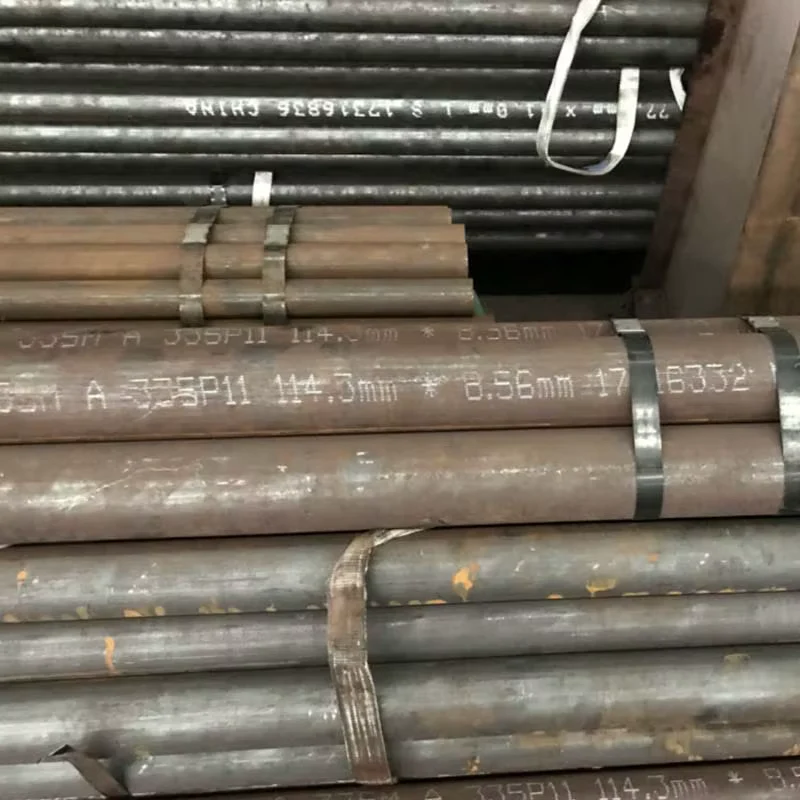

- Material traceability by heat number etched on each tube end, cross-referenced to mill test documentation
- Customs export package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- SCH 120 boiler tubes bundled with steel strips and edge protectors, preventing surface damage to the slightly oiled cold-rolled finish during ocean transit
- 6 m and 12 m lengths loaded in dedicated containers with timber chocking to prevent longitudinal shifting under vessel roll
- Heat number and steel grade stenciled on each tube bundle for immediate yard identification upon port arrival
- FOB Qingdao or CIF destination port options, with DDP available for projects requiring door-to-door delivery to inland sites
- Custom cutting to non-standard lengths available, with kerf allowance calculated to minimize material waste per order
Initiating Your ASTM A192 Boiler Tube Inquiry
Submit your specification requirements — including steel grade preference, SCH 120 quantity, destination port, and any third-party inspection needs — via email or WhatsApp. We respond within 12 hours with competitive bulk pricing, mill test certificate samples, and optimized container loading proposals tailored to your project timeline.
Frequently Asked Questions
Q: What is the difference between ASTM A192 and EN 10216-2 for boiler tube applications?
A: ASTM A192 covers seamless carbon steel tubes for high-pressure service in the American market system, while EN 10216-2 addresses non-alloy and alloy steel tubes for pressure purposes under European standards. Both require mill test certificates, but chemical composition limits and mechanical property testing methods differ slightly.
Q: How do you ensure material traceability for ASTM A192 seamless carbon steel boiler pipe?
A: Each tube is marked with its heat number, which correlates to the original mill test certificate documenting chemical composition and mechanical test results. Third-party SGS or BV inspection can verify this traceability before shipment.
Q: Can you supply non-standard lengths or custom wall thickness for boiler tube projects?
A: Yes. While our standard stock covers 6 m, 6.4 m, and 12 m lengths in SCH 120, we accommodate custom cutting and non-standard specifications through our three production lines, with typical lead times for made-to-order quantities.
Q: What surface treatment options are available for corrosion protection?
A: Our ASTM A192 boiler tubes ship with a cold-rolled finish and slight oiling for short-term rust prevention. For extended storage or marine environments, additional varnish coating or plastic end caps can be arranged.
Q: What is the minimum order quantity for trial procurement?
A: The MOQ for ASTM A192 seamless boiler pipe is 5 Ton, allowing project teams to verify material quality and fit-up compatibility before committing to full-container bulk orders.
Secure Your ASTM A192 Boiler Tube Supply
Submit your specifications, steel grade requirements, and destination port to receive competitive factory-direct pricing with mill test certificate documentation within 12 hours.
