Description

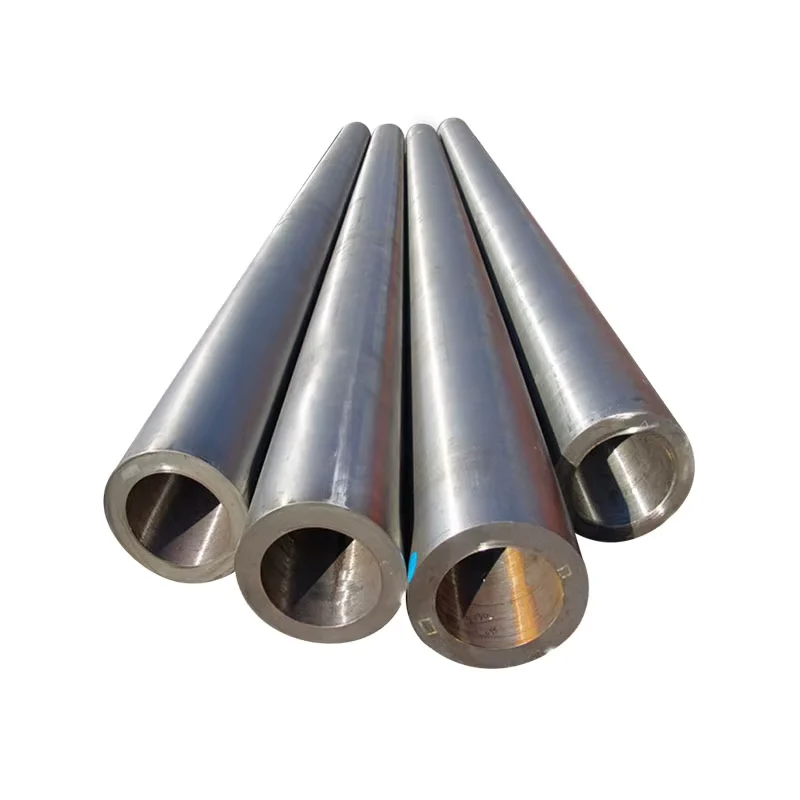

Factory-Direct ASTM A106 Seamless Steel Pipe — 3 production lines running simultaneously with original mill test certificates attached to every shipment, eliminating middleman markups on high-temperature carbon steel pipe orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 Seamless Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | ASTM A106 Grade A, ASTM A106 Grade B, 20#, 45# |
| Standard | ASTM A106, API 5CT, API 5L, JIS, BS, DIN |
| Section Shape | Round |
| Size Range | OD 10–609 mm |
| Wall Thickness | 1.65–59.54 mm |
| Length | Standard export length (customizable) |
| Technique | Hot Rolled / Cold Rolled / Seamless |
| Surface Treatment | Hot Rolled, Oiled / Non-oiled |
| Tolerance | ±5%, ±1% |
| Ends | Plain / Beveled (Welding, Punching, Cutting, Bending) |
| Application | Fluid transportation, Oil pipe, Boiler pipe, Gas pipe, Hydraulic pipe, Chemical fertilizer pipe, Drill pipe, Structure pipe, Machinery parts, Pressure-bearing components |
| Invoicing | By Theoretical Weight |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Well casing, flow lines, gathering systems, transmission pipelines |
| Power Generation | Boiler tubes, superheater elements, steam lines in thermal plants |
| Chemical Processing | Reactor feed lines, heat exchanger tubes, process piping |
| Industrial Machinery | Hydraulic cylinders, pump shafts, pressure vessels |
| Construction Infrastructure | Structural columns, piling, heavy-duty support frames |
What Wall-Thickness Tolerance Costs on a Pressure Vessel Order
Negative tolerance beyond specification triggers hydrostatic test failure and project rejection.
When sourcing ASTM A106 seamless steel pipe for high-temperature service, buyers often discover too late that wall thickness variations of even a few percentage points can compromise pressure ratings. I once saw a batch of 20# seamless tubes arrive at a Middle East power plant with actual wall thickness 12% below nominal — the entire container sat at Jeddah port for three weeks while SGS re-inspection was arranged. The root cause: the supplier invoiced by theoretical weight but shipped material at the extreme end of negative tolerance, leaving no safety margin for ASME code compliance. This is not an isolated incident. [NEED_CITE: ASTM A106 dimensional tolerance requirements for pressure service] Quality uncertainty in wall thickness directly translates to engineering risk, customs delays, and costly re-procurement cycles.
Matching High-Temperature Service Requirements
ASTM A106 Grade B dominates boiler and high-temperature fluid transport because its carbon-manganese chemistry maintains strength at elevated temperatures where standard structural grades soften. For oil and gas applications requiring API 5L compliance, the same seamless manufacturing process delivers the pressure integrity that welded alternatives cannot match at smaller diameters. Our ASTM A106 seamless steel pipe inventory spans OD 10–609mm with wall thickness up to 59.54mm, covering everything from instrument lines to heavy-wall pressure containment. Hot rolled processes suit thick-wall orders where cost efficiency matters; cold drawn delivers tighter tolerances for precision machining applications.
Engineering Compliance and Certification Pathways
Pressure-containing applications demand traceable material certification — not just a paper certificate, but heat-number-linked test reports showing actual chemical composition and mechanical properties. For projects targeting North American markets, ASTM A106 conformance is non-negotiable; European specifiers may request equivalence documentation to EN 10216-2. [NEED_CITE: material certification requirements for pressure equipment directives] Beveled ends ready for welding eliminate field preparation delays, while oiled surface treatment prevents transit corrosion without interfering with subsequent coating or welding operations. Third-party inspection by SGS or BV provides independent verification that satisfies both EPC contractors and end-user quality teams.
Steel Grade Selection: Grade A vs Grade B vs 20# vs 45#
ASTM A106 Grade A offers lower carbon content for improved weldability in moderate-temperature service, while Grade B’s higher manganese content delivers superior strength at temperatures up to 400°C — making it the default choice for power plant steam lines. Chinese grade 20# aligns closely with Grade B in chemistry and application, often specified in domestic projects or as cost-effective alternatives when mill documentation supports equivalence claims. Grade 45#, with its higher carbon content, serves machining applications requiring surface hardness rather than pressure containment. The seamless manufacturing process — whether hot rolled for thick walls or cold drawn for precision — ensures uniform grain structure without the weld seam vulnerabilities that limit ERW alternatives in critical service.
Hidden Costs of Specification Gaps and Certification Failures
Ordering ASTM A106 seamless steel pipe without verified mill test certificates creates downstream liabilities: customs authorities in strict import markets may detain shipments lacking proper documentation, while engineering inspectors will reject material without heat-number traceability during pressure tests. Negative tolerance abuse — where actual wall thickness falls below the specified ±5% or ±1% range — forces buyers to either accept reduced pressure ratings or scrap material entirely. [NEED_CITE: consequences of dimensional non-compliance in pressure piping] The true cost is not the pipe price difference but the project delay, re-procurement logistics, and potential safety incidents when underspecified material enters service.
Why Procurement Teams Choose Xin Jiyuan for Seamless Pipe
Factory-direct pricing means no trading company margins layered onto your ASTM A106 orders — volume discounts apply directly from our 3 production lines running 20,000+ tons monthly. Every batch ships with original mill test certificates documenting chemical composition and mechanical properties, not photocopies or generic templates. Our in-house laboratory conducts three-stage inspection before shipment, with SGS/BV third-party verification available for projects requiring independent confirmation. The 2,800+ specification inventory covers standard sizes for immediate dispatch while custom orders for non-standard wall thickness or length typically complete within typical production lead times. Professional export teams optimize container loading for heavy seamless pipe, reducing freight costs per ton and preventing transit damage through proper bundling and edge protection.
Documentation & Compliance
- Mill Test Certificate documenting ASTM A106 Grade B chemical composition (C, Mn, Si, P, S) and mechanical properties (tensile strength, yield strength, elongation) per heat number
- API 5L/5CT compliance certificates for oil and gas applications requiring line pipe or casing specifications
- ISO 9001:2015 quality management system certification covering production processes and inspection protocols
- SGS or BV third-party inspection reports verifying dimensional accuracy, surface condition, and test certificate authenticity
- Material traceability documentation linking each pipe to original heat number, production date, and test results
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Seamless pipes bundled with steel strips in seaworthy packaging, with edge protectors preventing surface damage during ocean transit for oiled or non-oiled surface conditions
- Wall thickness and OD combinations optimized for container loading — heavy-wall pipes (WT >20mm) loaded separately to maximize weight utilization without exceeding port handling limits
- Standard export length or custom cut-to-length service available, with beveled ends protected by plastic caps to prevent thread damage and moisture ingress
- Heat number and steel grade clearly marked on each pipe bundle, with shipping marks matching mill test certificate documentation for field verification
- FOB, CIF, and DDP terms available with professional logistics coordination for destination ports across Southeast Asia, Middle East, Africa, and South America
Securing Your ASTM A106 Seamless Pipe Order
Submit your specification requirements — OD, wall thickness, length, steel grade, quantity, and destination port — via email or WhatsApp to receive competitive bulk pricing within 12 hours. Request original mill test certificates and third-party inspection options upfront to confirm compliance with your project’s quality standards. Our team will provide container loading optimization and delivery scheduling based on your construction timeline.
Frequently Asked Questions
Q: What is the difference between ASTM A106 Grade A and Grade B for high-temperature service?
A: Grade A has lower carbon content (max 0.25%) for improved weldability in moderate-temperature applications, while Grade B (max 0.30% C, 0.29-1.06% Mn) delivers higher tensile and yield strength suitable for steam lines and boiler tubes operating up to 400°C. Grade B is the predominant choice for power generation and process industry applications.
Q: How do you verify wall thickness tolerance on seamless pipes?
A: Every batch undergoes three-stage inspection in our in-house laboratory, with actual wall thickness measurements recorded at multiple points along each pipe. Original mill test certificates include dimensional verification data. Third-party inspection by SGS or BV is available for projects requiring independent confirmation before shipment.
Q: Can you supply non-standard wall thickness or custom lengths for ASTM A106?
A: Yes. While standard inventory covers OD 10–609mm with WT 1.65–59.54mm in typical export lengths, we manufacture custom specifications to order. MOQ for standard sizes starts from trial quantities, with custom orders typically completing within typical production lead times. Contact us with your specific requirements for quotation.
Q: What surface treatment options are available and how do they affect field welding?
A: ASTM A106 seamless pipes are supplied hot rolled with oiled or non-oiled surface condition. Oiled treatment prevents transit corrosion and is easily removed before welding. Non-oiled pipes arrive with natural mill scale, suitable for applications where immediate painting or coating follows. Both conditions are compatible with standard welding procedures without special preparation.
Q: Do you provide material equivalence documentation for ASTM A106 to EN or JIS standards?
A: Yes. We can provide technical documentation comparing ASTM A106 Grade B chemistry and mechanical properties to equivalent grades in EN 10216-2 (P235GH, P265GH) or JIS G3455 (SF410) for projects requiring cross-standard verification. Mill test certificates document actual test results, allowing engineering teams to confirm suitability for their specific application requirements.
Request Your ASTM A106 Seamless Steel Pipe Quotation
Send your specifications — size, wall thickness, steel grade, quantity, and destination — to receive factory-direct pricing with mill test certificates within 12 hours.
