Description

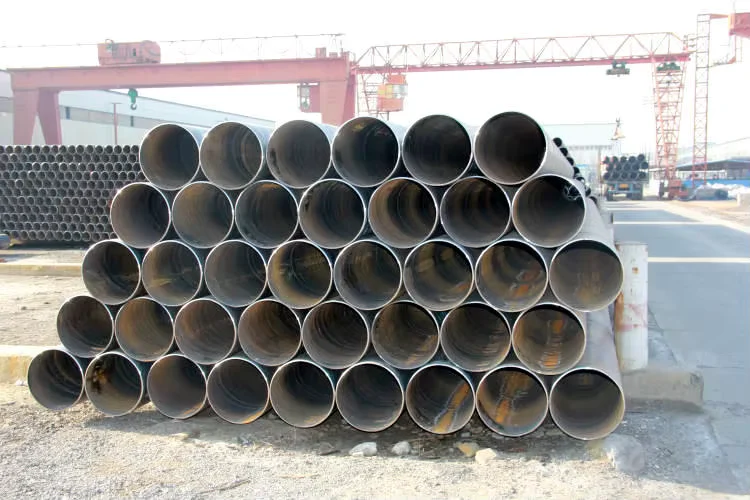

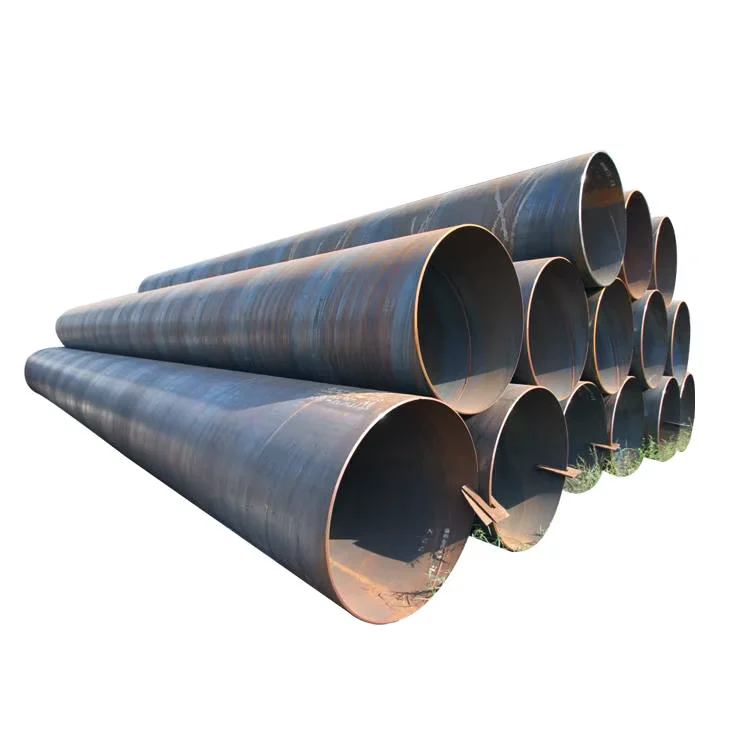

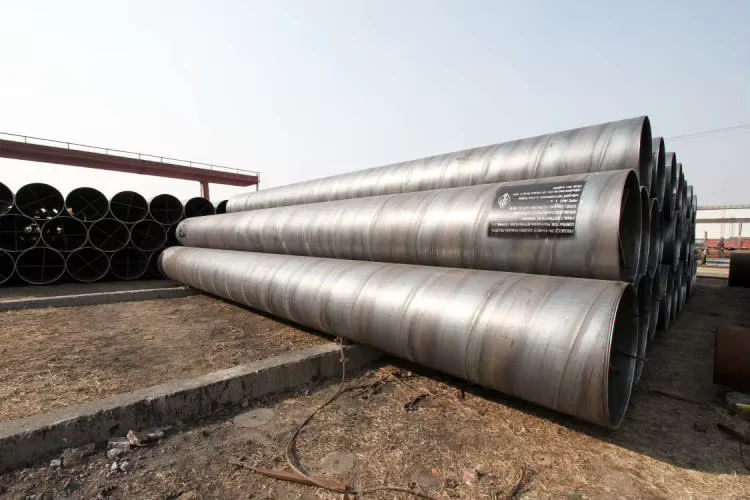

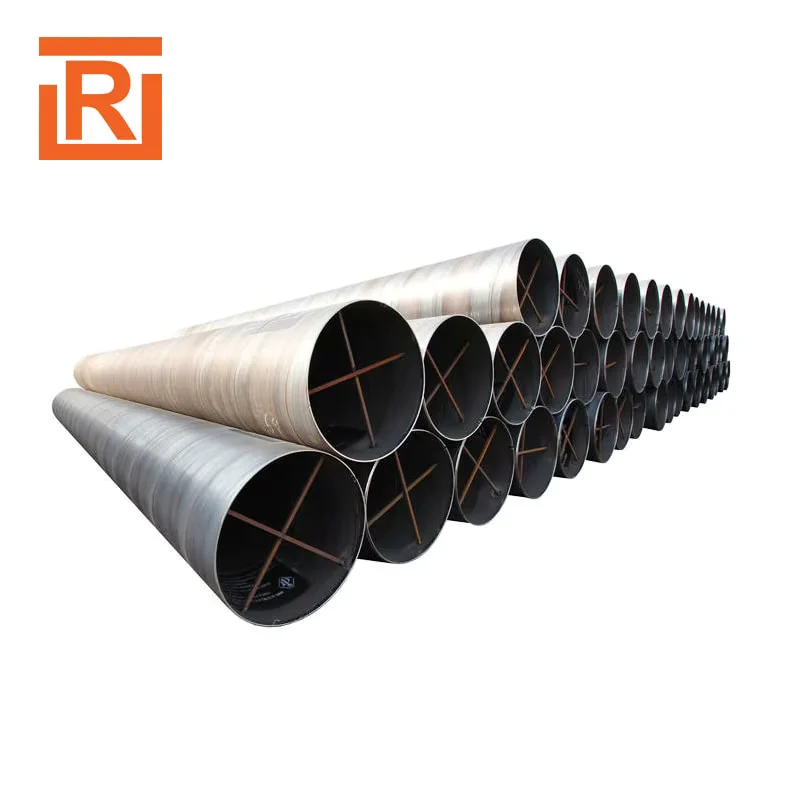

Factory-Direct API 5L X65 SSAW Pipe — Spiral welded carbon steel pipes up to 2030 mm OD shipped with original mill test certificates and full export documentation, eliminating middleman markups on large-diameter pipeline orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X65 SSAW Carbon Steel Pipe |
| Product Type | SSAW Welded Steel Pipe |
| Steel Grade | Q235B, Q345B, St37-2, St52, SS400, ASTM A53, S235JR, API 5L X65 |
| Standard | API 5L, GB/T 3091, ASTM A53, DIN 2444 |
| Section Shape | Round |
| Size Range | OD 219–2030 mm |
| Length | 1–12 m |
| Technique | SSAW (Spirally Submerged Arc Welding) |
| Surface Treatment | Hot Rolled / Slightly Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Water pipeline, Oil & gas pipeline, Pipe piles, Dredge pipeline, Structural applications |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas Transmission | Onshore and offshore crude oil and natural gas trunk pipelines requiring API 5L compliance |
| Municipal Infrastructure | Urban water supply networks, drainage systems, and sewage outfall pipelines |
| Marine & Port Engineering | Steel pipe piles for wharf foundations, jetty structures, and coastal protection |
| Dredging & Reclamation | Slurry transport lines and sand discharge pipelines for land reclamation projects |
| Structural & Civil Works | Bridge piers, foundation casings, and load-bearing column supports |
When Diameter Exceeds 1000 mm, Weld Seam Integrity Becomes the Real Procurement Risk
Spiral submerged arc welding distributes stress across the helical seam, but only when flux coverage and travel speed are controlled per API 5L requirements.
Large-diameter SSAW pipes for oil and gas transmission face scrutiny that smaller pipes rarely encounter. Third-party inspectors at destination ports routinely ultrasonic-test the spiral weld seam, and any lack of fusion or slag inclusion triggers full-batch rejection. I have seen entire shipments of 1420 mm pipes held at port for three weeks because the mill skipped automated ultrasonic testing on the weld line to save time. The cost of re-inspection and demurrage far exceeded any price saving from choosing a cheaper supplier. When you source an API 5L X65 SSAW steel pipe supplier, the weld quality documentation matters as much as the chemical composition report. [NEED_CITE: API 5L PSL2 ultrasonic testing requirements for spiral welded pipe]
Matching Large-Diameter SSAW Pipe to Pipeline and Piling Environments
The API 5L X65 grade was developed specifically for high-pressure hydrocarbon transmission, where the combination of moderate yield strength and excellent weldability allows field jointing without preheating in most ambient conditions. For municipal water pipelines, structural grades like Q235B or S235JR offer cost efficiency while meeting pressure requirements for gravity-flow and low-pressure pumped systems. Marine pipe pile applications demand beveled ends for field welding and controlled tolerances to ensure driving alignment — our ±1% OD tolerance on pipes up to 2030 mm keeps pile driving within acceptable deviation limits. As an API 5L X65 SSAW steel pipe supplier, we produce each diameter on dedicated forming stations calibrated for that specific size range, rather than adjusting a single mill across all orders.
Engineering Compliance and Certification Requirements for Pipeline Projects
Pipeline projects governed by ASME B31.4 or B31.8 require full material traceability from heat number through final delivery, and the API 5L specification mandates that every pipe carries a stenciled heat number matching the mill test certificate. European buyers importing SSAW pipes for structural piling must verify CE marking under EN 10219, which covers cold-formed welded structural hollow sections — a different standard scope, but one that customs authorities in EU member states frequently request regardless of the pipe’s intended use. [NEED_CITE: EN 10219 structural hollow section CE marking requirements] Surface treatment selection also affects compliance: slightly oiled hot-rolled pipes suit temporary outdoor storage and inland transport, while 3PE anti-corrosion coating is mandatory for buried oil and gas pipelines in aggressive soil conditions. Beveled ends per API 5L facilitate automatic field welding, reducing on-site labor costs and ensuring joint integrity across thousands of meters of trunk line.
Understanding API 5L X65 and Structural Grade Selection for SSAW Pipe
The API 5L specification defines line pipe grades through a yield-strength naming convention — X65 indicates a minimum yield strength of 65,000 psi, positioning it between X52 and X70 for medium-to-high pressure transmission systems. Structural grades like Q235B and S235JR follow different designation logic based on Chinese GB and European EN systems respectively, but serve overlapping applications in water conveyance and piling where extreme internal pressure is absent. The SSAW process itself offers a distinct advantage over straight-seam welded pipe for diameters above 508 mm: the helical weld angle distributes residual stress more evenly, and the longer weld seam per unit length allows slower travel speeds that improve fusion quality. [NEED_CITE: SSAW vs LSAW weld seam stress distribution comparison] Hot-rolled surface condition with light oiling provides baseline corrosion protection during storage and transit, while the ±1% tolerance on outer diameter ensures compatibility with standard coupling and welding equipment used in field construction.
The Hidden Cost of Accepting Negative Tolerance Beyond Standard Limits
When a supplier quotes a lower price by offering wall thickness at the minimum allowable negative tolerance, the theoretical weight drops — but so does the pipe’s ability to withstand external loading during pile driving or internal pressure during hydrostatic testing. API 5L permits specific tolerance bands, and exceeding them means the pipe technically fails the standard even if it “looks” dimensionally correct on a caliper measurement. Customs inspectors at major ports now routinely request ultrasonic wall-thickness mapping on random samples, and pipes outside tolerance bands face rejection or mandatory downgrade to lower-pressure service. [NEED_CITE: API 5L dimensional tolerance requirements for wall thickness] Choosing a reliable API 5L X65 SSAW steel pipe supplier who controls tolerance at the forming stage — rather than sorting after production — prevents these delays and protects your project schedule.
Why Project Buyers Trust Our Mill for Large-Diameter SSAW Pipe

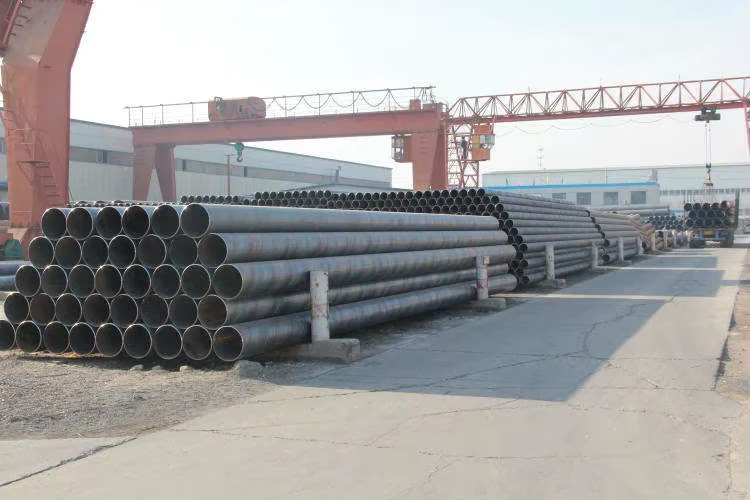

We operate three dedicated SSAW production lines in Jinan, each calibrated for specific diameter ranges, so a 1420 mm order runs on a mill set up for that size — not a machine switched over from a 300 mm run that morning. Every batch ships with original mill test certificates showing chemical composition and mechanical test results tied to individual heat numbers, and we welcome SGS or BV third-party inspection at our facility before container loading. Our inventory covers 2,800+ specifications across all major steel product categories, meaning if your project also needs H-beam, plate, or rectangular hollow section in the same shipment, we consolidate everything into one set of shipping documents. We hold ISO 9001:2015, Lloyd’s CE certification under EN 10210/10219, and FPC factory production control certification — documents that European and Middle Eastern customs authorities accept without additional legalization. Professional export teams handle container loading optimization for 12 m pipes, ensuring weight distribution complies with road transport limits at destination.
Documentation & Compliance
- Mill test certificate documenting API 5L X65 chemical composition including carbon equivalent and mechanical properties per API 5L PSL2 requirements
- CE certificate under EN 10210/EN 10219 for structural hollow sections exported to European Union member states
- ISO 9001:2015 quality management system certificate covering SSAW pipe production processes
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions, weld seam quality, and surface condition
- Full material traceability from heat number through steelmaking, pipe forming, welding, and final inspection records
- Complete customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- SSAW pipes bundled with steel strip bands at maximum 1.5 m intervals, with end protectors on beveled edges to prevent damage during handling
- Hot-rolled and slightly oiled surface condition preserves mill finish during ocean transit and allows immediate ultrasonic inspection upon arrival

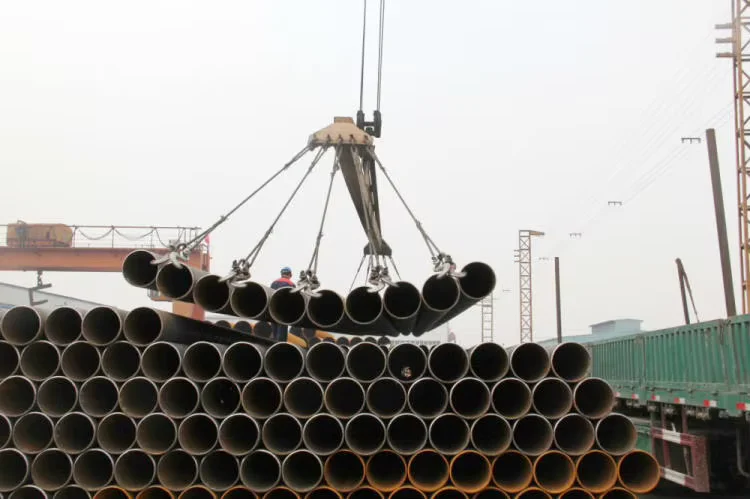

- Container loading plans optimized for 12 m pipe length, maximizing payload per 40ft open-top or flat-rack container while complying with road weight restrictions at destination
- Custom cut-to-length available within the 1–12 m range, with each piece marked by heat number and steel grade for on-site traceability
- Stenciled identification on each pipe includes OD, wall thickness, heat number, steel grade API 5L X65, and manufacturer marking per standard requirements
- Shipping terms available include FOB, CIF, and DDP with professional coordination of port customs clearance and inland delivery
Starting Your API 5L X65 SSAW Pipe Inquiry
Submit your required outer diameter, wall thickness, steel grade, total quantity, and destination port, and our team responds within 12 hours with a detailed quotation including volume pricing, production lead time, and available mill test certificate formats. For non-standard diameters or custom wall thickness outside our ready-stock range, we provide forming feasibility confirmation and lead time estimates before you commit to a deposit.
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for SSAW pipe?
A: PSL2 imposes stricter requirements on chemical composition, mechanical testing, and non-destructive examination compared to PSL1. For oil and gas transmission pipelines, most project specifications require PSL2 compliance, which includes mandatory Charpy impact testing and 100% ultrasonic inspection of the weld seam.
Q: Can you provide third-party inspection before shipment?
A: Yes, we welcome SGS, BV, or other internationally recognized inspection agencies to conduct dimensional checks, weld seam ultrasonic testing, and visual surface inspection at our facility before container loading. The inspection scope and acceptance criteria are agreed upon in the purchase contract.
Q: What surface treatment options are available for buried pipeline applications?
A: Standard delivery condition is hot-rolled with slight oiling for corrosion protection during storage and transit. For buried pipelines, we can coordinate 3PE anti-corrosion coating application per DIN 30670 or ISO 21809 standards, applied after pipe production and before shipment.
Q: How do you ensure weld seam quality on large-diameter SSAW pipe?
A: Our SSAW lines use automated submerged arc welding with real-time seam tracking, followed by 100% online ultrasonic testing of the spiral weld seam. Each pipe also undergoes hydrostatic pressure testing per API 5L requirements before final acceptance.
Q: What is the minimum order quantity for custom diameter SSAW pipe?
A: Standard sizes from our ready stock have flexible MOQ starting from 1 ton. For custom diameters or non-standard wall thickness requiring dedicated mill setup, typical minimum orders apply, and we confirm exact requirements during the quotation stage based on your specific dimensions.
Secure Your API 5L X65 SSAW Pipe Supply
Send your project specifications including diameter, wall thickness, grade, and quantity to receive factory-direct pricing with full mill test certificate documentation.
