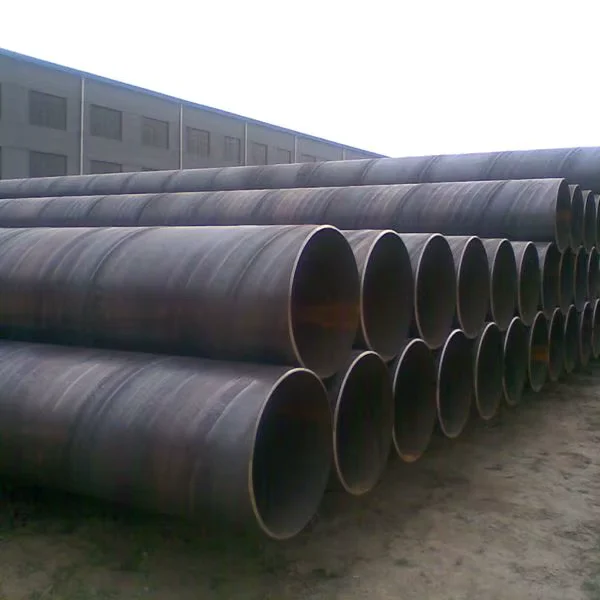

API 5L X42-X70 SSAW Spiral Welded Steel Pipe OD 219-3048mm Factory Direct Supplier

Description

Factory-Direct SSAW Pipe Supply — 3 production lines running simultaneously with monthly capacity exceeding 20,000 tons, eliminating middleman markups on every API 5L and EN-grade order.

Technical Specifications

Application Suitability

Where Negative Wall Tolerance Eats Into Structural Load Capacity on Large-Diameter Pipe Orders

A ±1% tolerance sounds tight on paper until a 25.4 mm wall measures 24.8 mm across an entire piling shipment.

I learned this the hard way when a Middle East piling contractor called me at midnight — their third-party inspector had just pulled random samples from our first SSAW container and found walls consistently running thin on the lower edge of tolerance. The pipes met the written spec, but the engineer’s load calculation assumed nominal thickness. When you multiply a fraction-of-a-millimeter shortfall across a 3048 mm OD pipe carrying axial compression on a bridge foundation, that gap becomes a structural liability. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded line pipe] Global buyers sourcing SSAW spiral welded steel pipe from fragmented suppliers face this exact exposure: each mill interprets tolerance bands differently, and without original heat-number traceability on every length, there is no way to prove which batch fell short until the damage is done.

How Spiral Seam Geometry Matches Large-Diameter Pressure and Piling Demands

SSAW spiral welded steel pipe earns its place in oil transmission and bridge piling because the continuous helical weld distributes hoop stress more evenly than a straight longitudinal seam — critical when OD pushes past 1500 mm and internal pressure or soil bearing loads spike. The spiral angle means the weld never runs parallel to the primary stress axis, reducing the risk of crack propagation under cyclic loading. For structural piling per ASTM A252, this geometry handles driving stresses that would split a lesser seam. We produce these pipes across the full 219–3048 mm OD range on dedicated SSAW lines, with every weld pass monitored by inline ultrasonic testing before the pipe leaves the mill.

Meeting Engineering Codes and Customs Documentation Across Continents

A water authority in Southeast Asia specifying GB/T 9711 for a transmission main needs different mill documentation than a European EPC contractor piling a bridge foundation under EN 10219. The steel chemistry requirements diverge — API 5L X52 demands tighter carbon equivalent controls for weldability in sour service, while EN 10219 S355 focuses on impact toughness at sub-zero temperatures. [NEED_CITE: steel grade equivalence mapping between API 5L and EN 10219 standards] Our in-house lab certifies each heat against the specific standard called out on the purchase order, and our export team pre-checks customs paperwork so CE-marked pipes clear EU ports without document-related holds. Length customization to 5.8 m or 12.0 m also reduces on-site cutting waste and keeps工地 weld counts predictable.

Decoding Steel Grade Selection for SSAW Pipeline and Structural Service

API 5L grades from GR.B through X70 represent increasing minimum yield strength — X70 delivers roughly double the yield of GR.B, allowing thinner walls for the same pressure rating or higher pressure at the same wall thickness. This matters for SSAW because the spiral welding process handles high-strength low-alloy chemistries well, provided the carbon equivalent stays controlled to avoid hydrogen-induced cracking in the heat-affected zone. For non-pressure structural work, Q235 and Q345 offer cost-effective strength, while S235 through S355 meet European structural codes with guaranteed impact values. The SSAW process itself — forming steel coil into a helix and submerging the seam under flux during welding — produces a joint that approaches base metal strength when parameters are held tight. Surface options (hot rolled, oiled, or non-oiled) address different corrosion timelines: oiled finish protects during ocean transit, while bare hot-rolled surfaces accept field-applied 3PE or FBE coatings for buried service.

The Hidden Cost of Buying SSAW Pipe Without Verified Mill Certificates

Pipes that arrive without traceable heat numbers or with certificates that do not match the physical markings create a cascade of failures: the inspector rejects the lot, the project stalls waiting for replacement material, and the original supplier disappears behind a trading company email address. [NEED_CITE: EN 10204 inspection document types 3.1 and 3.2 requirements] When wall thickness falls below the specified tolerance on a piling job, the engineer must redesign the foundation or drive additional piles — both options costing multiples of the original pipe price. Certification gaps at customs mean containers sit at port accruing demurrage while the buyer scrambles for retroactive test reports. These are not theoretical risks; they are the daily reality for buyers who chose the lowest invoice price without verifying what the invoice actually covers.

Why Bulk Buyers Return to Shandong Xin Jiyuan for SSAW Pipe

We run three SSAW lines simultaneously, giving us the capacity to fill urgent split-shipment orders without pulling stock from other customers. Every coil is traced from incoming inspection through final dimensional check, and our in-house lab issues original mill test certificates with heat numbers laser-marked on every pipe — no trading-company reprints. For buyers consolidating a project that needs line pipe, piling pipe, and structural sections in one shipment, we load mixed containers with professional lashing plans that maximize weight utilization and prevent transit damage. Our CE certification under EN 10210 and EN 10219, combined with ISO 9001:2015 registration, satisfies the most demanding project specification packages. Third-party inspection by SGS or BV is available on request, and we handle the coordination so the inspector’s report reaches you before the vessel sails.

Documentation & Compliance

• Mill Test Certificate per EN 10204 3.1 documenting API 5L X52 chemical composition, yield strength, and tensile properties with heat-number traceability for every pipe
• CE certificate confirming compliance with EN 10219 for structural hollow sections supplied under European standard callouts
• ISO 9001:2015 quality management system certificate covering the full SSAW production and inspection process
• SGS or BV third-party inspection report available on request, verifying dimensional accuracy, weld integrity, and coating thickness before shipment
• Material traceability report linking each pipe’s heat number to the original coil test certificate and chemical analysis
• Complete customs documentation package including packing list, bill of lading, and certificate of origin formatted for the destination country’s import requirements

Packaging, Loading & Delivery

• SSAW pipes bundled with galvanized steel strips at intervals matched to the 5.8–12.0 m length, with end protectors preventing bevel damage during handling
• Oiled surface finish applied before bundling to prevent rust staining during ocean transit, especially critical for non-oiled pipes stored outdoors at destination

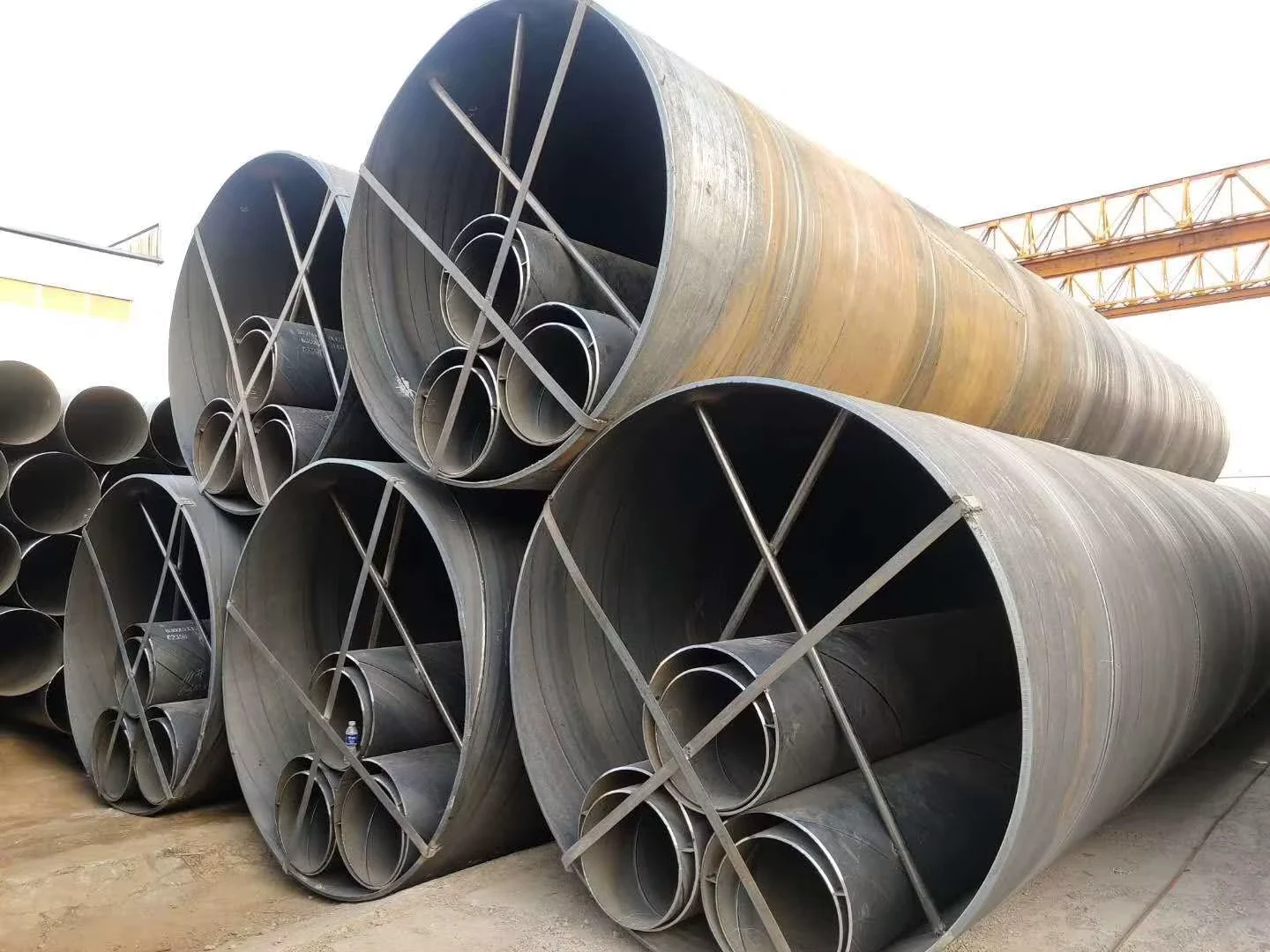

• Container loading plans optimized for large-diameter pipes (OD above 1000 mm shipped in open-top or flat-rack containers; smaller OD nested to maximize 20ft and 40ft GP utilization)
• Custom cut lengths available within the 5.8–12.0 m range to match project splice plans and reduce on-site welding
• Heat number, steel grade, OD, wall thickness, and length stenciled on each pipe in weather-resistant paint for site identification
• FOB, CIF, and DDP terms available with professional export documentation handling for ports across Southeast Asia, the Middle East, Africa, and South America

Getting Your SSAW Pipe Quote and Mill Documentation Started

Send your specification sheet — OD, wall thickness, length, steel grade, quantity, and destination port — and we return a detailed quotation with volume pricing, production lead time, and the mill test certificate format you will receive. If your project calls for non-standard dimensions or third-party inspection, we confirm feasibility and cost in the same response.

Request Your SSAW Pipe Quotation with Mill Test Certificates

Submit your specifications via email at admin@sdxinjiyuan.com or WhatsApp at +86 188 5315 7756 to receive factory-direct pricing and complete documentation within 12 hours.

Frequently Asked Questions

Q: Which steel grade should I specify for an oil and gas transmission pipeline versus a structural piling project?

A: API 5L grades from GR.B through X70 are designed for pressure-containing pipeline service, with increasing yield strength for higher-pressure or longer-distance transmission. For structural piling and non-pressure applications, ASTM A252 or EN 10219 grades such as S355 provide the required strength and impact toughness without the premium chemistry controls needed for sour service.

Q: Can I verify the material traceability before the pipes ship?

A: Yes. Every SSAW pipe carries a laser-marked heat number linking it to the original mill test certificate, which documents chemical composition and mechanical properties. We also welcome SGS or BV third-party inspection at our facility before shipment, and the inspection report is included in your documentation package.

Q: What is the minimum order quantity for custom OD and wall thickness combinations outside your standard range?

A: Our standard range covers OD 219–3048 mm and wall thickness 5–25.4 mm. For dimensions within this range, the MOQ is 5 tons. Non-standard sizes outside these parameters require confirmation of coil availability and production scheduling.

Q: How do you handle surface protection for pipes destined for tropical or marine environments?

A: We supply SSAW pipes with hot rolled, oiled, or non-oiled finishes. For long-term corrosion protection in aggressive environments, the bare pipe surface accepts field-applied 3PE, FBE, or coal tar enamel coatings. The oiled finish provides transit protection during ocean shipping and short-term outdoor storage.

Q: Can you consolidate SSAW pipe with other steel products in a single container shipment?

A: Yes. We regularly load mixed containers combining SSAW pipe with square and rectangular tubes, section steel, and plate for project buyers who need multiple product categories from a single source. Our loading team designs the stowage plan to maximize weight utilization and prevent transit damage.
