Description
Factory-Direct A105 Seamless Pipe — every heat traced to original mill slab
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A105 Seamless Carbon Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | A105 |
| Standard | ASTM A105 / ASME SA105 |
| Section Shape | Round |
| Size Range | 1/2″ – 24″ (DN15 – DN600) |
| Wall Thickness | SCH 10 – SCH 160, STD, XS |
| Length | 5.8 m / 6 m / 11.8 m, or cut-to-length |
| Technique | Hot-rolled seamless |
| Surface Treatment | Bare, black painted, or anti-rust oil |
| Tolerance | Per ASTM A105 / ASME B36.10M |
| Ends | Plain end / beveled end |
| Application | High-temperature piping, pressure systems, oil & gas, boiler |
| MOQ | 1 ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Wellhead piping, flow lines, gathering systems |
| Power Generation | Boiler feedwater lines, steam piping, superheater tubes |
| Petrochemical | Process piping, heat exchanger lines, refinery manifolds |
| Industrial EPC | High-temperature utility lines, compressed air headers |
| Construction Infrastructure | Structural piling, foundation casings |
What Negative Tolerance Costs on a High-Temperature Piping Order
Wall-thickness deviation beyond ASTM limits turns a code-compliant order into a site rejection.
I once watched a Dubai pipeline crew pull ultrasonic gauges off a container of seamless pipe labeled 6.35 mm wall. The readings came back at 5.8 mm — past the lower boundary of permissible negative tolerance. The entire lot was rejected before it left the port yard. [NEED_CITE: ASTM A105 dimensional tolerance requirements for seamless pipe] When you are sourcing an A105 Seamless Carbon Steel Pipe Supplier for pressure-rated systems, that kind of deviation does not just mean extra freight cost; it means the piping hydrotest fails, the inspector red-tags the spool, and your EPC schedule slips by weeks. Material traceability gaps make it worse — without heat-number linkage to the original mill slab, there is no way to prove the chemistry met the A105 carbon content ceiling of 0.35%.
Matching A105 to High-Temperature Service Conditions
A105 is a forged-quality carbon steel grade designed for ambient-to-elevated temperature service, typically up to 425 °C in piping systems governed by ASME B31.1 and B31.3. Its carbon range (0.35% max) and manganese balance give it adequate strength for boiler feedwater, steam, and process lines without the cost premium of alloy grades. An A105 Seamless Carbon Steel Pipe Supplier who hot-rolls the pipe from continuously cast billets — rather than re-rolling ingot-cast stock — produces a more uniform grain structure that holds up under thermal cycling. Our production lines run three-shift operations with in-line ultrasonic testing, so every length leaving the mill has been verified for internal soundness before it reaches the bundling bay.
Engineering Compliance and Certification Requirements
Pressure piping fabricated from A105 material must comply with ASTM A105 for chemistry and mechanical properties, and dimensional tolerances follow ASME B36.10M. For projects in Europe or the Middle East, buyers often request material equivalence confirmation between ASTM A105 and EN 10216-2 P235GH or P265GH — a cross-reference that requires documented chemical comparison, not just a verbal assurance. [NEED_CITE: material equivalence between ASTM A105 and EN 10216-2 carbon steel grades] Third-party inspection by SGS or BV is standard on Middle East and Southeast Asia tenders; the inspector verifies heat numbers against mill certificates, checks wall thickness with calibrated gauges, and witnesses hydrostatic testing where required. Missing or incomplete certificates at the destination port can hold up customs clearance for days, especially on government-funded infrastructure projects where documentation audits are mandatory.
Understanding A105 Chemistry and Seamless Manufacturing
A105 specifies a carbon maximum of 0.35%, manganese between 0.60–1.05%, and silicon at 0.10–0.35%. This composition gives the steel its forge-quality rating — it is designed to be hot-worked, which is why the seamless extrusion process aligns naturally with the grade’s intended service. The hot-rolling process pushes a pierced billet through a mandrel at temperatures above 1,200 °C, producing a pipe with no longitudinal weld seam and uniform circumferential strength. That absence of a weld line is critical for pressure containment: there is no heat-affected zone where micro-cracking can initiate under cyclic thermal loading. Wall thickness tolerance per ASME B36.10M allows a standard negative deviation of 12.5%, but responsible mills hold within tighter bands — typically 8–10% — to preserve the calculated pressure rating of the piping system.
Hidden Costs of Procuring the Wrong Material Documentation
Ordering A105 pipe with incomplete or unverifiable mill certificates creates a cascade of downstream costs that never appear on the purchase order. Customs authorities at major ports — Jebel Ali, Jeddah, Laem Chabang — routinely hold steel shipments pending original MTC review. [NEED_CITE: customs documentation requirements for steel pipe imports in GCC countries] If the heat number on the pipe stencil does not match the certificate, the entire lot is flagged. On the project side, a missing or forged MTC means the piping cannot be signed off by the client’s QA inspector, and re-inspection or replacement at the job site runs many times the original material cost. The financial exposure is not in the pipe price — it is in the idle crane time, the delayed hydrotest window, and the penalty clauses tied to project milestones.
Why Buyers Choose Our A105 Seamless Pipe Supply
We run our own seamless pipe production lines in Jinan, which means the price you receive comes directly from the mill — no trading company margin sits between you and the furnace. Every heat of A105 steel is tested in our in-house laboratory for chemical composition and mechanical properties before the pipe is rolled, and the original mill test certificate travels with the shipment. Our inventory covers over 2,800 specifications across seamless, welded, and galvanized categories, so if your project also needs structural sections or plate in the same container, we consolidate the load under one set of shipping documents. Third-party inspection by SGS or BV is arranged on request, and our export team handles the full documentation package — commercial invoice, packing list, bill of lading, and certificate of origin — so your customs broker receives a clean file. We have shipped A105 Seamless Carbon Steel Pipe to project sites across 50+ countries, and our container loading plans are optimized by engineers who understand how to maximize weight within the 20-ton limit for heavy-wall pipe.
Documentation & Compliance
- Mill Test Certificate documenting A105 chemical composition (C, Mn, Si, P, S) and tensile properties per ASTM A105
- CE / EN compliance statement where required for European project specifications
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report verifying wall thickness, surface quality, and dimensional tolerance
- Material traceability report linking each pipe length to its heat number and original slab cast record
- Full customs document set: commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

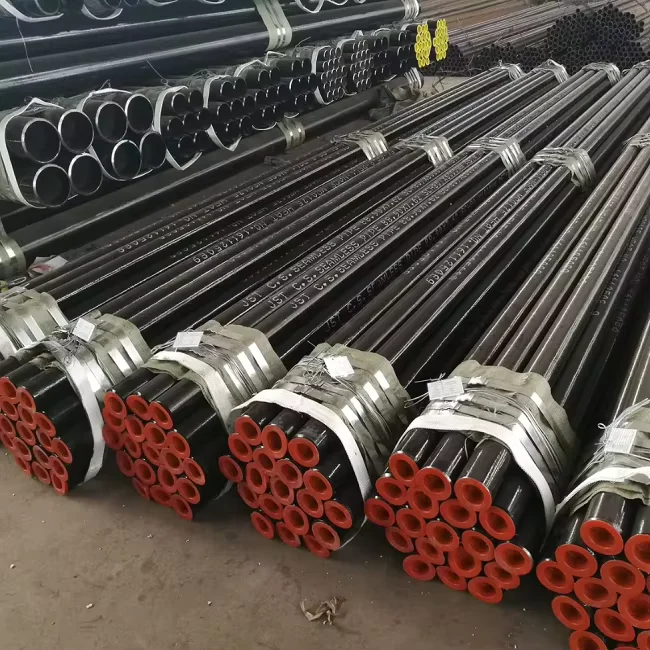

- A105 seamless pipes bundled with galvanized steel strips at intervals matching the 5.8 m and 11.8 m standard lengths, with end caps on beveled-end orders to protect the bevel during transit
- Bare or oiled surface protected by waterproof wrapping for ocean shipment, preventing rust formation on the black mill finish during humid-sea transit
- Container loading plans optimized by weight distribution for heavy-wall SCH 160 pipe, ensuring the 20-ton payload limit is reached without exceeding the 28-ton gross weight cap
- Cut-to-length service available for non-standard lengths, with saw-cut ends deburred and marked with heat number and A105 grade stencil
- Each bundle tagged with a metal label showing heat number, size, wall thickness, length, and gross/net weight for site identification
- FOB, CIF, and DDP terms available with door-to-door logistics coordination to project sites in the Middle East, Southeast Asia, Africa, and South America
Requesting a Quote for Your A105 Pipe Requirement
Submit your specification sheet — including outside diameter, wall thickness or schedule, total tonnage, end condition, and destination port — and our team responds within 12 hours with a mill-direct price, production timeline, and sample mill test certificate from a recent A105 heat. For non-standard sizes or cut-to-length requirements, we provide a technical review confirming availability and lead time before you commit.
Get Your A105 Seamless Pipe Quote with Mill Test Certificate
Send your specifications, quantity, and destination port to receive factory-direct pricing and original material documentation.
