Description

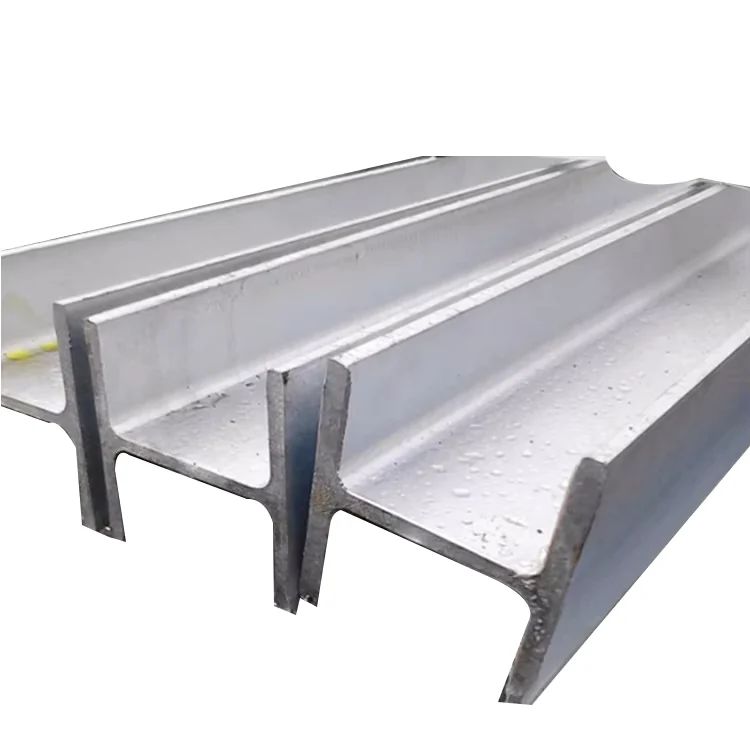

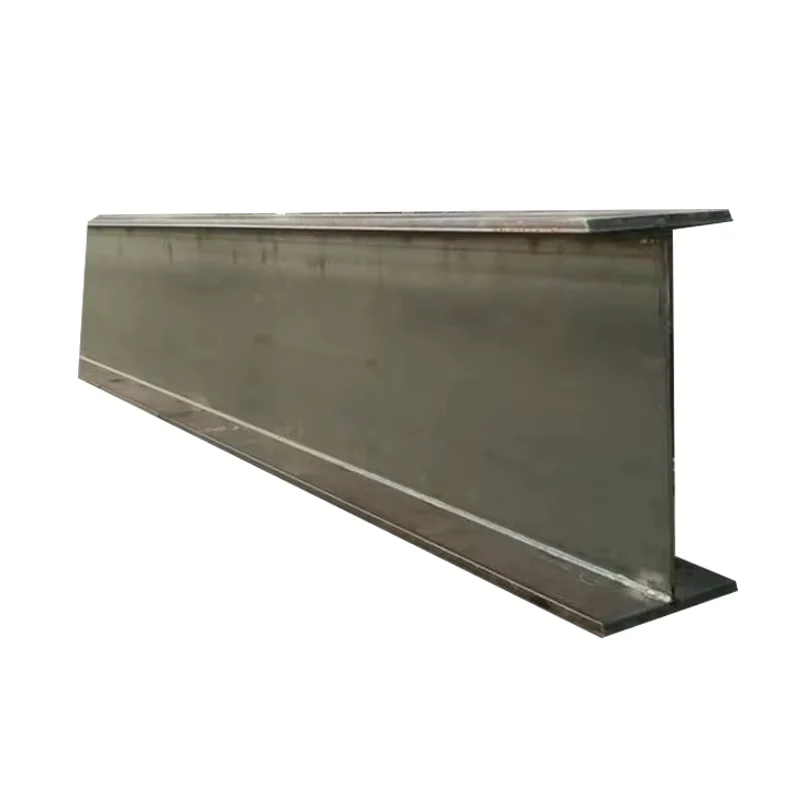

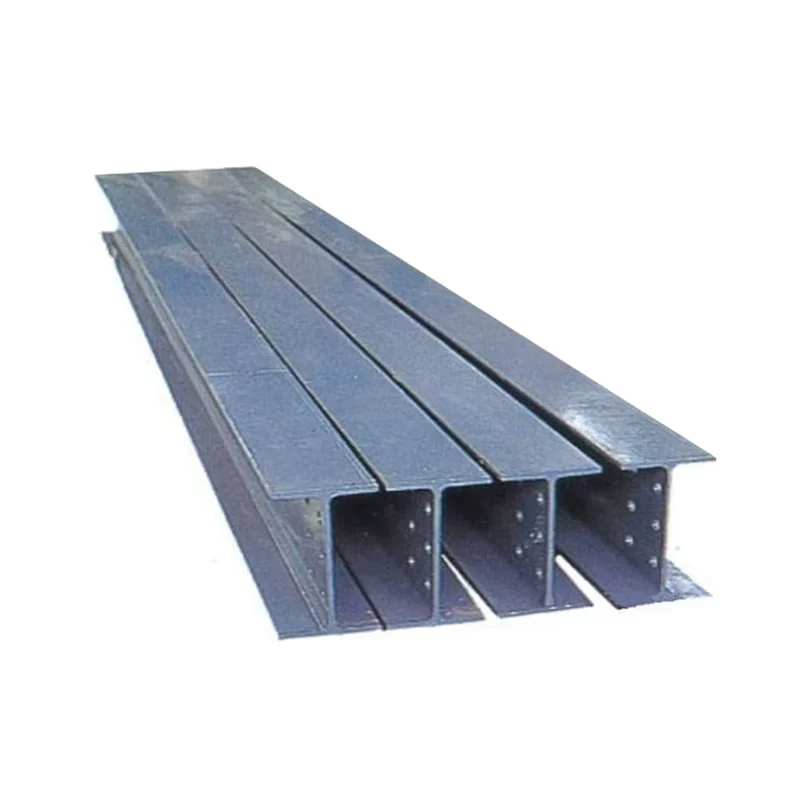

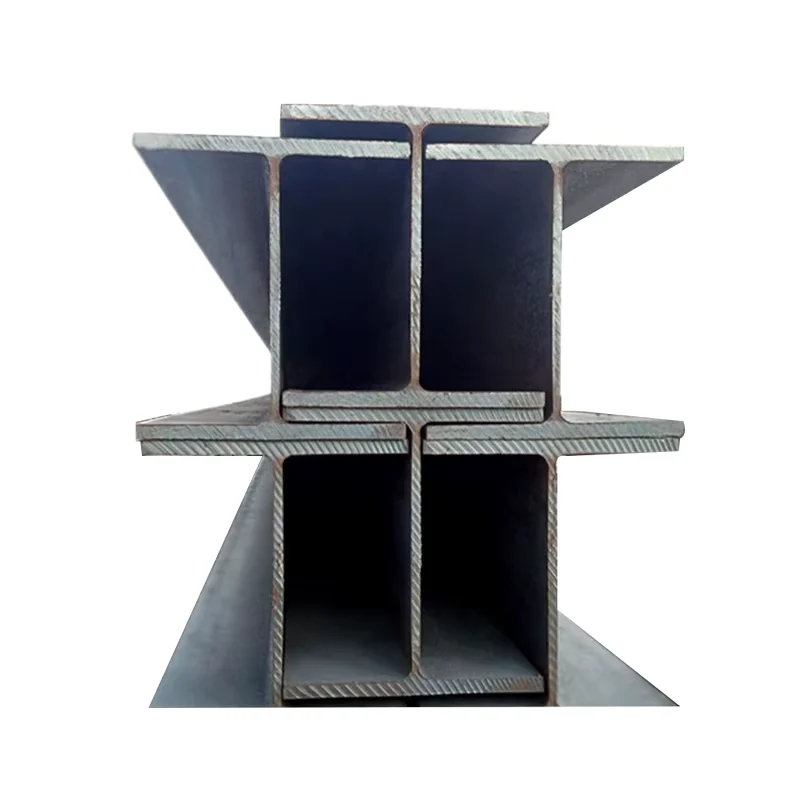

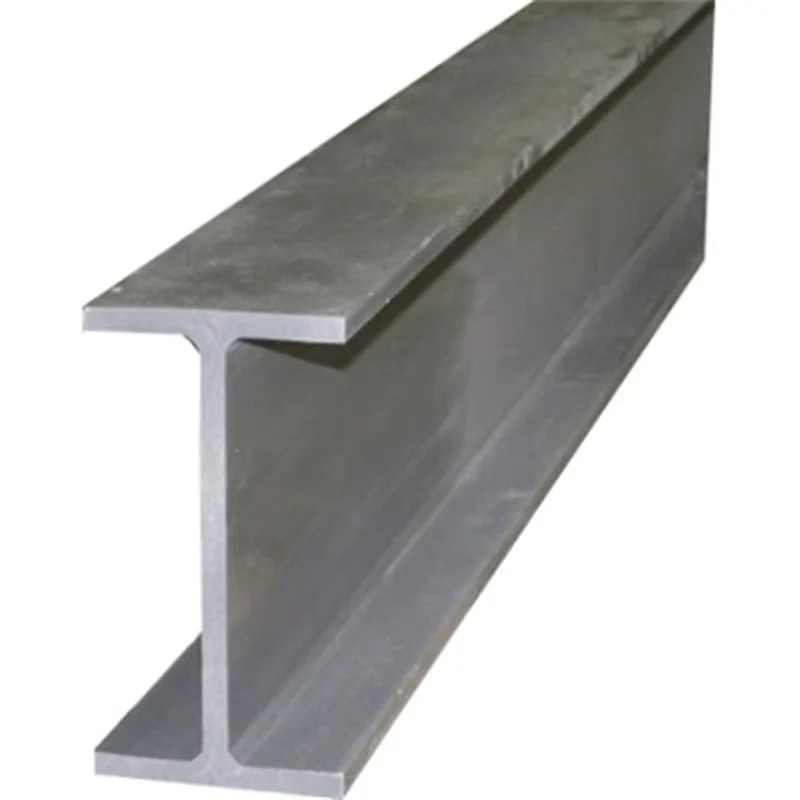

Factory-Direct European Standard HEA H-Beam Supply — Hot rolled HEA 400 and full HEA series in S235JR, S355JR, S355J2 per EN 10025, shipped with original mill test certificates and CE EN 10219 compliance documentation for EU customs clearance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355JR / S355J2 / S235JR HEA H-Beam |
| Product Type | H-Beam (HEA profile) |
| Steel Grade | S235JR, S355JR, S355J2, S355NL, Q235B, Q345E, ASTM A36, ASTM A992, ASTM A572 |
| Standard | EN 10025, ASTM A36, ASTM A992, ASTM A572, BS, GB |
| Section Shape | H-Beam (HEA profile) |
| Size Range | 100×100 mm – 1000×300 mm |
| Flange Thickness | 8 mm – 64 mm |
| Web Thickness | 4.5 mm – 36.5 mm |
| Web Width (Height) | 100 mm – 900 mm |
| Length | 5.8 m – 12 m (or as requested) |
| Technique | Hot Rolled |
| Tolerance | ±1% |
| Surface Treatment | As rolled / Customized coating available |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Invoicing | By Actual Weight |
| Packing | Seaworthy |
| Delivery Term | FOB / EXW / CIF / CFR |
| Payment | T/T, L/C |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Building Construction | Primary columns, roof trusses, and portal frame structures for industrial warehouses |
| Prefabricated Structures | Load-bearing frames for modular halls and pre-engineered buildings |
| Infrastructure & Bridges | Bridge girders, support piers, and highway gantry frames |
| Industrial Platforms | Heavy-duty mezzanine floors, equipment support platforms, and crane runway beams |
| Fencing & Framing | Perimeter security frames, boundary posts, and structural framing systems |
Where EN 10025 Certification Decides Customs Clearance for European Standard HEA H-Beam Orders
Missing or incomplete EN 10025 traceability documentation is the single most common reason European standard HEA H-Beam shipments get held at port.
I once watched a container of HEA 400 sections sit at a West African port for three days because the CE certificate lacked the EN 10219 annex attachment. The customs officer was not wrong — without the full conformity declaration referencing the correct harmonized standard, the cargo legally cannot clear. For buyers importing a European standard HEA H-Beam into EU or African markets adopting European norms, the mill test certificate must show heat number, chemical composition, and mechanical properties traceable to EN 10025. [NEED_CITE: EN 10219 cold-formed hollow section certification requirements for EU customs] When steel grades like S355JR and S355J2 are mixed in one shipment without clear separation and individual test reports, site teams face re-cutting and re-welding delays that cascade into weeks of schedule loss.
How HEA Profile Dimensions Match Structural Frame Engineering
The HEA series covers a practical range from 100×100 mm light framing members up to 1000×300 mm heavy column sections, with flange thicknesses spanning 8 mm to 64 mm. This breadth means a single European standard HEA H-Beam supplier can cover both secondary bracing members and primary load-bearing columns in one procurement cycle. Hot rolled production with ±1% dimensional tolerance ensures that connection plates and bolt-hole patterns drilled at the fabrication shop will align on site without forcing or reaming. For projects requiring multiple size segments — say HEA 200 for rafters and HEA 400 for columns — consolidated sourcing from one mill eliminates the risk of mixed tolerance stacks arriving from different rolling schedules.
Structural Compliance and Corrosion Protection Selection
European standard HEA H-Beam sections in S355JR and S355J2 grades conform to EN 10025-2, which governs non-alloy structural steels for welded, bolted, and riveted applications. [NEED_CITE: EN 10025-2 structural steel delivery conditions and impact testing requirements] For projects in coastal or industrial corrosion environments, the as-rolled surface can be supplemented with customized coating — shop primer, epoxy, or hot-dip galvanizing for exposed sections. Steel grade selection directly affects load-bearing capacity: S355J2 offers low-temperature impact toughness at −20 °C, making it the specified grade for unheated industrial structures in northern climates, while S235JR suffices for interior, temperature-controlled framing. Third-party inspection by SGS or BV before shipment provides independent verification of both chemical composition and dimensional compliance, which is often required by EPC contractors for project handover documentation.
Understanding S235JR, S355JR, and S355J2 Grade Selection
The S-series European structural steel grades follow a straightforward naming logic: the number indicates minimum yield strength in MPa for thicknesses up to 16 mm, while the suffix letter denotes impact test temperature. S235JR requires room-temperature impact testing, S355JR adds higher yield strength for reduced section sizes, and S355J2 mandates impact testing at −20 °C for cold-climate structural integrity. When cross-referencing with ASTM equivalents, S355JR broadly aligns with ASTM A572 Grade 50 in yield strength, though chemical composition limits and elongation requirements differ — direct substitution without engineer approval risks non-compliance during inspection. [NEED_CITE: steel grade equivalence between EN 10025 and ASTM A572 standards] Hot rolling produces a uniform grain structure through the full section depth, which is critical for H-beams subjected to bending moments where the web-flange junction experiences the highest stress concentration. The ±1% tolerance on hot rolled HEA sections is tighter than many fabricated alternatives, reducing fit-up gaps at moment connections.
Hidden Costs of Procuring the Wrong Grade or Incomplete Documentation
Ordering S235JR when the structural drawing specifies S355J2 does not show its cost until the site engineer rejects the material during incoming inspection — at which point the entire shipment must be replaced or downgraded to non-structural use, whichever the engineer permits. Similarly, shipping a European standard HEA H-Beam without original mill test certificates tied to specific heat numbers means the receiving inspector has no basis to verify conformity, and the cargo may be held indefinitely. Tolerance deviations beyond ±1% compound across long-length members: a 12-meter HEA 400 beam that is 1.5% under nominal flange thickness may pass visual inspection but fail ultrasonic thickness verification, triggering full-batch rejection. [NEED_CITE: structural steel inspection and tolerance acceptance criteria per EN 10025]
Why Project Buyers Source European Standard HEA H-Beam From Xin Jiyuan
Our three hot rolling lines produce over 20,000 tons monthly across the full HEA range, meaning standard sizes like HEA 200, HEA 260, and HEA 400 are held in ready stock for urgent dispatch — no waiting for a production campaign to fill. Every heat is tested in-house, and original mill test certificates are issued per batch with full chemical composition and mechanical property data, traceable by heat number back to the steelmaking ladle. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015, and can arrange SGS or BV third-party inspection at our facility before container sealing. For buyers consolidating a project bill of materials, we load H-beams alongside square tubes, round pipes, and steel plates in a single container, optimizing weight distribution and reducing per-ton freight cost. Factory-direct pricing with volume discount tiers rewards long-term procurement partnerships rather than one-off spot orders.
Documentation & Compliance
- Mill test certificate documenting S235JR, S355JR, or S355J2 chemical composition and mechanical properties per EN 10025, with heat number traceability
- CE certificate of conformity under EN 10210/EN 10219 for European market customs clearance and construction product regulation compliance
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request, verifying dimensional accuracy and surface quality before shipment
- Full customs documentation package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- Hot rolled HEA H-beams bundled with high-tensile steel strips at intervals matching the 5.8 m to 12 m length range, preventing shift during ocean transit
- As-rolled surfaces protected with anti-rust coating or custom paint system per buyer specification, with edge protectors on flange tips to prevent coating damage
- Container loading plans optimized for HEA section geometry — longer members (10–12 m) loaded on 40ft open-top or flat-rack containers, shorter lengths nested in standard 20ft units to maximize payload
- Heat number and steel grade stenciled on each bundle tag, matching the mill test certificate for on-site verification by receiving inspectors
- FOB, CIF, and CFR delivery terms available from Chinese ports, with professional export documentation handling for destination customs requirements
Request Your European Standard HEA H-Beam Quotation
Submit your HEA size range, steel grade requirement, total tonnage, and destination port to receive a competitive factory-direct quotation with full mill test certificate commitment. We respond to inquiries within 12 hours and can provide material samples and certification copies for your engineer’s review before contract signing.
Get Your HEA H-Beam Quote With Mill Test Certificates
Send your specifications by email or WhatsApp to receive pricing, certification details, and delivery schedule for your European standard HEA H-Beam order.
