Description
Factory-Direct CNC Machined Plates — Every CNC Laser Cut Steel Plate Q235B Q355B Custom Machined Connection Plate Supplier order ships with original mill test certificates and full dimensional reports from our in-house lab.
Technical Specifications
| Parameter | Value |
|---|---|

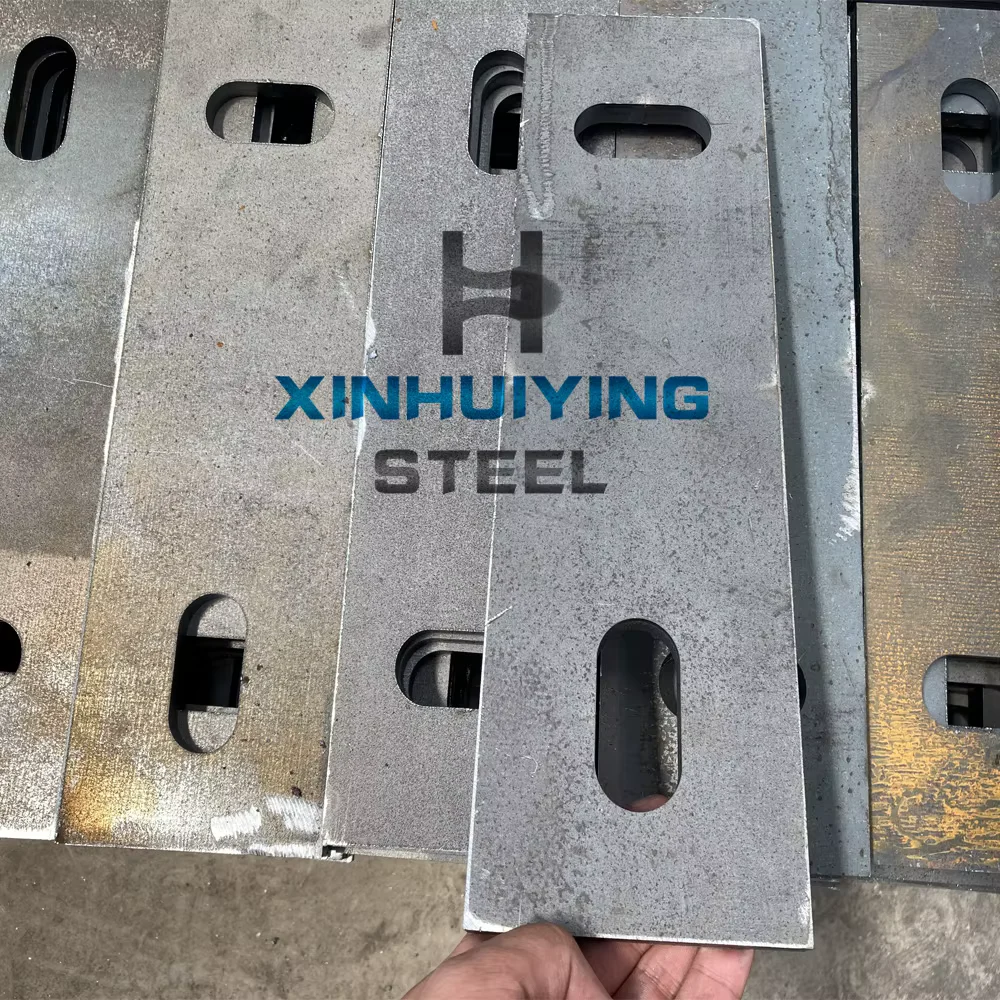

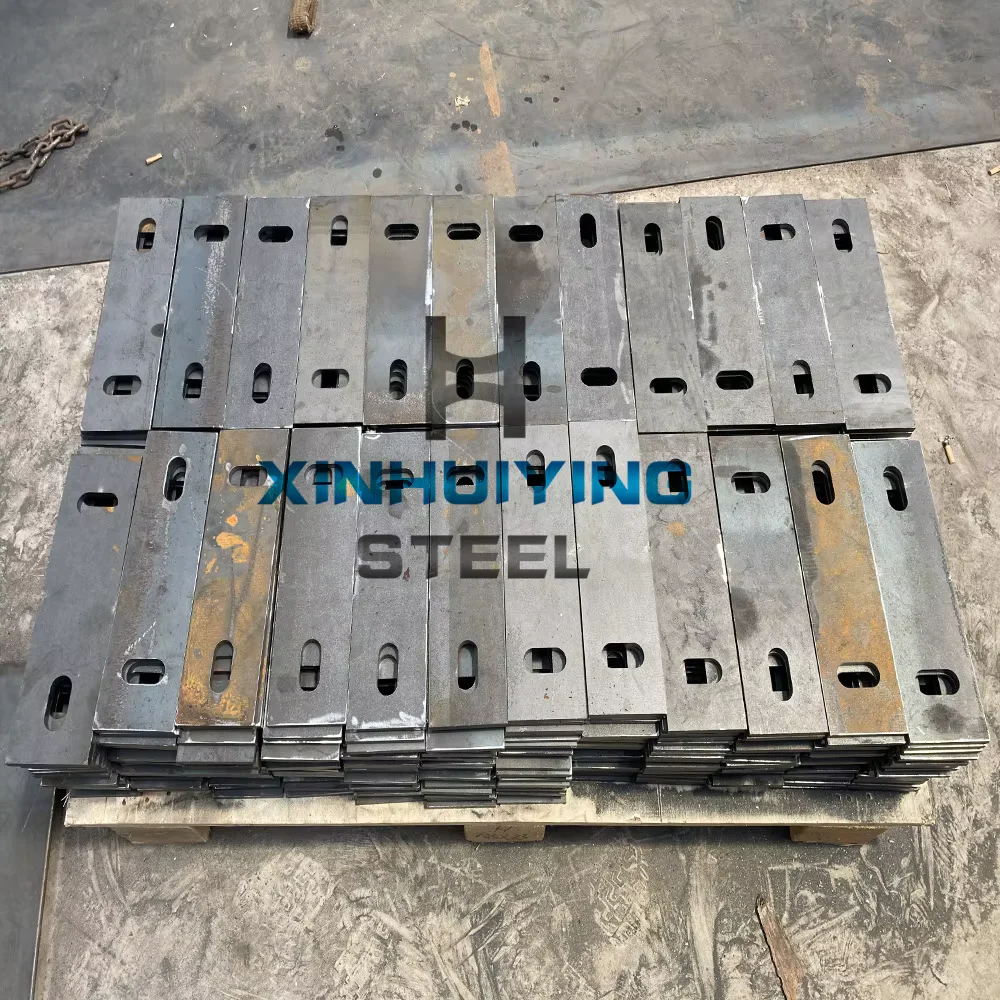

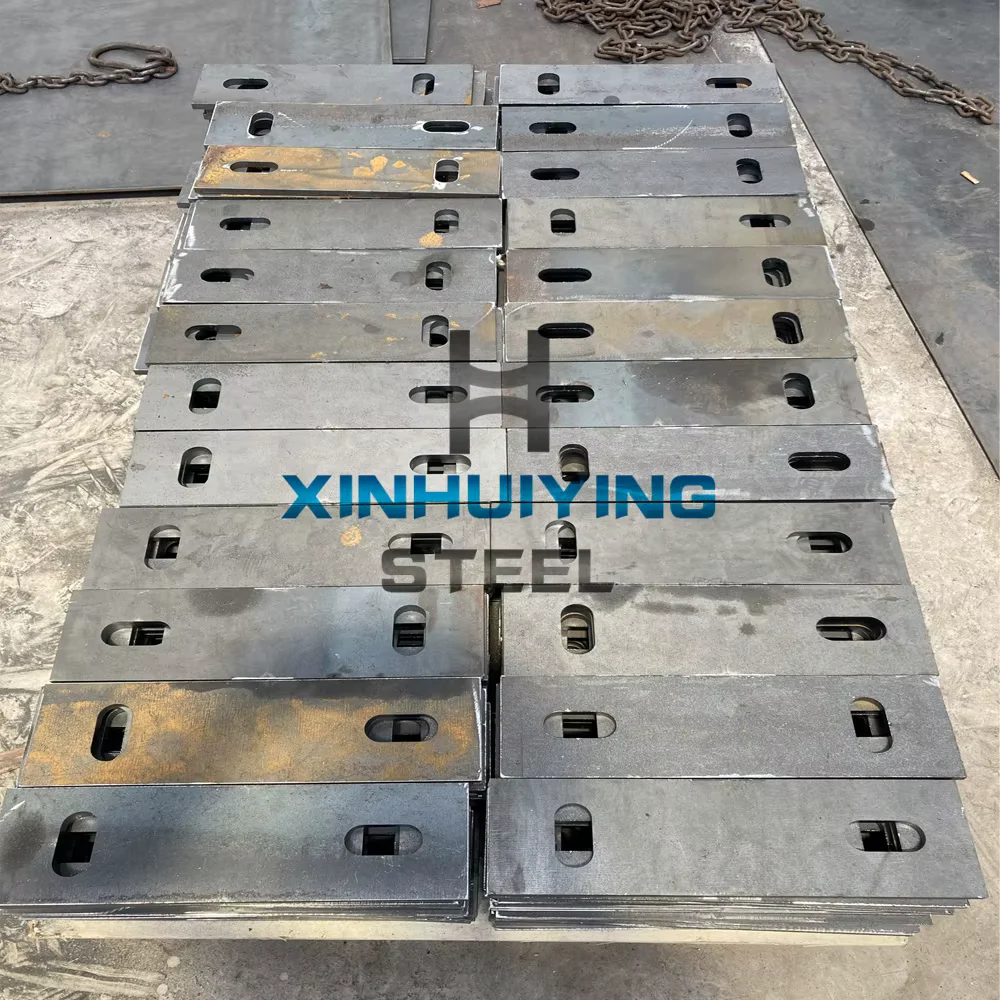

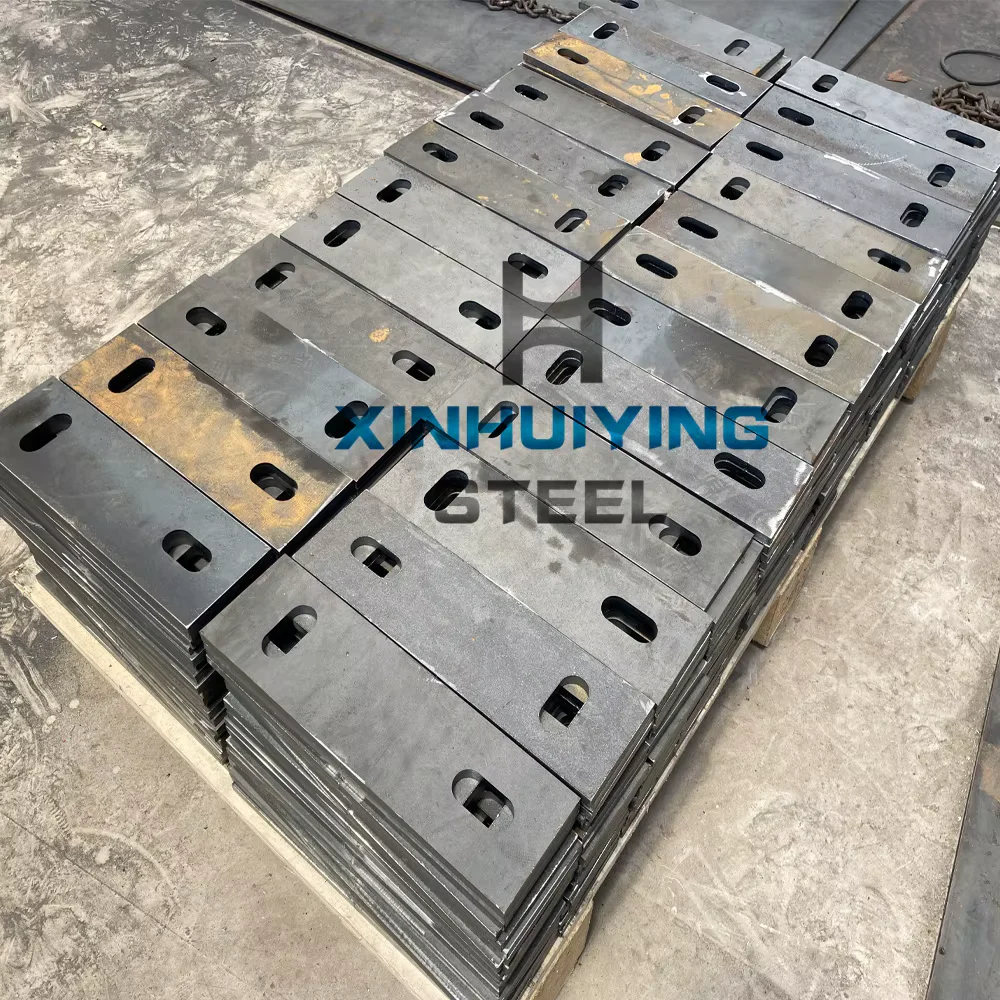

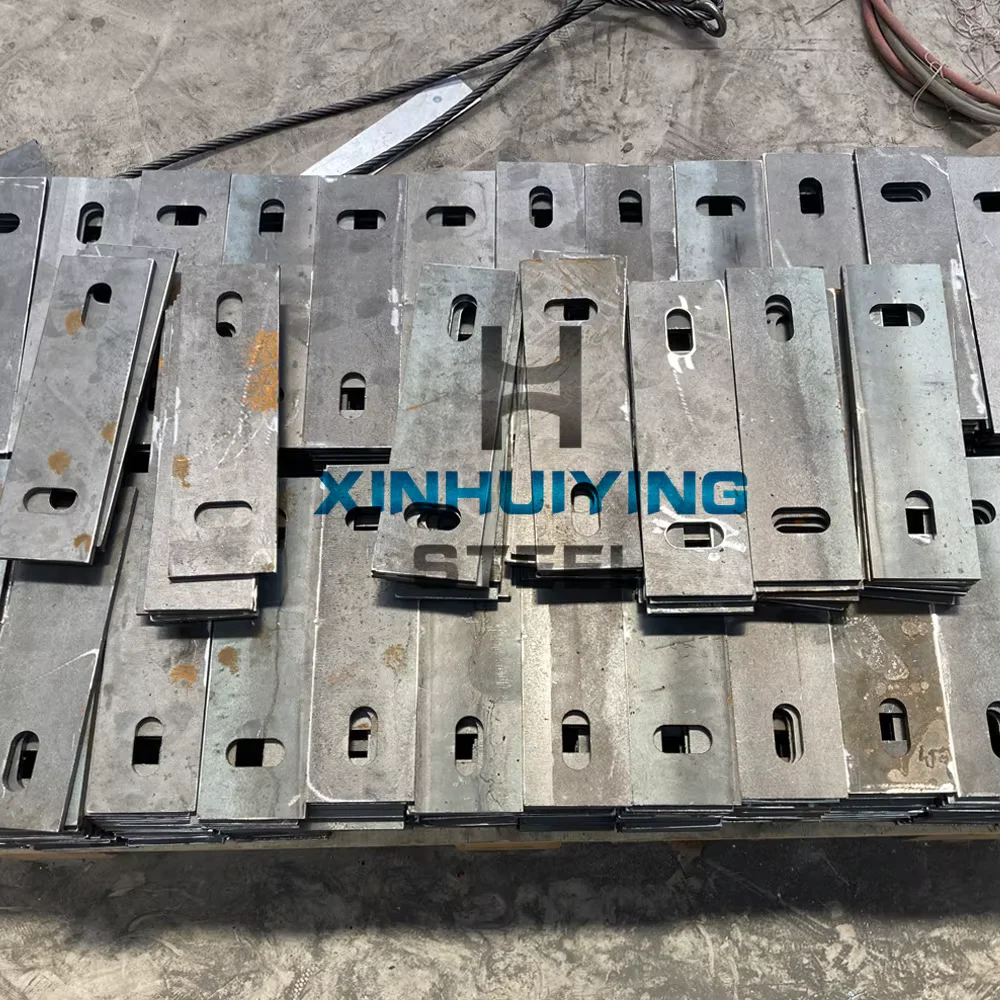

| Designation | Q235B/Q355B CNC Laser Cut Steel Plate |
| Product Type | Machined Steel Product (Steel Connection Plate) |
| Steel Grade | Q235B, Q355B |
| Standard | GB/T 700 (Q235B), GB/T 1591 (Q235B) |
| Section Shape | Rectangular |
| Plate Thickness | 3mm, 4mm, 6mm, 8mm (Custom) |
| Technique | CNC Laser Cutting, CNC Drilling, Chamfering, Punching, Splicing |
| Surface Treatment | Hot-dip Galvanizing, Painting, Powder Coating |
| Tolerance | ±0.5mm |
| Suitable Environment | Industrial, Coastal, Low-temperature |
| Application | Building Construction, Steel Structure, Column/Beam Connection, Structural Machinery |
| MOQ | 500 Pcs |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building Construction | Column and beam connection plates for portal frames and multi-story steel buildings |
| Steel Structure Engineering | Base plates, gusset plates, and splice plates for bracing systems |
| Infrastructure Projects | Bridge bearing plates and industrial platform grating supports |
| Structural Machinery | Heavy equipment frame connection nodes and crane boom splice plates |
What Dimensional Tolerance Costs on a Structural Frame Order
±0.5mm CNC laser cutting tolerance eliminates on-site rework and bolt-hole misalignment.
When connection plates arrive with oversized bolt holes or off-center drill patterns, erectors spend hours reaming or re-drilling at height — labor that costs far more than the plate itself. I have seen entire container loads of machined plates rejected at the gate because the supplier drilled from one side only, shifting hole positions by several millimeters through the thickness. A CNC Laser Cut Steel Plate Q235B Q355B Custom Machined Connection Plate Supplier running proper multi-axis equipment holds ±0.5mm across every hole, chamfer, and edge, so bolts slide in on the first attempt. [NEED_CITE: structural steel erection tolerance requirements per AISC Code of Standard Practice]
Matching Target Engineering Applications Under Load and Corrosion Exposure
Connection plates in portal frames transfer shear and moment between columns and rafters, so edge quality and hole accuracy directly affect bolt preload and slip resistance. A CNC Laser Cut Steel Plate Q235B Q355B Custom Machined Connection Plate Supplier offering hot-dip galvanizing or powder coating lets specifiers match surface protection to coastal C3–C4 corrosivity categories without secondary painting on site. Our laser-cut Q355B gusset plates for a Southeast Asian warehouse project arrived with chamfered edges ready for full-penetration welding, cutting two days off the erection schedule.
Engineering Compliance and Certification Requirements
Structural connection plates must conform to the chemical and mechanical requirements of GB/T 700 for Q235B or GB/T 1591 for Q355B, and project engineers often cross-reference equivalent grades under EN 10025 or ASTM A36 / A572. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards] Hot-dip galvanizing thickness for coastal installations typically follows ISO 1461, while powder coating systems require surface preparation to Sa 2½ — details that must appear on the mill test certificate and inspection report. Customs authorities in the EU and Middle East increasingly demand CE marking or third-party SGS/BV reports for structural steel components, and missing paperwork can hold a container at the port for weeks. [NEED_CITE: CE marking requirements for structural steel components under EN 1090]
Steel Grade Selection and CNC Process Fundamentals
Q235B is a mild carbon structural steel where the “Q” denotes yield point and “235” indicates the minimum yield strength in MPa — suitable for general bracing, secondary beams, and non-critical connection nodes. Q355B steps up to a low-alloy high-strength grade with improved toughness and weldability, making it the preferred choice for primary moment-resisting connections and heavy machinery frames. CNC laser cutting produces a narrow heat-affected zone compared to plasma, preserving the base metal properties within 1–2mm of the edge — critical when plates will be welded or bent after machining. Drilling and chamfering on the same CNC bed ensures hole-to-edge distances stay within ±0.5mm, something that hand-drilled or turret-punched plates cannot guarantee on thicker sections. Hot-dip galvanizing after machining provides complete coverage inside drilled holes, whereas painting or powder coating may require touch-up on internal surfaces.
Hidden Costs of Wrong Grade or Missing Certification
Specifying Q235B where Q355B is required by the structural engineer reduces load capacity and can trigger rejection during third-party inspection — the entire batch must be replaced, not just reworked. Plates shipped without original mill test certificates face customs holds in markets that enforce EN 1090 or local building codes, and project owners cannot sign off on structural completion without traceable heat numbers. [NEED_CITE: EN 1090 execution class requirements for structural steel fabrication]
Why Project Buyers Source CNC Laser Cut Steel Plate Q235B Q355B Custom Machined Connection Plate Supplier Orders Through Us
We run three production lines in Jinan with 2,800+ specifications in ready stock, so standard-size Q235B and Q355B plates ship within days while custom-machined orders complete in typical production lead times. Every batch carries an original mill test certificate from our in-house理化 lab, and SGS or BV third-party inspection is arranged on request before container sealing. Factory-direct pricing means no trading-company markup, and volume discount programs apply for buyers placing recurring orders above $500K annually. Our export team handles container loading optimization — nesting irregular-shaped connection plates to fill a 20ft or 40ft柜 without wasted space — and provides complete customs documentation including packing list, bill of lading, and certificate of origin.
Documentation & Compliance
- Mill test certificate documenting Q235B or Q355B chemical composition (C, Mn, Si, S, P) and mechanical properties per GB/T 700 or GB/T 1591
- SGS or BV third-party inspection report verifying dimensional tolerance and surface treatment thickness
- ISO 9001:2015 quality management certificate covering the full machining and inspection process
- Material traceability by heat number linking each plate to its original slab and rolling heat
- Customs documents including packing list, bill of lading, and certificate of origin for destination-port clearance
- Surface treatment test report for hot-dip galvanizing coating weight or powder coating adhesion per ISO 1461 or ISO 2409
Packaging, Loading & Delivery
- CNC Laser Cut Steel Plate Q235B Q355B Custom Machined Connection Plate Supplier orders packed in seaworthy steel-banded bundles with edge protectors to preserve machined surfaces and galvanized coatings during ocean transit
- Hot-dip galvanized plates separated by rubber spacers to prevent zinc layer scratching and white rust formation in humid container conditions
- Container loading optimized by nesting irregular-shaped connection plates of varying thickness (3mm–8mm) to maximize payload per 20ft or 40ft柜
- Each plate marked with heat number, steel grade (Q235B/Q355B), and thickness for on-site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional export documentation and real-time tracking
- Custom-length plates cut to project-specific dimensions to minimize on-site cutting waste and secondary processing
Getting Your CNC Machined Connection Plate Quote Moving
Submit your drawings or specification list — including steel grade (Q235B or Q355B), thickness, hole pattern, surface treatment, and destination port — and receive a competitive bulk quote with volume pricing within 12 hours. We will confirm dimensional feasibility, provide a mill test certificate sample from a previous batch, and advise on container loading optimization before you place a deposit.
Frequently Asked Questions
Q: What steel grades are available for custom laser cut connection plates?
A: We machine connection plates in Q235B per GB/T 700 and Q355B per GB/T 1591. Both grades are supplied with original mill test certificates documenting chemical composition and mechanical properties.
Q: Can you provide mill test certificates and third-party inspection reports?
A: Yes. Every batch ships with an original mill test certificate from our in-house lab. SGS or BV third-party inspection is available on request before container sealing.
Q: What is the MOQ for custom machined steel connection plates?
A: The standard MOQ is 500 pieces. We accept trial orders for new customers and can arrange split shipments for long-term partners with recurring procurement schedules.
Q: What surface treatment options are available for corrosive environments?
A: We offer hot-dip galvanizing per ISO 1461 for coastal and industrial environments, as well as painting and powder coating for projects requiring specific color matching or additional UV protection.
Q: How do you ensure dimensional accuracy for CNC laser cutting?
A: Our CNC laser cutting equipment holds ±0.5mm tolerance on all edges, holes, and chamfers. Every batch undergoes three-stage inspection in our in-house lab before shipment.
Get Your CNC Laser Cut Steel Plate Q235B Q355B Custom Machined Connection Plate Supplier Quote Today
Send your specification list and destination port to receive pricing, mill test certificate samples, and container loading advice within 12 hours.
