Description

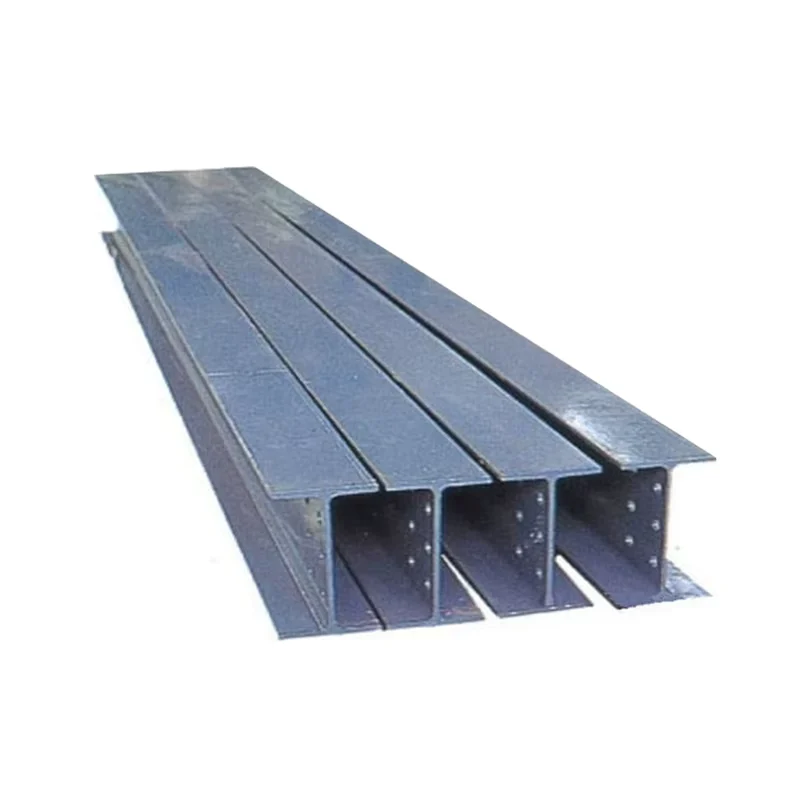

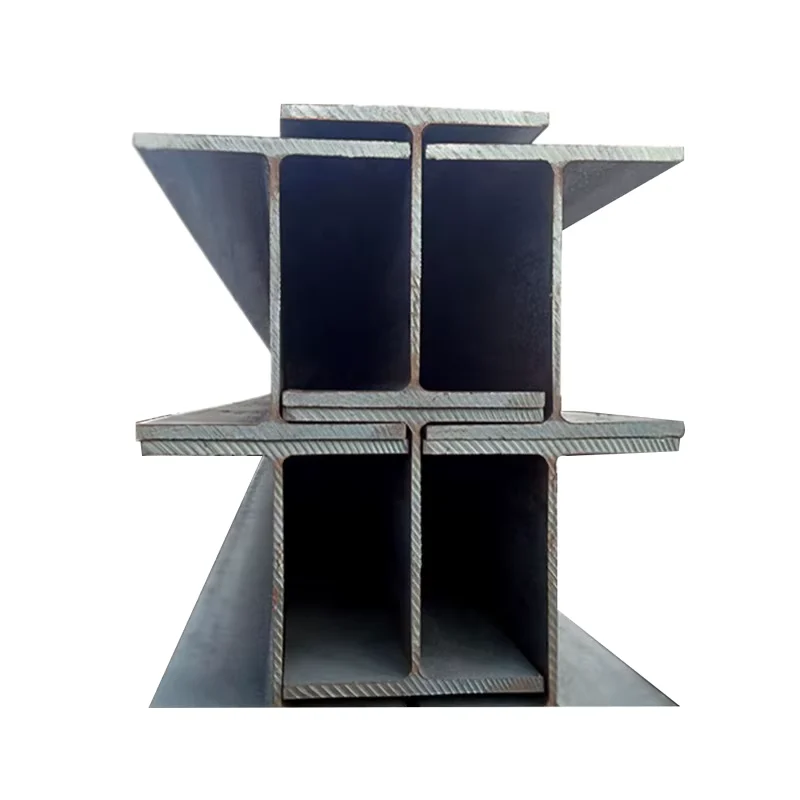

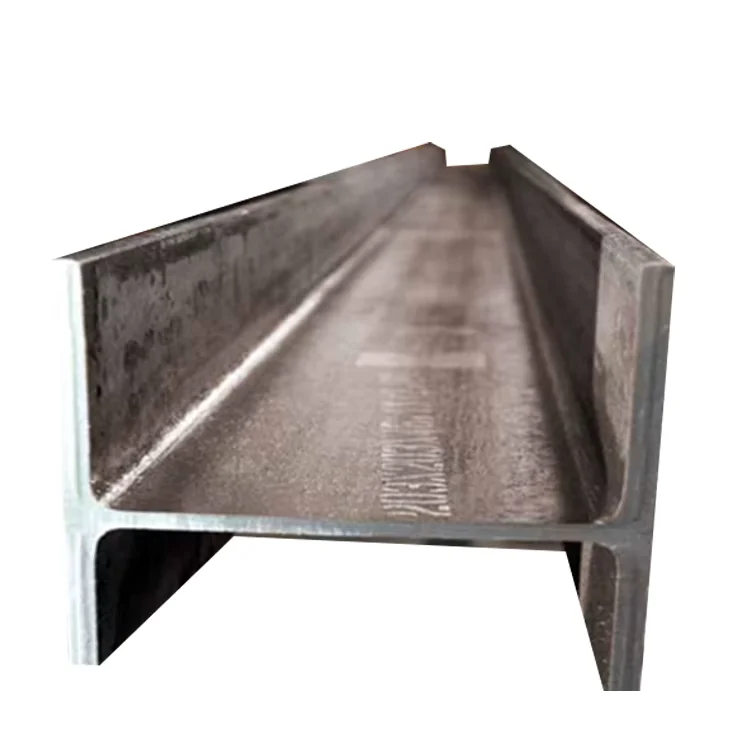

Factory-direct H-beam supply — Hot rolled and hot dip galvanized sections in Q235, Q355, S355JR, and ASTM A36/A572 shipped with original mill test certificates and third-party inspection reports for every batch.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Q355 S355JR H-Beam |
| Product Type | H-Beam (I-Beam) |
| Steel Grade | Q235, Q345, Q355, S355JR, S355J0, ASTM A36, ASTM A572 |
| Standard | GB, BS, EN, ASTM, DIN, JIS, AISI |
| Section Shape | H-Beam |
| Size Range | 100×100 to 1000×300 |
| Web Width | 100mm–900mm |
| Web Thickness | 4.5mm–36.5mm |
| Flange Thickness | 8mm–64mm |
| Length | 6m / 9m / 12m or as requested |
| Technique | Hot Rolled |
| Surface Treatment | Hot Dip Galvanized / Customized Colors |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Packing | Seaworthy |
| Application | Steel Building / Building Frames / Bridges / Retaining Wall Post / Support Rail / Structural Beam |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Primary building frames, portal frames, mezzanine floors, warehouse structures |
| Infrastructure & Bridges | Bridge girders, retaining wall posts, highway support structures |
| Energy & Utilities | Solar mounting structures, wind turbine foundations, transmission tower supports |
| Heavy Machinery | Crane runway beams, equipment support rails, conveyor framework |
Where Galvanized Coating Thickness Decides Site Acceptance
Inconsistent zinc mass is the single most common reason galvanized H-beams fail inspection at destination ports.
When sourcing hot rolled galvanized H-beam steel supplier products for outdoor infrastructure, buyers often discover coating thickness varies between beams in the same shipment — some pass 65μm, others barely reach 45μm. This happens when galvanizing bath temperature and immersion time are not controlled per batch. The result: accelerated corrosion at weld zones within months, project owners demanding re-galvanization at the buyer’s cost, and disputes over who bears the expense. [NEED_CITE: hot dip galvanizing coating thickness standards for structural steel]
Matching Section Dimensions to Load-Bearing Requirements
Structural engineers specify H-beams based on moment of inertia and section modulus — dimensions directly tied to web width, flange thickness, and overall depth. A hot rolled galvanized H-beam steel supplier must provide the full dimensional range from 100×100 light sections for bracing to 1000×300 heavy sections for primary load transfer. Web thickness from 4.5mm to 36.5mm and flange thickness from 8mm to 64mm cover everything from secondary purlins to main portal frame columns. When projects require non-standard lengths beyond 12m or custom cutting to drawing, in-house processing with punching and welding capability eliminates secondary fabrication delays at the job site.
Engineering Compliance Across International Standards
Different markets enforce different structural steel standards — EN 10210 for European projects, ASTM A36/A572 for North American specifications, GB/T 11263 for Chinese-designed infrastructure. A single project may combine steel grades from multiple systems when sourced from international EPC contractors. Hot rolled galvanized H-beam steel supplier inventory spanning Q235, Q355, S355JR, and ASTM grades allows consolidated shipment under one bill of lading while meeting each structural element’s specification. Third-party inspection from SGS or BV verifies chemical composition and mechanical properties before container sealing, preventing customs holds caused by missing or incomplete certification. [NEED_CITE: structural steel certification requirements for international construction projects]
Steel Grade Selection and Corrosion Protection Strategy
The choice between Q235, Q355, and S355JR reflects load requirements rather than quality hierarchy — Q235 serves general construction where yield strength requirements are moderate, while Q355 and S355JR provide higher yield for heavy-load applications. Hot dip galvanizing adds corrosion resistance independent of steel grade, making it essential for bridges, coastal structures, and industrial buildings exposed to chemical atmospheres. The galvanizing process coats all surfaces including beam ends and connection plates, providing 50+ years of protection in rural environments and 20+ years in industrial settings. For projects requiring both high strength and long service life, combining S355JR grade with hot dip galvanizing delivers structural performance and durability in a single specification.
The Hidden Cost of Unverified Material Traceability
Purchasing H-beams without original mill test certificates creates cascading risks: customs authorities in the Middle East and Africa routinely hold steel shipments lacking proper documentation, project engineers cannot verify material compliance during structural audits, and welders cannot confirm base metal compatibility before proceeding with connections. A hot rolled galvanized H-beam steel supplier providing heat-number traceability from slab to finished section eliminates these bottlenecks. When coating thickness, dimensional tolerance, and chemical composition are all documented per batch, re-inspection costs disappear and project acceptance proceeds on schedule. [NEED_CITE: importance of mill test certificates for structural steel import compliance]
Consolidated Supply from Production to Port
Shandong Xin Jiyuan operates three production lines with monthly capacity exceeding 20,000 tons, covering hot rolled and galvanized H-beams alongside square tubes, round pipes, steel plates, and section steel — enabling multi-product container consolidation that reduces shipping cost per ton. Every batch carries original mill test certificates documenting chemical composition and mechanical properties, with SGS/BV third-party inspection available before shipment. The factory-direct model eliminates trading company markups while maintaining flexible MOQ from trial orders to full-container bulk quantities. Professional export teams handle container loading optimization — critical for 6m/9m/12m H-beams where improper stowage causes deformation during ocean transit. CE certification (EN 10210/10219) and ISO 9001:2015 quality management ensure compliance across European, Middle Eastern, and African markets.
Documentation & Compliance
- Mill test certificate documenting Q235/Q355/S355JR chemical composition and mechanical properties per GB/EN/ASTM standards with heat number traceability
- CE certificate (EN 10210/EN 10219) for European market compliance on hot rolled structural sections
- ISO 9001:2015 quality management system certificate covering production processes and inspection procedures
- SGS or BV third-party inspection report verifying galvanized coating thickness, dimensional tolerance, and surface quality before shipment
- Material traceability documentation linking each H-beam to its original heat number and production batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- Hot rolled H-beams bundled with high-tensile steel strips at four points, with end caps protecting galvanized coating from abrasion during handling
- Seaworthy packaging with waterproof wrapping for galvanized sections to prevent white rust formation during ocean transit
- Container loading optimized for 6m/9m/12m lengths with timber separators and cross-bracing to prevent beam shifting and flange deformation
- Heat number and steel grade stenciled on each beam end for site identification and traceability verification
- FOB Qingdao/Tianjin port delivery with CIF options to major destinations across Southeast Asia, Middle East, Africa, and South America
- Custom cutting and punching services completed before shipment to reduce on-site fabrication time and labor cost
Starting Your Procurement Process
Submit your H-beam specifications including section size, steel grade, quantity, surface treatment requirement, and destination port to receive competitive factory-direct pricing with volume discount structure. Our team responds within 12 hours with detailed quotation including mill test certificate confirmation, third-party inspection availability, and container loading plan. For projects requiring mixed-product shipment combining H-beams with tubes, plates, or angle steel, we provide consolidated loading documentation and unified quality certification package.
Frequently Asked Questions
Q: What steel grade should I specify for my project — Q235, Q355, or S355JR?
A: Grade selection depends on your structural design requirements and local building codes. Q235 suits general construction with moderate load requirements, Q355 provides higher yield strength for heavy-load applications, and S355JR meets European EN standards for international projects. We supply all three grades with original mill test certificates documenting chemical composition and mechanical properties per the relevant standard.
Q: Can you provide hot dip galvanized H-beams with specific coating thickness requirements?
A: Yes, we produce hot dip galvanized H-beams with coating thickness controlled per your specification — standard galvanized coating ranges from 65μm to 85μm for most structural applications. Each batch undergoes coating thickness testing with results documented in the inspection report. Third-party verification from SGS or BV is available before shipment.
Q: Do you supply H-beams with custom cutting and hole punching?
A: Yes, our in-house processing facility provides cutting to custom lengths, hole punching for bolted connections, and welding preparation per your drawings. Processing is completed before shipment to reduce on-site fabrication time. Processing requirements should be specified with your inquiry for accurate quotation.
Q: What documentation do you provide for customs clearance?
A: Every shipment includes original mill test certificates with heat number traceability, packing list, bill of lading, and certificate of origin. For European markets, we provide CE certificate (EN 10210/10219). Third-party inspection reports from SGS or BV are available upon request. All documentation is prepared by our export team to meet destination port requirements.
Q: What is the minimum order quantity for H-beams?
A: We accept flexible MOQ from trial orders of 1 ton to full-container bulk quantities. For standard sizes in Q235/Q355/S355JR, ready stock enables immediate shipment. Custom sizes or special steel grades may require production scheduling with typical lead times confirmed at quotation stage.
