Description
Factory-Direct ERW Rectangular Tubes — Q345 alloy rectangular steel tube ERW welded ASTM supplier stocks 2,800+ cross-sections for structural frameworks across 50+ countries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Alloy Rectangular Steel Tube ERW Welded |
| Product Type | Rectangular Steel Tube (ERW Welded) |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | ASTM A213, DIN EN 10217-1 |
| Section Shape | Rectangular |
| Outer Diameter or Side Length | 300×300 mm |
| Tolerance | ±1% |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Rolled / Slightly Oiled |
| Length | Customer’s Request |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Structural Oil Pipes, Fluid Pipe, Boiler Pipe, Drill Pipe, Gas Pipe, Chemical Fertilizer Pipe, Structure Pipe |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Portal frame columns, mezzanine beam grids, warehouse racking uprights |
| Oil & Gas Infrastructure | Structural supports for pipe racks, compressor skid frames, wellhead platforms |
| Machinery Manufacturing | Conveyor roller frames, crane boom extensions, hydraulic press columns |
| Infrastructure Projects | Bridge pier bracing, sound barrier posts, solar mounting structures |
When ±1% Tolerance Becomes the Difference Between Site Fit-Up and Re-Welding
Dimensional drift on a 300×300 rectangular section compounds across a 12-meter run — two millimeters of cumulative ovality turns a bolted connection into a field-cutting job.
Procurement teams sourcing Q345 alloy rectangular steel tube ERW welded ASTM supplier products for structural frames often discover tolerance gaps only after the first container arrives on-site. Weld seams that deviate from straightness specifications force fitters to grind and re-align before any load-bearing connection can proceed. Worse, when mill test certificates list chemical composition without confirming dimensional inspection records, customs brokers in the EU flag shipments for missing EN 10219 compliance documentation — delaying release by weeks. [NEED_CITE: EN 10219 cold-formed welded structural hollow section dimensional tolerances]
Matching Rectangular Sections to Load-Bearing Frames and Pipe Rack Structures
Q195 through Q345 grades let engineers step up yield capacity without switching suppliers mid-project. A warehouse racking upright starting at Q235 for ground-level posts can transition to Q345 at upper beam connections where moment demands increase — all from the same Q345 alloy rectangular steel tube ERW welded ASTM supplier production run. The ERW process produces a continuous longitudinal weld that maintains consistent wall thickness at corners, critical when rectangular sections transfer bi-axial bending from crane runway brackets into column bases. Hot-rolled finish with light oiling protects the surface during six-week ocean transit without interfering with site-applied intumescent fire coatings.
Structural Code Compliance and Certification Pathways for Global Projects
Engineering specifications referencing EN 1993-1-1 for European projects or AISC 360 for North American builds require documented proof that hollow sections meet the referenced standard’s material and geometric criteria. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series structural standards] Q345 alloy rectangular steel tube ERW welded ASTM supplier shipments carry CE marking under EN 10219 for EU customs clearance, while ASTM A213 documentation satisfies ASME B31.3 process piping requirements for oil and gas skids. Third-party inspection by SGS or BV verifies both chemical composition and dimensional compliance before container sealing — a step that prevents the costly scenario of rejected material at destination port when local authorities demand independent certification.
Understanding ERW Welding and Hot-Rolled Surface Treatment for Structural Rectangular Tubes
The ERW (Electric Resistance Welded) process forms the longitudinal seam by passing high-frequency current through the formed steel strip edges, creating a forge-welded joint without filler metal. This produces a weld zone with mechanical properties matching the parent Q235 or Q345 strip when properly normalized — essential for rectangular sections where the weld line runs along the flat face rather than at a corner stress concentration. Hot-rolled surface condition means the tube retains mill scale that must be removed before painting in corrosive environments, but the slight oiling applied post-rolling prevents flash rust during storage and transit. The ±1% dimensional tolerance on a 300×300 section allows ±3 mm variation on side length — tight enough for bolted moment connections in steel frames, yet forgiving enough to accommodate the natural spring-back that occurs when cold-forming heavy-wall rectangular sections. [NEED_CITE: ERW weld integrity requirements for structural hollow sections under dynamic loading]
Hidden Costs of Unverified Steel Grades and Missing Mill Documentation
Ordering Q345 rectangular tubes at a price point that seems attractive often masks what happens when the material arrives without traceable heat numbers linking each bundle to its original slab chemistry. Site engineers cannot approve weld procedures on unknown carbon equivalents, forcing either expensive re-testing by independent labs or complete rejection of the shipment. When customs authorities in destination countries request EN 10219 compliance certificates that were never obtained from the original supplier, containers sit at port accruing demurrage charges while the buyer scrambles to source replacement material. [NEED_CITE: consequences of missing CE certification for structural steel imports into EU markets]
Why Project Buyers Return for Repeat Orders on Q345 Alloy Rectangular Steel Tube ERW Welded ASTM Supplier Products
Every production run undergoes three-stage inspection in our in-house laboratory — incoming strip chemistry verification, in-process weld seam ultrasonic scanning, and final dimensional survey against EN 10219 tolerance tables. Original mill test certificates accompany each bundle, documenting heat number, chemical composition, tensile strength, and elongation values traceable back to the steelmaking batch. Our professional export team optimizes container loading plans for 300×300 sections nested with smaller rectangular tubes, maximizing payload per 40-foot container while maintaining steel strap bundling that prevents transit shift. Volume discount programs activate automatically for long-term partners placing recurring orders, with dedicated account managers reviewing pricing every six months based on raw material index movements.
Documentation & Compliance
- Mill test certificate documenting Q345 chemical composition (C, Mn, Si, P, S) and mechanical properties (yield strength, tensile strength, elongation) per ASTM A213 requirements
- CE certificate confirming EN 10219 compliance for cold-formed welded structural hollow sections exported to European Union member states
- ISO 9001:2015 quality management system certificate covering the complete production process from strip receiving through final inspection
- SGS or BV third-party inspection report verifying dimensional accuracy, weld seam quality, and surface condition before container loading
- Material traceability documentation linking each bundle’s heat number to original slab chemistry and rolling records
- Complete customs document package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

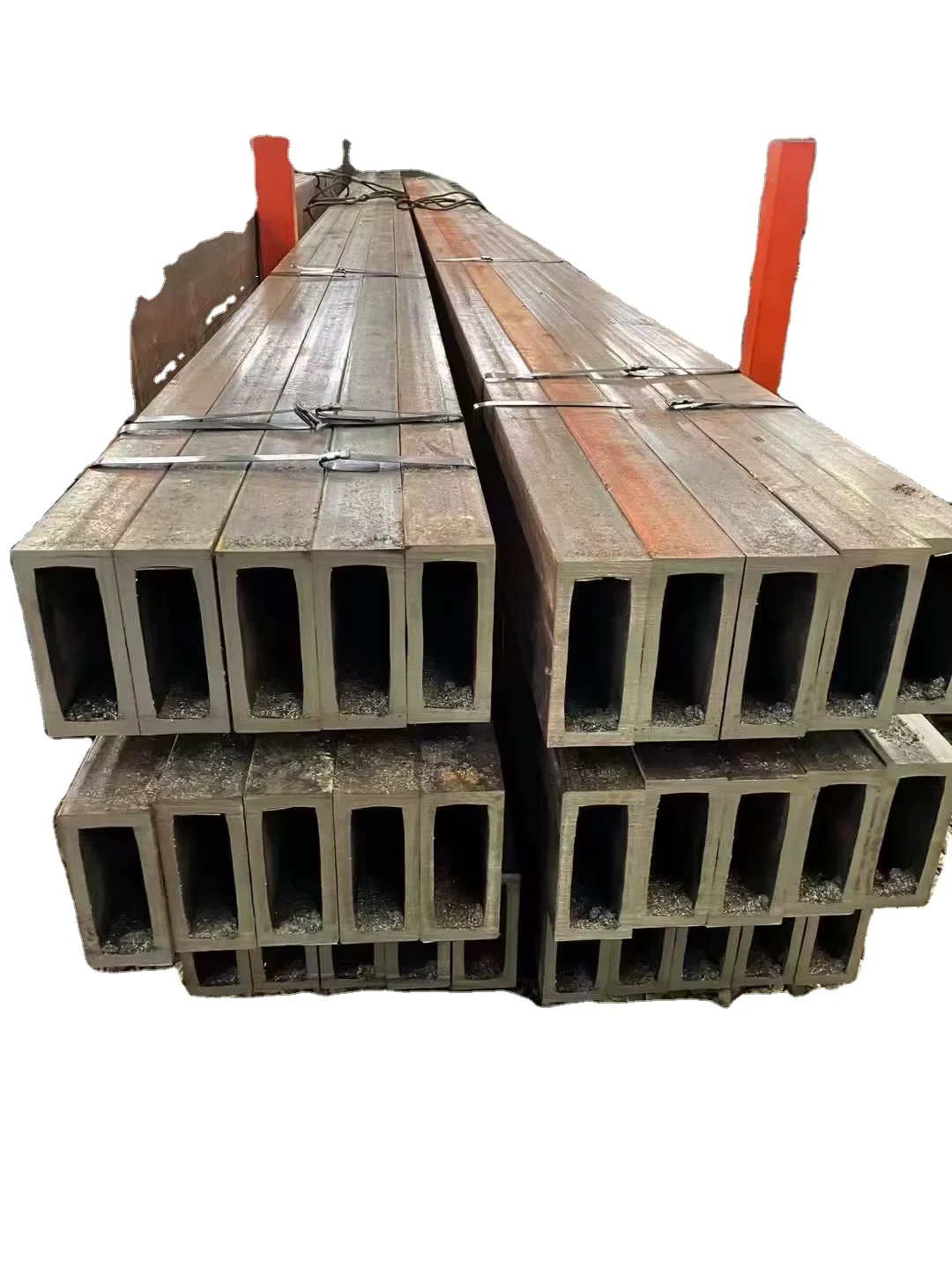

- Q345 rectangular tubes bundled with high-tensile steel strips at four contact points, with hardwood saddles preventing direct ground contact during yard storage
- Hot-rolled surface with slight oiling preserved by edge protectors on corner radii, preventing coating damage when bundles are lifted by crane spreader bars
- 300×300 mm sections loaded in nested configuration with 200×200 and 150×150 tubes filling void spaces, optimizing 40-foot container payload to 25-27 tons
- Custom cut-to-length service available for 6-meter and 12-meter pieces, with beveled ends prepared for on-site butt welding per project specifications
- Each bundle marked with heat number, steel grade (Q345), section dimensions, and production date using weather-resistant paint stencils
- FOB Qingdao port pricing with optional CIF destination port quotes available; door-to-door DDP service coordinated through our logistics partners for landlocked project sites
Submitting Specifications for Accurate Quotation on Structural Rectangular Tubes
Engineering procurement teams should provide section dimensions (300×300 mm or custom sizes), wall thickness requirements, steel grade preference (Q235 for general structures, Q345 for higher load capacity), total tonnage, and destination port to receive a detailed quotation within 12 hours. Non-standard lengths, end preparation requirements, and third-party inspection needs should be specified upfront to avoid revision cycles. Mill test certificates and CE documentation are confirmed in the proforma invoice before deposit payment triggers production scheduling.
Frequently Asked Questions
Q: Can Q345 steel grade be substituted for S355 in European projects requiring EN 10219 compliance?
A: Q345 and S355 share similar yield strength ranges and chemical composition limits, making them functionally equivalent for most structural applications. Our mill test certificates document Q345 properties per Chinese GB/T 1591 standards, and we can provide equivalence tables mapping Q345 to EN 10219 S355JR/J2H grades for engineer approval. CE certification under EN 10219 is available for shipments to EU markets.
Q: What is the minimum order quantity for Q345 alloy rectangular steel tube ERW welded ASTM supplier products?
A: The standard MOQ is 5 tons, which accommodates trial orders for project evaluation or small-scale fabrication shops. For 300×300 mm sections with 10 mm wall thickness, 5 tons represents approximately 12-14 meters of tube depending on exact dimensions. We support split shipments against blanket orders for larger projects requiring phased delivery.
Q: Are third-party inspections available before container loading?
A: Yes, SGS and BV inspection services are available upon request. The inspector verifies dimensional accuracy, weld seam quality through visual and ultrasonic examination, surface condition, and bundle marking. Inspection reports are issued within 48 hours and accompany the shipment documentation. Third-party inspection fees are quoted separately based on tonnage and inspection scope.
Q: Can you provide custom lengths and end preparation for on-site welding?
A: Standard stock lengths range from 6 to 12 meters, but we offer cut-to-length service for specific project requirements. End preparation including beveling for butt welding, threading for mechanical connections, or punching for bolted joints can be performed in our fabrication shop. Processing details should be confirmed in the purchase order to ensure proper scheduling and pricing.
Q: How do you ensure dimensional tolerance of ±1% on 300×300 mm rectangular sections?
A: Our ERW production line uses continuous forming stations with laser measurement systems monitoring side length and wall thickness in real-time. Final inspection samples 10% of each production batch, measuring all four sides at three locations along the length. Out-of-tolerance pieces are rejected and recycled. Dimensional inspection records are available as part of the quality documentation package.
Q: What surface treatment options are available for corrosive environments?
A: Standard delivery is hot-rolled with slight oiling for transit protection. For outdoor or marine environments, we offer hot-dip galvanizing (zinc coating 60-80 microns), epoxy primer painting, or 3PE anti-corrosion coating. Surface treatment should be specified at inquiry stage, as galvanizing requires additional production scheduling. Galvanized tubes are bundled with non-metallic separators to prevent zinc coating damage.
Request Factory-Direct Pricing with Mill Test Certificates
Submit your Q345 rectangular tube specifications — section size, wall thickness, steel grade, quantity, and destination — to receive a detailed quotation with volume discount structure and delivery timeline within 12 hours.
