Description

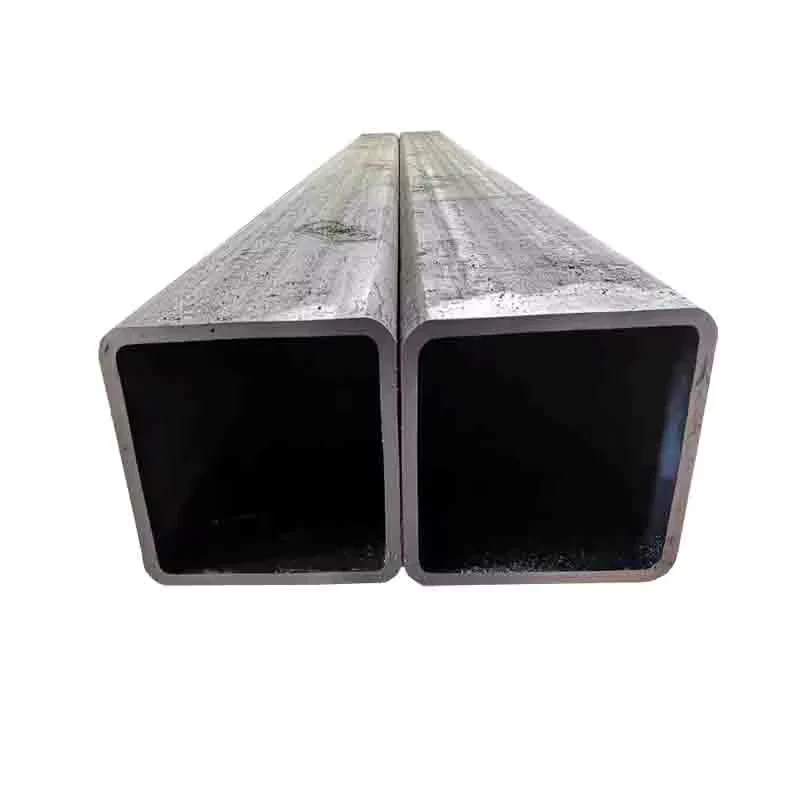

Factory-Direct Galvanized Square Tubes — Every S355 and Gr.B batch ships with original mill test certificates and passes SGS/BV zinc-coating verification before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Gr.B, S235, S275, S355, STK400 |
| Standard | ASTM A500, ASTM A53, GB/T 3091 |
| Section Shape | Square |
| Size Range | 19mm×19mm – 800mm×800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | ERW / Welded or Seamless |
| Surface Treatment | Galvanized / Black Painting / Varnish / Bare |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Construction structures, Building frames, Curtain wall systems, Support tubes, Structural frames, Fertilizer equipment |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, structural columns, roof trusses for commercial and industrial facilities |
| Architectural Engineering | Curtain wall support tubes, facade framing, canopy structures |
| Agricultural & Industrial Facilities | Fertilizer equipment frames, greenhouse structural supports, conveyor system frames |
| General Structural Works | Support tubes, equipment bases, platform framing |
Where Zinc Coating Thickness Decides Site Acceptance or Rejection
A 25μm gap between contract spec and actual coating can cost more in rework than the entire shipment.
Global buyers sourcing galvanized square steel tubes routinely face zinc-layer disputes at site inspection. Third-party labs in destination countries measure coating weight against ASTM A123 or EN ISO 1461 thresholds, and any shortfall triggers full-batch rejection. Beyond coating inconsistency, missing or unverifiable mill test certificates create customs clearance failures, while fragmented sourcing across multiple suppliers compounds delivery delays and specification mismatches. [NEED_CITE: EN ISO 1461 hot-dip galvanized coating thickness requirements]
Matching Structural Load and Corrosion Demands in Construction Frames
Galvanized square steel tubes in S235 and S355 grades serve as primary load-bearing members in building frames and curtain wall systems where both structural capacity and atmospheric corrosion resistance matter. The hot-dip galvanized coating provides sacrificial zinc protection that outlastes paint systems in humid coastal or industrial environments, reducing lifecycle maintenance costs. Our production lines run simultaneous ERW welding and galvanized finishing, allowing buyers to consolidate structural frames, support tubes, and equipment bases into single-container shipments with matched heat numbers and coating batches.
Engineering Compliance and Certification Requirements
Structural hollow sections used in load-bearing frames must conform to dimensional tolerances defined in EN 10219 or ASTM A500, with certified mill test reports traceable to each heat number. For European project procurement, CE marking under EN 10210/10219 is mandatory for customs clearance and engineer approval. Galvanized coatings must meet minimum thickness thresholds per EN ISO 1461, typically 45–85μm depending on steel thickness, and third-party inspection reports from SGS or BV provide independent verification that destination engineers require. [NEED_CITE: ASTM A500 structural hollow section dimensional tolerances]
Steel Grade Selection and Welding Process Fundamentals
S235, S275, and S355 represent European structural steel grades with incrementally higher minimum yield strengths, where S355 delivers greater load capacity for heavier structural frames without increasing section dimensions. Gr.B under ASTM A53 and STK400 under JIS G3466 serve equivalent roles in North American and Japanese specification systems respectively. ERW welded production offers cost efficiency for standard structural dimensions, while seamless options address higher pressure or critical load applications. Hot-dip galvanizing immerses fabricated tubes in molten zinc, forming metallurgical bonds that resist mechanical damage during transport and installation better than electroplated alternatives. Wall thickness tolerance of ±1% ensures theoretical weight calculations remain reliable for structural engineering load analysis. [NEED_CITE: steel grade equivalence between EN 10219 and ASTM A500 standards]
Hidden Costs of Unverified Coating and Missing Documentation
Purchasing galvanized square steel tubes without independent coating verification risks zinc-layer shortfalls that only surface during destination inspection, triggering costly return shipments or on-site recoating. Material certificates that cannot be traced to specific heat numbers fail engineer approval requirements, delaying project commencement. Non-compliant dimensional tolerances cause fit-up problems during frame assembly, generating rework labor that exceeds the original material savings from unverified suppliers. [NEED_CITE: ASTM A123 zinc coating weight measurement standards]
Procurement Confidence Through Verified Production and Inspection
Factory-direct pricing eliminates trading margins while maintaining full quality control across three production lines running simultaneously. Every galvanized square steel tube batch undergoes three-stage in-house inspection covering dimensional accuracy, coating thickness, and mechanical properties before release. Original mill test certificates accompany each shipment, with chemical composition and mechanical test results traceable to specific heat numbers. SGS and BV third-party inspection services operate on request, providing independent verification of coating weight and material compliance before container loading. Professional export teams optimize container loading plans for mixed-size shipments, reducing freight costs while protecting galvanized surfaces during ocean transit.
Documentation & Compliance
- Mill test certificate documenting S355 chemical composition and yield strength per EN 10219, traceable to heat number
- CE certificate confirming EN 10210/10219 compliance for European market structural applications
- ISO 9001:2015 quality management certificate covering production processes and inspection procedures
- SGS or BV third-party inspection report verifying galvanized coating thickness per EN ISO 1461 requirements
- Material traceability documentation linking each bundle to specific heat number and production date
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- S355 and Gr.B galvanized tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Hot-dip galvanized surfaces receive additional wrapping at contact points to prevent mechanical damage from bundling straps
- Container loading plans optimize space utilization for mixed 19×19mm to 800×800mm sections, maximizing weight per shipment
- Random length cutting available to match 5.8m and 6m container dimensions, reducing on-site waste and cutting labor
- Heat number and steel grade markings applied to each tube end for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional documentation handling for customs clearance
Securing Quotes with Verified Specifications and Compliance Requirements
Submit your galvanized square steel tube requirements including section dimensions, wall thickness, steel grade preference, total quantity, and destination port to receive factory-direct pricing with volume discount consideration. Specify any third-party inspection requirements or special coating thickness needs upfront to ensure accurate quotation and production scheduling. Our team responds within hours with detailed offers including mill test certificate confirmation and estimated production timelines for your project procurement.
Frequently Asked Questions
Q: How do Gr.B, S235, S355, and STK400 compare across different international standards?
A: These grades represent equivalent structural steel classifications across different standard systems. S235, S275, and S355 follow European EN standards with increasing yield strength levels. Gr.B conforms to ASTM A53 for American specifications, while STK400 follows JIS G3466 for Japanese structural applications. Each grade offers distinct mechanical properties suitable for different load requirements and engineering specifications.
Q: Do your galvanized square tubes carry CE marking for European import clearance?
A: Yes, our galvanized square steel tubes carry CE certification under EN 10210 and EN 10219 standards, meeting European Union requirements for structural hollow sections. This certification enables customs clearance and engineer approval for construction projects across EU member states. Every shipment includes complete CE documentation alongside mill test certificates.
Q: What is the difference between hot-dip galvanized and pre-galvanized coatings for outdoor structural applications?
A: Hot-dip galvanizing immerses fabricated tubes in molten zinc, creating metallurgical bonds with coating thickness typically 45-85μm that provides superior corrosion protection and mechanical durability. Pre-galvanized coatings apply zinc to flat sheet before tube formation, resulting in thinner coatings at weld seams and cut edges. For outdoor structural frames exposed to weather, hot-dip galvanized tubes offer longer service life and better protection at vulnerable points.
Q: Can you produce non-standard square dimensions, and what is the minimum order quantity?
A: We manufacture galvanized square steel tubes from 19×19mm to 800×800mm with wall thickness 1-30mm, covering both standard and custom dimensions within this range. The minimum order quantity is 5 tons, which accommodates trial orders and project-specific requirements. Custom lengths beyond standard 5.8m, 6m, and 12m options are available with typical production lead times for non-standard specifications.
Q: How do you optimize container loading for mixed-size galvanized square tubes to reduce freight costs?
A: Our export team develops detailed loading plans that maximize container weight capacity by combining large and small section sizes. Heavy 800×800mm sections position at container bottom while smaller 19×19mm tubes fill upper spaces, ensuring balanced weight distribution. This optimization reduces per-ton freight costs and minimizes the number of containers required for complete project shipments.
Request Factory-Direct Pricing with Full Compliance Documentation
Provide your galvanized square steel tube specifications, steel grade requirements, and destination details to receive competitive pricing with mill test certificate confirmation and third-party inspection options.
