Description
Factory-Direct SSAW Pipe Supply — 3 production lines running simultaneously with monthly capacity exceeding 20,000 tons, eliminating middleman markups on every large-diameter spiral welded order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235JR SSAW Spiral Steel Pipe |
| Product Type | Round Steel Pipe (Spiral Submerged Arc Welded) |
| Steel Grade | S235JR, Q235, Q235B, Q345, Q345B, SS400, A36, S355JR, API 5L (PSL1/PSL2 grades up to X80) |
| Standard | EN 10217-1, EN 10217-5, EN 10219-1/2, API 5L (PSL1 & PSL2), ASTM A252, GB/T 9711, SY/T 5037, SY/T 5040 |
| Section Shape | Round |
| Size Range | OD 219 mm – 3000 mm |
| Wall Thickness | 5.2 mm – 30 mm |
| Length | 6 m / 12 m (max 32 m) |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Black / 3PE / FBE |
| Ends | Plain / Beveled |
| Tolerance | ±1% (dimensional) |
| Invoicing | By Theoretical Weight |
| Application | Piling foundation support, bridge construction, hydraulic engineering, water drainage systems, oil & gas pipeline transport, industrial structural support |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Foundation & Piling | Steel piling for bridge abutments, cofferdam construction, retaining wall support, deep foundation underpinning |
| Hydraulic Engineering | Water intake and discharge pipelines, flood control structures, drainage culverts |
| Oil & Gas Pipeline | Long-distance transmission pipelines, gathering lines, low-to-medium pressure transport |
| Industrial Construction | Factory structural columns, equipment support frames, conveyor system foundations |
| Municipal Infrastructure | Urban water supply and drainage networks, sewage treatment plant piping |
What Wall-Thickness Tolerance Costs on a Piling Foundation Order
A 2% deviation in wall thickness on a 3000 mm OD pile can shift actual weight by several tons per batch — and trigger third-party inspection rejection at destination port.
I once saw a 610 mm SSAW piling order get held at port because the wall thickness negative tolerance was pushed to the absolute limit. Theoretical weight and actual weighed tonnage differed by nearly two tons per container. The client’s SGS inspector flagged every single pipe. Customs clearance stalled, the project schedule slipped, and the buyer paid demurrage while the supplier argued over contract wording. For S235JR SSAW spiral steel pipe used in foundation work, dimensional accuracy is not a paperwork detail — it directly determines whether the pile drives correctly and passes structural acceptance. [NEED_CITE: EN 10217 dimensional tolerance requirements for spiral welded steel pipes]
How S235JR SSAW Spiral Steel Pipe Matches Piling and Foundation Requirements
S235JR is a non-alloy structural steel grade with adequate yield strength for driven pile applications in moderate-load foundations. The spiral submerged arc welding process produces a continuous helical seam that distributes stress more evenly along the pipe body compared to straight-seam alternatives, which matters when piles encounter variable soil resistance during driving. Our S235JR SSAW spiral steel pipe in the 219–3000 mm OD range covers everything from light-duty underpinning columns to heavy-duty bridge pier casings. For marine or aggressive soil environments, we supply 3PE or FBE coating directly from the mill, eliminating the need for a separate coating subcontractor and reducing handling damage risk.
Engineering Compliance and Certification Requirements for Foundation Piling
Piling pipes for European projects must comply with EN 10217 and EN 10219 standards, which govern chemical composition limits, mechanical property ranges, and dimensional tolerances for welded structural hollow sections. [NEED_CITE: EN 10219 cold-formed and welded hollow section compliance for structural piling] North American projects typically specify ASTM A252 for steel pipe piles, while API 5L PSL1/PSL2 applies when the same pipe doubles as a pipeline casing. CE marking under EN 10210 and EN 10219 is mandatory for structural steel products entering the EU market — missing or incomplete CE documentation routinely causes customs holds at Rotterdam, Hamburg, and other major ports. Beveled ends facilitate on-site welding for pile splicing, while plain ends suit mechanical coupling systems. Each heat number must be traceable back to the original mill test certificate for structural audit compliance.
Steel Grade Selection and SSAW Welding Process Explained
S235JR belongs to the EN 10025 non-alloy structural steel family, where the “235” indicates minimum yield strength at 235 MPa for thicknesses up to 16 mm. It is broadly equivalent to ASTM A36 and Chinese Q235B in terms of mechanical performance, though chemical composition limits differ slightly — particularly for phosphorus and sulfur content. [NEED_CITE: steel grade equivalence between EN S235JR and ASTM A36] For piling applications, S235JR provides sufficient ductility for driving into most soil conditions without cracking, while higher grades like S355JR or API 5L X42/X52 serve projects requiring greater load-bearing capacity or higher internal pressure resistance.

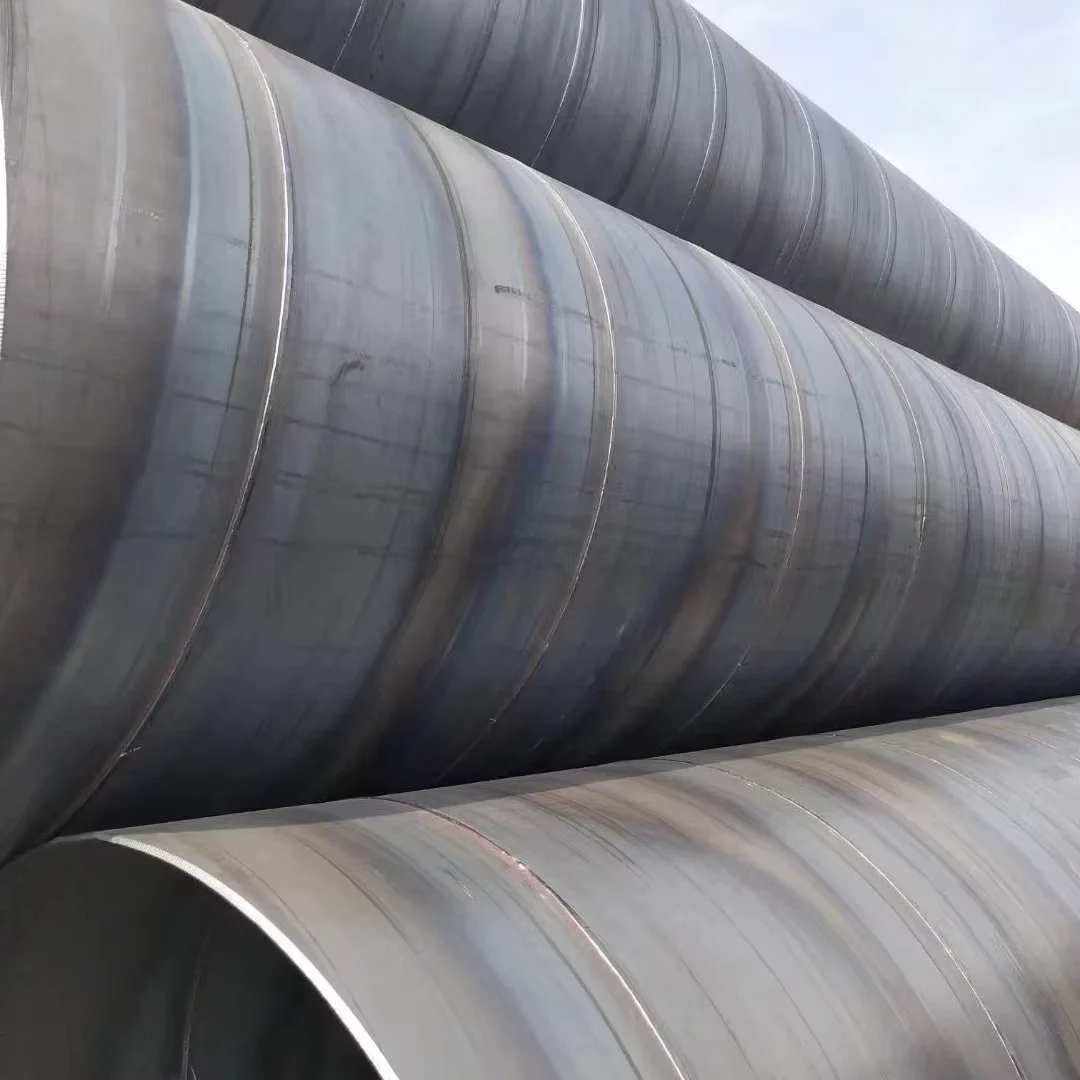

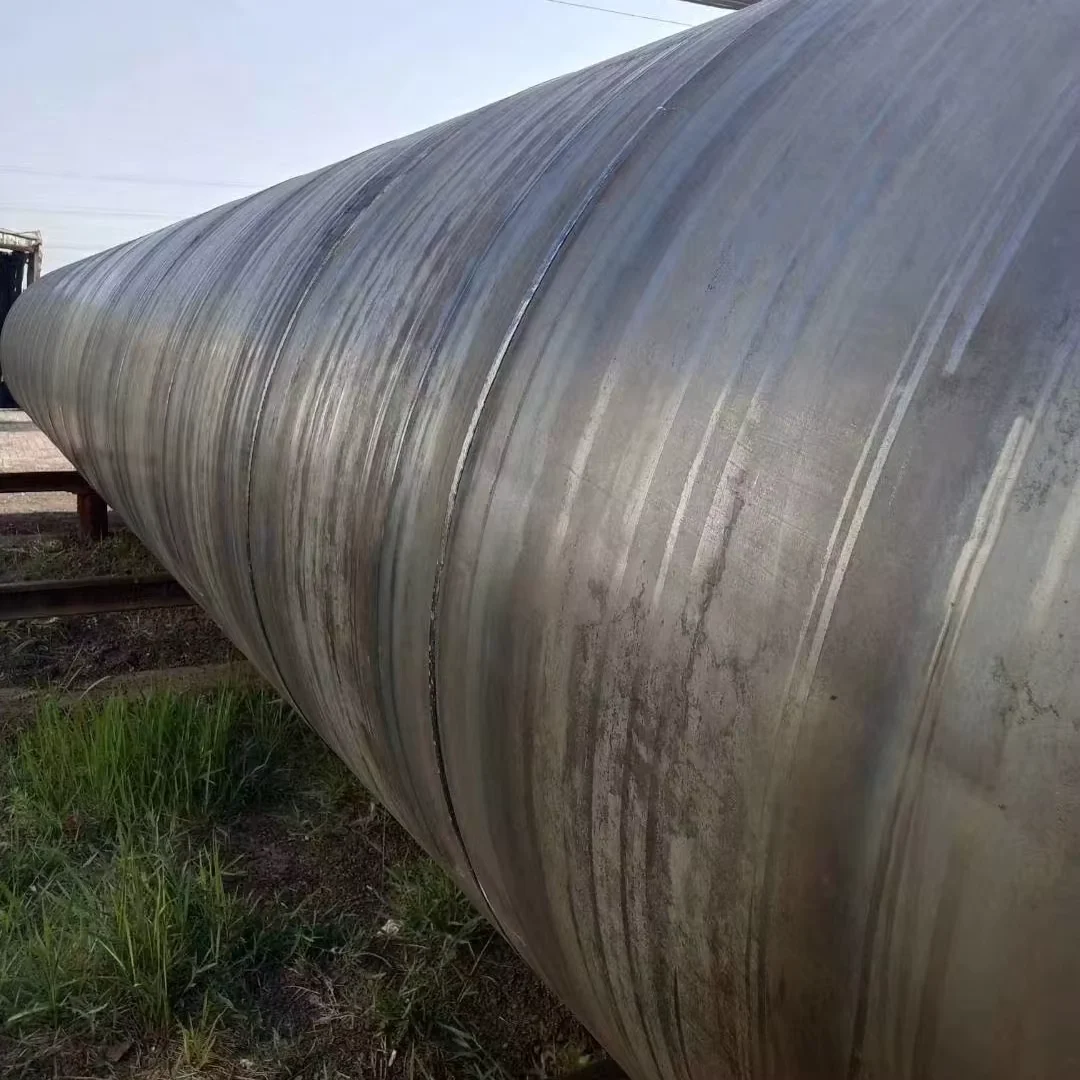

The SSAW (spiral submerged arc welded) process forms the pipe by helically winding steel coil and welding both internal and external seams using submerged arc welding. This method allows production of large diameters up to 3000 mm from relatively narrow coil widths, making it cost-effective for big-bore piling and pipeline applications. The helical weld geometry also means that any single point along the pipe circumference intersects the weld seam at an angle, distributing potential defect concentration more evenly than a longitudinal seam. Internal and external weld beads are controlled through automated welding parameters, and every production run undergoes hydrostatic testing and non-destructive examination of the weld seam.

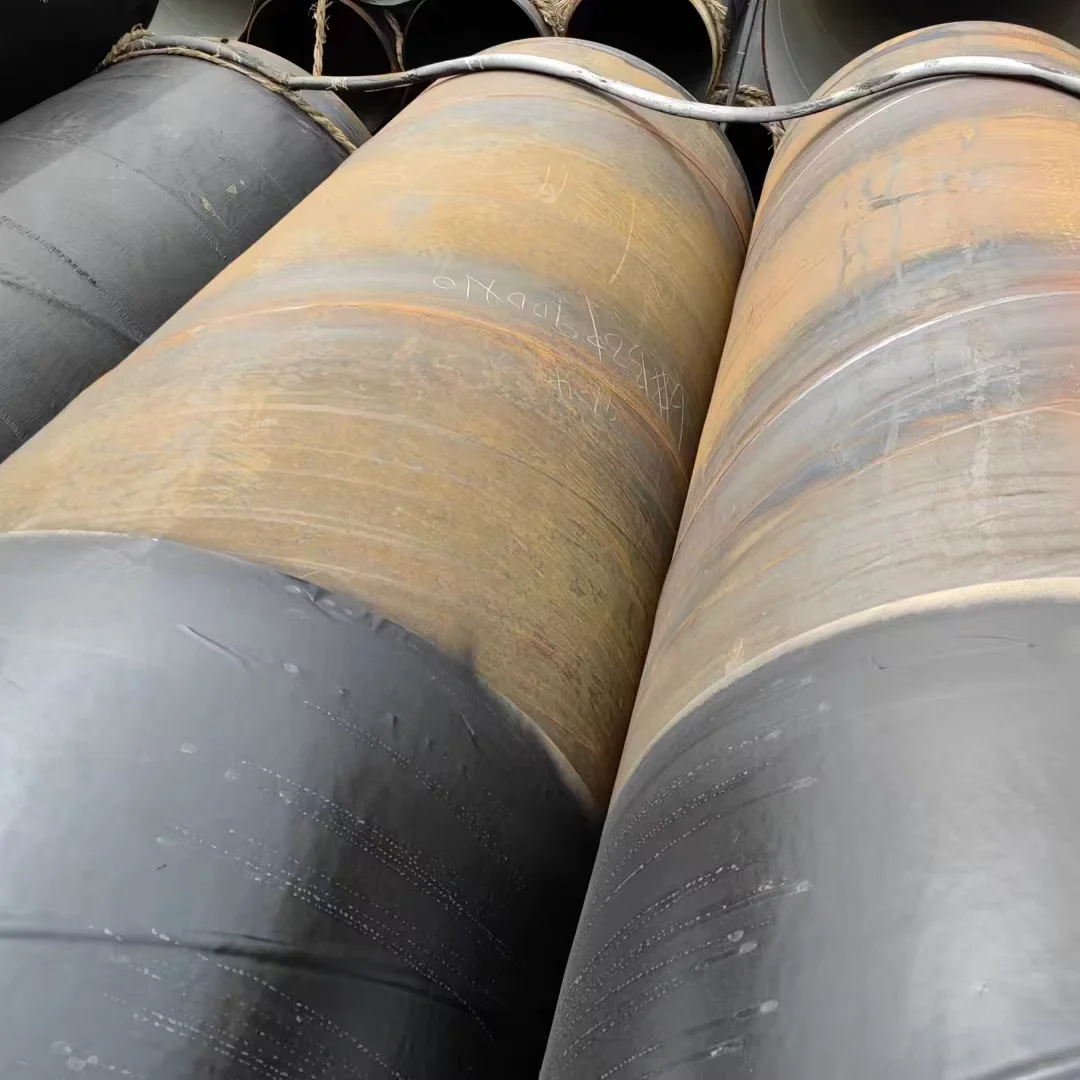

Surface treatment selection depends on the service environment. Black (uncoated) pipes suit temporary piling or indoor structural use. FBE (fusion-bonded epoxy) coating provides corrosion resistance for buried pipelines and moderate-aggressive soil conditions. 3PE coating — a three-layer system of FBE primer, adhesive copolymer, and polyethylene outer layer — delivers the highest corrosion protection for marine piling, offshore structures, and long-service-life buried applications.
Hidden Costs of Sourcing the Wrong Grade or Missing Certification
Ordering S235JR but receiving material that fails chemical composition verification means the entire batch cannot be used for CE-marked structural work in the EU — regardless of whether the mechanical properties happen to pass. Non-destructive testing records and original mill test certificates are not optional paperwork; they are the legal basis for structural acceptance in most jurisdictions. [NEED_CITE: consequences of missing mill test certificates in structural steel procurement] Pipes with wall thickness below the specified tolerance may pass visual inspection at the loading port but fail dimensional checks at destination, triggering rejection claims, return freight costs, or costly on-site engineering reassessments. For piling projects, a rejected batch does not just mean material cost loss — it means crane idle time, delayed foundation work, and cascading schedule penalties across the entire construction program.
Why Buyers Choose Xin Jiyuan for Large-Diameter SSAW Pipe
Our factory operates three SSAW production lines simultaneously, producing large-diameter spiral welded pipe from 219 mm to 3000 mm OD without subcontracting to external mills — this is where factory-direct pricing originates, not from marketing claims. Every batch of S235JR SSAW spiral steel pipe ships with original mill test certificates documenting chemical composition and mechanical properties per the applicable standard, and we arrange SGS or BV third-party inspection at the factory before loading when the buyer requests it. We maintain ready stock across standard specifications and can fulfill custom OD, wall thickness, and length orders within typical production lead times. Our export team handles container loading optimization for heavy large-diameter pipe — a 3000 mm OD pipe does not fit in a standard container, and improper loading plans waste freight cost or damage the cargo. We also consolidate multi-product shipments, so buyers sourcing piling pipe alongside H-beam, plate, or section steel can load everything into coordinated shipments from a single source.
Documentation & Compliance
- Mill test certificate documenting S235JR chemical composition and mechanical properties per EN 10217, traceable to heat number
- CE certificate covering EN 10210 and EN 10219 for structural steel products entering European Union markets
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request, covering dimensional check, visual inspection, and NDT of weld seams
- Material traceability by heat number linking each pipe to its original slab and rolling records
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Large-diameter S235JR SSAW spiral steel pipe bundled with steel strips and edge protectors to prevent coating damage during ocean transit
- 3PE and FBE coated pipes wrapped with protective sleeves at both ends to preserve surface treatment integrity during handling and shipping
- Container loading optimization for OD up to 1200 mm pipes in standard containers; oversized diameters shipped via breakbulk or flat rack with professional lashing plans
- Pipes cut to specified length within the 6 m / 12 m / max 32 m range, with beveled or plain ends per order requirements
- Each pipe marked with heat number, steel grade S235JR, OD, wall thickness, and standard designation for site traceability
- Shipping terms available as FOB, CIF, or CFR with professional export documentation and real-time shipment tracking
Getting Your S235JR SSAW Spiral Steel Pipe Quote
Send your specifications including outer diameter, wall thickness, length, steel grade, surface treatment, quantity, and destination port — we respond within 12 hours with factory-direct pricing, delivery schedule, and applicable mill test certificate documentation. For non-standard dimensions or custom coating requirements, we provide technical confirmation and production timeline before you commit.
Request Factory-Direct Pricing and Mill Test Certificate
Submit your S235JR SSAW spiral steel pipe specifications via email at admin@sdxinjiyuan.com or contact us on WhatsApp at +86 188 5315 7756 to receive your quotation and material documentation package.
Frequently Asked Questions
Q: How does S235JR compare to ASTM A36 and Q235B for piling applications?
A: S235JR, ASTM A36, and Q235B share similar minimum yield strength levels and are widely used for structural piling. However, their chemical composition limits differ under respective EN, ASTM, and GB standards. For projects requiring CE marking in the EU, S235JR per EN 10217 is the specified grade. We supply all three grades and can provide cross-reference documentation for material substitution requests.
Q: What documentation is included with each shipment of S235JR SSAW spiral steel pipe?
A: Every batch ships with original mill test certificates covering chemical composition and mechanical properties per EN 10217, traceable to heat number. CE certificate, ISO 9001:2015 certificate, packing list, bill of lading, and certificate of origin are included as standard. SGS or BV third-party inspection can be arranged at the factory before loading upon request.
Q: What surface treatment options are available for piling and pipeline applications?
A: We supply S235JR SSAW spiral steel pipe in black (uncoated), FBE (fusion-bonded epoxy), and 3PE (three-layer polyethylene) surface treatment. Black pipes suit temporary or indoor use. FBE provides corrosion protection for buried pipelines. 3PE delivers the highest protection level for marine piling and aggressive soil environments.
Q: Can you produce non-standard outer diameters or wall thicknesses outside the listed range?
A: Our standard range covers OD 219–3000 mm and wall thickness 5.2–30 mm. For dimensions outside this range, we evaluate feasibility based on our SSAW production line capabilities and provide a custom quotation with confirmed lead time. MOQ for custom orders starts from 1 ton.
Q: How do you handle container loading for large-diameter pipes?
A: Pipes up to approximately 1200 mm OD can be loaded in standard containers with optimized nesting plans. Larger diameters require flat rack or breakbulk shipping. Our export team prepares detailed loading plans to maximize container utilization and prevent cargo movement or coating damage during transit.
