Description
Factory-Direct Custom Fabrication — Every Q235 and Q345 steel component is cut, bent, and welded on our own production lines in Jinan, eliminating broker markups on structural orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / Q345 Structural Steel Fabricated Parts |
| Product Type | Fabricated Steel Structure / Custom Steel Plate Fabrication |
| Steel Grade | Q235, Q345, Carbon Steel, Stainless Steel, Aluminum, Copper |
| Standard | GB (Q235 / Q345) |
| Thickness Range | 0.5–30 mm |
| Processing Methods | Laser Cutting, CNC Bending, CNC Punching, Drilling, Robot Welding, Assembly |
| Surface Treatment | Galvanized, Powder Coating, Painting |
| Tolerance | ±0.1 mm – ±1 mm |
| Size | Customized according to drawings |
| Length | 6 m for sheet / 9 m for hollow section |
| Application | Construction, Machinery, Equipment Frames, Machine Bases, Brackets, Structural Steel Components, Heavy Machinery Parts |
| MOQ | 1 Piece |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|

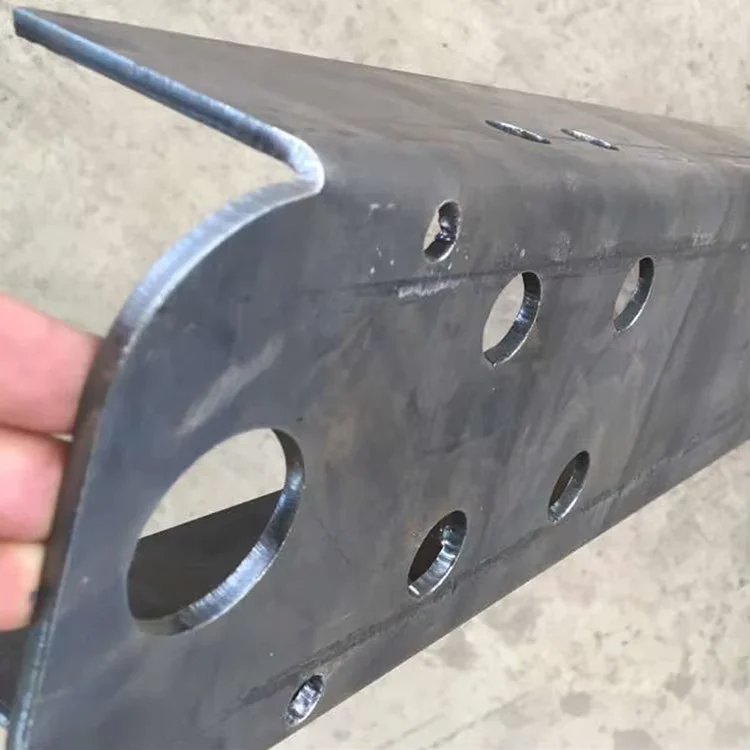

| Construction & Infrastructure | Structural frames, column base plates, bracket assemblies, building skeleton connectors |
| Machinery & Equipment | Heavy machinery bases, equipment support frames, conveyor structure brackets |

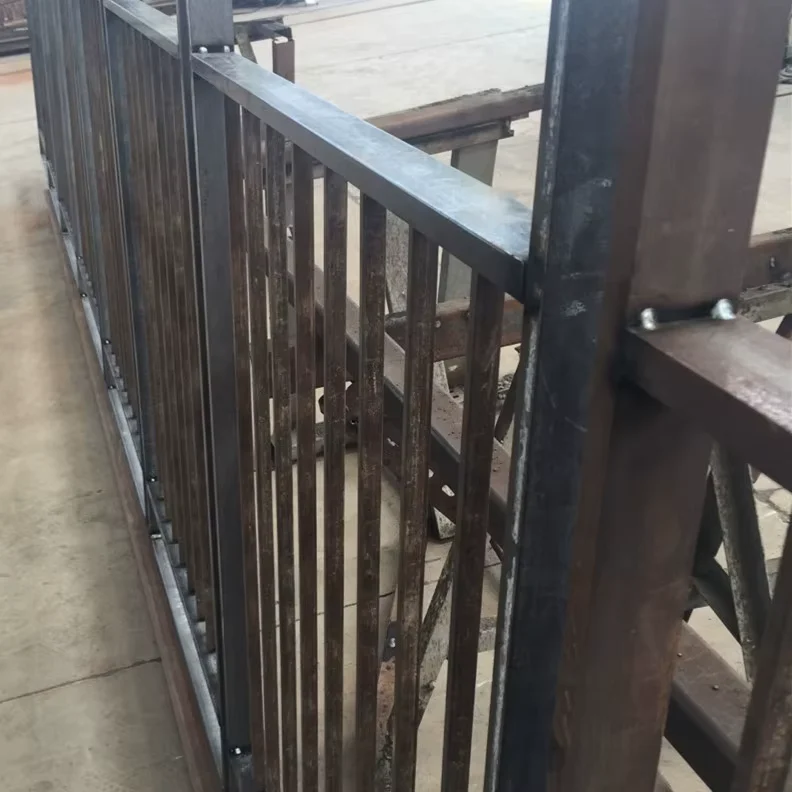

| Industrial Fabrication | Plant steel structure components, machine guard frames, platform grating supports |
What Dimensional Tolerance Actually Costs on a Structural Frame Order
A 2 mm deviation on a CNC-cut base plate can force full on-site rework — and that cost always exceeds the price difference between suppliers.
When global buyers source cut, bent, and welded steel parts from fragmented vendors, each handoff introduces cumulative tolerance drift. A laser-cut bracket shipped separately from a robot-welded frame rarely fits without grinding or re-drilling on site. For a custom structural steel fabrication supplier running the entire process in-house, the first-piece check locks the CNC program before a single production run begins — preventing the kind of hole-mismatch failures that turn a container delivery into a liability. [NEED_CITE: structural steel fabrication tolerance standards for welded assemblies]
Matching Target Engineering Loads and Connection Geometry

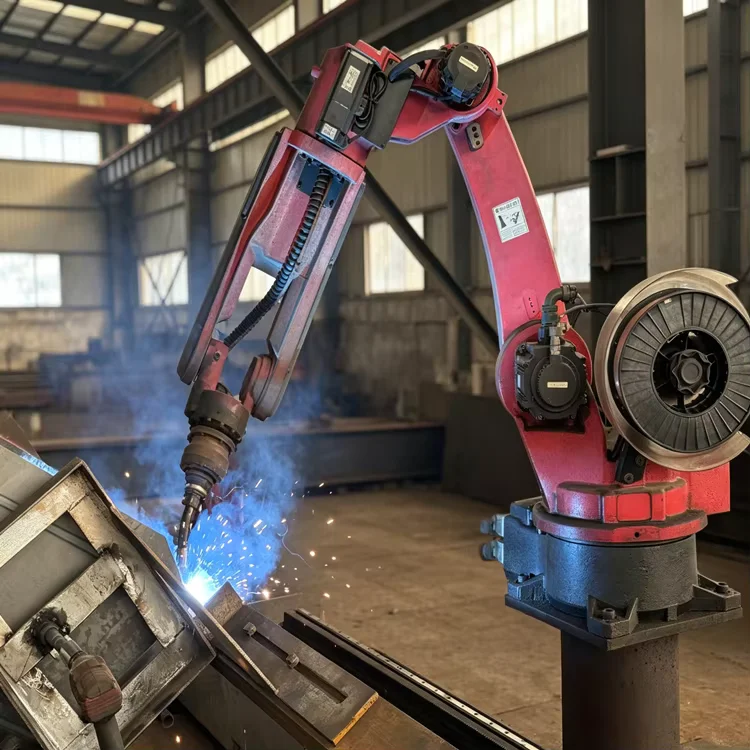

Every custom structural steel fabrication supplier claims precision, but the real test is whether the finished part bolts up cleanly against hot-rolled H-beams and welded hollow sections on site. Our CNC bending and robot welding cells hold Q235 and Q345 carbon steel components within ±0.1 mm on critical mating faces, so column-to-base connections and bracket-to-frame joints meet alignment requirements without field modification. The combination of fiber laser profiling and automated welding means batch-to-batch consistency across 1-piece prototypes and 500-piece production runs alike.
Engineering Compliance and Surface Protection for Service Environments
Structural steel components fabricated from Q235 and Q345 grades must satisfy load-bearing codes relevant to the destination market — whether that means conformity with GB standards for domestic projects or material equivalence mapping for export to EU and ASEAN job sites. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series] Hot-dip galvanizing suits outdoor infrastructure exposed to moisture, while powder coating delivers color-matched corrosion resistance for visible architectural brackets. Painting remains the cost-effective choice for indoor machine bases where surface appearance matters less than rust prevention during transit and installation.
Steel Grade Selection and Fabrication Process Logic
Q235 remains the default choice for general structural brackets and machine bases where moderate yield strength suffices; Q345 steps in when load-bearing frames demand higher strength-to-weight ratios without increasing section thickness. The carbon-manganese balance in both grades supports clean laser cutting and stable robot welding arcs, minimizing porosity in fillet and butt welds across plate thicknesses from 0.5 mm to 30 mm. Hot-dip galvanizing after fabrication provides sacrificial zinc protection that outperforms paint systems in coastal and industrial atmospheres, while powder coating offers UV-stable finishes for exterior-mounted equipment frames. Tolerance control at ±0.1 mm on critical dimensions ensures that CNC-punched bolt patterns align with mating structural members — a detail that separates a functional assembly from an expensive field rework. [NEED_CITE: fabrication tolerance requirements for structural steel connections]
Hidden Costs When Material Traceability Breaks Down
Ordering custom structural steel fabrication without verified mill test certificates creates a chain of risk: unconfirmed steel grade leads to failed weld procedure qualifications, which leads to rejected inspection hold points, which leads to project delays measured in weeks rather than days. [NEED_CITE: consequences of missing mill certificates in structural steel procurement] When a supplier cannot trace each heat number back to the original slab chemistry, the buyer absorbs the cost of third-party re-testing or — worse — discovers material non-conformance only after galvanizing or machining has already been completed. Certification gaps also trigger customs holds in markets requiring CE marking or EN-compliant documentation, turning a routine shipment into a bonded-warehouse expense.
Why Procurement Teams Consolidate Fabrication Orders Here

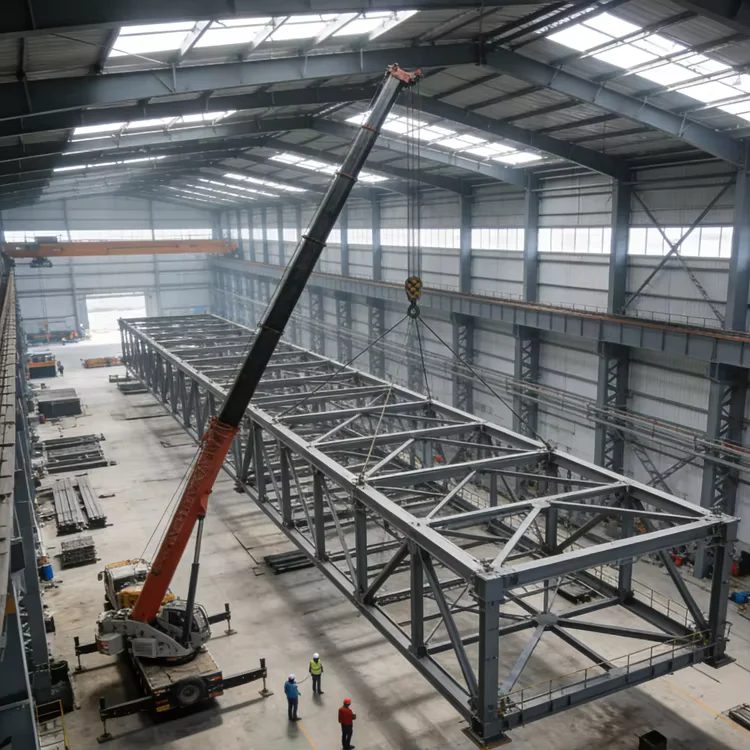

Our Jinan facility runs three production lines simultaneously, handling laser cutting, CNC bending, and robot welding under one roof — meaning a single purchase order covers brackets, base plates, and welded assemblies without splitting coordination across multiple shops. Every batch ships with original mill test certificates tied to heat numbers, and our in-house lab conducts three-stage inspection from incoming plate verification through final dimensional checks. ISO 9001:2015 certification governs the quality system, while SGS and BV third-party inspections are available for buyers who require independent verification before container sealing. With over 2,800 specifications in ready stock and flexible MOQ starting from a single piece, trial orders and full-container bulk shipments receive the same documentation rigor. Professional export teams optimize container loading for mixed-geometry fabricated parts, reducing freight cost per unit on consolidated shipments.
Documentation & Compliance
- Mill test certificate documenting Q235 and Q345 chemical composition and mechanical properties per GB standards, traceable by heat number
- ISO 9001:2015 quality management certificate covering the full fabrication process from cutting to final assembly
- SGS or BV third-party inspection report available upon request for buyers requiring independent dimensional and weld quality verification
- Material traceability sheet linking each fabricated part to its original plate heat number and mill test reference
- Customs document package including commercial invoice, packing list, bill of lading, and certificate of origin for destination-port clearance
Packaging, Loading & Delivery
- Fabricated Q235 and Q345 steel components bundled with steel strips and edge protectors to prevent zinc coating damage on galvanized surfaces during ocean transit
- Custom wooden crate packaging for precision-machined brackets and assemblies requiring surface protection beyond standard bundling
- Container loading plans optimized for mixed-geometry fabricated parts, maximizing 20ft and 40ft GP utilization across varying thickness profiles from 0.5 mm to 30 mm
- Heat number and steel grade markings stenciled on each bundle for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional export documentation handling for customs clearance at destination ports
Getting a Fabrication Quote That Reflects Real Production Costs
Submit your drawings with steel grade, thickness, surface treatment, and quantity requirements — our engineering team responds within 12 hours with pricing that accounts for actual cutting time, weld meter count, and galvanizing weight rather than generic per-kilogram estimates. Confirm certification requirements and destination port upfront so the quotation includes all documentation and logistics costs without post-order surprises.
Frequently Asked Questions
Q: Can you fabricate custom structural steel parts from drawings with tight tolerance requirements?
A: Yes. Our CNC laser cutting and bending cells hold tolerances down to ±0.1 mm on critical dimensions, and we perform first-article inspection against your drawing before releasing batch production.
Q: What surface treatment options are available for fabricated Q235 and Q345 steel components?
A: We offer hot-dip galvanizing for corrosion protection in outdoor and industrial environments, powder coating for color-matched architectural finishes, and standard painting for indoor applications where appearance is secondary.
Q: Do you provide mill test certificates and third-party inspection for custom fabricated parts?
A: Every order ships with original mill test certificates traceable by heat number. SGS and BV third-party inspections are available before shipment for buyers who require independent verification.
Q: What is the minimum order quantity for custom steel fabrication?
A: The MOQ is 1 piece, supporting both prototype development and small-batch trial orders alongside full-container production volumes.
Q: What drawing file formats do you accept for custom fabrication?
A: We accept DXF, DWG, STEP, and PDF formats. Our engineering team reviews each file for manufacturability and confirms tolerance feasibility before production begins.
Start Your Custom Steel Fabrication Order Today
Send your drawings and specifications to receive a detailed quotation with mill test certificate confirmation and delivery timeline.
