Description

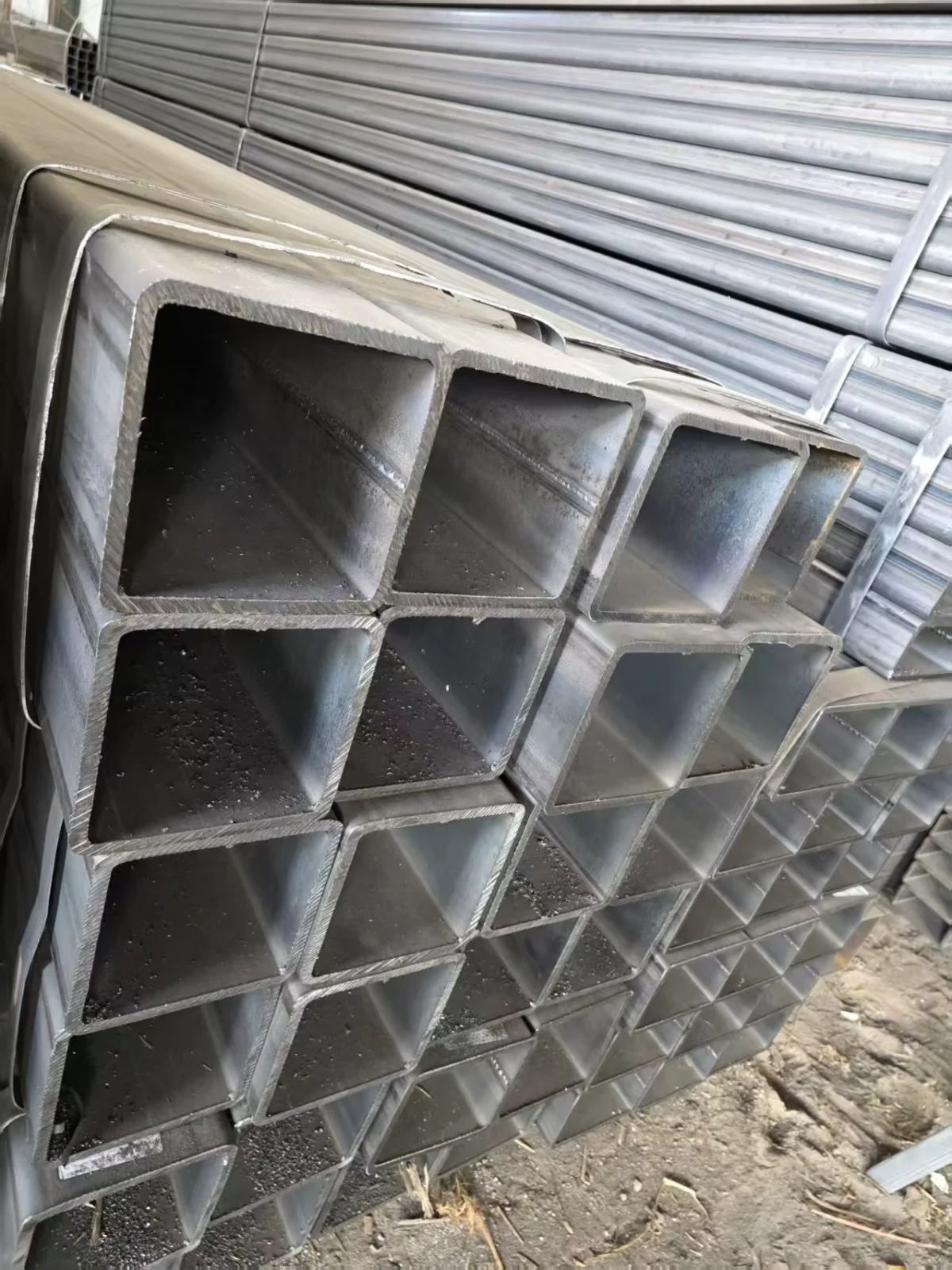

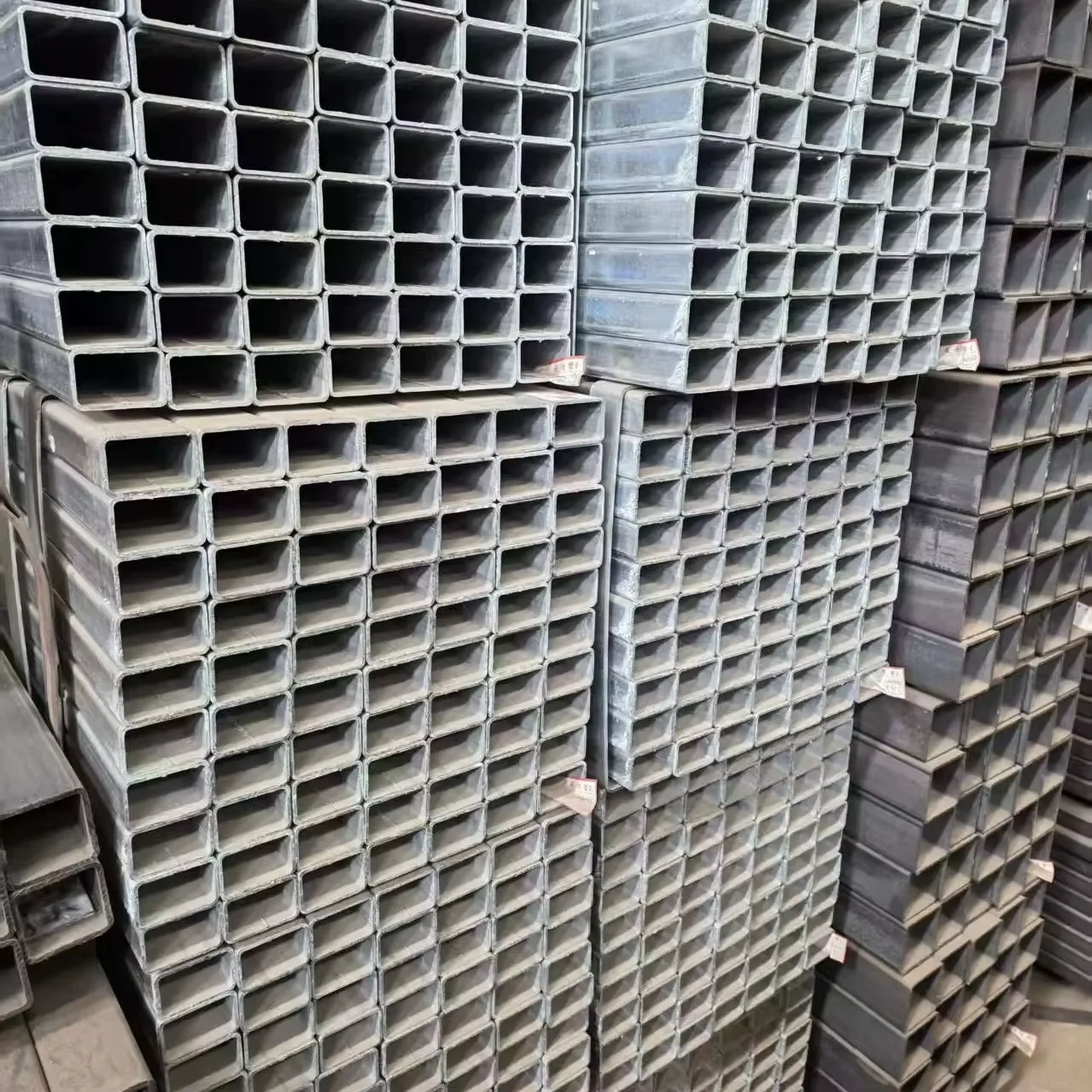

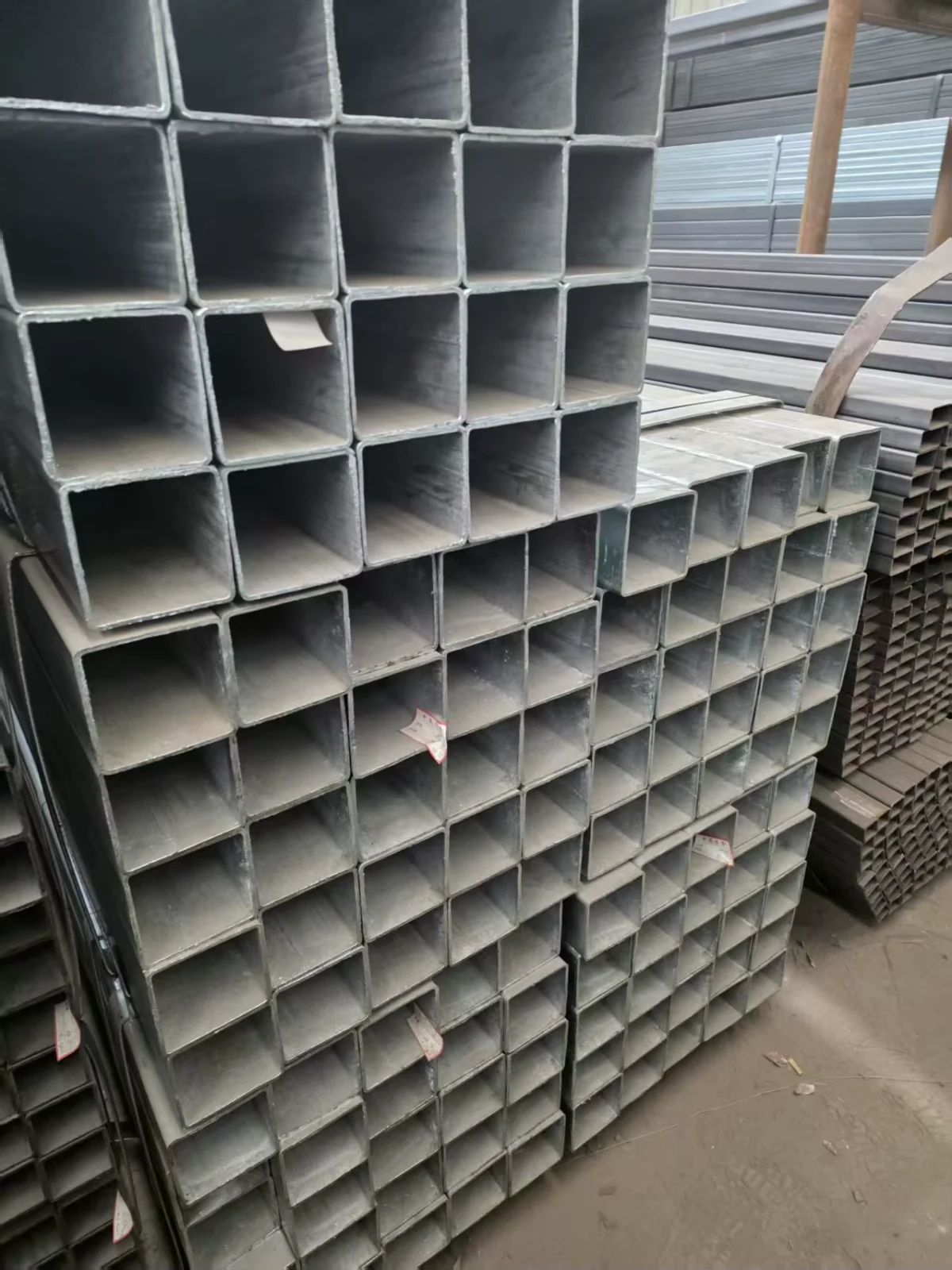

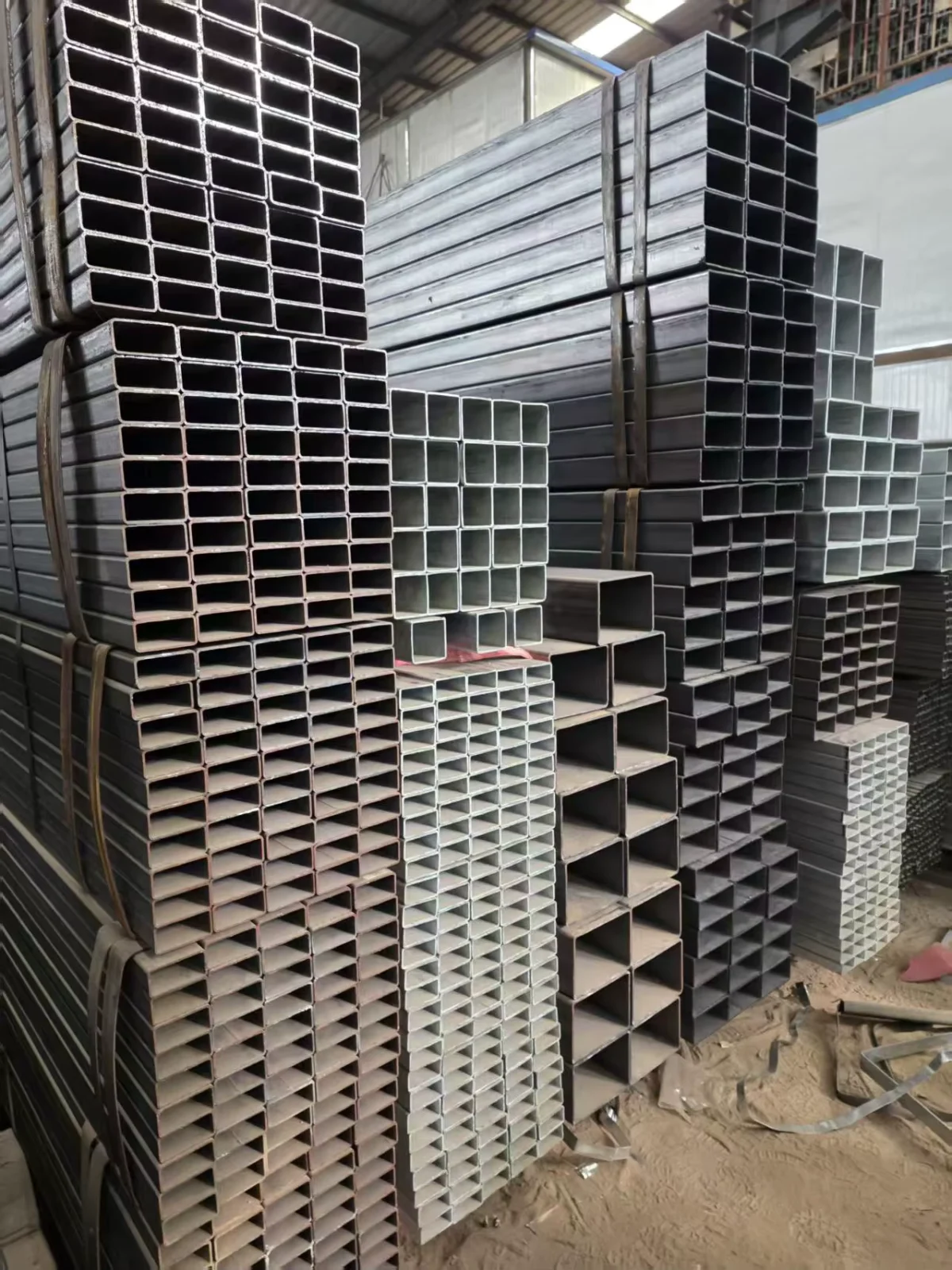

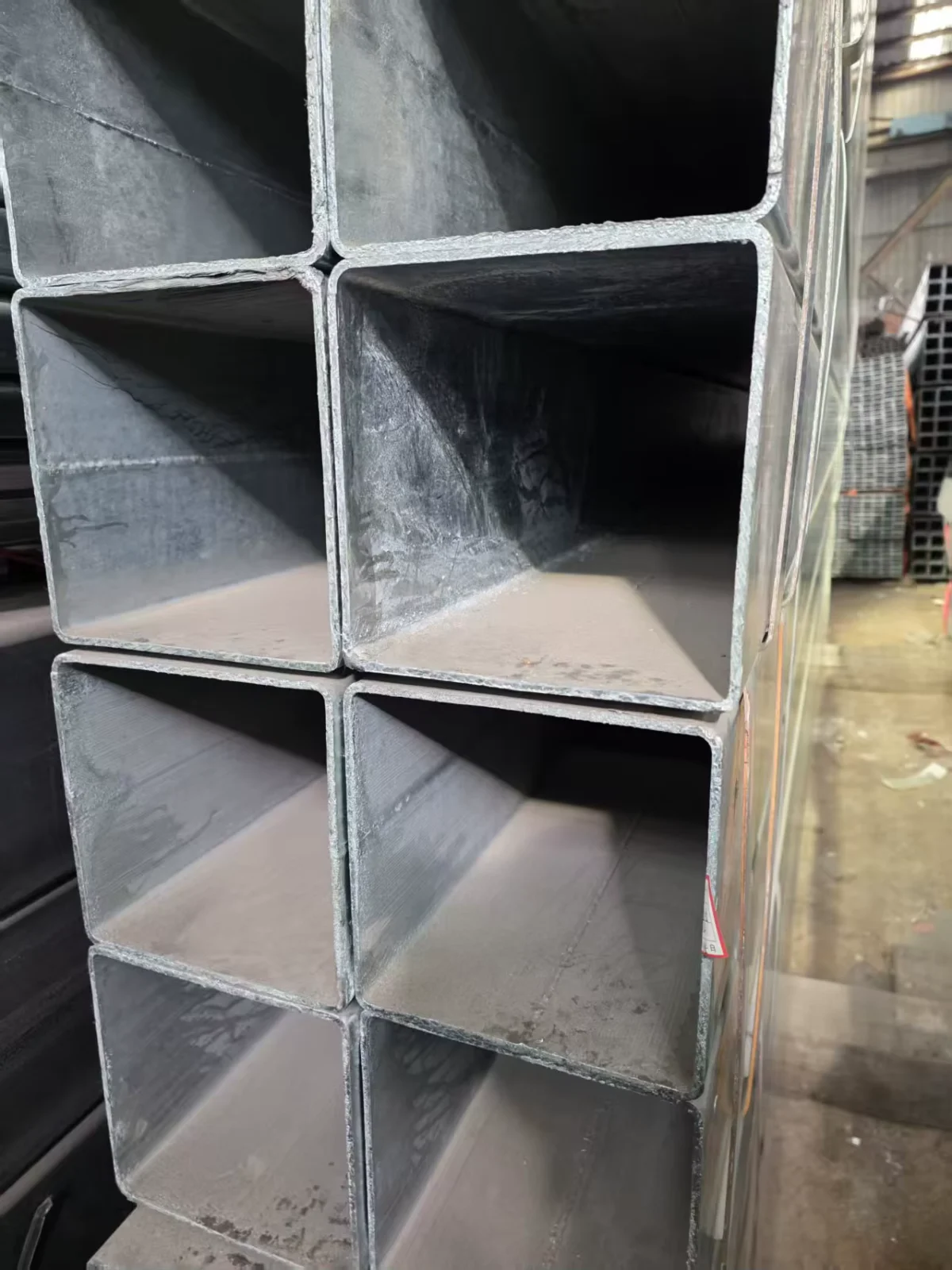

Factory-Direct Bulk Supply — Dx51d–G550 galvanized square and rectangular steel tubes produced in-house with zero spangle finish and original mill test certificates for every heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Dx51d–G550 Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Dx51d, Dx52d, Dx53d, G550, S350 |
| Standard | ASTM, CE, ISO 9001, RoHS |
| Section Shape | Square / Rectangular |
| Size Range | Square and rectangular profiles per inquiry |
| Wall Thickness | 1.0–5.0 mm |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot Rolled Based |
| Surface Treatment | Galvanized (Z30–Z40), Slightly Oiled |
| Spangle Type | Zero Spangle |
| Hardness | Hard |
| Skin Pass | Yes |
| Tolerance | ±1% |
| Ends | Plain ends |
| Application | Making Pipes, Cutting Sheets, Making Small Tools, Making Fences, Steel Structures, Construction Frames, Scaffolding, Furniture |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Scaffolding systems, structural frames for warehouses, fencing posts and rails |
| Industrial Fabrication | Pipe manufacturing feedstock, small tool frames, machinery base structures |
| Agricultural & Commercial | Greenhouse support frames, furniture frames, storage rack uprights |
What Galvanized Coating Weight Really Means for Your Project Timeline
A missing or thin zinc layer turns a straightforward delivery into a port-side rejection.
Buyers in Southeast Asia and South America frequently report that galvanized tubes arrive with coating weights well below purchase orders — 45 microns instead of 60, for instance — and the third-party inspector flags the entire container. [NEED_CITE: galvanized coating thickness measurement standards for structural hollow sections] The rework cost at the destination port often exceeds the original cargo value. When you source an ASTM Galvanized Square and Rectangular Steel Tube Supplier that runs its own galvanizing line and tests every batch before loading, this risk disappears from the equation.
Matching Zero-Spangle Galvanized Tubes to Structural and Fabrication Demands
The zero spangle finish on Dx51d through G550 grades gives fabricators a uniform surface that accepts paint, powder coating, or direct welding without the visual inconsistency of large zinc crystals. For scaffolding and construction frames, the Z30–Z40 coating with slight oiling provides sufficient corrosion resistance during typical on-site exposure while the ±1% wall-thickness tolerance keeps connection fittings aligned. As an ASTM Galvanized Square and Rectangular Steel Tube Supplier, we skin-pass every tube for dimensional accuracy — a step that matters when your crew is bolting hundreds of joints on a tight schedule.
Engineering Compliance and Certification Requirements Across Markets
Structural frames and scaffolding systems in the EU must conform to EN 10219 for cold-formed welded structural hollow sections, while North American projects typically reference ASTM A500. [NEED_CITE: EN 10219 cold-formed hollow section compliance requirements] The Dx51d–G550 grade range covers both light-duty furniture applications and higher-strength structural members, and our CE certification under EN 10210/10219 ensures your shipment clears EU customs without documentation delays. For projects requiring third-party verification, SGS or BV inspection is arranged before container sealing. [NEED_CITE: ASTM A500 grade equivalence with EN and JIS standards]
Understanding the Dx51d–G550 Grade Spectrum and Hot-Rolled Base Material
The Dx51d, Dx52d, and Dx53d designations follow the EN 10346 continuous hot-dip coating standard, where the numeric suffix indicates increasing formability — Dx53d draws deeper than Dx51d, making it suitable for complex bending operations. G550 sits at the high-strength end, offering greater load-bearing capacity for structural frames and scaffolding uprights where deflection limits are tight. S350 bridges the gap for moderate structural applications. The hot-rolled base material provides a consistent substrate for the Z30–Z40 zinc coating, and the zero spangle result comes from controlled cooling on the galvanizing line rather than post-treatment. Wall thickness from 1.0 mm to 5.0 mm covers everything from furniture frames to heavy-duty structural columns.
The Hidden Cost of Buying Galvanized Tubes Without Verified Coating Weight
When a supplier ships galvanized square and rectangular tubes with no mill test certificate or with a certificate that does not match the actual coating weight, the consequences cascade. Customs authorities in strict markets reject the shipment outright. [NEED_CITE: import documentation requirements for galvanized steel products] Even if the cargo clears, the engineer on site may discover insufficient corrosion protection during the first rainy season, leading to premature rust and structural safety concerns. The cost of pulling a container from the port, testing every piece, and arranging re-galvanizing or replacement far exceeds the price difference between a verified ASTM Galvanized Square and Rectangular Steel Tube Supplier and an unverified one.
Why Project Buyers and Traders Source from Shandong Xin Jiyuan
We run three production lines simultaneously with a monthly capacity exceeding 20,000 tons, which means your standard-size Dx51d or G550 tubes ship from ready stock while custom lengths move through production in typical lead times. Every heat number is tested in our in-house laboratory and backed by an original mill test certificate — the same certificate we showed the Santos port inspector after the coating incident years ago. Our inventory covers 2,800+ specifications across square, rectangular, and round profiles, so a single container can combine multiple sizes for consolidated loading. CE certification under EN 10210/10219, ISO 9001:2015, and third-party SGS/BV inspection availability address the certification gaps that cause the most customs delays. We optimize container loading plans for heavy steel tube shipments, maximizing weight per TEU to reduce your per-ton freight cost.
Documentation & Compliance
- Mill test certificate documenting Dx51d–G550 chemical composition and coating weight per batch, tied to individual heat numbers
- CE certificate covering EN 10210/10219 for galvanized structural hollow sections exported to EU markets
- ISO 9001:2015 quality management certificate for the full production and galvanizing process
- SGS or BV third-party inspection report available upon request before container sealing
- Material traceability from raw coil heat number through galvanizing batch to finished tube bundle
- Full customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

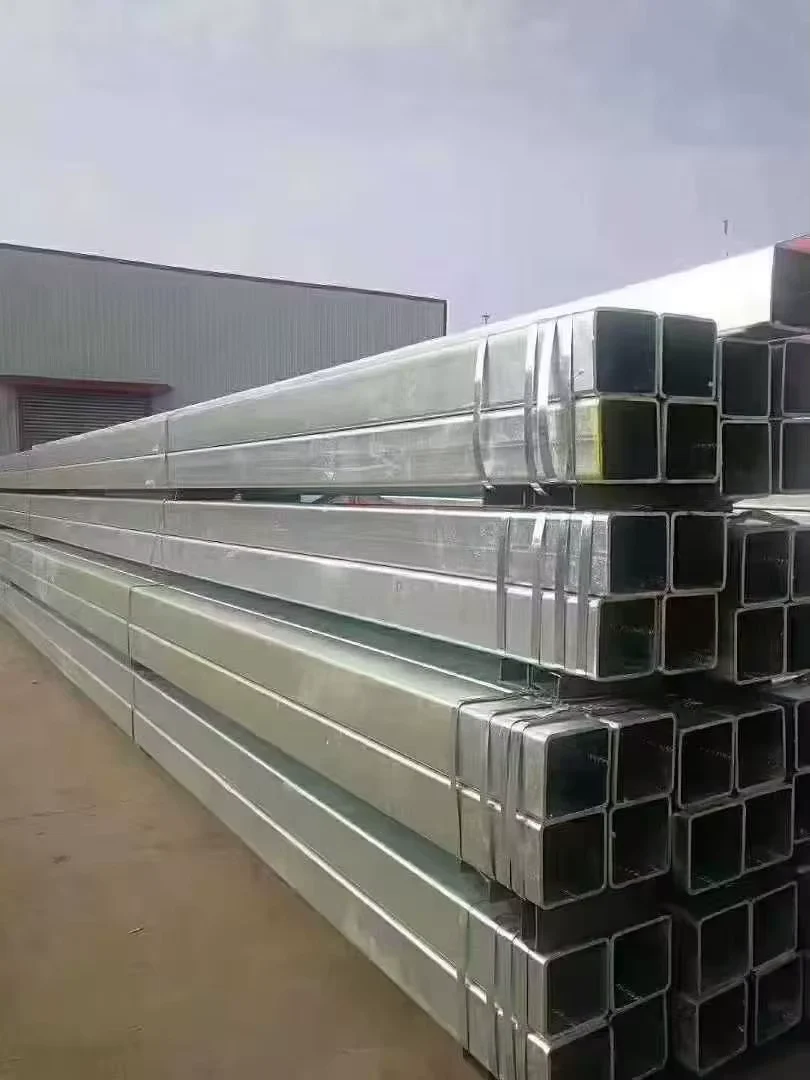

- Galvanized square and rectangular tubes bundled with steel strips and edge protectors to preserve the zero spangle zinc coating during ocean transit
- Slight oiling applied to Z30–Z40 galvanized surfaces prevents white rust formation during extended container shipping to tropical ports
- Container loading plans optimized for 6 m and 12 m lengths to maximize TEU weight utilization for heavy-wall G550 and S350 sections
- Heat number and steel grade stenciled on each bundle for on-site traceability and inspector verification
- FOB, CIF, and DDP terms available with professional export documentation handling for 50+ destination countries
- Custom cut-to-length service available for 1.0–5.0 mm wall thickness tubes before bundling and loading
Start Your Procurement With Verified Specifications
Submit your required steel grade (Dx51d, Dx52d, Dx53d, G550, or S350), section dimensions, wall thickness, quantity, and destination port — we respond within hours with bulk pricing, available stock status, and the mill test certificate format for your review. Non-standard sizes and custom lengths are quoted with typical production lead times, and third-party inspection can be confirmed before the deposit stage.
Request Your Bulk Quote and Mill Test Certificate Today
Send your specification sheet via email or WhatsApp to receive factory-direct pricing with volume discounts, complete documentation, and optimized container loading plans for your next project.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxinjiyuan.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxinjiyuan.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How do Dx51d, Dx52d, and G550 grades compare to ASTM A500 designations?
A: Dx51d through Dx53d follow the EN 10346 hot-dip coating standard with increasing formability, while G550 provides high structural strength. ASTM A500 covers cold-formed welded structural tubing with separate grade classifications. We provide grade equivalence guidance for your specific engineering specifications.
Q: Can you provide third-party inspection and mill test certificates for EU customs clearance?
A: Yes. Every batch ships with an original mill test certificate tied to the heat number. SGS or BV third-party inspection is arranged before container sealing. Our CE certification under EN 10210/10219 covers galvanized structural hollow sections for EU market compliance.
Q: What is the MOQ for non-standard sizes and custom lengths?
A: Our minimum order quantity is 1 Ton per company policy. Standard sizes ship from ready stock, while custom dimensions and cut-to-length orders are produced within typical lead times. We accommodate trial orders and scale to full-container bulk shipments.
Q: What are the differences between Z30, Z30–Z40, and higher zinc coating weights?
A: Z30–Z40 indicates the zinc coating mass range applied to the hot-rolled base material. Higher coating weights provide greater corrosion resistance for harsher environments. Our zero spangle finish ensures a uniform surface suitable for painting or direct exposure, with slight oiling to prevent white rust during transit.
Q: How do you optimize container loading for heavy galvanized steel tube shipments?
A: Our export team prepares loading plans that maximize TEU weight utilization based on your specific tube dimensions, wall thickness, and length. For 6 m and 12 m lengths in 1.0–5.0 mm wall thickness, we combine sizes to reach maximum payload while protecting the galvanized coating with edge protectors and proper bundling.
